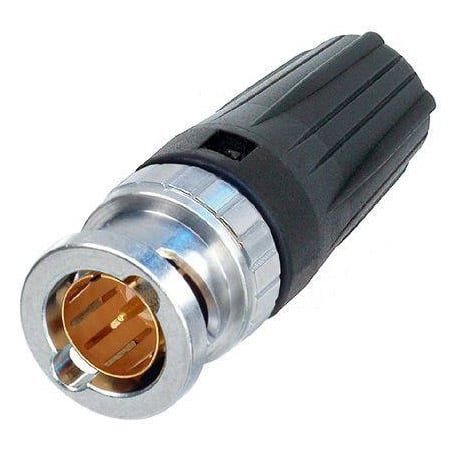

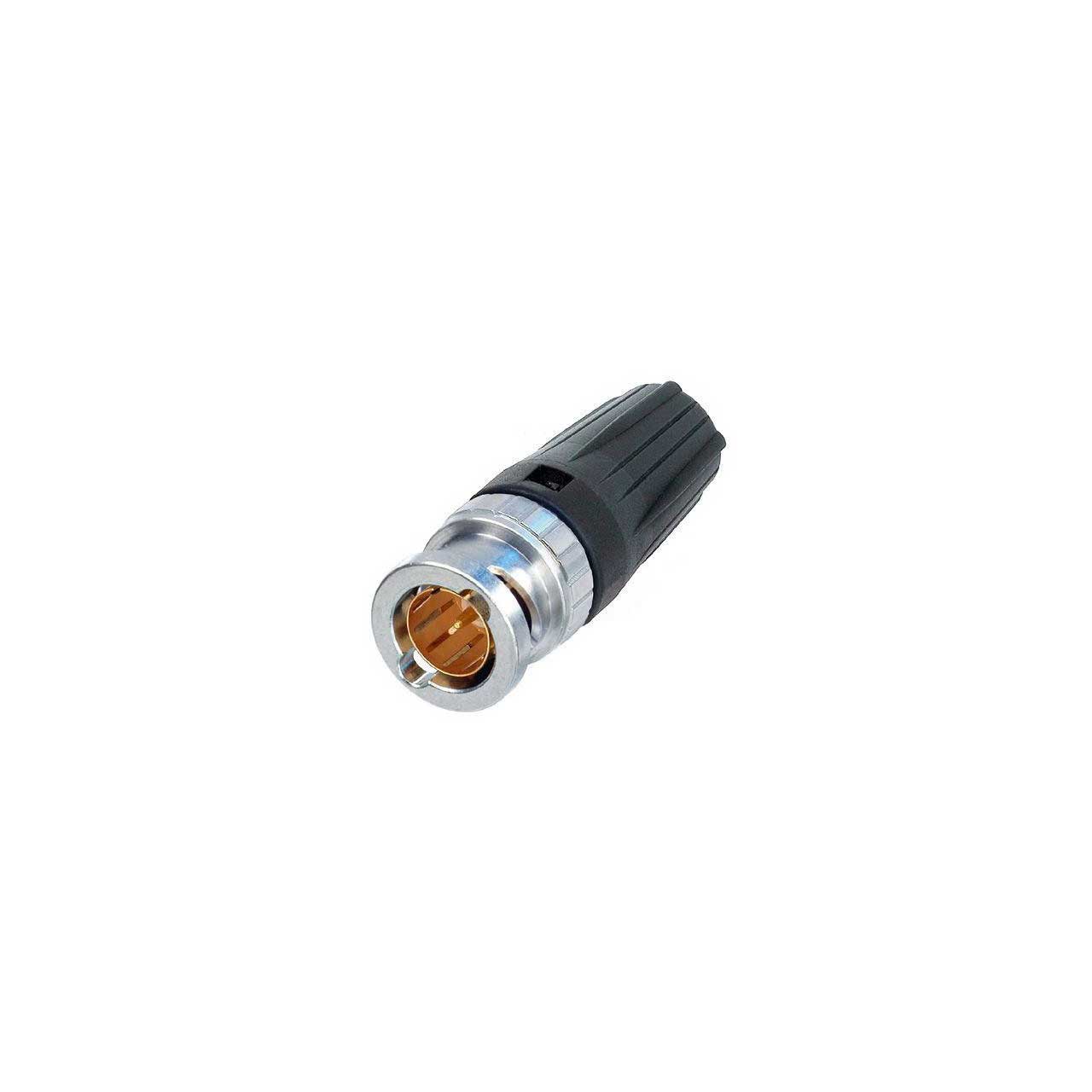

Neutrik NBTC75BFI4 RearTwist 75 Ohm Tiny BNC Crimp Connector for Belden 179DT - Each

ITEM #: NBTC75BFI4 MFG #: NBTC75BFI4

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$5.70

Our Price:

$4.99

Availability: In Stock


NBTC75BFI4 - Overview

The RearTwist Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.

Like all Neutrik BNCs it offers a true 75 Ohm design and is perfectly suitable for HD applications. The patented Rear Twist boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B

  • Features:

    • "RearTwist Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507).
    • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
    • True 75 Ohm design meets the stringent HD requirements.
    • Optimized assembly for mutlicore or tiny cables.
    • Snug-fit center pin assembly provides tactile feedback.
    • Excellent cable protection and retention.
    • Precise machined brass parts for outstanding durability.
    • Accessories include color coded boots in 10 standard colors, crimp tool and dies.

  • Specifications:

    • Crimp size - Pin: 1.6 mm (square)
    • Crimp size - Shield: 4.06 mm (hex)

  • GTIN:

    7613187002854
