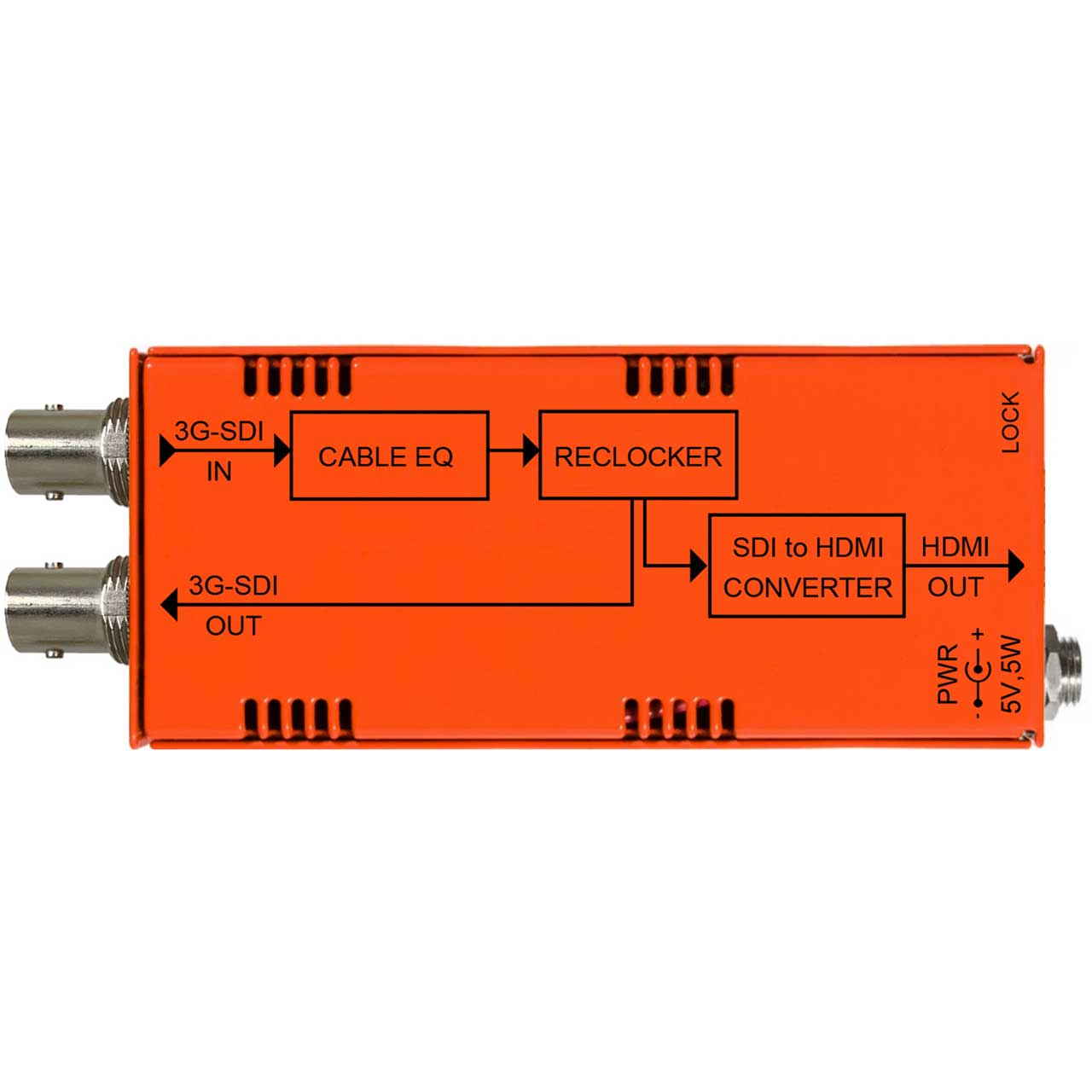

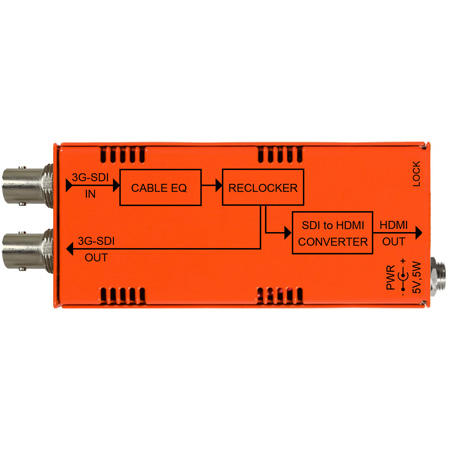

The NBX-3G-HDMI from MultiDyne provides a miniature solution to convert a 3G/HD/SD-SDI signal to an HDMI signal in a package small enough to hang right behind your monitor.

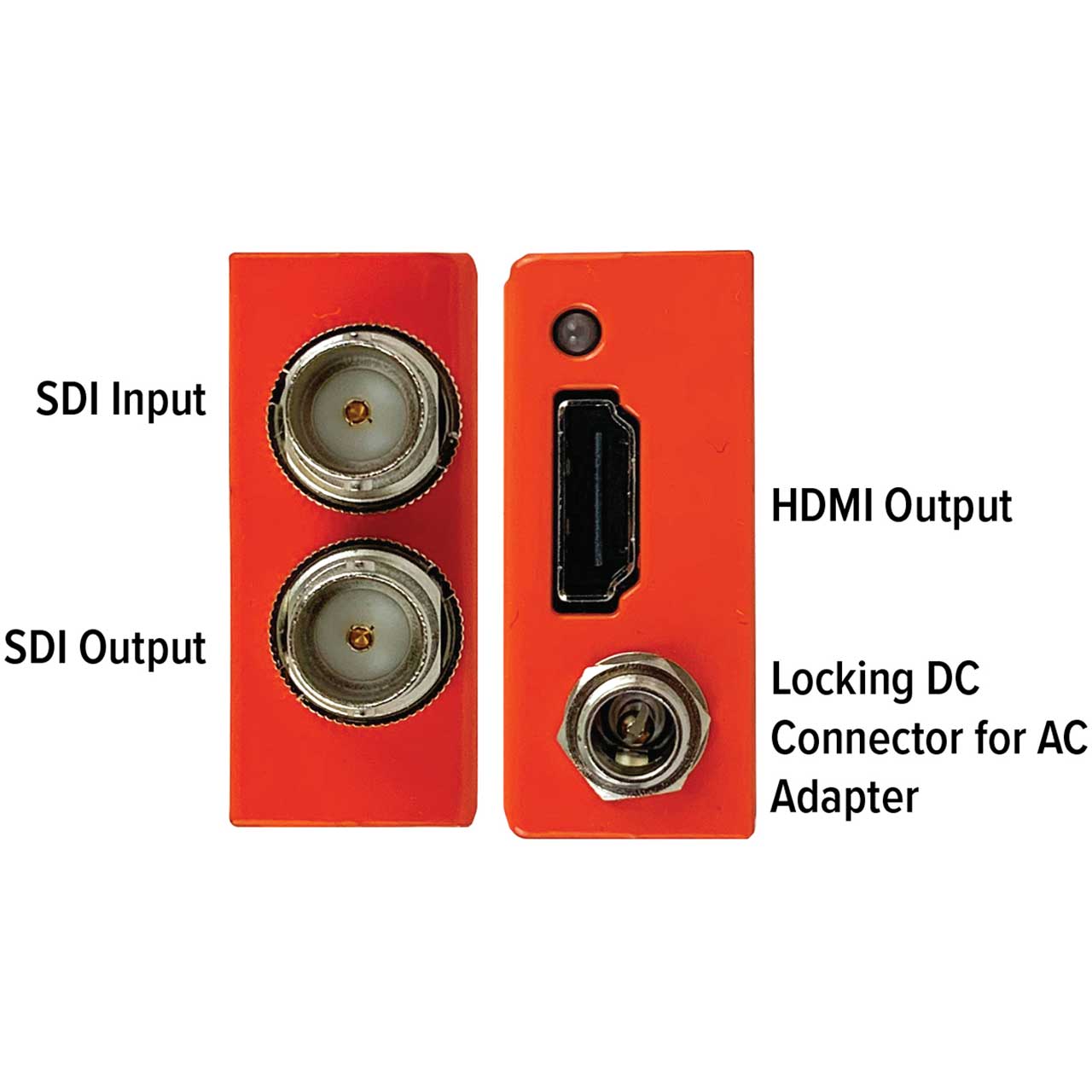

The unit accepts one SDI signal on a BNC connector and provides one reclocked SDI output on a BNC as well as one HDMI output on a standard HDMI connector.
The NBX-3G-HDMI provides reclocking of the incoming SDI signal on the BNC connectors. A dual-LED indicator provides a GREEN status indication to show that the reclocker is locked to a valid SDI signal or a RED status indicating a valid SDI signal is not present.
Power to the NBX-3G-HDMI is provided by an external AC Adapter with a locking DC connector supplied with the module.
Applications
Live BroadcastArenas and StadiumsShared Control RoomsCampus Facilities
