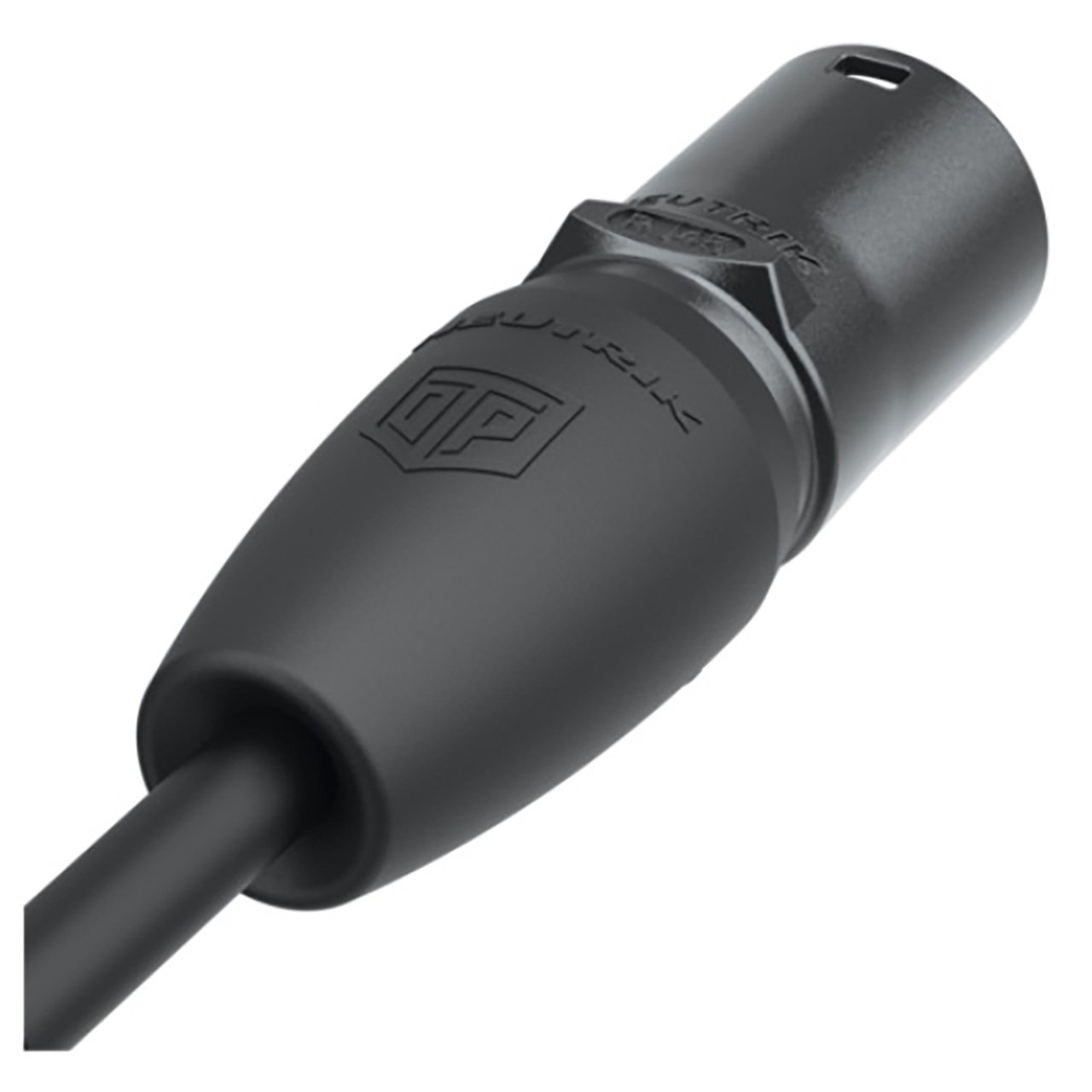

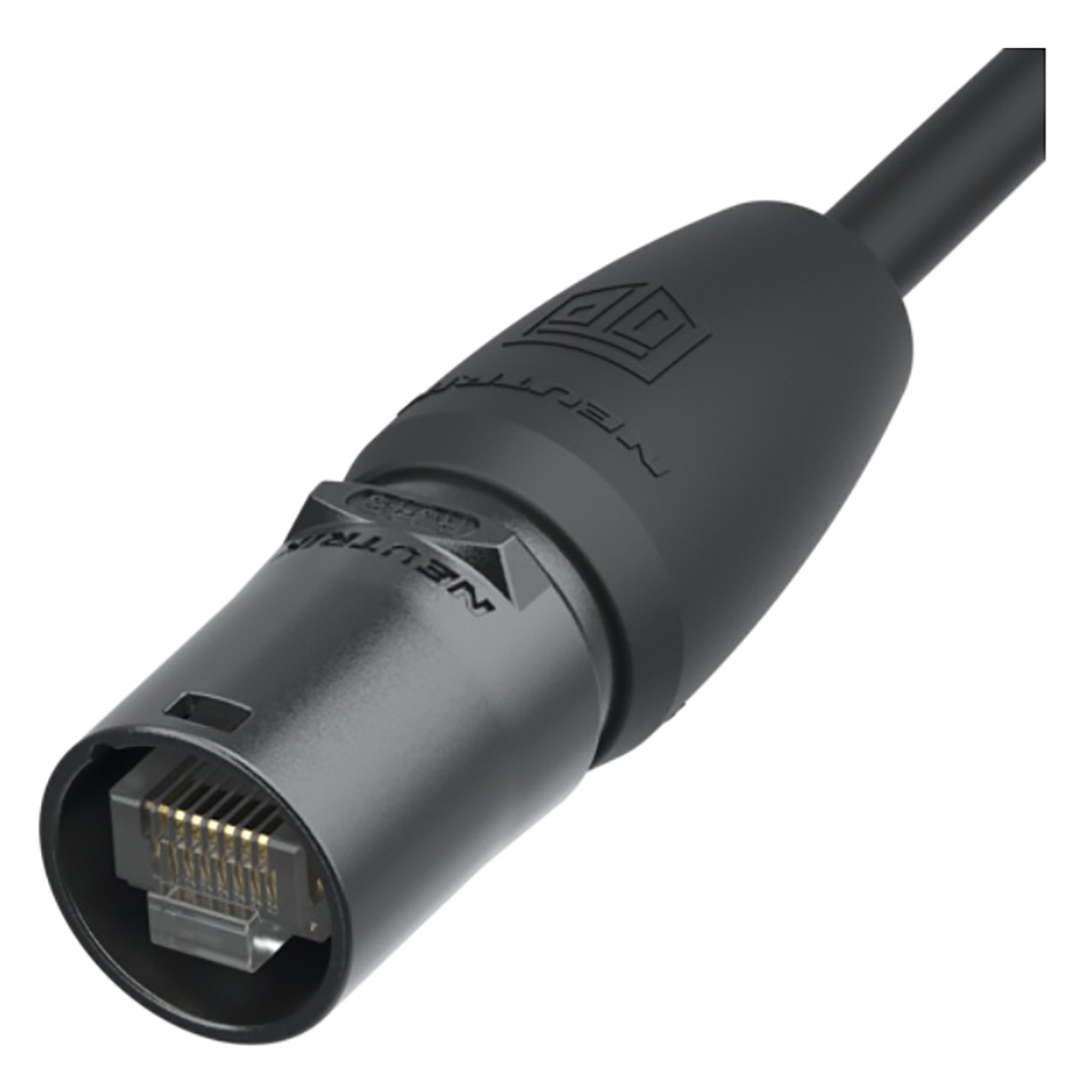

NEUTRIK NE8MX-B-TOP-14 ethercCON RJ45 Cable Connector Carrier - 8mm-10mm OD - Black Chromium Shell - 100/Pack

NE8MX-B-TOP-14 - Overview

• Features:

  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
  • Allows assembly of non pre-assembled conventional RJ45 cables


• Specifications:

  • Connection type: etherCON
  • Gender: Male

    Mechanical
  • Cable O.D.: 8.0 - 10.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles

    Material
  • Boot: Thermoplastic elastomer (TPE)
  • Shell: Zinc diecastÿ(ZnAl4Cu1)
  • Shell coating: Black KTL
  • Insert: Polyamide (PA66)
  • Strain relief: Polyacetalÿ(POM)

    Environmental
  • Protection class: IP65 (mated)
  • Temperature range: -30 °C to +80 °C


• Item Includes:

  • 1x NEUTRIK NE8MX-B-TOP-14 ethercCON Cable Connector Carrier - 8mm-10mm OD - Black Chromium Shell - 100/Pack
