Ocean Matrix OMX-01HMBT0003-R HDBaseT 4K HDMI Receiver with Two-Way IR - RS232 - CEC - PoC

ITEM #: OMX-01HMBT0003-R MFG #: OMX-01HMBT0003-R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Ocean Matrix
Free Shipping with $49 Minimum Order

List Price:

$149.95

Our Price:

$129.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OMX-01HMBT0003-R - Overview

The Ocean Matrix OMX-01HMBT0003-R 4K HDMI Receiver box meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT6/6A cable up to 131 feet. Supporting video resolutions up to 4K2K@60Hz(4:4:4), this extender features two-way IR, RS232 control, and two-way 24V PoC making system installation easier and allowing for streamlined setups.

  • Features:

    • Extends Two-Way IR & RS232 Pass Through
    • Video Resolutions up to 4K2K@60Hz YUV4:4:4
    • Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
    • Up to 7.1 Channels HD Audio
    • Two-Way 24V PoC
    • Rugged Black Powder-Coated Metal Enclosure
    • CE, FCC Certified


  • Specifications:

    • Compliance: HDMI 2.0b, HDCP2.2, HDCP 1.4
    • Video Bandwidth: 18Gbps
    • Video Resolutions: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,1080P 3D@60Hz
    • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 10-bit, 12-bit
    • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Power Consumption: 7.5W
    • Dimensions(HxWxD): 0.8 x 6.8 x 3.8 in
    • Weight: 0.92 lb


  • Item Includes:

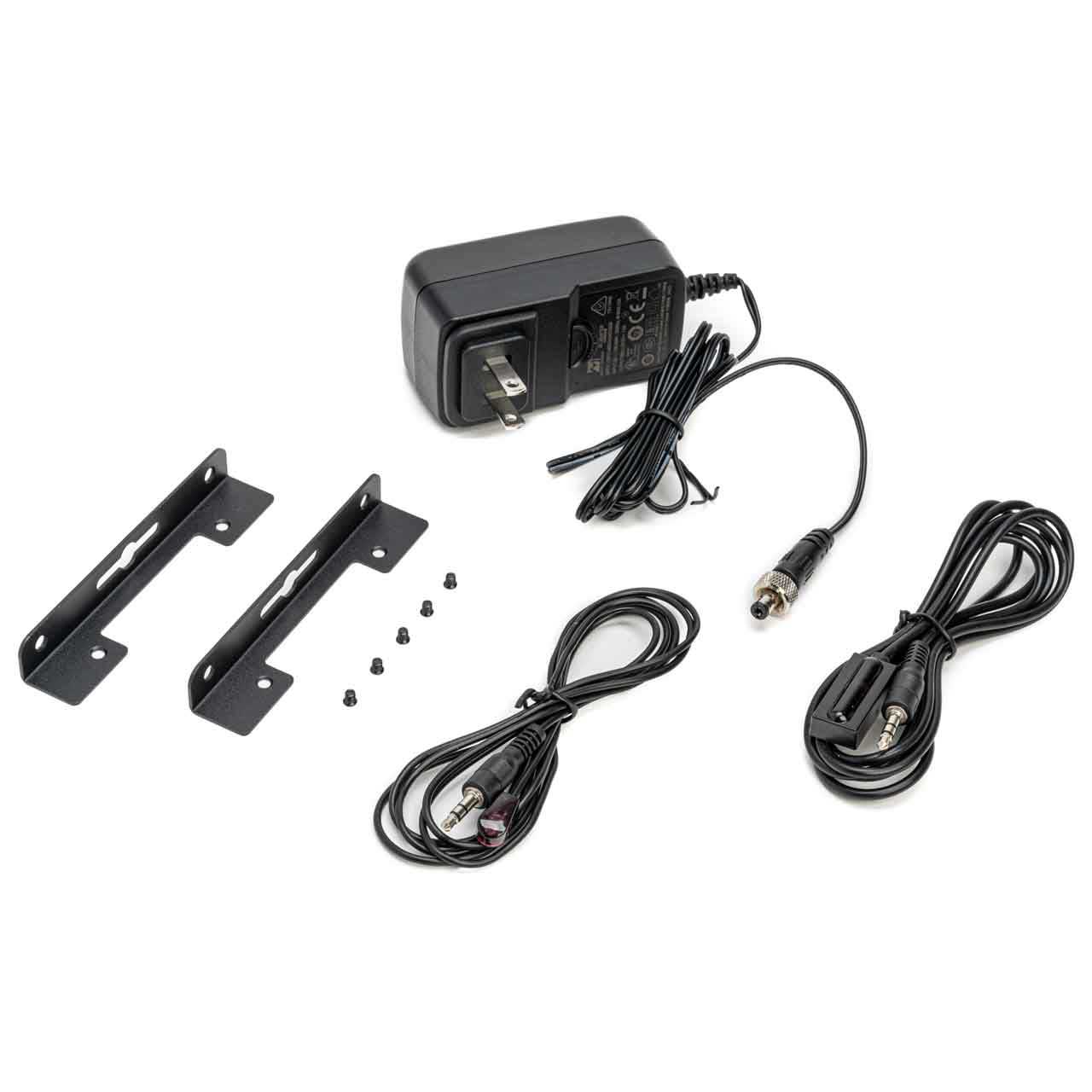

    • 2 Mounting Ears, 1-RS232 Connector, 1-24V/1A power supply


  • Warranty:

    • 1 Year
