PreSonus StudioLive Series III Mobile Pack - Includes StudioLive 16R/EarMix 16/SW5E

ITEM #: PRE-SLS3-MOBL-PK MFG #: STUDIOLIVE II MOBILE PACK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PRE-SLS3-MOBL-PK

STUDIOLIVE II MOBILE PACK - Overview

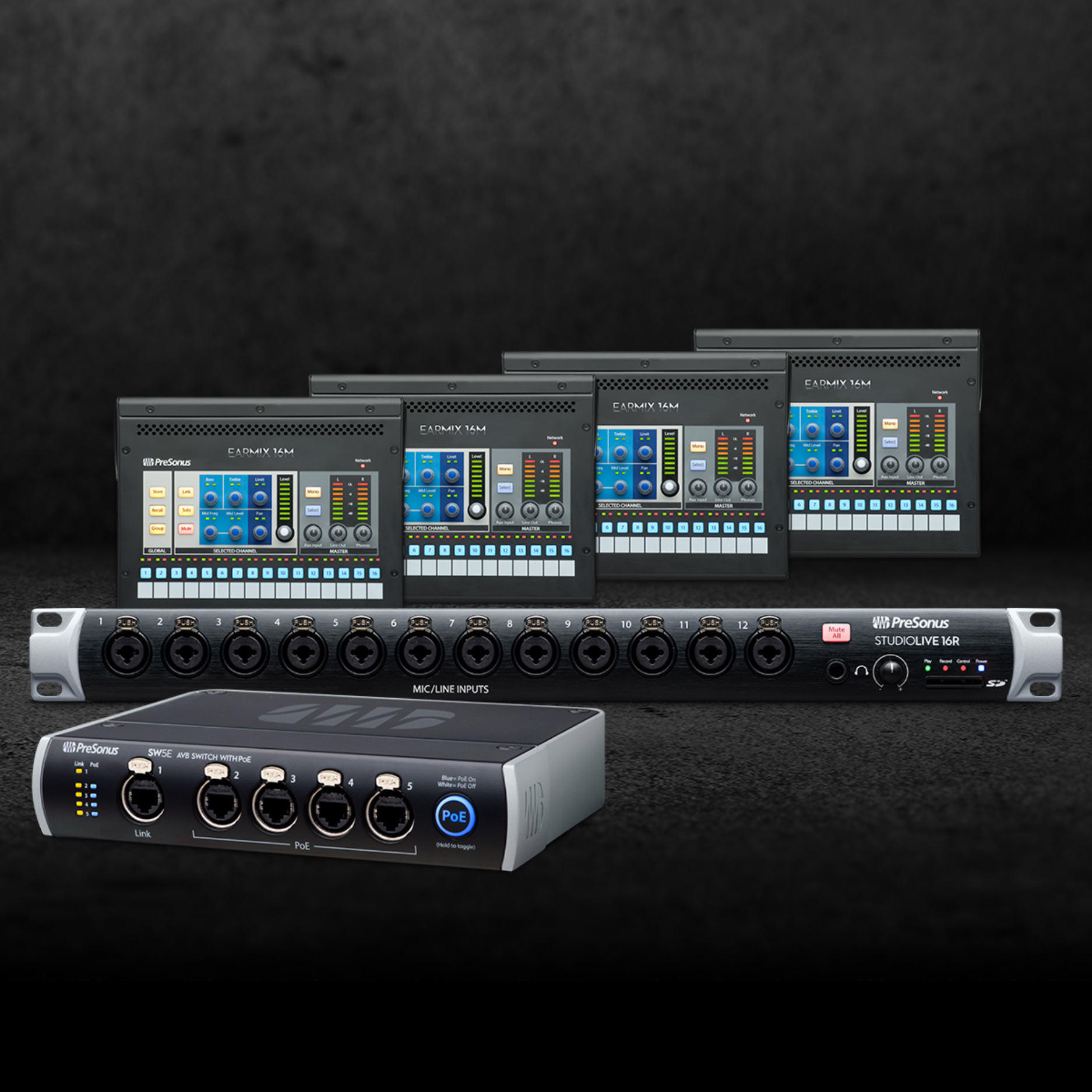

The PreSonus StudioLive III Mobile Package is ideal for applications requiring mobility and quick setup. The StudioLive 16R will allow you to mix a typical live band via 16 inputs. Four EarMix 16M Personal Monitors will allow up to four musicians to each dial in a custom mix to their liking. The SW5E AVB Switch is the key to the entire ecosystem, allowing all of these devices to connect to each other smoothly and reliably.

  • Specifications:

    • Mic Preamp
    • Input Type: Combo locking XLR mic-1/4" TRS line
    • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
    • Input Impedance: 1 kΩ
    • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
    • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
    • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
    • Gain Control Range (±1 dB): 0 dB to +60 dB
    • Maximum Input Level (unity gain): +12 dBu
    • Phantom Power (±2 VDC): 48 VDC, switchable per channel

      Unbalanced Inputs (Ch. 15-16)
    • Type: RCA Female, unbalanced (stereo pair)
    • Maximum Input Level: +12 dBu, ±0.5 dBu

      Main Outputs
    • Type: XLR Male, balanced
    • Maximum Output Level: +24 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Mix Outputs
    • Type: 1/4" TRS Female, balanced
    • Maximum Output Level: +18 dBu, ±0.5 dBu
    • Output Impedance: 100Ω

      Headphone Output
    • Type: 1/4" TRS Female, active stereo
    • Maximum Output: 100 mW/ch. @ 60Ω load
    • Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
    • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
    • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

      Digital Audio and Control
    • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
    • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
    • USB Recording Port: USB 2.0, Type-B
    • Network Control Port: RJ-45
    • AVB Audio Network Port: Locking XLR Ethernet
    • Internal Processing: 32-bit, floating point
    • Sampling Rate: 48 kHz
    • A/D/A Bit Depth: 24
    • Reference Level for 0 dBFS: +18 dBu
    • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

      Physical
    • Connector: IEC
    • Input-Voltage Range: 90 to 230 VAC (±10%)
    • Power Requirements (continuous): 85W
    • Recommended Ambient Operating Temperature: 32° to 104° F


  • Item Includes:

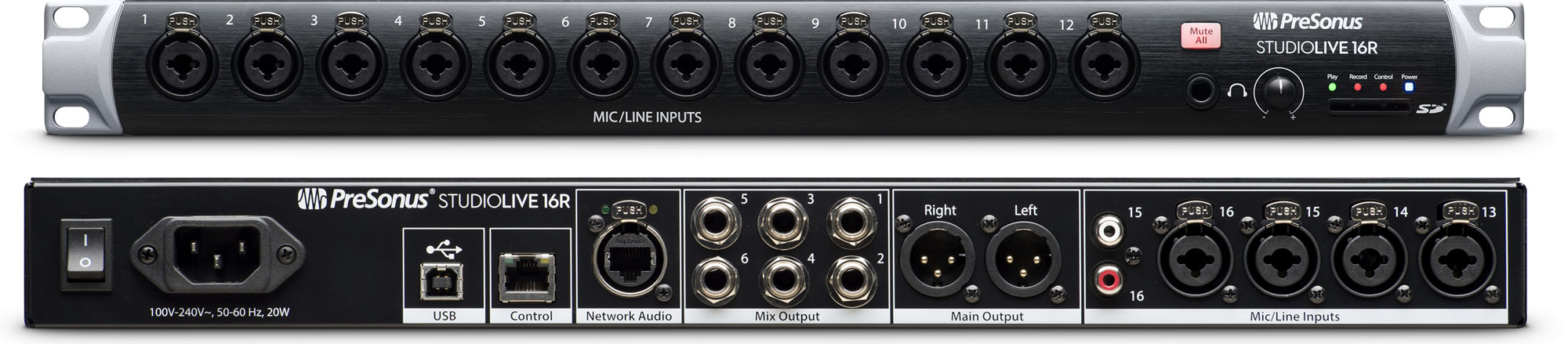

    • (x1) StudioLive 16R 16x8 digital rack mixer with 16 recallable XMAX preamps

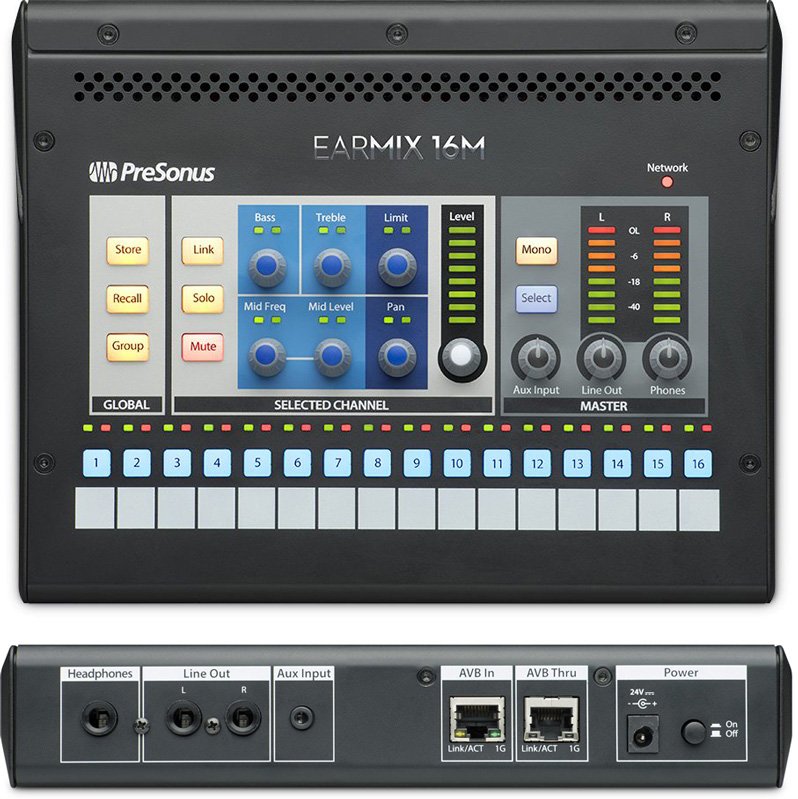

    • (x4) EarMix 16M 16-Channel AVB Networked Personal Monitor Mixers

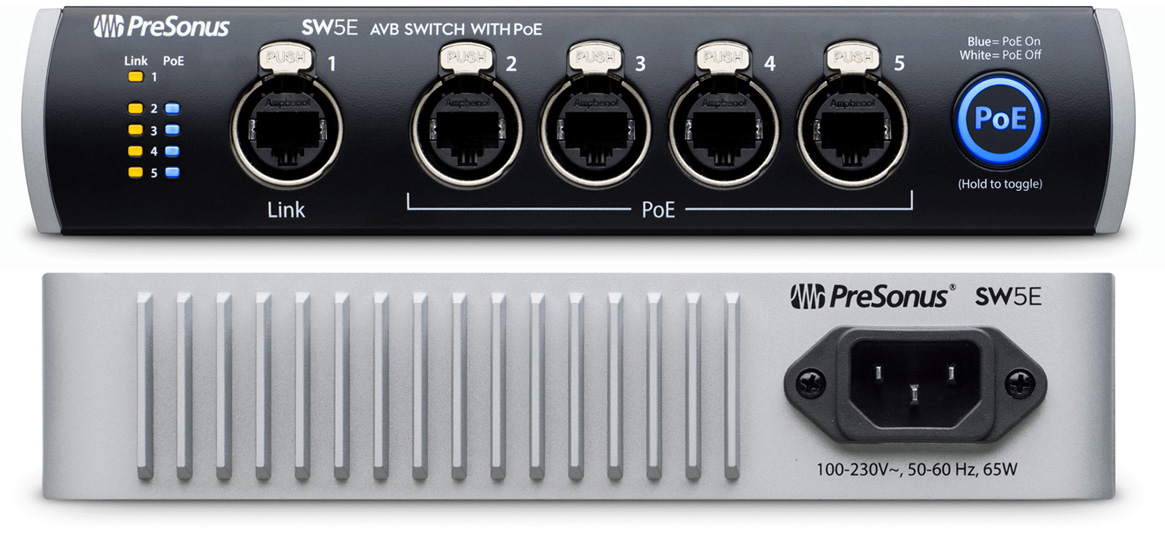

    • (x1) SW5E 5-Port AVB Switch with PoE


  • GTIN:

    0673454005961
