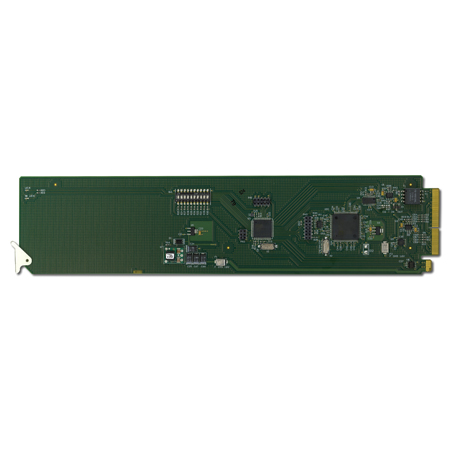

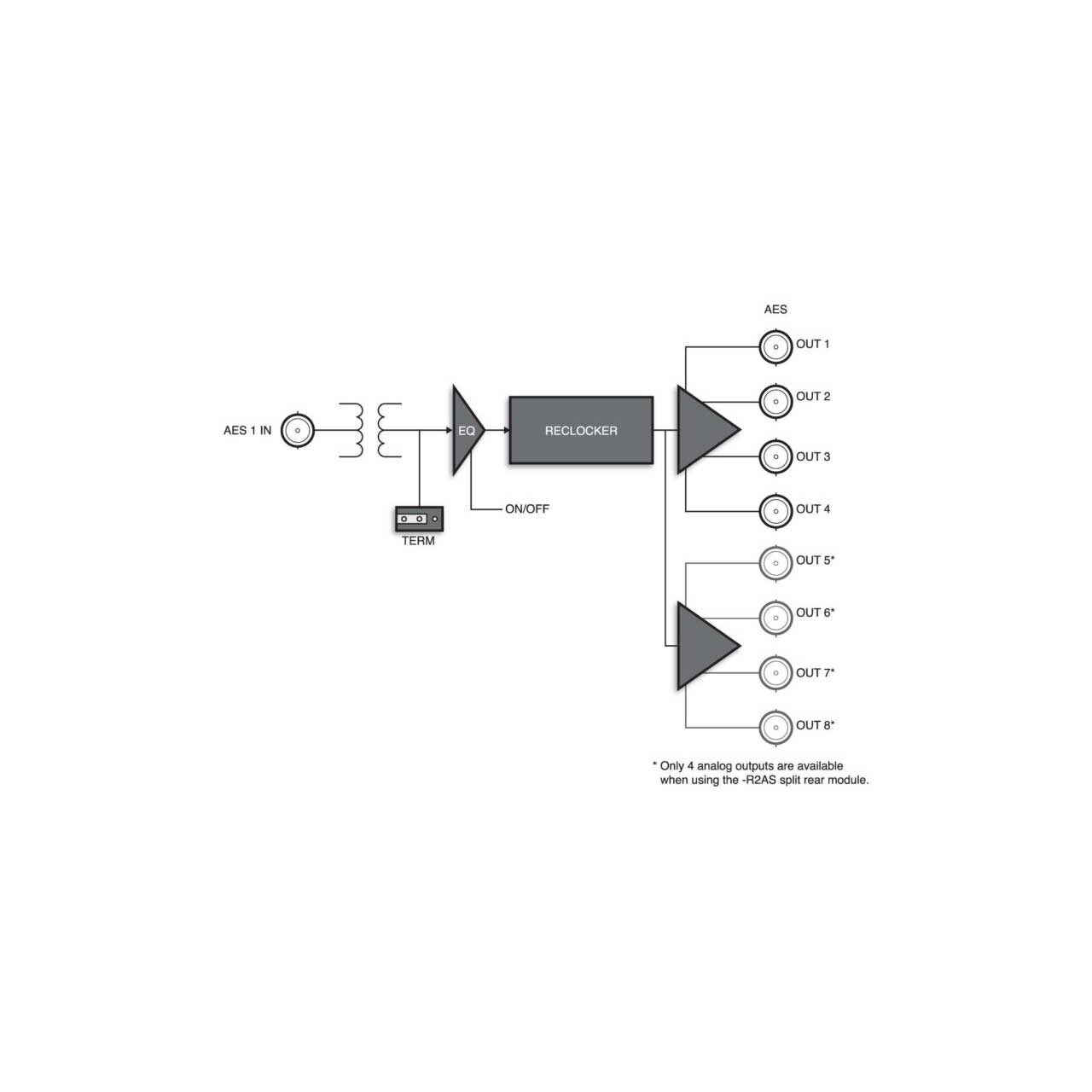

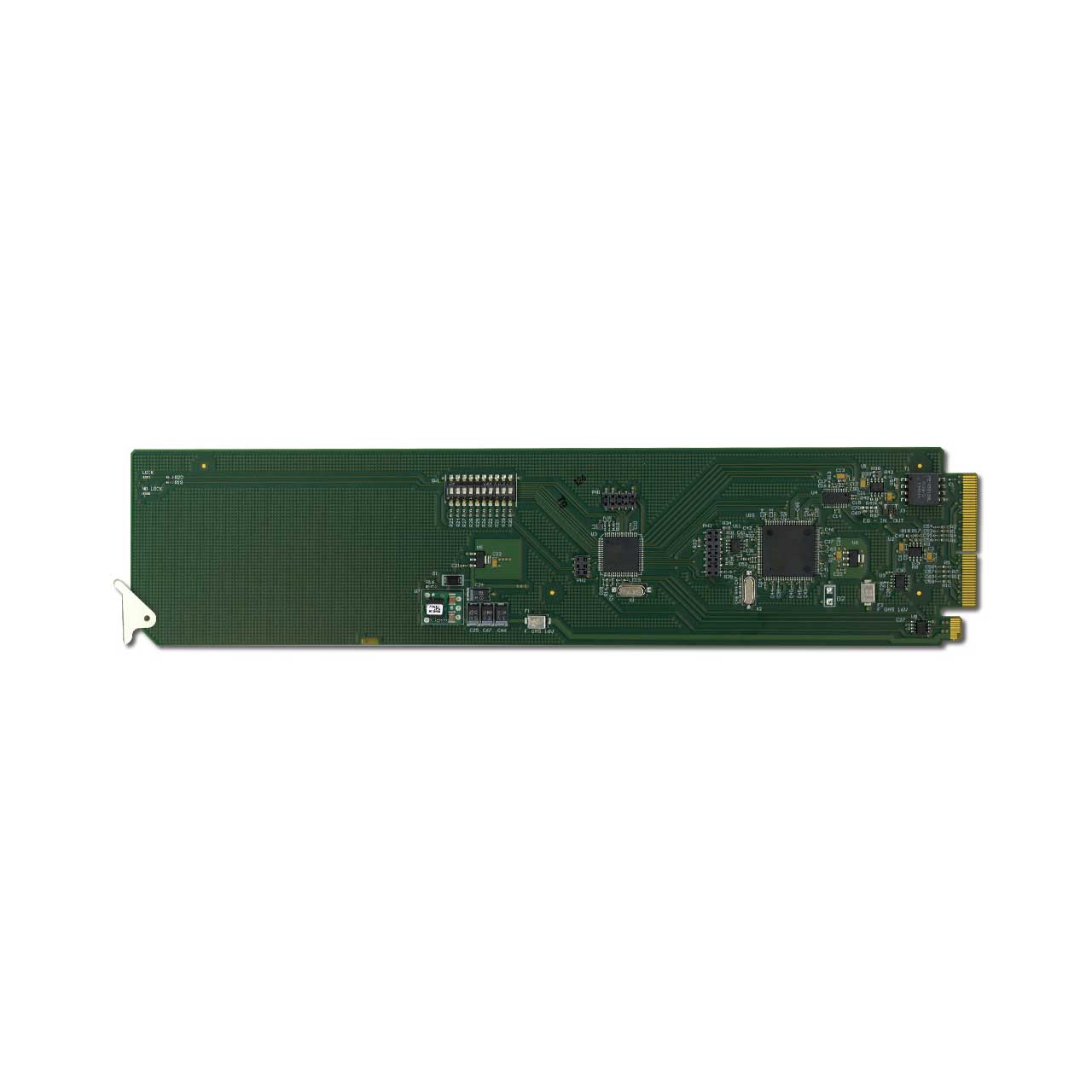

Ross ADA-8402-A is an AES / EBU distribution amplifier designed for broadcast use. It provides 8 copies of the incoming unbalanced AES3 signal when used with the -R2A full rear module or 4 copies of the incoming signal when used with the -R2AS split rear module. The ADA-8402-A supports audio sampling frequencies from 32kHz to 96kHz. Cable equalization and reclocking techniques enable the ADA-8402-A to recover the incoming digital audio signal reliably.
The ADA-8402-A also includes internal audio processing for independent channel gain, sum (mono), left or right channel only, and ITU1770 LKFS loudness measurements, which are displayed in DashBoard.
The -R2AS high density split rear module can accommodate up to 2x ADA-8402-A cards, each configured as a 1x4 DA, accommodating up to 20 channels of distribution per 2RU frame.
