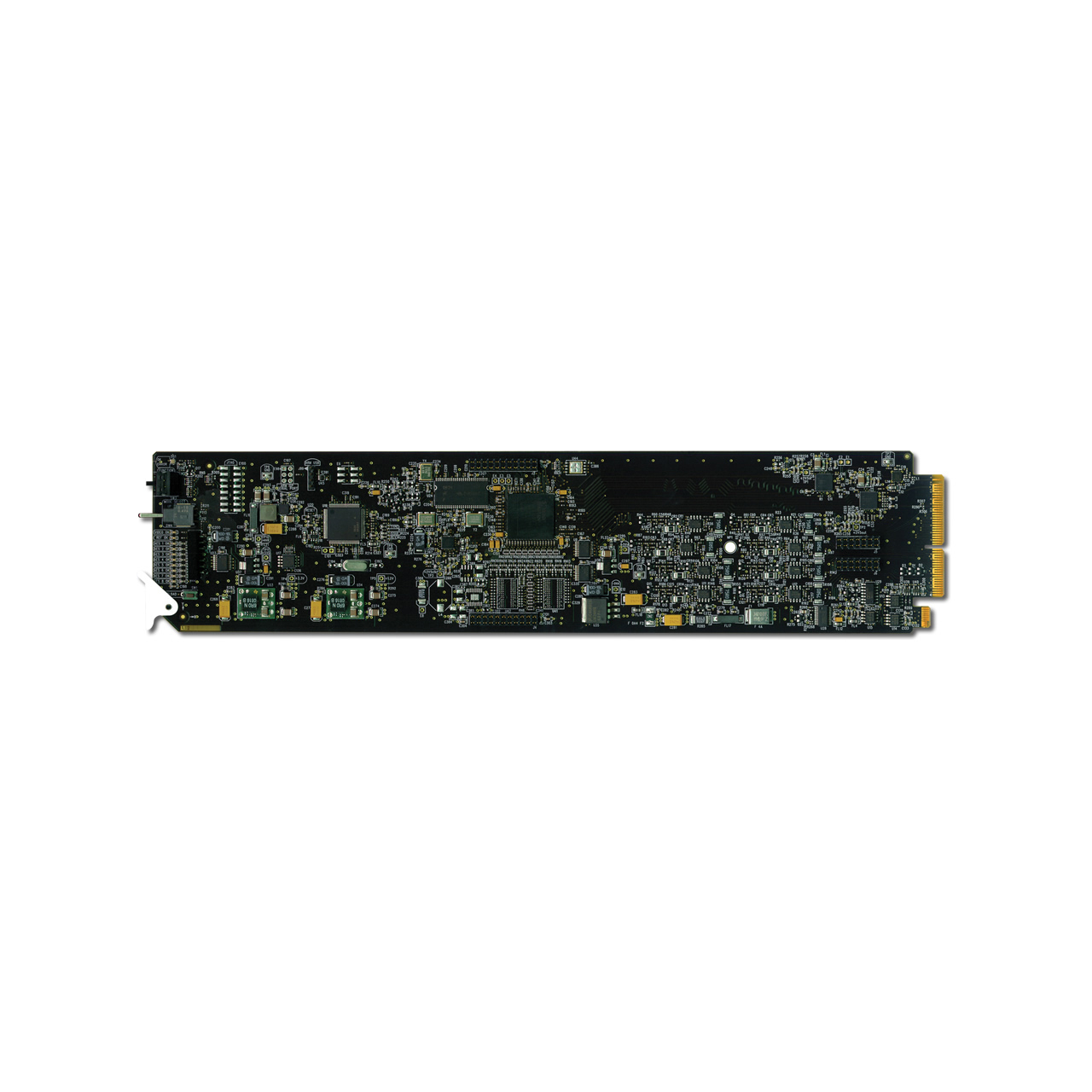

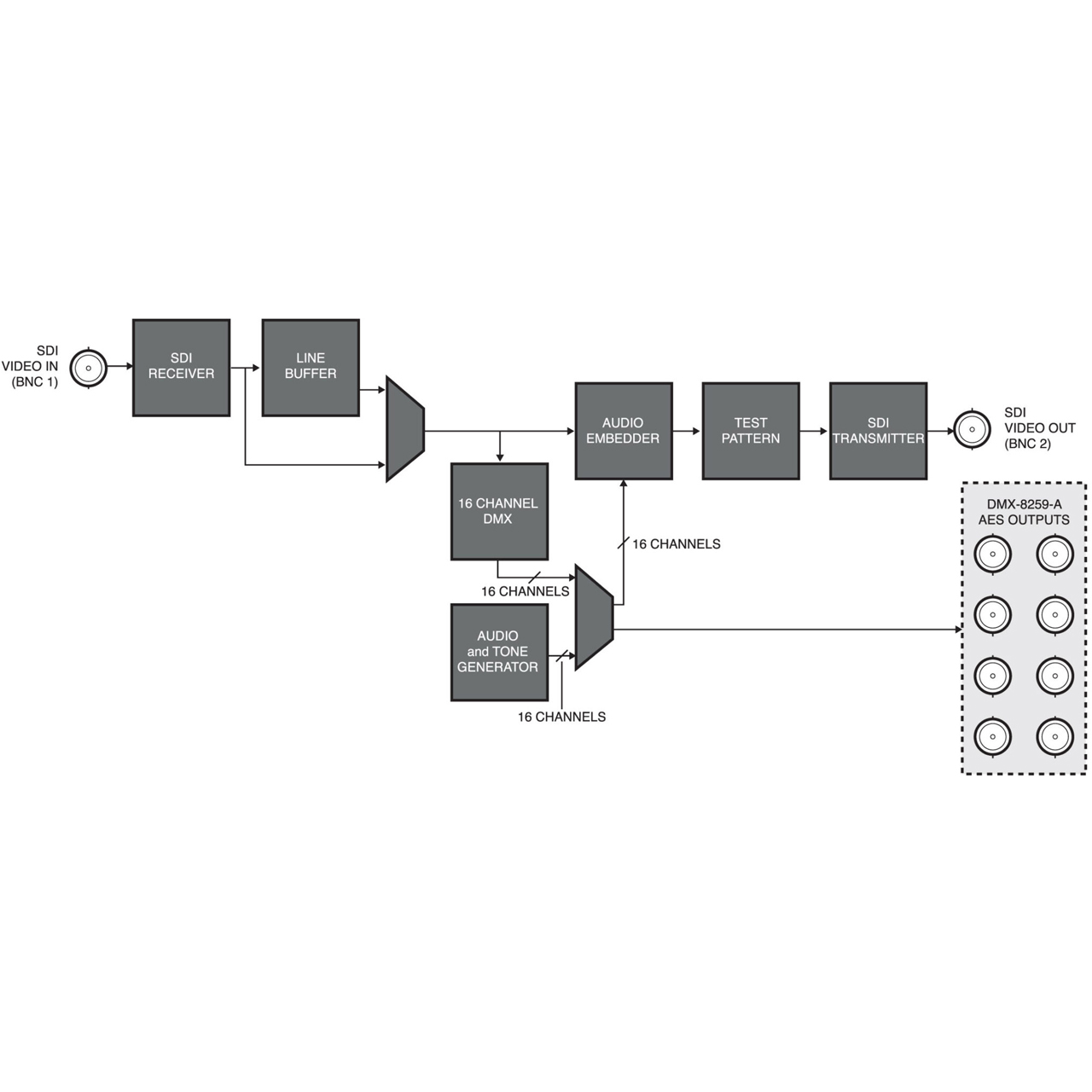

The Ross DMX-8259-A is a high quality program audio de-embedder capable of de-embedding up to 8 AES / EBU pairs (16 audio channels) from an 3G / HD / SD SDI signal. Audio proc amp control on each channel allows for audio processing with gain of ±20db, audio delay up to 1 second and channel invert.
The DMX-8259-A supports full channel assignment to the discrete outputs. Various configuration options, including internally generated patterns and tones, are available for audio and video output scenarios should a loss of input occur.
The DMX-8259-A features 8 AES 75Ω unbalanced outputs.
