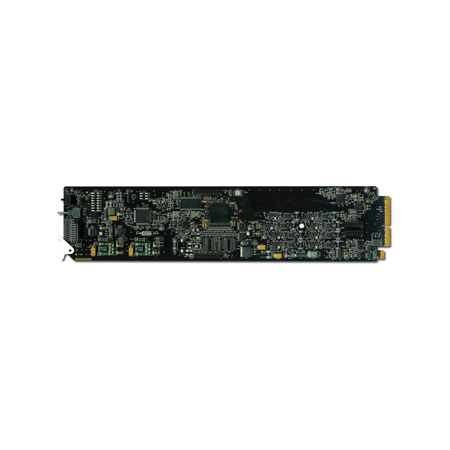

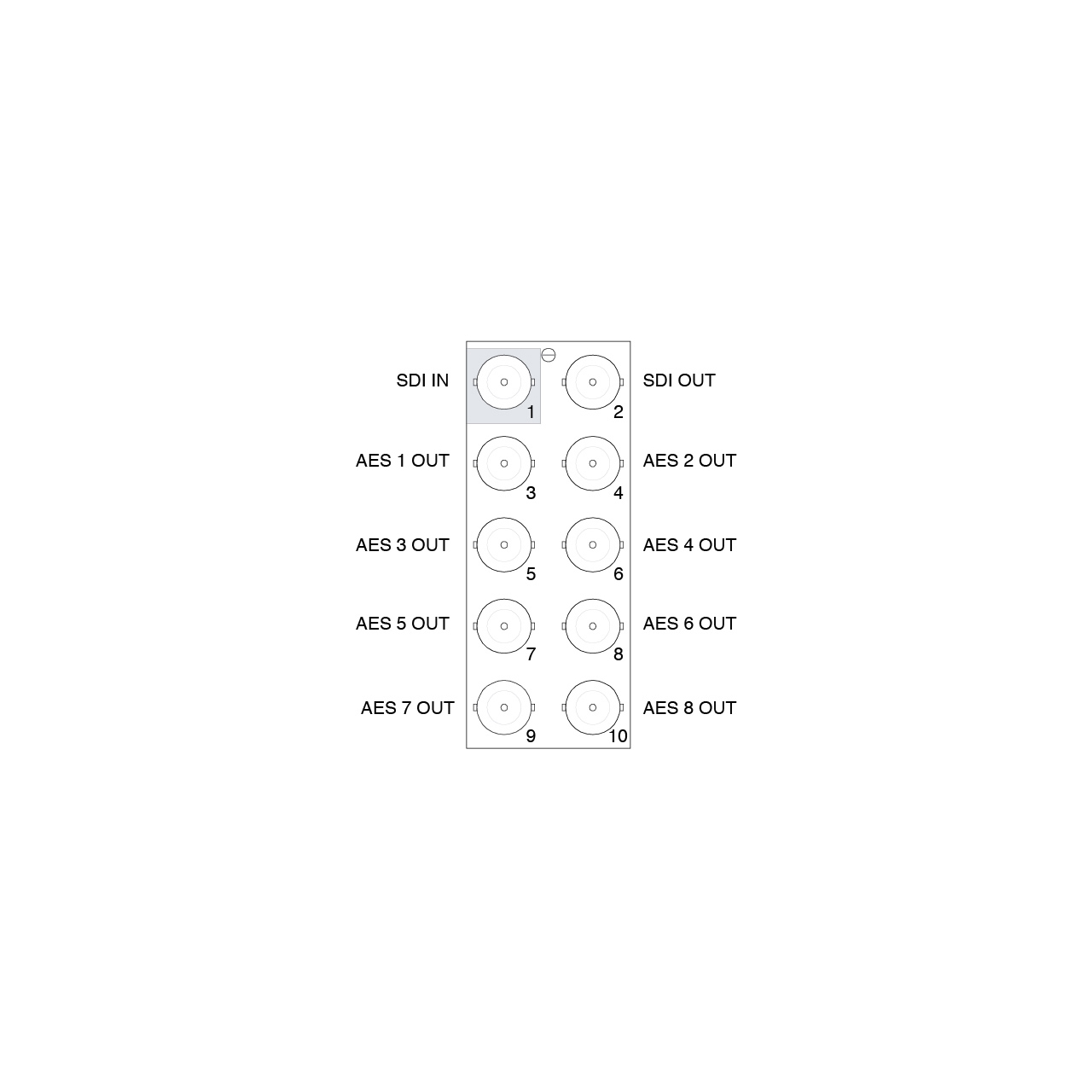

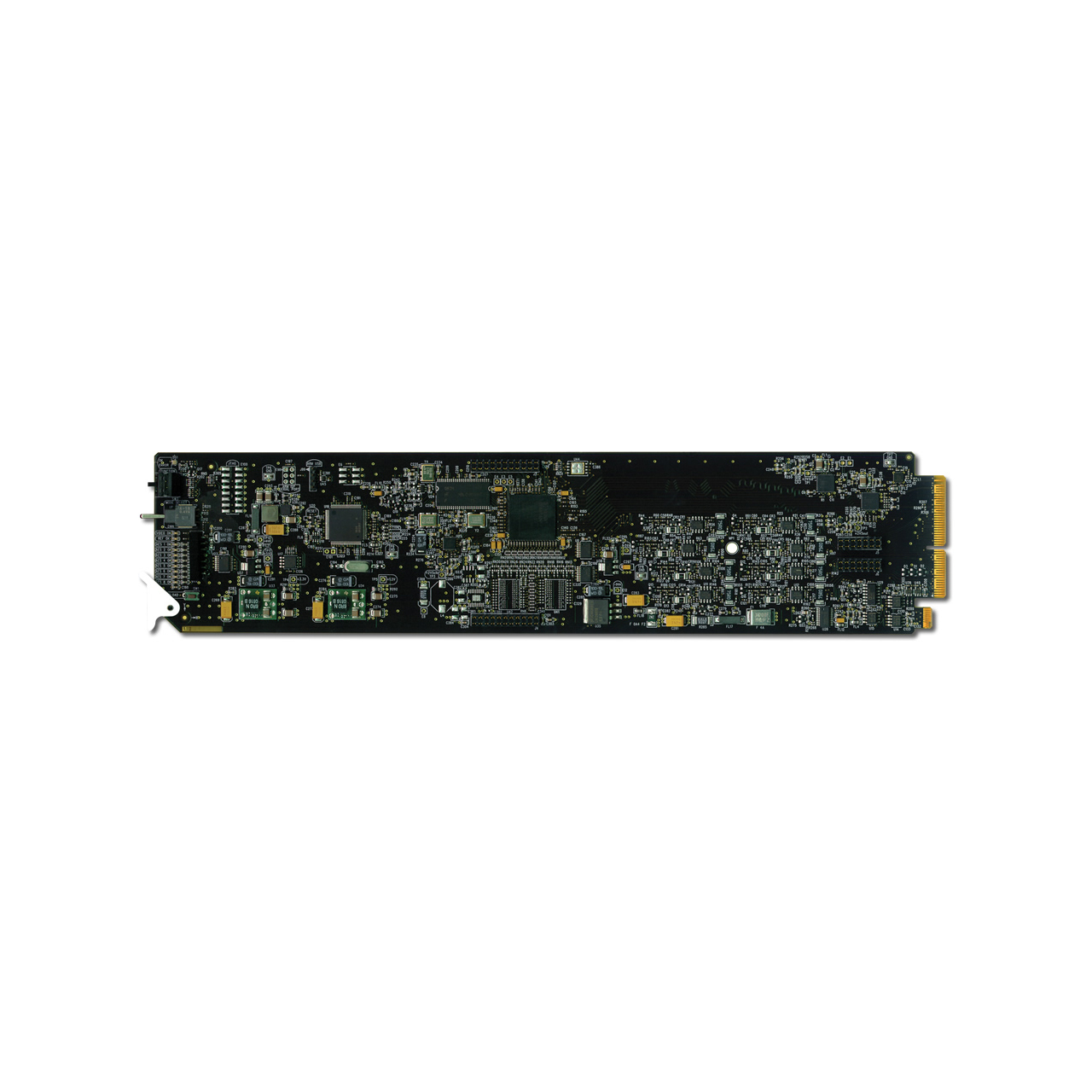

Ross openGear DMX-8259-A-R2A A 75 Ohm AES / EBU Audio De-Embedder with 10-BNC Rear Module

DMX-8259-A-R2A - Overview

• Features:

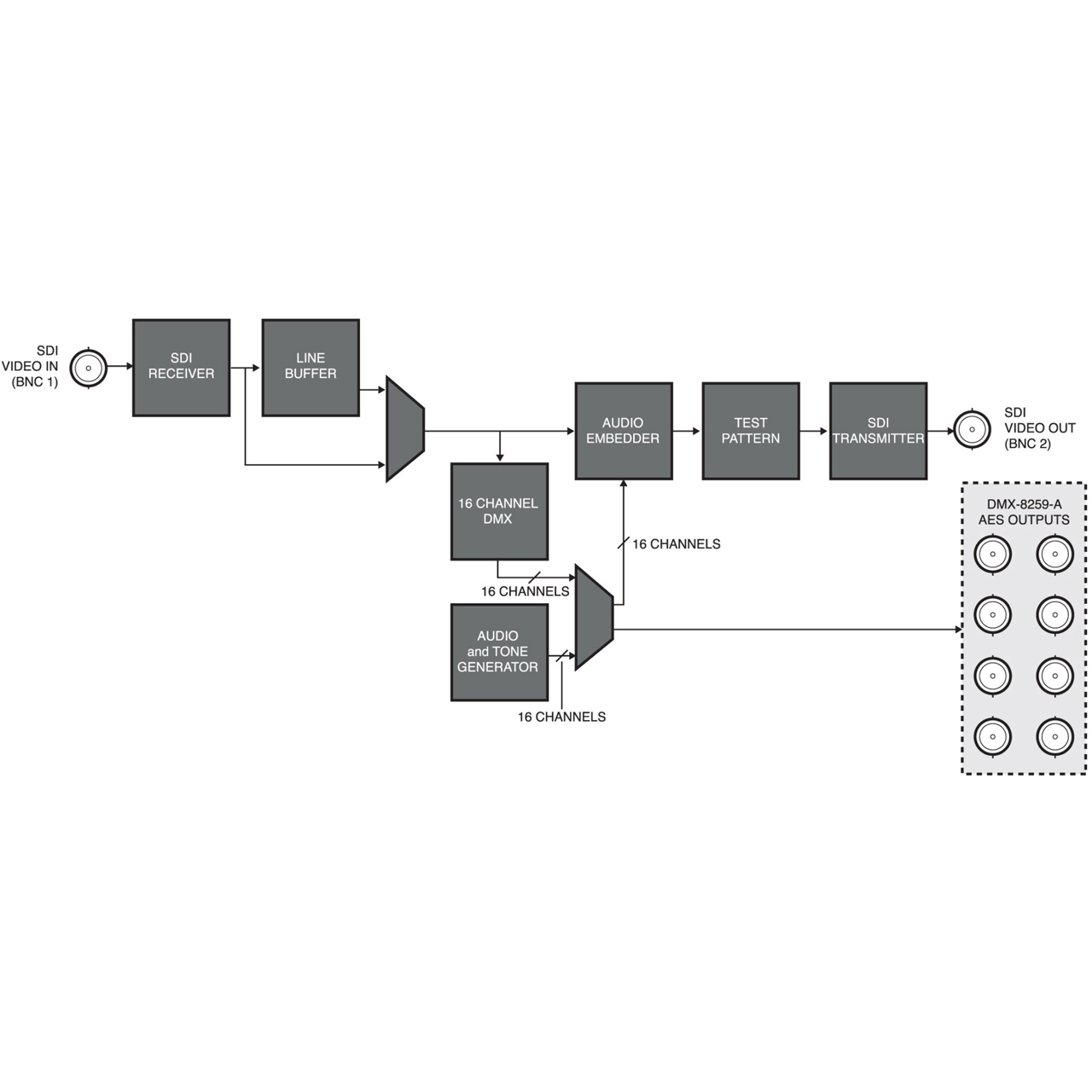

  • 16 discrete channel audio de-embedding for all popular 3G / HD / SD SDI formats
  • Audio proc amp controls; gain, invert, and delay
  • Assign any embedded channel to any discrete audio output
  • Ability to re-map channels in embedded video stream
  • Programmable video output on SDI input loss
  • Silence output on loss of audio input
  • Programmable silence detection and timeout thresholds
  • No audio breakout cables required
  • 5-year transferable warranty


• Specifications:

  • Power: 8.5 watts


• Item Includes:

  • 1x Ross DMX-8259-A-R2A A 75 Ohm AES / EBU Audio De-Embedder with 10-BNC Rear Module


• Warranty:

  • 5 years
