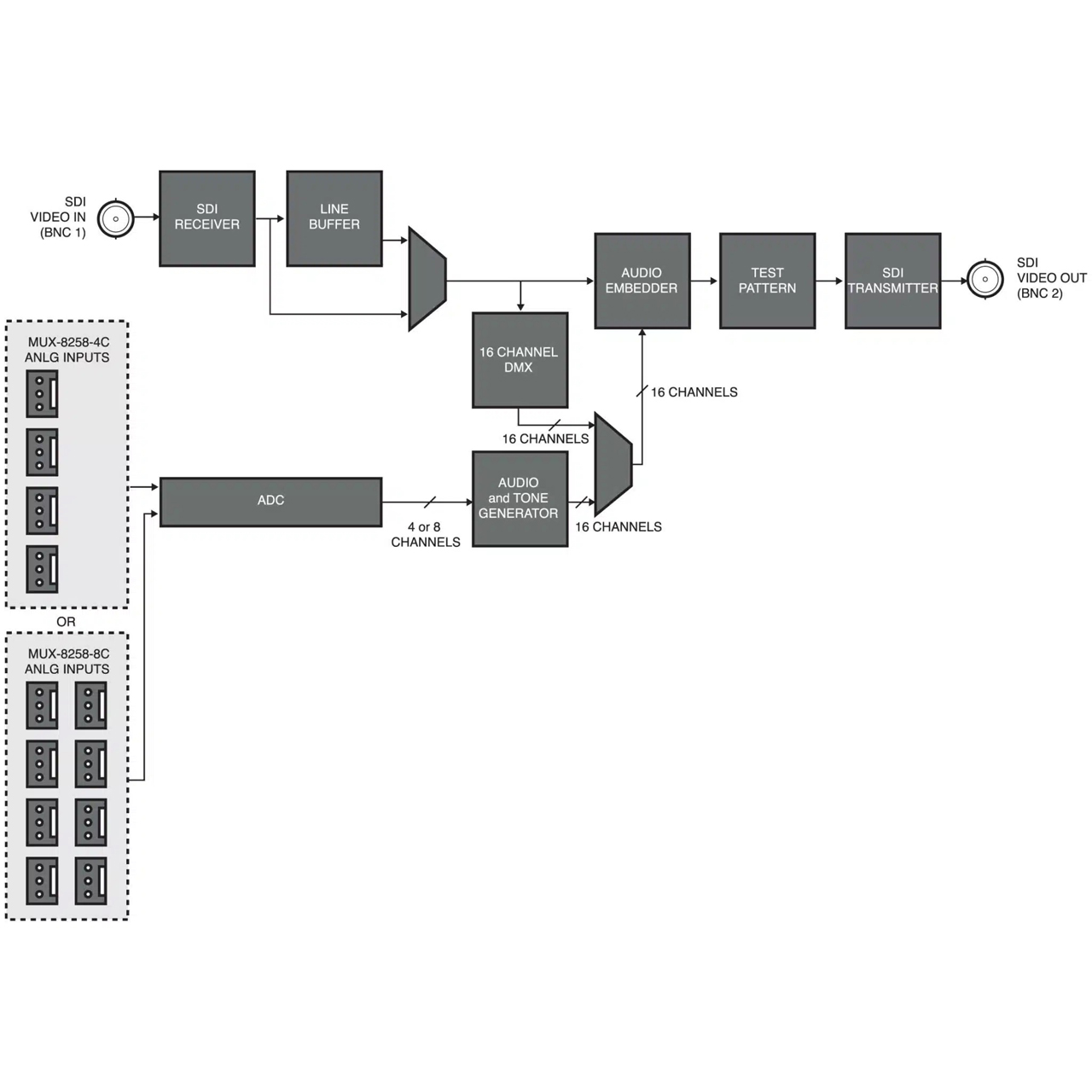

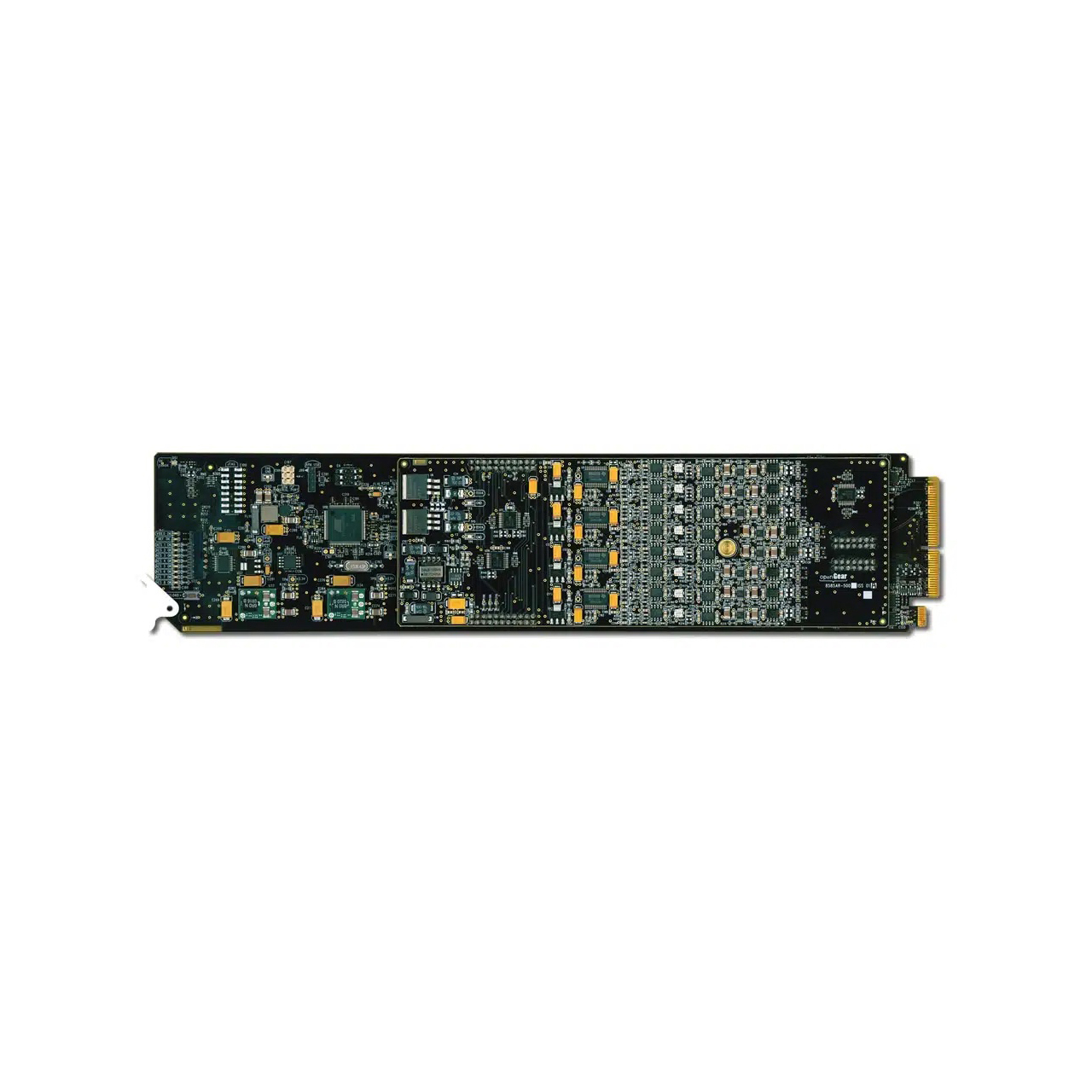

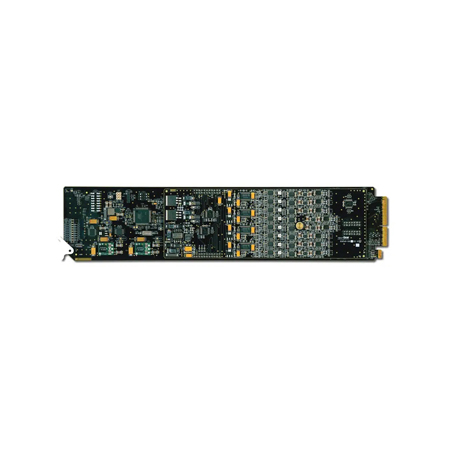

The Ross MUX-8258-8C is a high quality program analog audio embedder capable of embedding up to 8 analog audio channels into an 3G / HD / SD SDI signal. Audio pr oc amp control on each input allows for audio processing with independent channel sample rate conversions, gain of ±10dB, audio delay up to 1 second, channel phase invert and summing capability.
The MUX-8258-8C is extremely flexible in handling channel assignments and channel re-mapping as well as fully configurable append and overwrite capability for existing channels. Various configuration options are available for backup scenarios should a loss of input occur.
The MUX-8258-8C features 8 balanced analog audio inputs.
Please Note! Requires R28C-8258 Rear Module.
