Shattuc SCV-2301R 23AWG Solid BC Center w/Foil - TC Braid Shield Coax Cable CMR for HD-SDI - 1000 Foot

ITEM #: SCS-SCV-2301R MFG #: SCV-2301R

Primary Image
Shattuc Cord Specialties, Inc.
Free Shipping with $49 Minimum Order

List Price:

$600.00

Our Price:

$295.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SCV-2301R - Overview

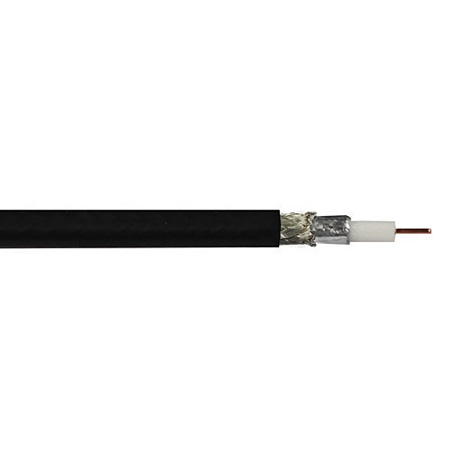

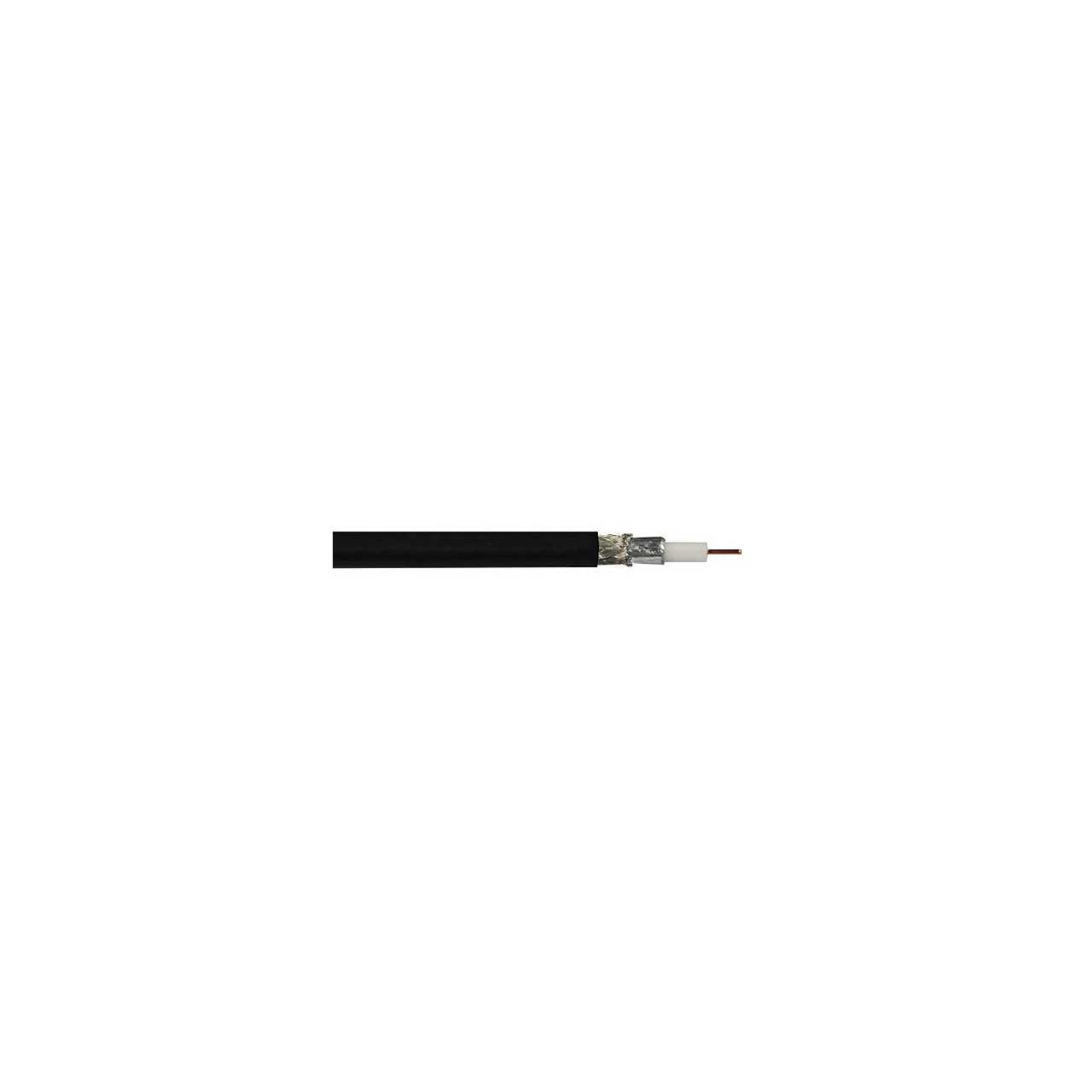

This Shattuc SCV-2301R is a 23 AWG solid bare copper conductor with foamed pe insulation, aluminum/mylar/aluminum shield with a tinned copper braid shield and an overall PVC jacket. CMR C(UL)US 167°F, ft-4.

Applications:
For high definition / serial digital interface video applications

  • Specifications:

    • Conductor
    • AWG & Stranding: 23 AWG Solid
    • Material: Annealed Bare Copper
    • Conductor Count: 1 Conductors

      Dialectric
    • Material: Foam Polyethylene
    • Wall Thickness: 0.100" ±0.002"
    • Color Code: Natural

      Shield
    • Tape Shield: Aluminum/MYLAR/Aluminum - 100% Coverage
    • Braid Shield: 97% Coverage - Tinned Copper Braid

      Jacketing
    • Marterial: Polyvinychloride
    • Wall Thickness: 0.017"
    • Diameter: 0.160" ±0.005"
    • Color: Multiple
    • Ripcord: No
    • Weight: 20 LBS/MFT
    • Bend Radius: 1.92"
