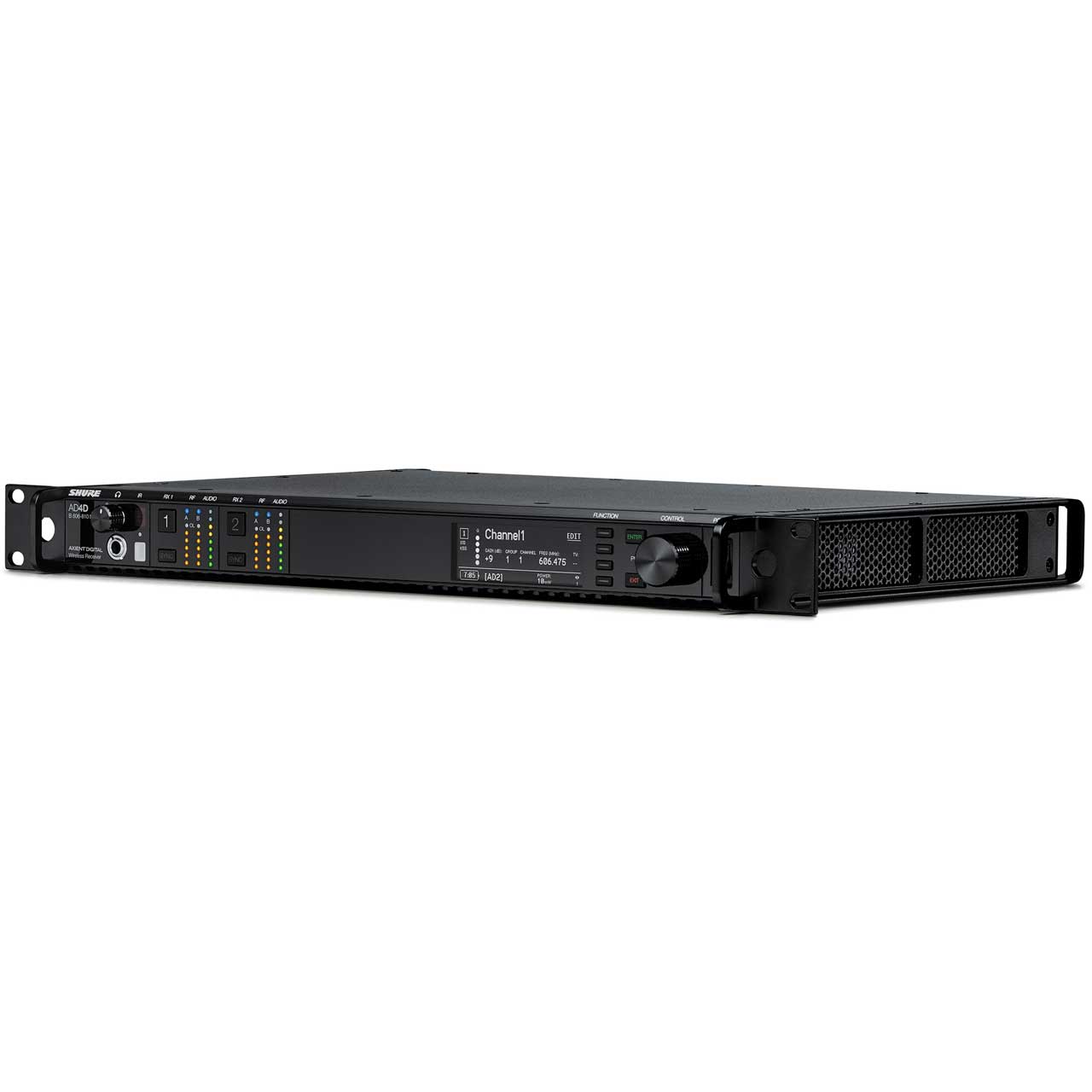

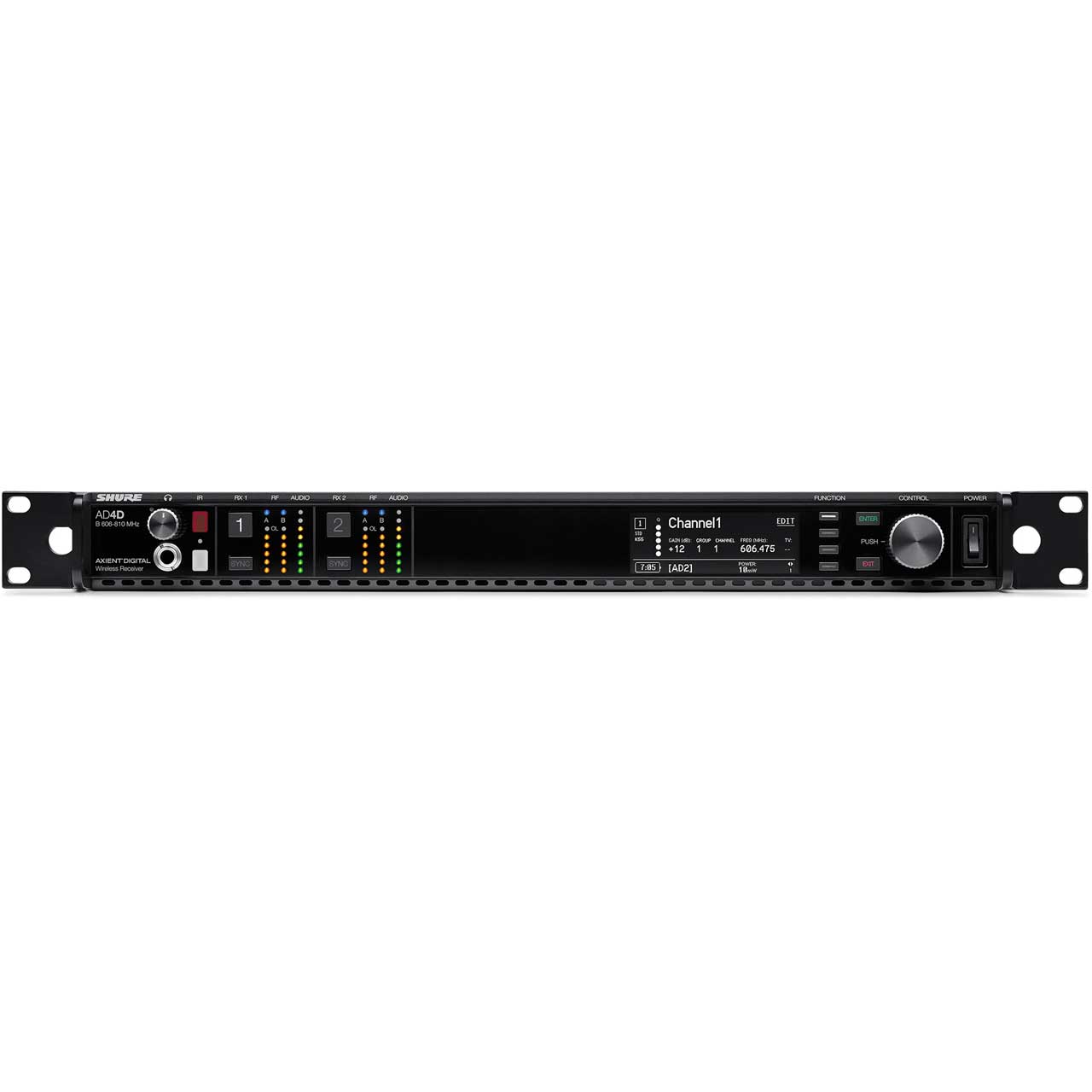

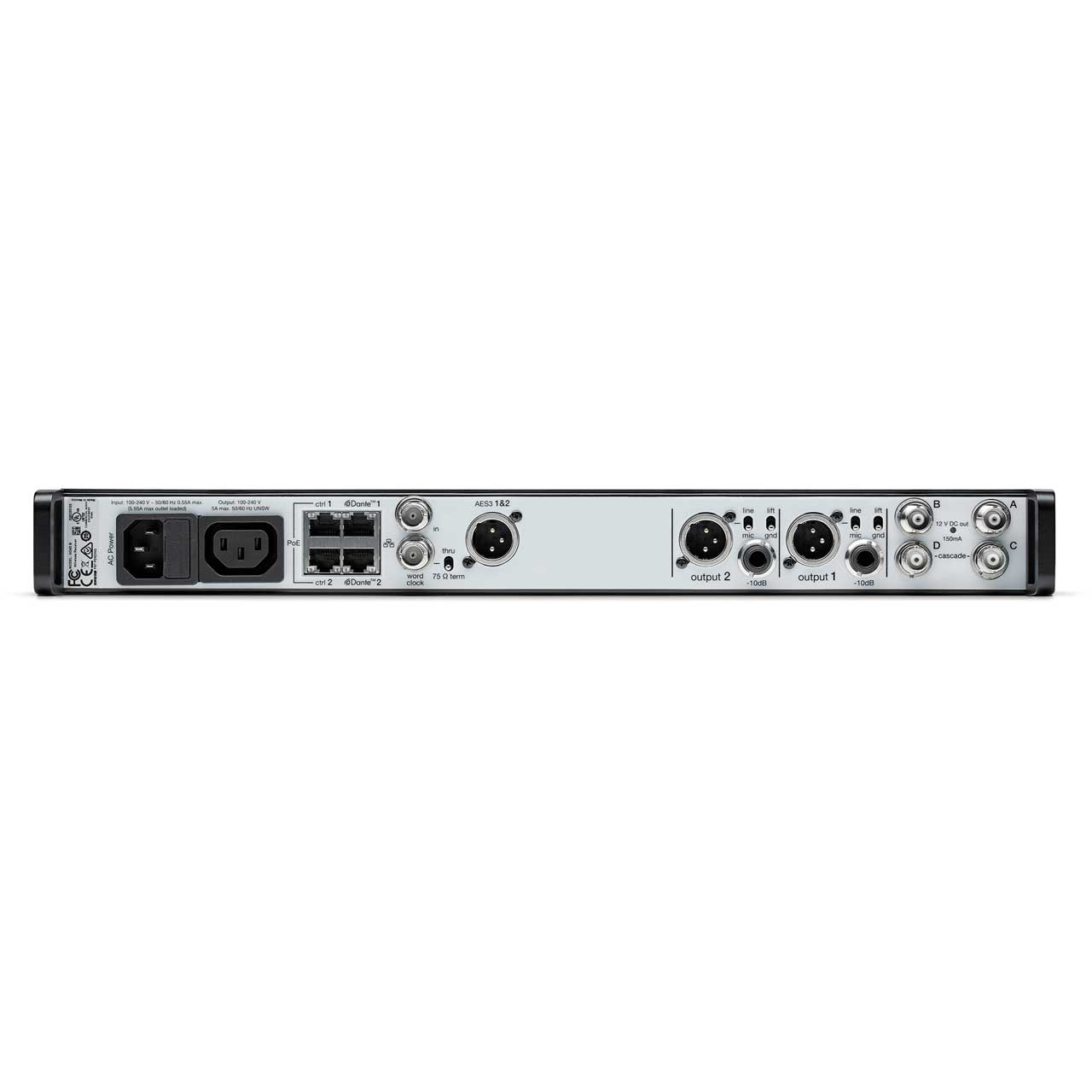

Shure AD4D-DC-A Axient Digital 2-Channel Wireless Receiver w/ Redundant DC Power-Input Mod - G56 Band (470 - 636MHz)

ITEM #: SH-AD4D-DC-A MFG #: AD4D-DC=-A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,000.00

Our Price:

$3,896.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AD4D-DC=-A - Overview

    The AD4D-DC-A is a two-channel digital wireless receiver with redundant DC power-input modification. The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.

    • Features:

      • Wide tuning range up to 184 MHz
      • True digital diversity reception per channel for drop-out resistance
      • Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
      • Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
      • Configurable Ethernet switch for redundant Dante or AES67 digital output
      • AES3 output
      • Channel Quality meter displays RF signal-to-noise
      • Locking AC connectors
      • DC module version available to support redundant power

    • Specifications:

      • Dimensions (H × W × D): 44 mm × 483 mm × 333 mm (1.7 in. × 19.0 in. × 13.1 in.)
      • Weight: 4.6 kg (10.1 lbs), without antennas
      • Housing: Steel; Extruded aluminum
      • Power Requirements: 100 to 240 V AC, 50-60 Hz; 0.26 A max
      • Thermal Dissipation: Maximum: 23 W (78 BTU/hr)
      • Idle: 15 W (52 BTU/hr)
      • DC Input Voltage Range: 10.9-14.8 V DC
      • Maxiumum DC Input Current: AD4D: 3.3 A
      • Protection Modes: Overvoltage, Undervoltage, Reverse Polarity
      • 4-Pin XLR: Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive
      • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
      • Configuration: 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
      • XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)
      • Impedance: 100Ω
      • Full Scale Output: 1/4" (6.35 mm): +8 dBV
      • XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
      • Mic/Line Switch: 30 dB pad
      • Phantom Power Protection: Yes

    • GTIN:

      0042406529495
