M209 - Overview

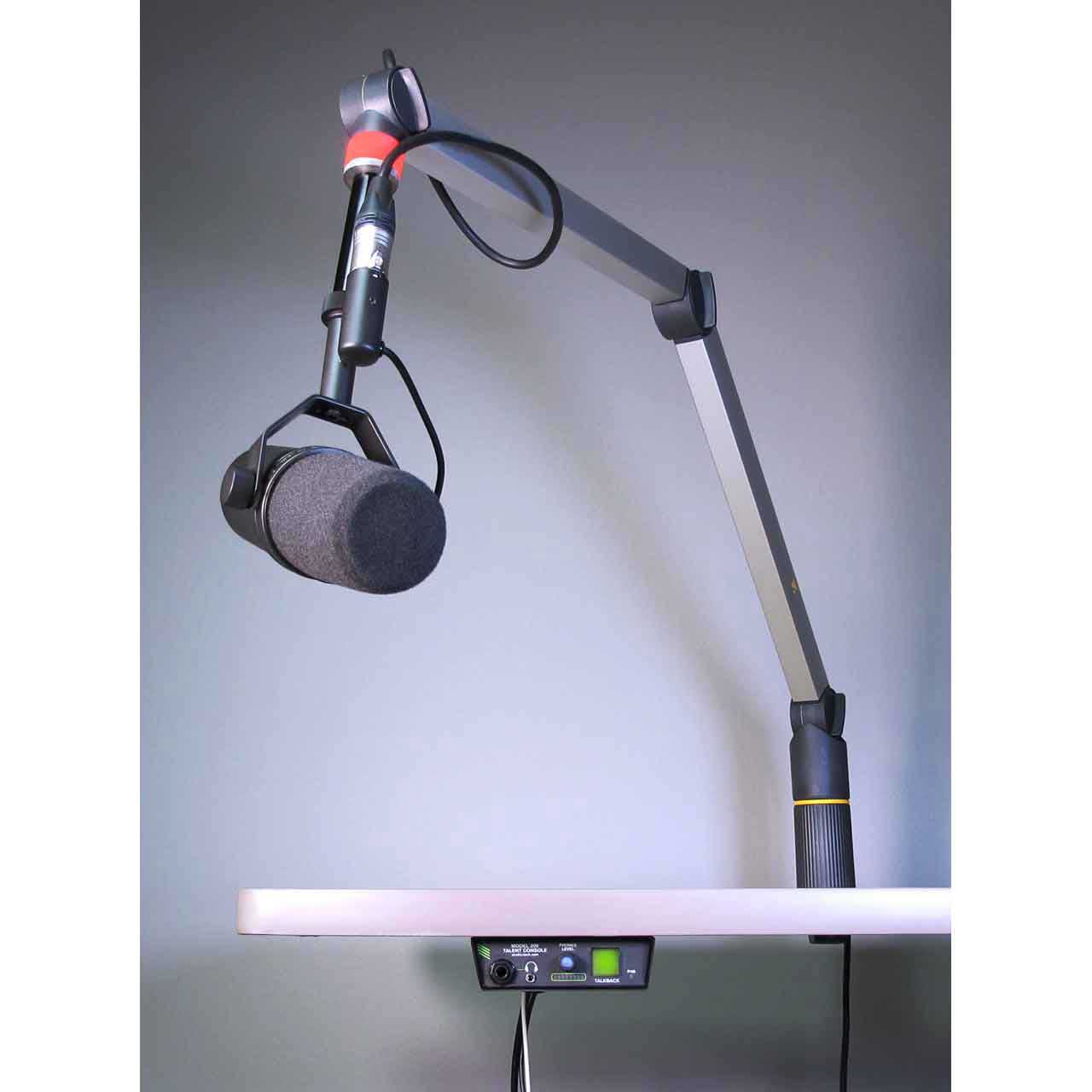

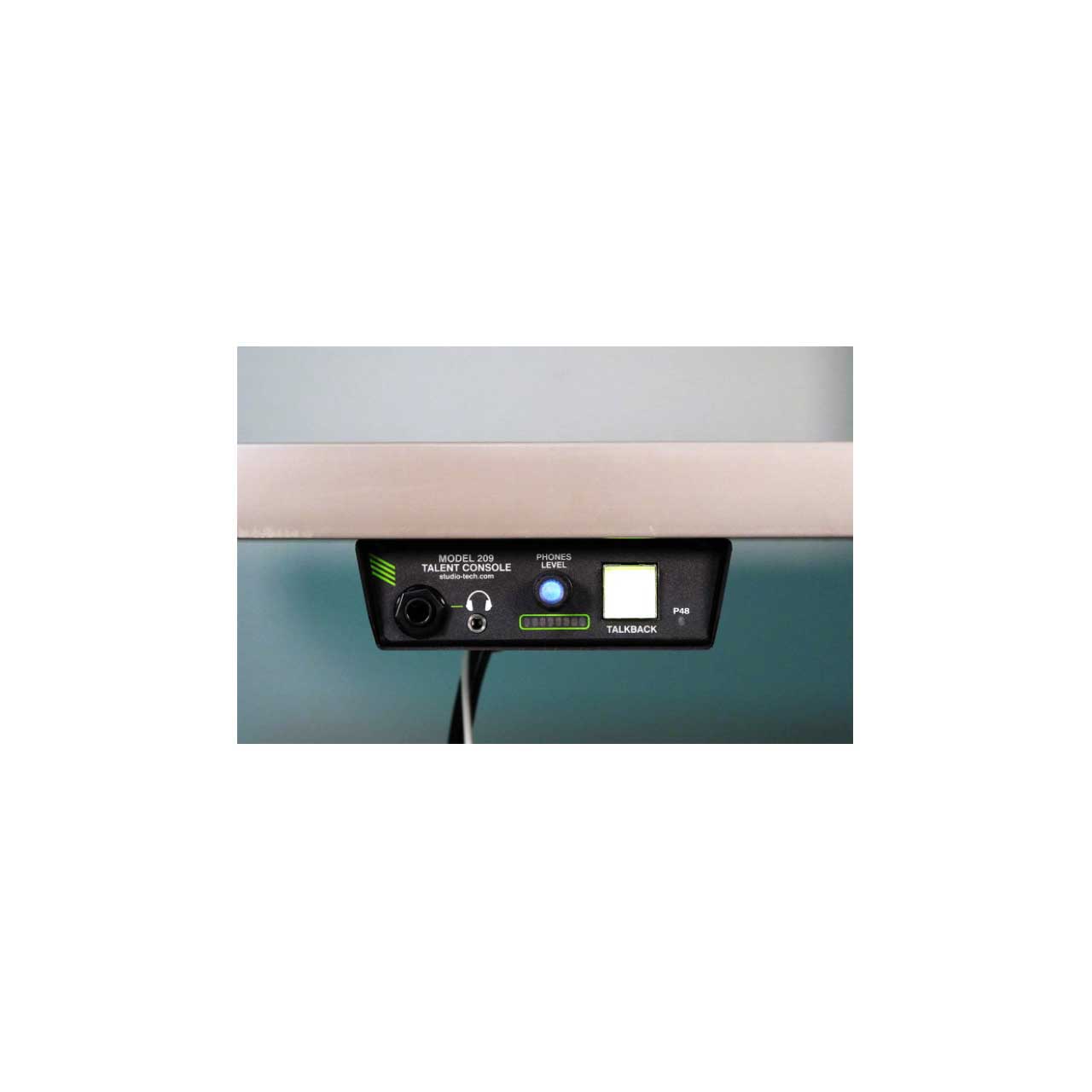

The Studio Tech Model 209 Talent Console is a compact audio control center optimized for podcast, television studio, and REMI applications. (REMI) or "at home" is where broadcast content is captured live at a remote location, like a home studio, and production is performed at a main studio or facility. The Model 209 incorporates a high-performance microphone preamplifier with P48 power and robust stereo headphone output to support announcers and commentators where Dante audio-over-Ethernet technology is utilized. Features include main and talkback audio output channels, two audio input channels, general-purpose inputs (GPI), and 12 volts DC tally outputs. Configured using the STcontroller application and supports remote control using personal computer API. The unit requires an Ethernet connection with Power-over-Ethernet (PoE) to supply both the data interface and power. Housed in a lightweight enclosure that's intended for mounting under a tabletop or other flat surface.

  • Specifications:

    • Audio Format: Dante/AES67
    • Dante Talkback Outputs: 1
    • Dante Transmitter (Output) Channels: 2
    • Dante Receiver (Output) Channels: 2
    • Dante Flows (each direction): 2
    • Microphone Power: P48
    • Mic Pre Gain Steps: 45
    • Sample Rates (kHz): 48, 96
    • ADC Dynamic Range (dB): 120
    • Analog Mic Level (Direct) Main Output: No
    • Audio Compressor: No
    • Ethernet Remote Control via STcontroller: Yes
    • Independent Sidetone Level Control: Yes
    • Remote Control Inputs: 2
    • Main Output Tally: 2(12 Vdc)
    • Under-Desk Mounting: Yes
    • Width: inches (cm): 4.7 (11.9)
    • Depth: inches (cm): 5.9 (15.0)
    • Powering: PoE

  • Item Includes:

    • 1x M209 Talent Console
