Thor MAXIMUS PRO FLY 20x Zoom Live Streaming HD 1080p PTZ Camera

MAXIMUSPROFL - Overview

• Features:

  • Built-in VISCA, PELCO P/D, ONVIF
  • 3G-SDI / HDMI / IP Streaming (RTSP, RTMP)
  • RS485 / RS232 / LAN (VISCA Over IP) & Remote Control for communication & control
  • Ultra-quiet pan/tilt design, horizontal 178 degrees, vertical -30°~+90° rotation. All-aluminum compact structure design, high precision stepper motor drive, accuracy 0.01°
  • Built-in 3.5mm Jack audio input interface & G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding
  • TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, SNMP, FTP(Optional)
  • USB2.0 port for local storage & recording with one click recording
  • Easy to enter menu & settings, with Desk GUI Interface for video previews & settings
  • Advanced video image processing technology & full HD 1/2.8" CMOS Sensor, 20X Optical Zoom, Max resolution up to 1080P@60fps
  • The Camera menu has 2D/3D noise reduction
  • The Camera video output format is available for 1080P60/59.94/50/30/29.97/25, 1080I60/59.94/50fps/30/25; 720P/60/50
  • Supports Mirror & Flip, and has easy Ceiling / Wall Mount / Tripod / Desk Installation options


• Specifications:

  • Camera Specs
  • 1/2.8 Exmor CMOS, 2.38 MP
  • Frame Rate 1080P60/59.94/50/30/29.97/25;1080I60/59.94/50/30/29.97/25;720P60/50/30/25, 480I60, 576I50
  • Zoom: 20X Optical, 12X Digital Zoom
  • Lens: f=4.7mm-94.0mm, F=1.6(W)-3.5(T)
  • Horizontal Field of View 2.9°(T)-65°(W)
  • Min Lux 0.5lux /0.095 lux
  • Shutter Speed 1 to 1/10000s
  • Vertical Flip & Mirror Supported

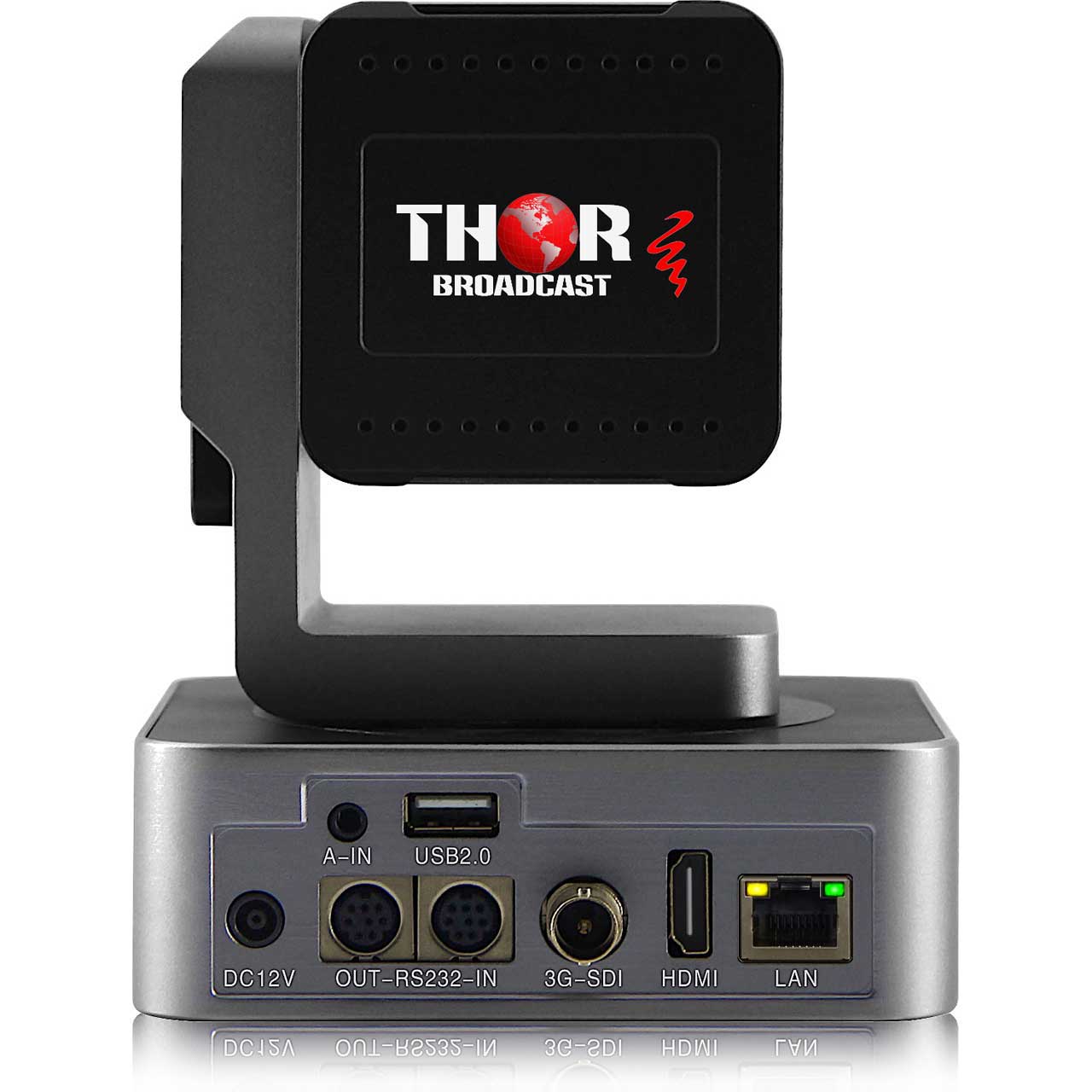

    Input/Output Interface
  • Video Output: HDMI, 3G-SDI, RJ45 Network (10/100M Adaptive Ethernet ports)
  • Audio Input: 1-ch 3.5mm audio interface, Line In
  • Communication interface: 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
  • Power On: JEITA type (DC IN 12V)
  • Video Storage: USB2.0

    Mechanical
  • Pan RotationAngle 178°, Tilt Rotation Angle -30°~ +90°
  • Pan 0.1~180°/s; Tilt: 0.1~120°/s
  • Max 255 Presets ( Remote 9 Presets)
  • VISCA, PELCO P/D, ONVIF Protocol

    IPC Video Features
  • Video Standard: H.265/H.264/MJPEG, H.264 HP, H.264 SVC, H.263 +, H.263, H.261 Dual video Streams H.239BFCP content exchange
  • Video Stream: Main stream, Sub stream
  • Main Stream Resolution: 1920x1080, 1280x720
  • Sub Stream Resolution: 720x480, 320x240
  • Bit Rate: 128K,256K,384K,512K,768K,1024K,1536K,2048K,3072K,4096K,5120K,6144K,8192K
  • Bit Rate Type: Variable rate, Fixed rate
  • Maximum Frame: 60fps
  • Audio Encode Standard: G.711, G.722, G.722.1, G.728, G.722.1C AAC
  • Audio Stream Rate:96K, 128K, 256K
  • Support Protocols: TCP/IP, HTTP, DDNS, RTSP, RTMP, PPPoE, SMTP, UPnP, SNMP, FTP(Optional)
  • High Efficiency Lost Packet Recover
  • Wake-on-LAN (WOL) support

    Physical Specs
  • Dimensions (LxWxH): 4.72 x 4.72 x 5.71" (120 x 120 x 145mm)
  • Gross Weight: 3.53Lbs (1.6kg)
  • Operating Temperature: 14° to 122°F (-10° to 50°C)
  • Max Consumption: 12W DC12V @1A


• Item Includes:

  • 1x PTZ Camera
  • 1x User Manual
  • 1x 12V/ 2.0 A DC Power Adapter

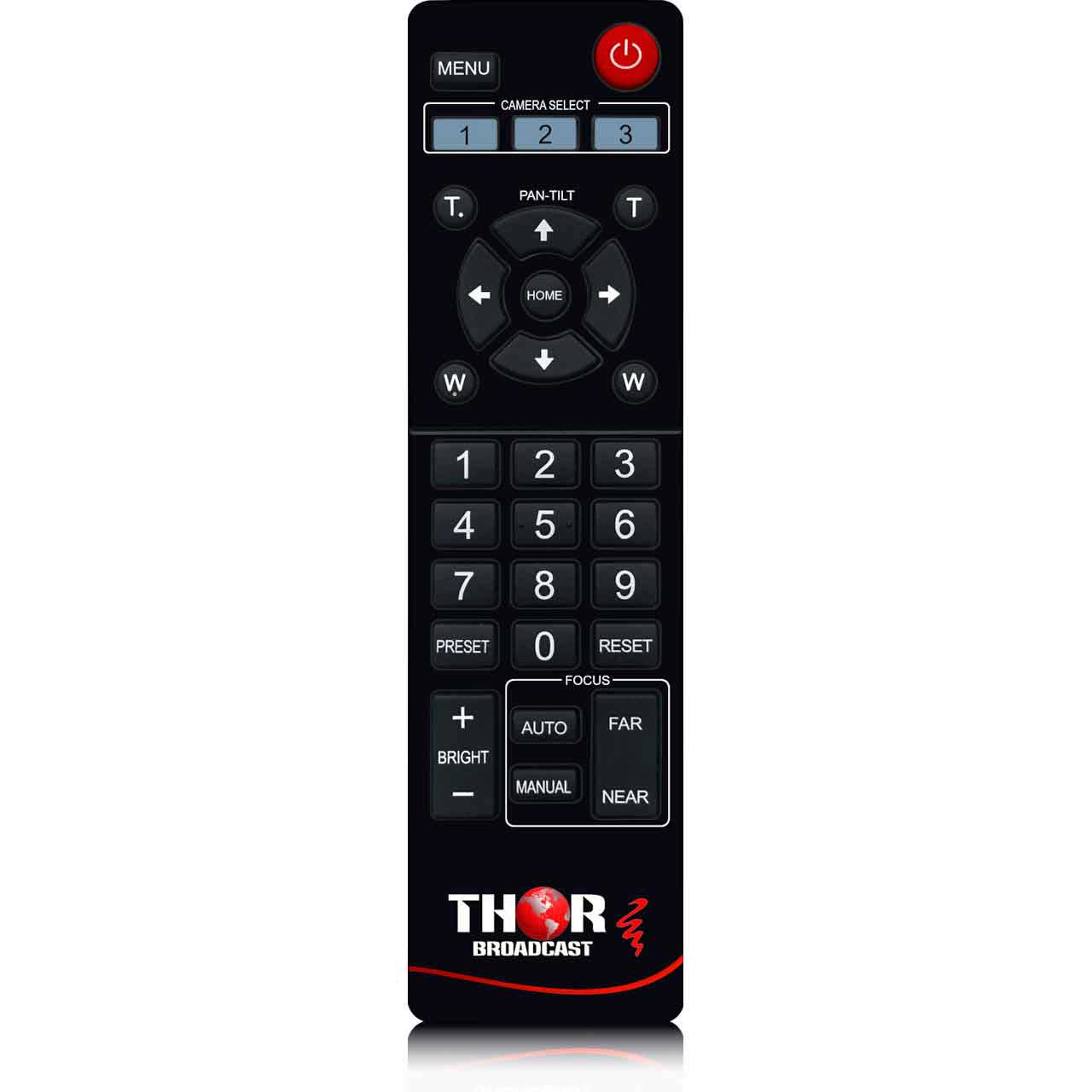

  • 1x IR Remote Controller
  • 1x Ceiling Bracket / Wall Support
  • 1x RS-232 to DB 9pin cable


• Warranty:

  • 2 Year
