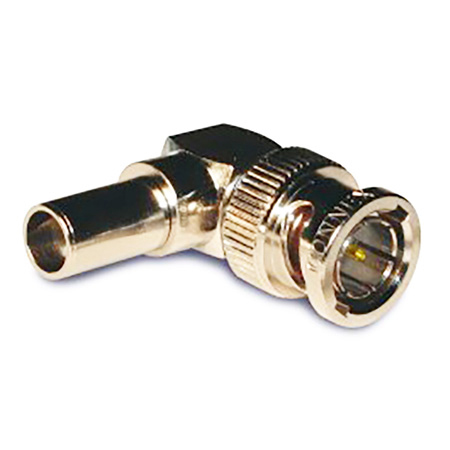

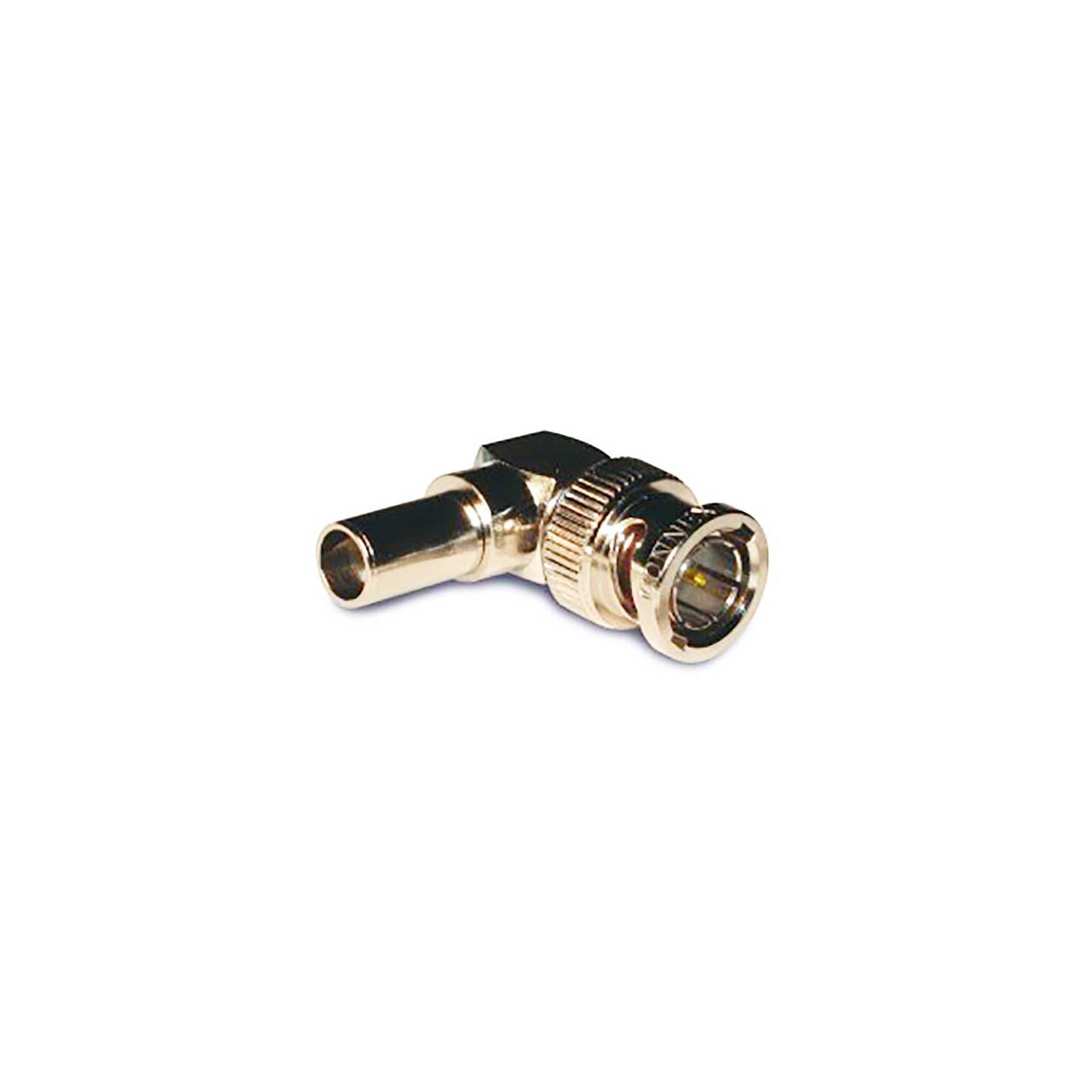

Amphenol 112990 BNC Right Angle Crimp Plug for Belden 1694A 75 Ohm

ITEM #: AMPH-112990 MFG #: 112990

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$20.00

Our Price:

$17.74

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

112990 - Overview

The 112990 is an RF connector BNC right-angle crimp plug for Belden 1694A, 75 Ohm. The 112990 features a brass body and connections with nickel body finish and gold plated connectors.

  • Specifications:

    • Gender: Plug
    • Orientation: Right Angle
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Brass
    • Contact Termination Style: Solder
    • Insulator Material: PTFE
    • Cable Group: G5
    • Cable Type: Belden 1694A, RG-6 DB
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Minimum Temperature: -65° C
    • Maximum Temperature: 165° C
