Belden 1694A CMR Rated 6G-SDI RG6 75 Ohm Digital Coaxial Video Cable 18AWG - Grey - Per Foot

ITEM #: BL-1694A-GY MFG #: 1694A 0081000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.31

Our Price:

$1.00

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1694A 0081000 - Overview

Perfect for Digital Video, 6 Gb/s UHDTV and HD-SDI 1080p

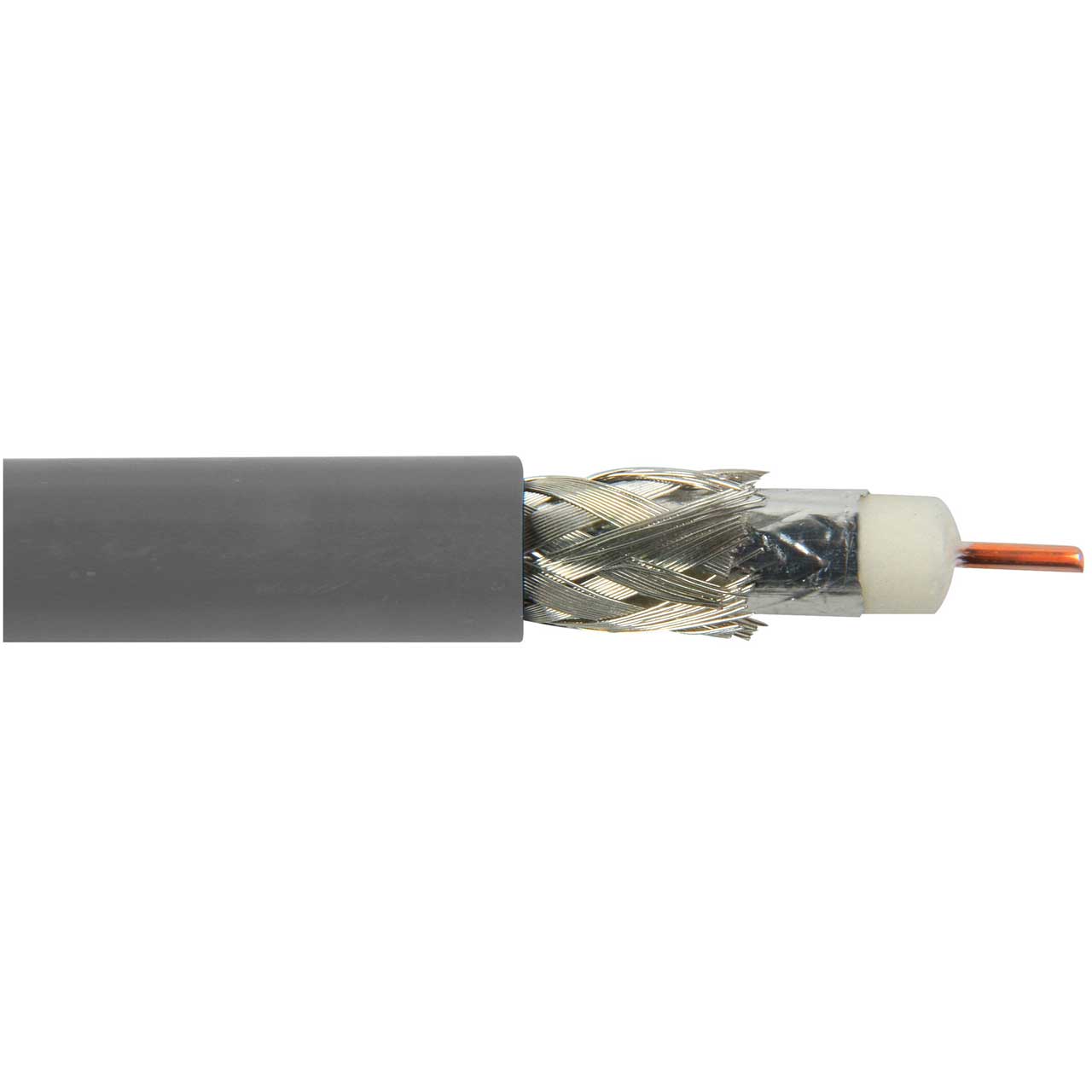

Belden's 1694A is a 75 Ohm RG-6, 18 AWG, HD-SDI, CMR rated Coaxial Cable with a Solid Bare Copper Conductor, PE Insulation, Foil and 95% Tinned Copper Braided Shield in a PVC Jacket.

Applications
Digital Video
6 Gb/s UHDTV
HD-SDI 1080p
Video Surveillance
Cable and satellite signal transmission

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings


  • Specifications:

    • Number of Coax: 1
    • RG Type: 6
    • AWG: 18
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Nom. Diameter: 0.040 in
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Nom. Insulation Diameter: 0.180 in (4.57 mm)
    • Outer Shield Material Trade Name: Duofoil®
    • Outer Shield Material: Unshielded
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Overall Cable Diameter (Nominal): 0.274 (6.96mm)
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 75 +/- 1.50
    • Plenum Number: BL-1695A
    • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance


  • Item Includes:

    • 1694A Digital Coaxial Cable 18AWG - Grey - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
