Belden 179DTBHD1 6G-SDI 1-Piece HD Ultra-miniature BNC Compression Cable Connector for 179DT- Yellow Band - Each

ITEM #: BL-179DTBHD1 MFG #: 179DTBHD1

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$4.10

Our Price:

$3.92

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

179DTBHD1 - Overview

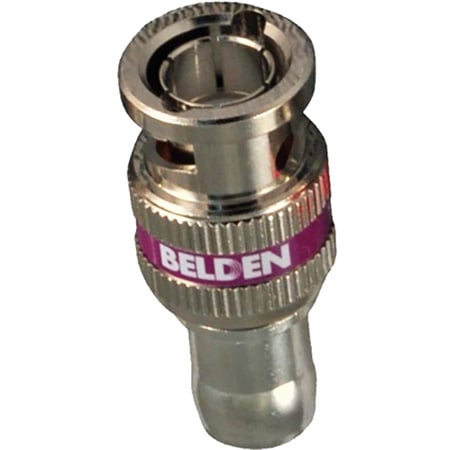

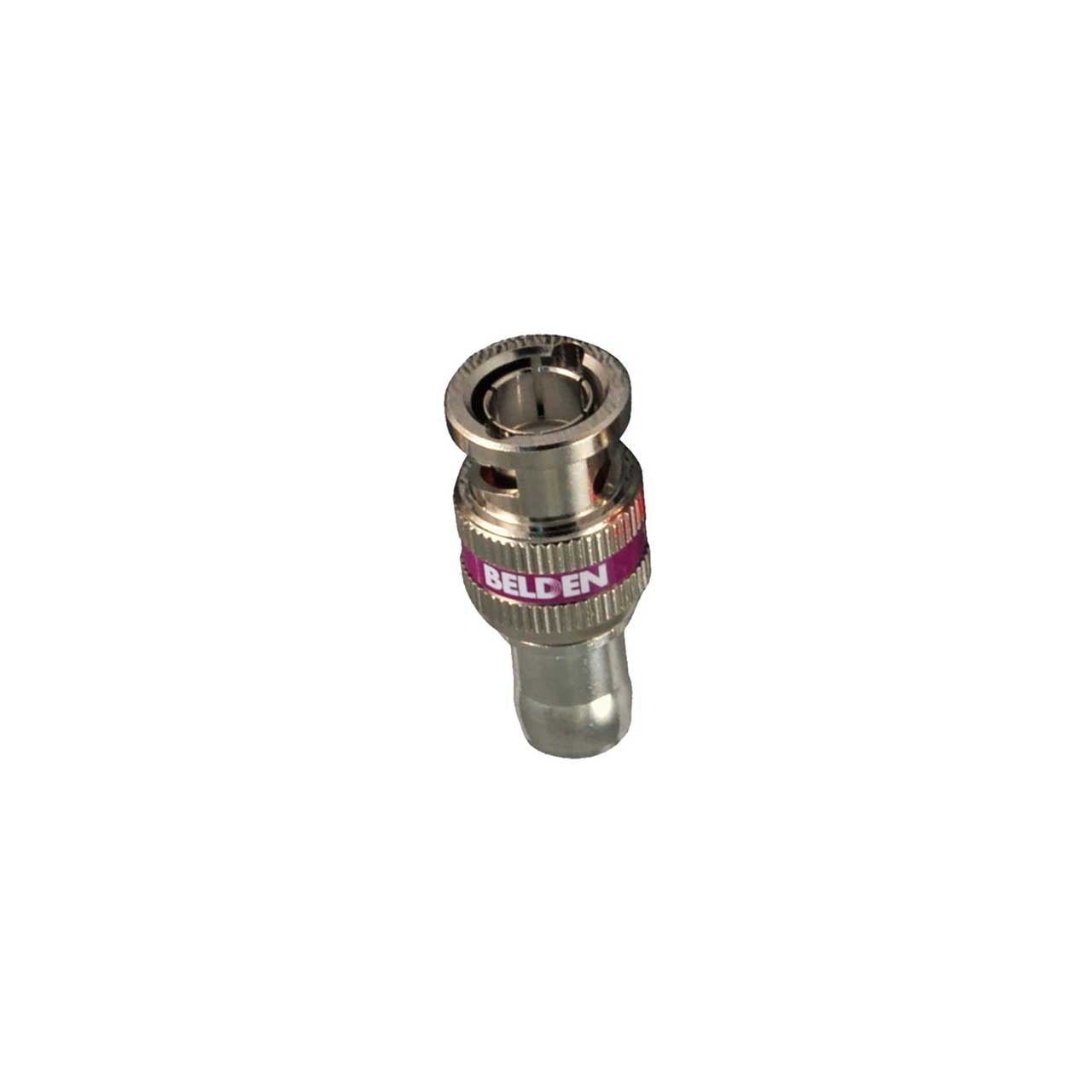

This Belden 179DTBHD1 is a Ultra-miniature 1 piece compression BNC connector. 1-piece compression style connectors offer faster and more consistent field installation with the same excellent signal quality and performance as traditional 3-piece connectors. Specifically designed for use with Brilliance cable, creating the perfect connector-to-cable combination. 360 Degree compression rings deliver superior pull strength exceeding 100 pounds.

Please Note: The ICM-CPLCRBC-B compression tool and the ICM-PSA596 stripper are also sold as a set under part# BL-DBPSAKIT. Both these tools work for all connectors listed with the exception of the 179DTBHD1 which requires a separate stripping tool, part# PS59-6-RGB.

  • Features:

    • Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy
    • Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector
    • Save Space: When space is at a premium on a hybrid panel, Micro BNCs have a 51% smaller footprint than Standard BNCs and are optimized for 12 GHz and are backwards compatible to 3-6GHz


  • Specifications:

    • Nut: Brass, Nickel Plated
    • Body: Brass, Nickel Plated
    • Contact: Brass, Gold Plated
    • Insulator: PTFE
    • RG Type: Ultra-miniature 59
    • Frequency [MHz]: 5-1485 - Minimum Return (RL): 15 dB
    • Frequency [MHz]: 1485-3000 - Minimum Return (RL): 10 dB
    • Frequency [MHz]: 3000-6000 - Minimum Return (RL): 7 dB
    • Environmental Space: Indoor
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: HD
    • Color Band: Yellow
    • Locking: No
    • Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
    • Termination Type: Compression
    • Electrical Characteristics Notes: SMPTE 2081-1 Return Loss or better


  • GTIN:

    0845671002300
