Belden 7788A Riser/CMR Outdoor 6G-SDI UHD VideoFlex Sub-Miniature Snake Cable BC 4-Ch/23AWG - Black - 1000 Foot

ITEM #: BL-7788A-1000 MFG #: 7788A B591000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$6,238.40

Our Price:

$5,129.66

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

7788A B591000 - Overview

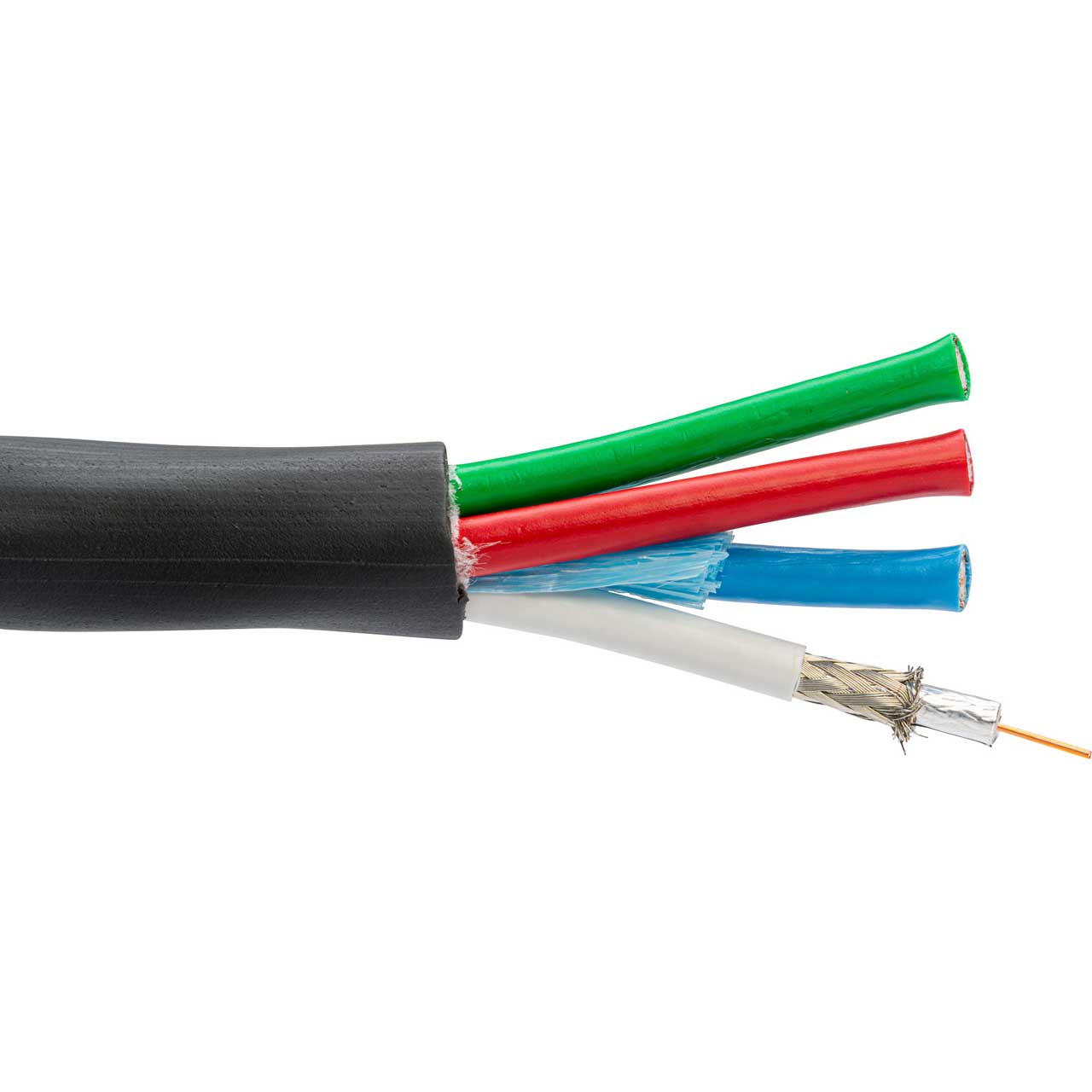

Belden 7788A is a CMR Riser rated Digital Coax Snake Cable. It features 4-Sub-miniature 23 AWG, solid bare copper conductors, with a foam HDPE core, Duofoil® +95% tinned copper braid shield in a PVC jacket.

Television broadcasters utilizing 6G-SDI digital formats in video production, film production and studio builds appreciate the superior video performance of Belden 7788A 4-Channel Bundled 1855A Coaxial Cable. This VideoFlex miniature RG59 23 AWG cable simplifies video runs by combining four channels of SDI in a single jacket. Each channel of the cable is constructed with 23 AWG Solid 0.023" bare copper center conductor along with Duofoil + 95% tinned copper braid (100% Shield Coverage).

Applications:
• SMPTE 2081-1 6 Gb/s UHDTV
• SMPTE 424M 3 Gb/s HD-SDI 1080p
• SDI/HDTV Digital Video
• High Definition (HD)
• Standard Definition (SDI)

  • Specifications:

    • Number of Conductors: 4
    • Conductor Size: 23 AWG
    • Conductor Stranding: Solid
    • Conductor Material: Bare Copper
    • Conductor Nominal Diameter: 0.023 in
    • Insulation Material: PE - Polyethylene (Foam)
    • Insulation Nominal Diameter: 0.102 in
    • Insulation Table Note: Gas Injected
    • Inner Shield Layer 1 Type: Tape
    • Inner Shield Layer 1 Material: Duofoil® Tri-Laminate (Alum+Poly+Alum) 100%
    • Inner Shield Layer 2 Type: Braid
    • Inner Shield Layer 2 Material: Tinned Copper 95%
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nominal Diameter: 0.481 in
    • Nom. Conductor DCR: 20.1 Ohm/M
    • Nominal Capacitance Conductor to Shield: 16.5 pF/Ft.
    • UL Voltage Rating: 300 V RMS
    • NEC/(UL) Compliance: CMR
    • CEC/C(UL) Compliance: CMG
    • UL Flammability: UL1666 Vertical Shaft
    • CPR Euroclass: Eca
    • RG Type: Mini 5
    • Environmental Space: Indoor/Outdoor Suitability - Indoor: Yes (all) - Outdoor: Yes - Black only


  • Item Includes:

    • 7788A Riser/CMR 6G-SDI UHD Snake Cable BC 4-Ch/23AWG - Black - 1000 Foot


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825355427
