Bolin EXU248N EX-ULTRA NDI High Bandwidth FHD Outdoor PTZ Camera - 48X Zoom - NDI 6-ready/2 6G-SDI/HDMI/Optical SDI/IP

ITEM #: BOL-EXU248N MFG #: EXU248N

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$9,695.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EXU248N - Overview

    4K Outdoor NDI PTZ Camera with 1.0-type Exmor R CMOS Sensor
    The EXU248N outdoor NDI High Bandwidth FHD/4K NDI PTZ camera is equipped with Sony 1 Inch large 4K CMOS sensor image block with 48X zoom range Zeiss lens to provide Full HD(1080P60) and 4K30 high-quality Ultra High-Definition image to output HDMI, 6G-SDI, Optical SDI, and NDI video streaming for NDI® and are fully compatible with NDI-enabled hardware and software for Live production in outdoor environment and even in extreme weather conditions.

    FreeD Protocol Integrated for VR/AR Video Production
    FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following targeted objects and people. Broadcasters can combine Bolin's FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZcameras, with ultra-low latency AV Over IP streaming.

    Various Control Methods
    -IP Control, Serial Control, IR Remote Control, Rest API-Software Control
    -Protocol Supported: NDI Control, VISCA Over IP, ONVIF, VISCA, PELCO P/D, FreeD
    -NDI Control is fully compatible with NDI Ecosystem, Tricaster, vMix, OBS, ProPresenter, etc

    True Tri-Output
    Simultaneously output SDI, HDMI, and IP, which can be set to independent formats for different application use.

    • Features:

      • NDI Certified, NDI 6 Ready, NDI HX3 Supported
      • Sony image block with 1 Inch large 4K sensor
      • Zeiss Vario-Sonnar T lens with 48X zoom range
      • Resolution 4K 2160p29.97, 1080i59.94, 1080p60
      • IP Video Resolution: Up to 2160p30, 1080p60
      • Video Output: Simultaneous 6G-SDI, HDMI, NDI 6
      • SFP Optical SDI video output
      • Black Level, Color Matrix, Image Stabilizer
      • RTSP. RTMP, SRT Supported
      • NDI Congtrol, Visca Over IP, Onvif, FreeD, Serial Control
      • Weatherproof IP67 rated

    • Specifications:

      • Camera
      • Image Maker: Sony
      • Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
      • Number of effective pixels: 14.2 MP
      • Picture elements: 3840x2160, 8.29 MP
      • Lens: Zeiss Vario-Sonnar T lens, Zoom range 48X(FHD)/18X(4K)
      • Tele Convert Mode: When turn on, gain 2X zoom range with 1080p resolution
      • Horizontal Angle of View: 64.6°(Wide) - 6.1°(Tele)
      • Vertical Angle of View: 39.2°(Wide) - 3.4°(Tele)
      • Focal Length: f=9.3 to 111.6mm, F2.8(Wide) ,F4.5(Tele)
      • Min. object distance: 80mm (Wide), 1000mm (Tele)
      • Aperture: F2.8 Constant (W)~F4.5(T), 16 Steps
      • Min. Illumination: 0.5 lx, 2.0 lx

        Network
      • Video Compression: NDI High Bandwidth (NDI 6 Ready), AVC-H.264/HEVC-H.265/MJPEG/MP4 by FPGA
      • IP Resolution/Frame Rate: 3840x2160p30/25, 1920x1080p60/50/30/25, 1280x720p60/5080x720p60/50
      • True Dual Output: IP, HDMI, and SDI signal can be set to independent resolution formats
      • IP Protocols: TCP/IP,IGMP,ICMP,ARP,QoS,SNMP,UDP, HTTP, DNS, DHCP, FTP, NTP, UPNP, SRT, NDI
      • Application Protocols: RTMP,RTSP,RTP Streaming,MP2TS over UDP,TS over RTP,TS over SRT, WebRTC, RTSP Encryption, NDI
      • Color Format: 10bit, YUV 4:2:2
      • Multi-stream: 2 stream
      • Audio Compression: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)/32-128Kbps, Selectable

        HDMI
      • HDMI Video Format: 1920x1080/59.94p/60p 1920x1080/59.94i/60i 1920x1080/50p 1920x1080/50i 1920x1080/29.97p/30p 1920x1080/25p 1920x1080/23.98p/24p 1280x720/59.94p/60p 1280x720/50p 3840x2160/29.97p/30P 3840x2160/25p 3840x2160/23.98p 3840x2160/24p
      • Color Precision: 12bit(HDMI), YUV4:2:2, YUV4:2:0
      • Color Space: YUV,RGB
      • OSD Menu Display: Yes, with image insert

        SDI
      • SDI Video Format: 3840x2160/29.97p/30P 3840x2160/25p 3840x2160/23.98p 3840x2160/24p 1920x1080/59.94p/60p 1920x1080/59.94i/60i 1920x1080/50p 1920x1080/50i 1920x1080/29.97p/30p 1920x1080/25p 1920x1080/23.98p/24p 1280x720/59.94p/60p 1280x720/50p
      • Color Precision: 10bit(SDI), YUV 4:2:2
      • Color Space: YUV

        Mechanical
      • Pan Movement: PAN: 340°; Fully proportional 0.01° to 60°/s
      • Tilt Movement: TILT: 210°; Fully proportional 0.01° to 60°/s
      • Speed Proportional: Pan/Tilt Speed proportional to zoom range
      • Preset Position: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.03°
      • Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
      • Standard: SMPTE 292M , SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s), SMPTE 2082-1(12Gb/s) standard/75 Ω (BNCx1), With SMPTE352 SDI Metadata Supported

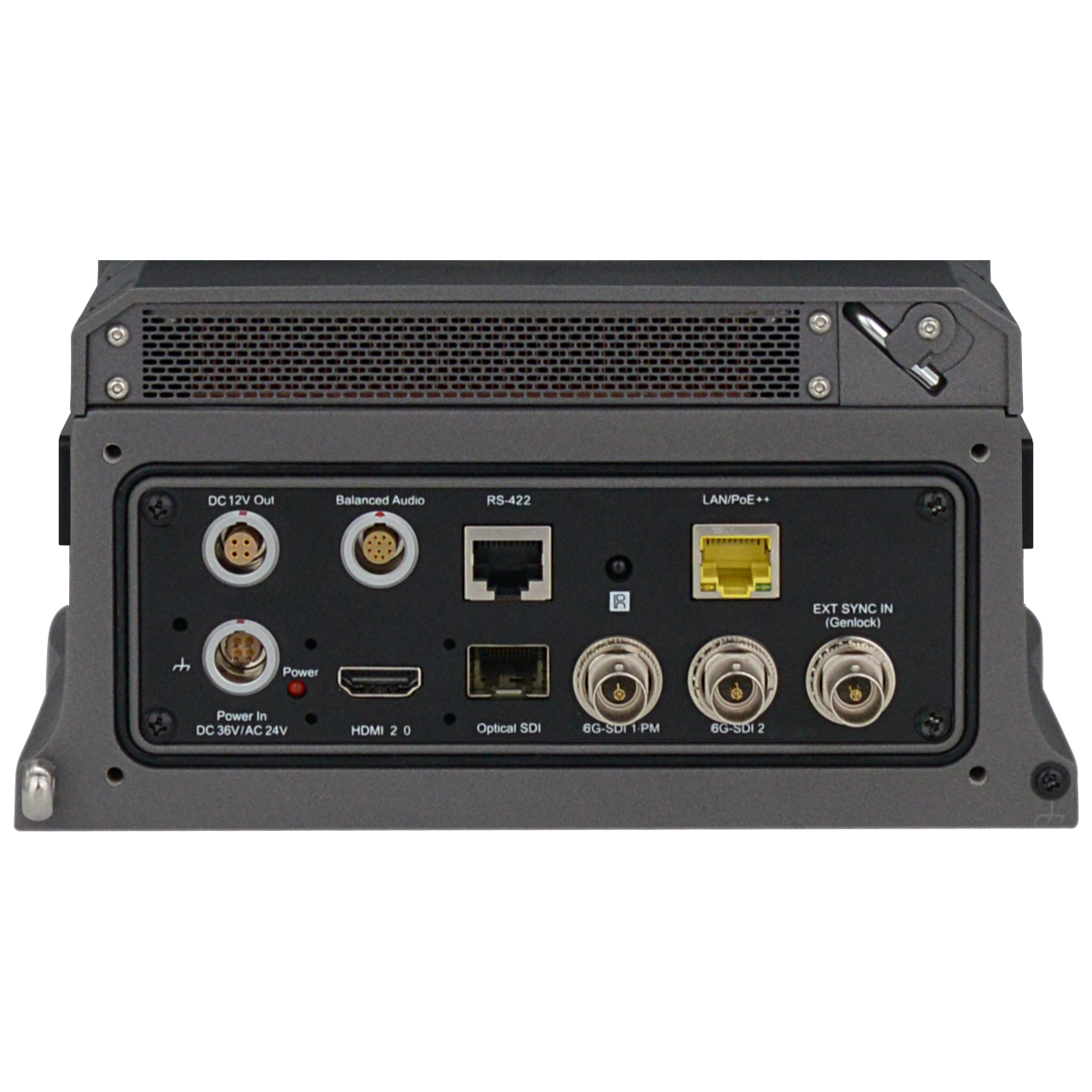

        Interface
      • HDMI Video Output: HDMI 2.0 Type A
      • SDI Video Output: 6G-SDI, SMPTE424M/SMPTE292M/SMPTE 296M/SMPTE 274M/SMPTE ST-2081 standards, 75Ω BNCx2, SDI/PM for output to has OSD display
      • SDI Optical Fiber Output: Optical 12G-SDI. Detachable slot, Connector: Duplex LC, Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402
      • Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
      • Synchronization System: Internal/External synchronization
      • External Sync Input: Genlock, BNC connector, BBS, tri-level sync supported

        General
      • Operating Temp: -40°F to 140°F, PoE is not suggested to be used and camera preheating automatically will be processed when 5°F or less
      • Operating Humidity: 100% Suitable for Use
      • Power Input: AC 24V.DC+24V.PoE++
      • Power Consumption: Min: 30W; Max: 60W
      • Installation Method: Stand-alone or suspended, To ensure safety, the unit must be secured using the mount bracket supplied.

    • Item Includes:

      • 1x EXU Series PTZ Camera
      • 1x IR Remote Controller
      • 1x 36V, 4A Locking Power Supply with International Plugs
      • 1x 12V Power Output Adaptor
      • 1x RS422 RJ45 Adaptor
      • 1x Removable Tally Light
      • 1x Dust Cover
      • 1x Mounting Screw Set
      • 1x HDMI Cable Support
      • 1x Water Resistant Rear Panel Cover
      • 1x Waterproof Rear Panel Cover
      • 1x Flexible Conduit Sleeve
      • 1x Safety Cable

    • Warranty:

      • 2-Year Limited Warranty

    • GTIN:

      6973775121949
