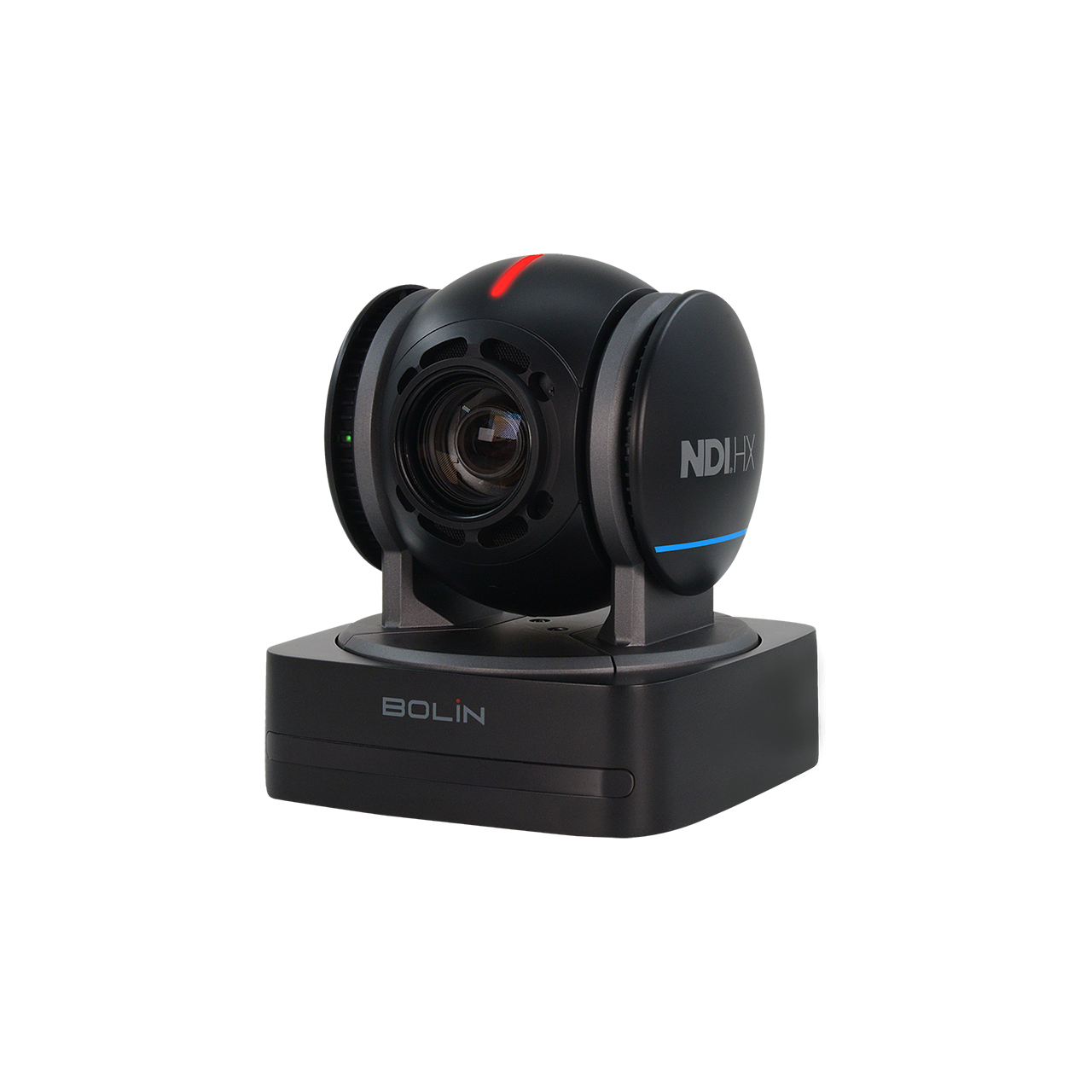

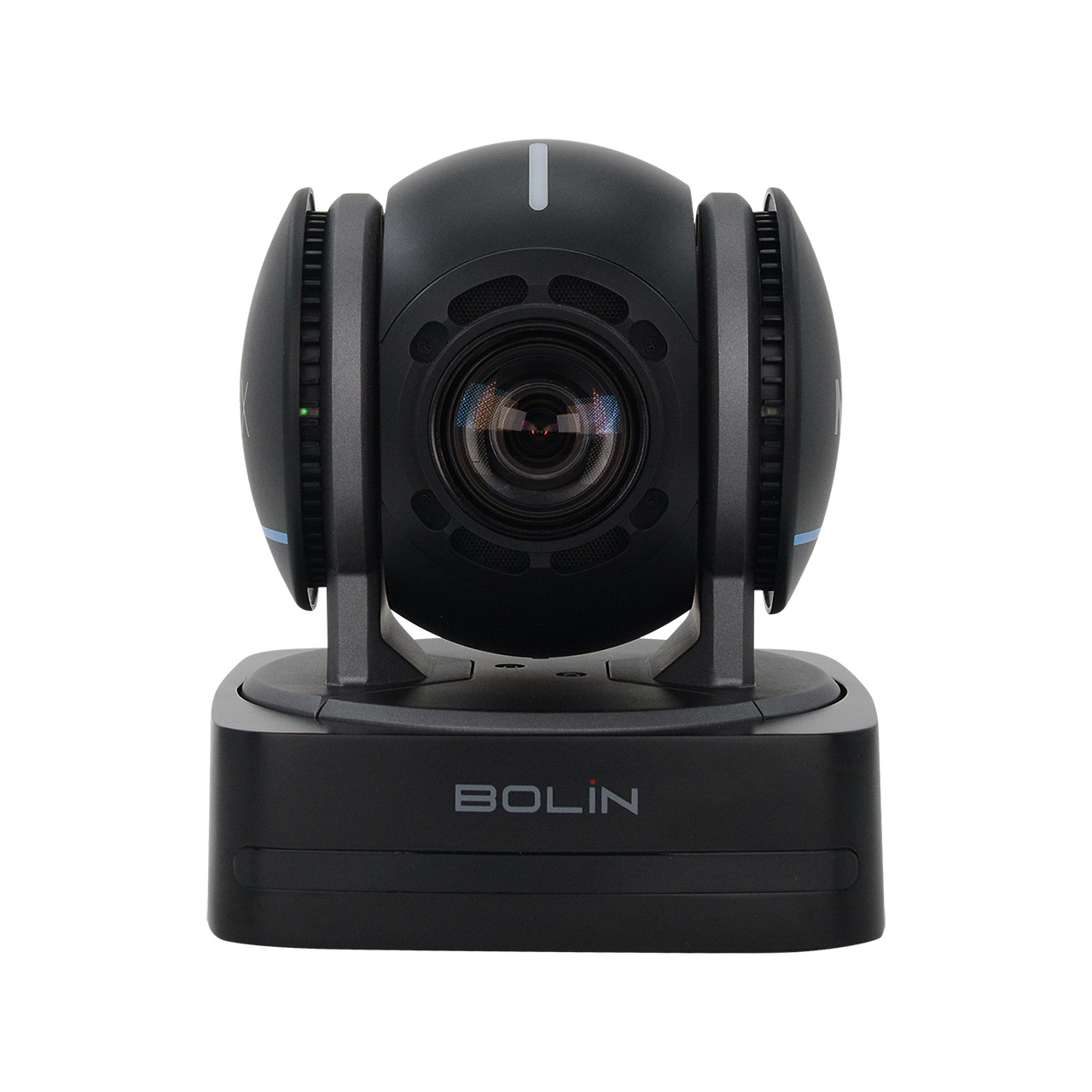

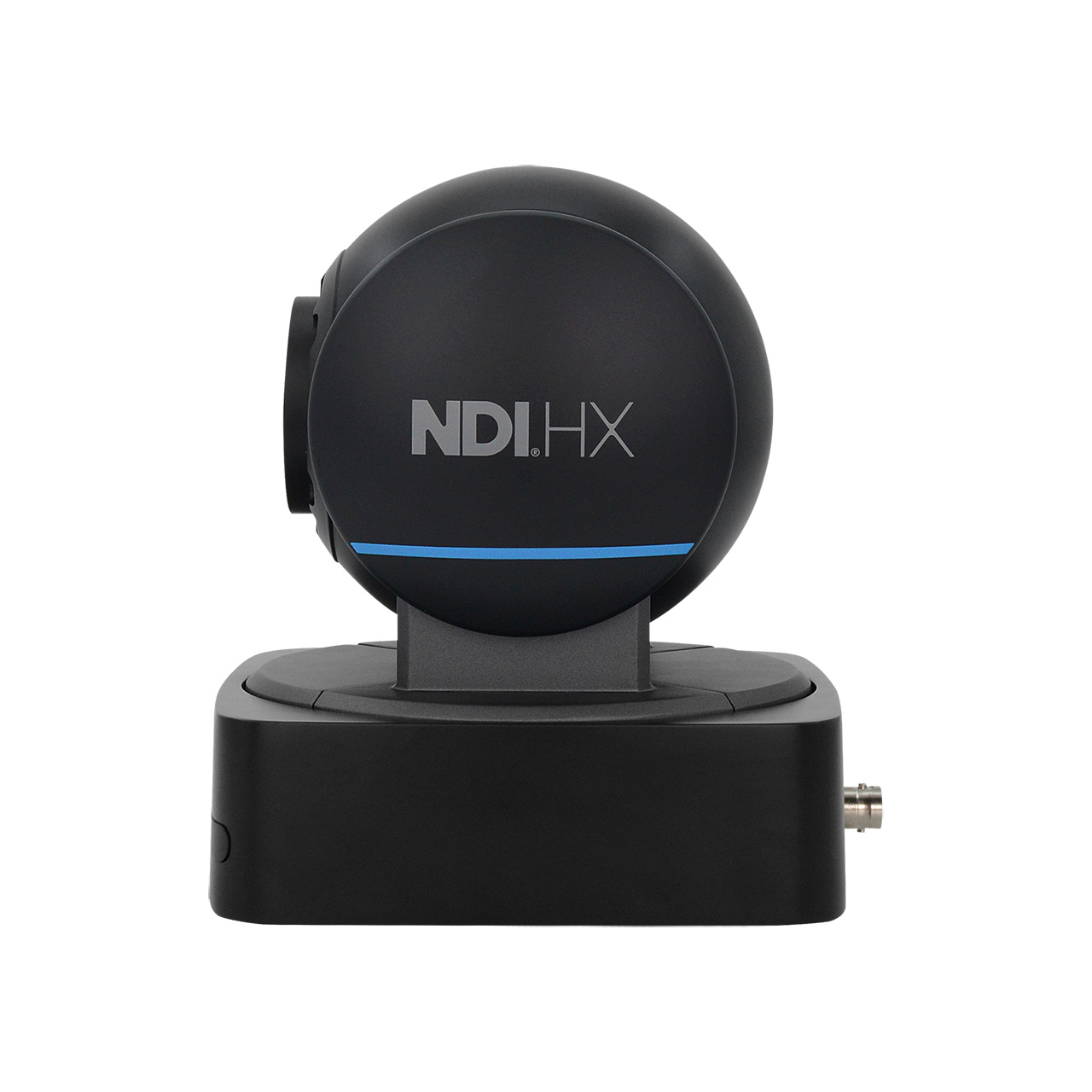

Bolin N2-210X N-Series NDI HX3 FHD PTZ Camera with 10x Zoom - HDMI / SDI / USB-C - Black

ITEM #: BOL-N2-210X MFG #: N2-210X

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$795.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N2-210X - Overview

    Bolin's N-Series PTZ cameras support NDI HX3 and are fully compatible with NDI-enabled hardware and software. They are built on the Blue Line platform, which provides gold-standard features at an affordable price. Bolin's PTZ camera manufacturing principles never compromise image quality, industrial video standards, or PTZ control operation. So, these budget-friendly cameras are made with Bolin care and quality.

    The N2 NDI HX3 PTZ camera has a compact design and form factor. The two models N2-210X, N2-220X feature a 10x or 20x wide-angle view, with a high-quality Full HD image output over NDI , HDMI, 3G-SDI (N2-220X only), USB, and IP video streams. They are perfect for studio, live production, huddle rooms, video conference rooms, and ProAV use.

    Color Matrix
    -Convenient access to image Color Matrix via WebUI
    -Easy adjustments to Gain and Hue for RGBCMY
    -Results instantly visible in the WebUI preview

    Another Gold Standard feature of the Blue Line is the Color Matrix. With it, you can easily make subtle and specific corrections to the colors in your camera's image.

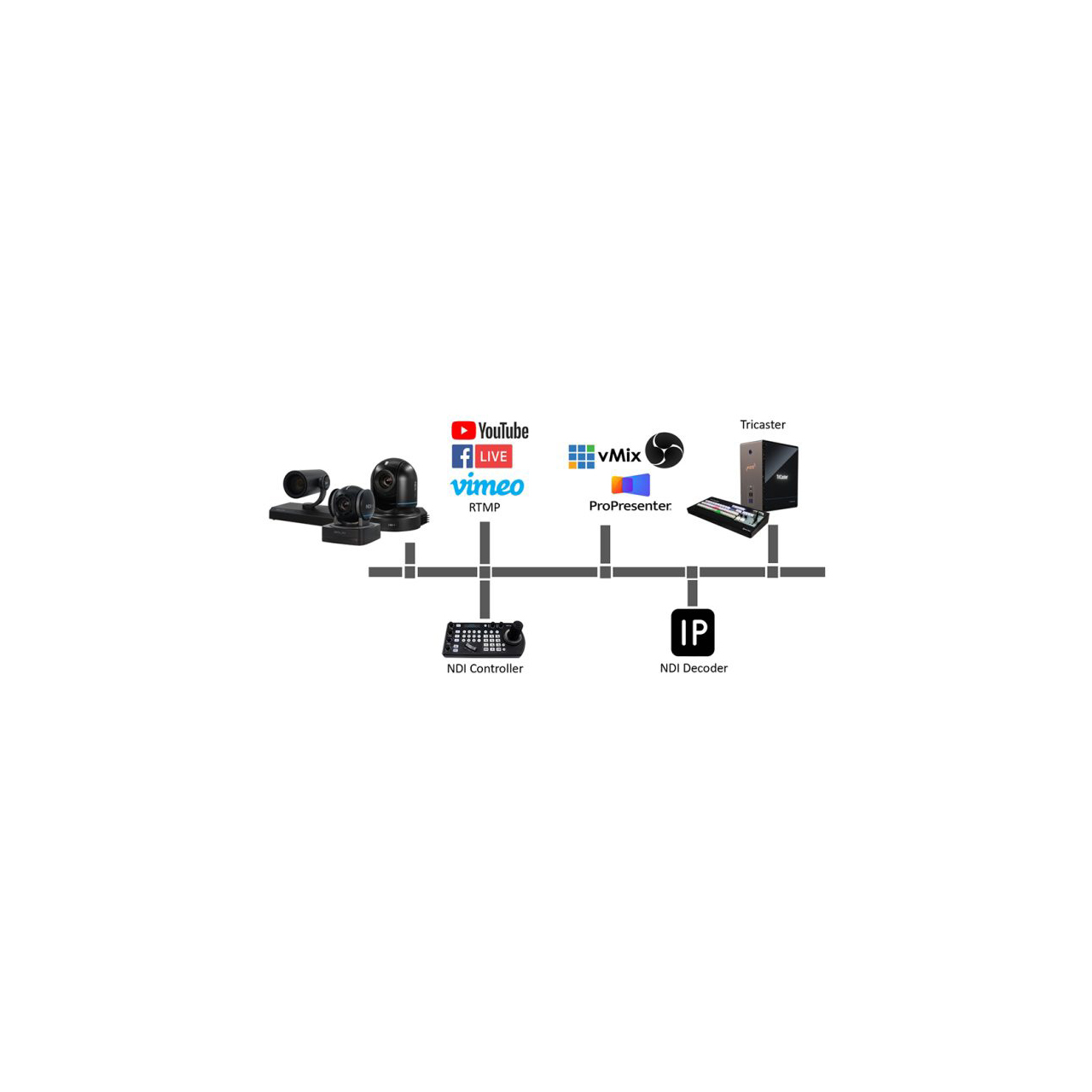

    NDI IP Streaming
    -Bolin's N-Series PTZ cameras support NDI HX3 and are fully compatible with NDI-enabled hardware and software.
    -Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via web browser and video decoder.
    -Supports RTSP, RTMP for online video and live streaming.
    -Cross Browser Compatibility - HTML5 support for Edge, Chrome, Firefox, and Safari browsers without plugin.
    -Full function PTZ camera IP control via Visca Over IP protocol.
    -Integration with popular VMS - ONVIF for IP video control, record and management.

    SRT Ready
    Delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over unstable networks.

    -High quality video image
    -Low latency
    -Secure end-to-end transmission
    -Leveraging the internet
    -Open source

    The ways that you have the camera under control
    N2 Series NDI PTZ camera provides comprehensive methods of controlling: NDI Control, Serial port RS422/485 and IP, Rest API software control. Protocols supported: VISCA, Pelco, VISCA Over IP and ONVIF IP.

    AI Powered Auto Focus and Auto Exposure
    Built with Bolin's latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.n white.

    • Features:

      • NDI HX3 Certified
      • Zoom: Optical 10X, 20X
      • Video Output: NDI HX3, HDMI, SDI, USB C
      • Horizontal Angel of View: 69°
      • Video Resolution up to Full HD
      • IP resolution up to 1080P60.
      • RTSP, RTMP, SRT IP streaming
      • AI Exposure, AI Focus
      • Power: 12VDC, PoE

    • Specifications:

      • Camera
      • Image Sensor: Sony Progressive scan CMOS image sensor 1/2.8 type
      • Number of effective pixels: 1920X1080, 2.13 MP
      • Zoom: Optical Zoom 10X,Digital Zoom 16X
      • Focal Length: f= 4.34 mm (Wide) to 35.17 mm (Tele)
      • Aperture: F1.85 (Wide) to F2.63 (Tele)
      • Horizontal Angle of View: 68.8 °(W)~8.8° (T)
      • Vertical Angle of View: 39.5° (W)~5.1° (T)
      • Min. object distance: 10mm (Wide)
      • Min. Illumination: 0.5lux (color), 0.1lux (black)
      • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
      • Focus: Auto,Manual, One Push
      • White Balance: Auto,Indoor, Outdoor, OPW, ATW, Manual
      • Exposure: Auto, Manual, Shutter/Iris/Brightness priority
      • Image Adjustment: Brightness, Color(Saturation), Contrast, Sharpness, HUE
      • Back Light Compensation: On/Of

        HDMI
      • Video Format - HDMI: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
      • Color Format: 10bit(HDMI),YCbCr
      • Color Space: YUV,RGB
      • OSD Menu Display: YES (English,Chinese,Spanish,German,French,Russian)

        USB
      • USB Port: USB2.0 Type C
      • Encoder: H.264/YUV2
      • USB Video Format: 1920x1080p60/50/30/25fps, 1280X720p60/50/30/25fps
      • Compatible Integration: UVC,UAC
      • Video Conference Compatibility: Most video conference platform in the market

        Network-IP
      • Video Codec: NDI HX3
      • Network Interface: RJ45 port-Standard 1Gbps Ethernet
      • IP Video - 1st Stream: 1920x1080,1280x720; Frame Rate: P60/50/30/25
      • IP Video - 2nd Stream: 704x576,640x480,640x360,576x480,352x228,320x240,320x180; P60/50/30/25; Frame Rate P60/50/30/25
      • True Dual Output: Video resolution and framerate: IP and HDMI can be output with different format (SDI and HDMI will be the same,SDI is the same or lower than HDMI,USB is the same as IP)
      • IP Protocols: TCP/IP,ICMP,ARP,RTP,SIP,UDP,HTTP,HTTPS,DNS,DHCP,FTP,NTP,NDI HX3
      • Application Protocols: RTP,RTSP,RTMP,RTMPS,SRT,NDI HX3
      • Multi-stream: 2 Streams
      • Audio Compression: AAC-LC,G.711,G.726 Broadband Audio Encoding
      • Compatible Integration: ONVIF2.4,VISCA Over IP

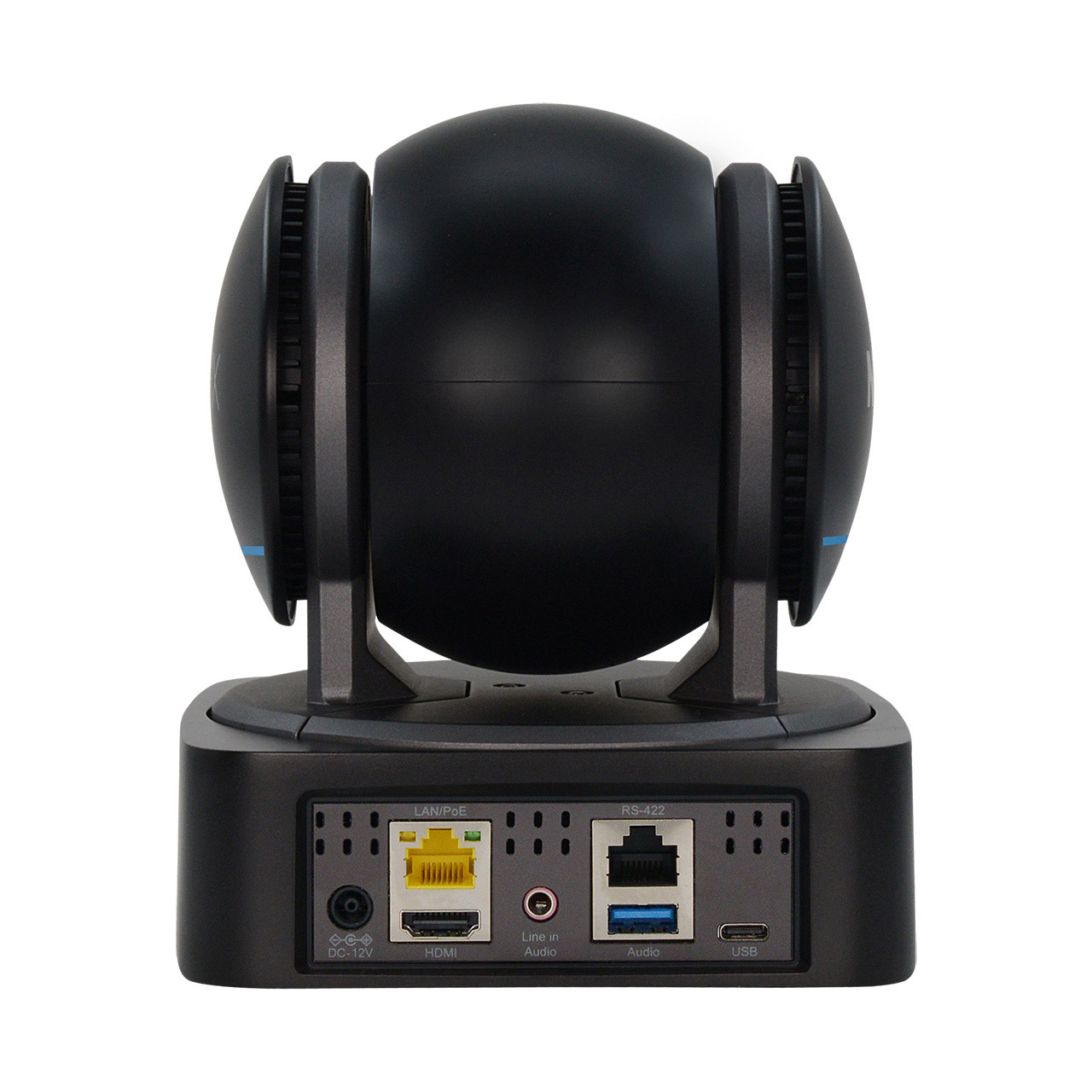

        Interface
      • HDMI Video Output: HDMI 1.4X1 Type A
      • IP Video Stream: Up to 1080p60
      • Camera Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
      • Control Protocol: VISCA. VISCA Over IP, Pelco P/D
      • LAN Port: RJ45X1 (1000BASE-T Ethernet port)
      • USB Port: USB2.0,Type C
      • USB Protocol: UVC,UAC

        Mechanical
      • Pan Movement: Horizontal:±170 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°?100°/S)
      • Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°?50°/S)
      • Speed Proportional: Pan/Tilt Speed proportional to zoom range
      • Preset Position: 255 positions,Speed 150°/s,Accuracy: 0.05° 6 presets on remote controller

        General
      • Body: Partial Magnesium Alloy
      • Mount: Ceiling mount, Wall mount, Tripod
      • Size of Tripod Screw Hole: 1/4"-20UNC with safety joint
      • Operating Temperature: 32 to 130 (°F)
      • Operating Humidity: ≤80% Suitable for Use
      • Power Input: DC±12V, PoE+(Compatibable with IEEE802.3at)
      • Power Consumption: Min:10W(Static state with no movement); Max:13W(Fully loaded operation)
      • Dimension: 143x143x161mm (LxWxH)
      • Weight: 1.5kg (Net weight)

    • Item Includes:

      • 1x 12VDC 4A, Universal various power core
      • 1x Full Function IR Controller
      • 1x RS232/RS422 adapter cable x1 For serial RS232/422 control

    • Warranty:

      • 2-Year Limited Warranty

    • GTIN:

      6973775121840
