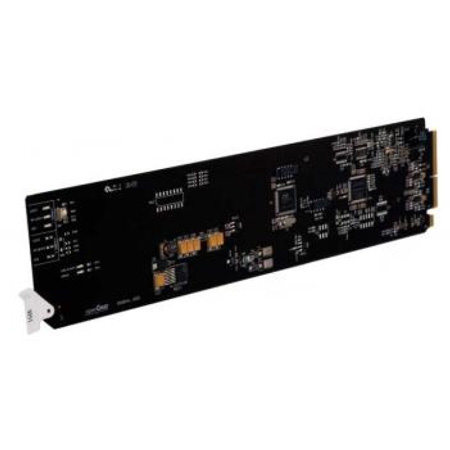

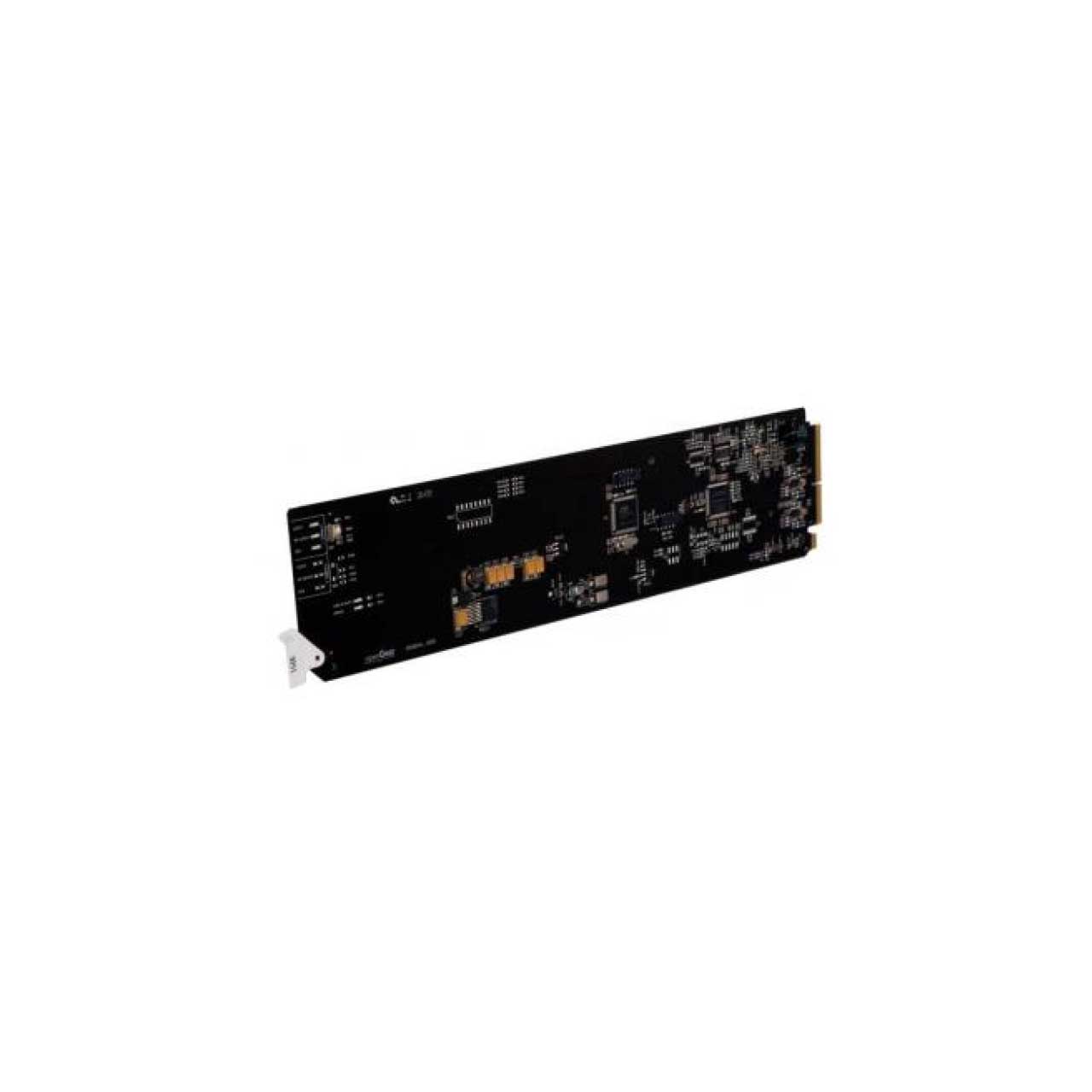

Cobalt Digital 9930DAC-AES75-RG 2 Pair AES 75 Ohm Digital Audio to 4-Channel Analog Audio Converter with Remote Gain

9930DAC-AES75-RG - Overview

• Features:

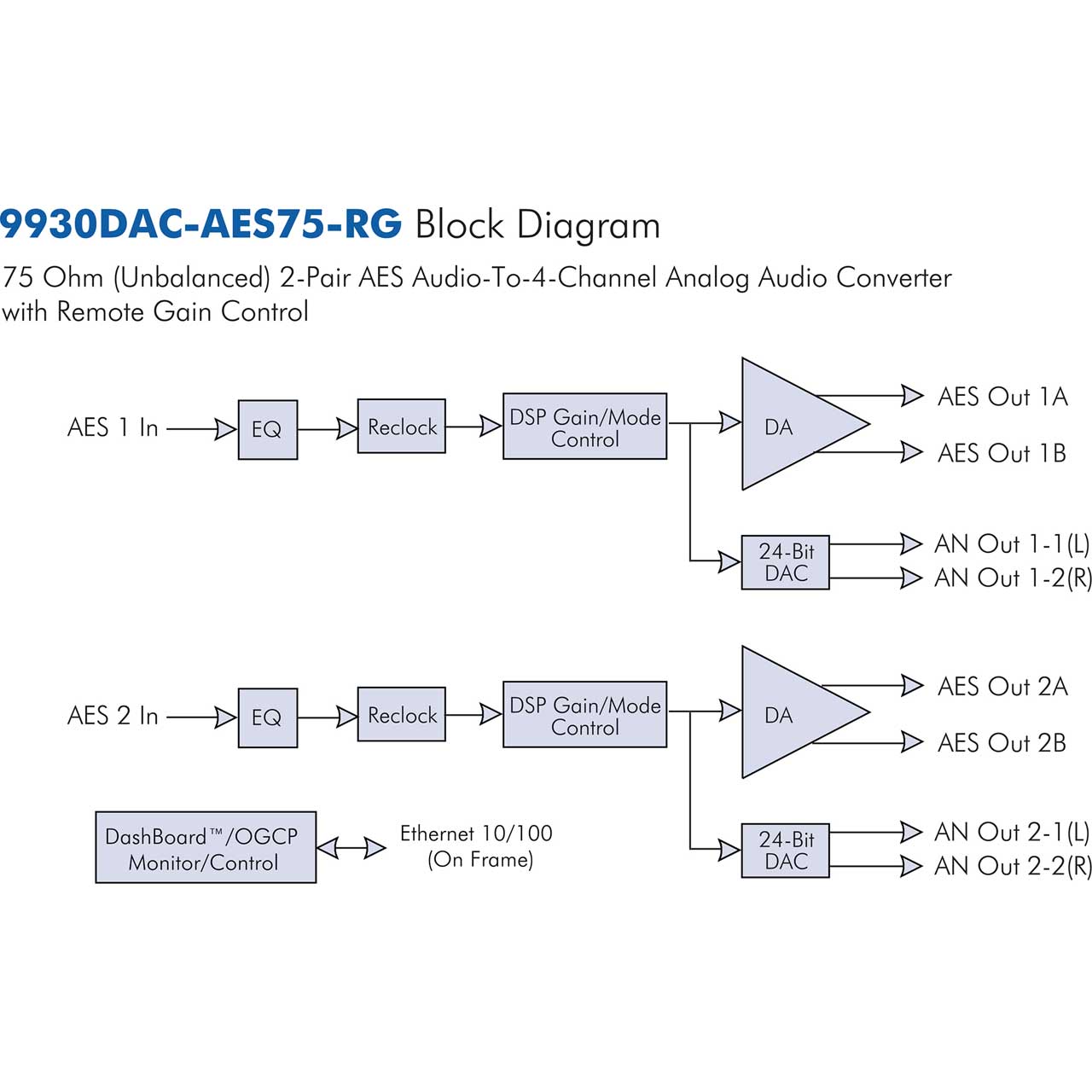

  • High-density design accommodates two AES inputs, allowing up to four analog outputs
  • Also provides 2x1 reclocked DA outputs for each AES input
  • Full remote control of operating mode and gain control
  • Multiple DSP modes - stereo/pass-thru, mono mix, L/R only outputs
  • Supports audio sampling frequencies from 32 kHz to 96 kHz
  • Convenient DSP gain trim via DIP or remote control
  • Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
  • Hot-swappable
  • Five year warranty


• Specifications:

  • Power
  • < 7.5 Watts

    AES Input
  • Number of Inputs: (2), unbalanced AES-3id BNC
  • Impedance: 75 Ω
  • Input Level: 0.2 - 7 Vp-p

    Performance
  • Sampling Rates: 32 kHz to 96 kHz
  • Resolution: 24-bit
  • Jitter: < 5 ns


  • Analog Output
  • Number of Outputs: (4) max (two stereo pairs). Available as stereo, mono-mixed, or L/R only.
  • Connector Type: WECO® removable 3-pin modular
  • Impedance: 60 Ω balanced
  • Maximum Output Level: +24 dBu
  • Frequency Response: ±0.2dB, 20 Hz to 20 kHz
  • Noise (unweighted): -86 dBu, 20 Hz to 20 kHz
  • THD+N: < 0.02%
  • Stereo Separation: >90 dB (20 Hz to 20 kHz)


• Item Includes:

  • 1x Cobalt Digital 9930DAC-AES75-RG 2 Pair AES 75 Ohm Digital Audio to 4-Channel Analog Audio Converter with Remote Gain


• Warranty:

  • Five year warranty
