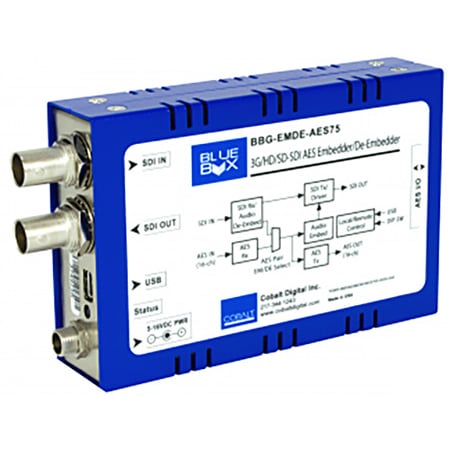

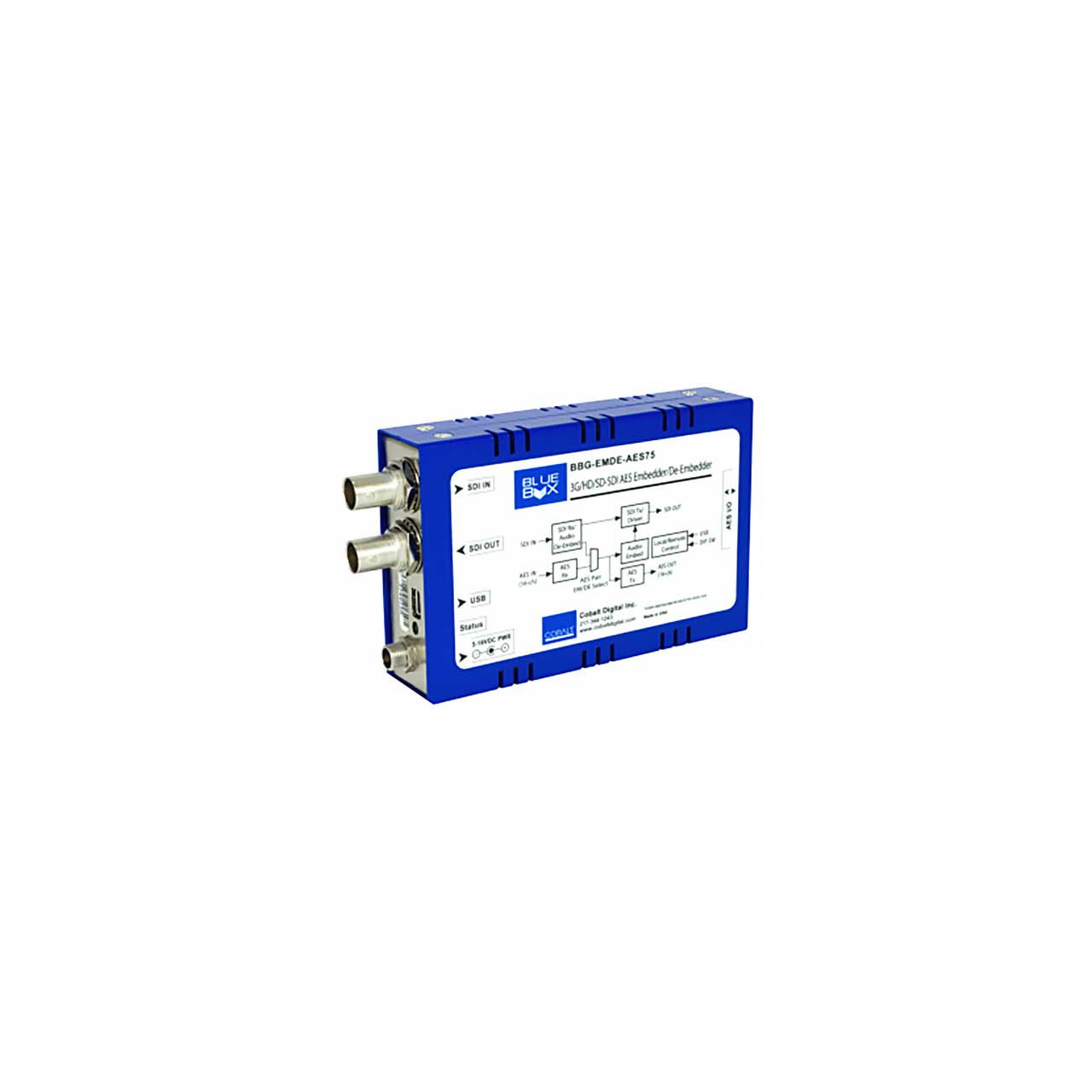

Cobalt BBG-EMDE-AES75 3G/HD/SD-SDI 8 Pair (16 Channel) AES Audio Embedder/De-Embedder

BBG-EMDE-AES75 - Overview

• Features:

  • 8-pair (16-channel) AES support. Individual per-pair embedding or de-embedding. Multi-pin AES I/O connector provides compact footprint. AES I/O can utilize direct connection to standard
  • HD-15 connectors, or by using accessory BNC breakout cable (available separately).
    Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with device
  • 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.
    Configurable using device DIP switches or USB GUI remote control offering dynamic configuration control, status display, audio meters, tone generators, and other advanced control functions not commonly found on "throwdown" packages. USB GUI audio meters provide ready assessment of content presence and line-up.
    Small rugged portable standalone package ideal for portable installations. Compact size and low weight design easily affixes directly to host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.


• Specifications:

  • Power: 5-16 VDC, <5 W (AC adapter included)
  • DC Power Connector: Coaxial locking connector (for use with supplied Cobalt power adapter).
  • USB Port: Mini-USB (used for USB remote control connection and firmware upgrade upload to device)
  • Standards/Data Rates Supported: SMPTE 292M, 259M, 424M
  • Inputs/Outputs:
  • - 3G/HD/SD-SDI In (75Ω BNC)
  • - 8-pair AES-3id

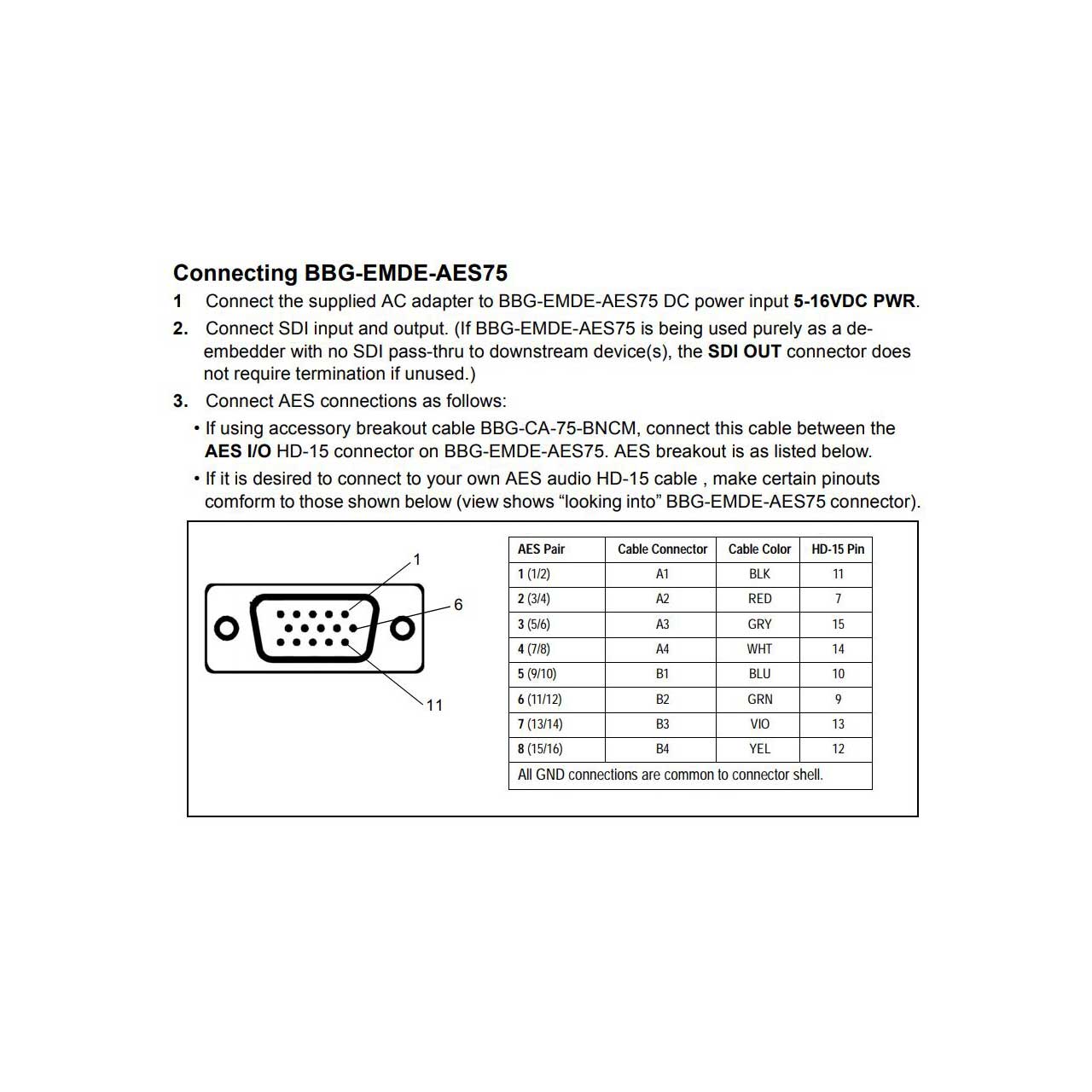

  • - AES I/O via HD-15 connector and AES BNC breakout adapter (available separately)
  • - 3G/HD/SD-SDI Out (75Ω BNC)
  • Audio Conversion Format: 48 kHz sampling, 24-bit with adaptive SRC. Auto SRC bypass for Dolby embedding.
  • Dimensions: 5.5" x 3" x 1" (including connector projections) (139 x 77 x 26 mm)


• Warranty:

  • 5 Year
