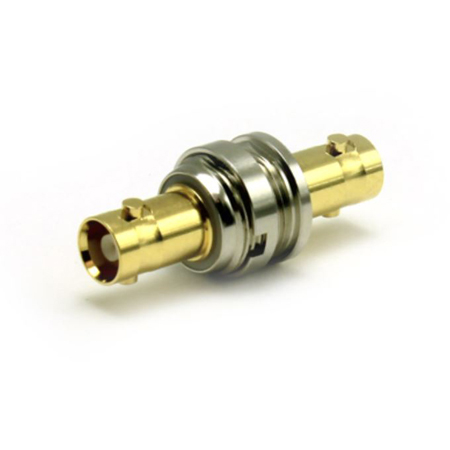

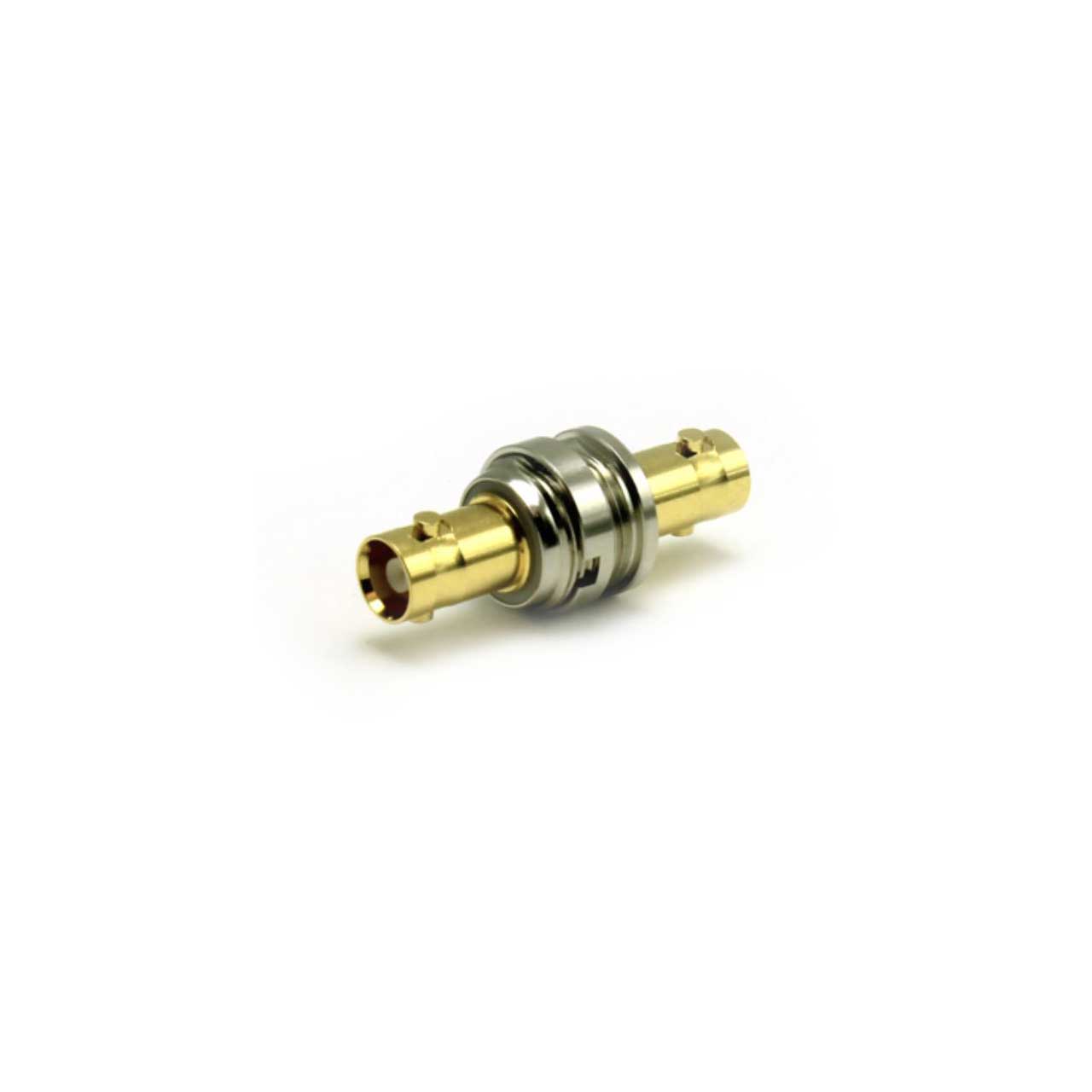

Coax Connectors 67-503-D126 is a MicroBNC Insulated Bulkhead Jack to Jack Adaptor 75Ohm (12G).
Micro BNC 75 ohm connectors are designed for HD & UHD Broadcast, Telecom, HDcctv, Instrumentation and similar applications that require high performance in an high density package. The unique patented coupling nut allows the use of a special tool to disconnect the connectors when they are closely mounted. Tested to beyond 12GHz and exceeding the requirements of SMPTE ST 2082-1, these connectors are used in Full HD1080p (3G), HD-SDI and are fit for Ultra HD 4K (12G) applications. With a diameter of only 7.8 mm, mounting density is increased by 4 times when compared with a standard BNC.
