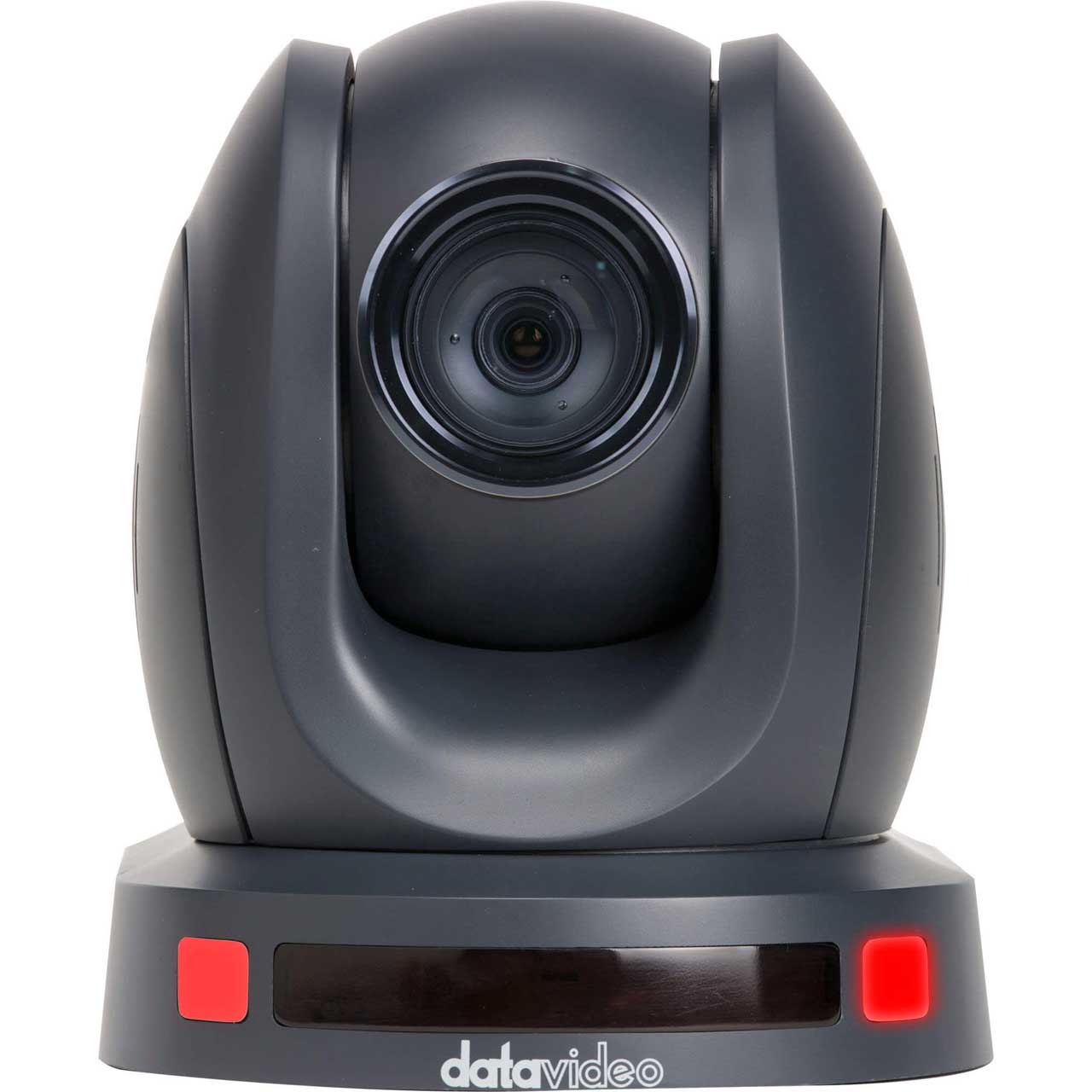

Datavideo PTC-140T 20x HDBaseT PTZ Camera for HS-1500T & HS-1600T Portable Studios Only - Black

ITEM #: DV-PTC-140T MFG #: PTC-140T

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTC-140T - Overview

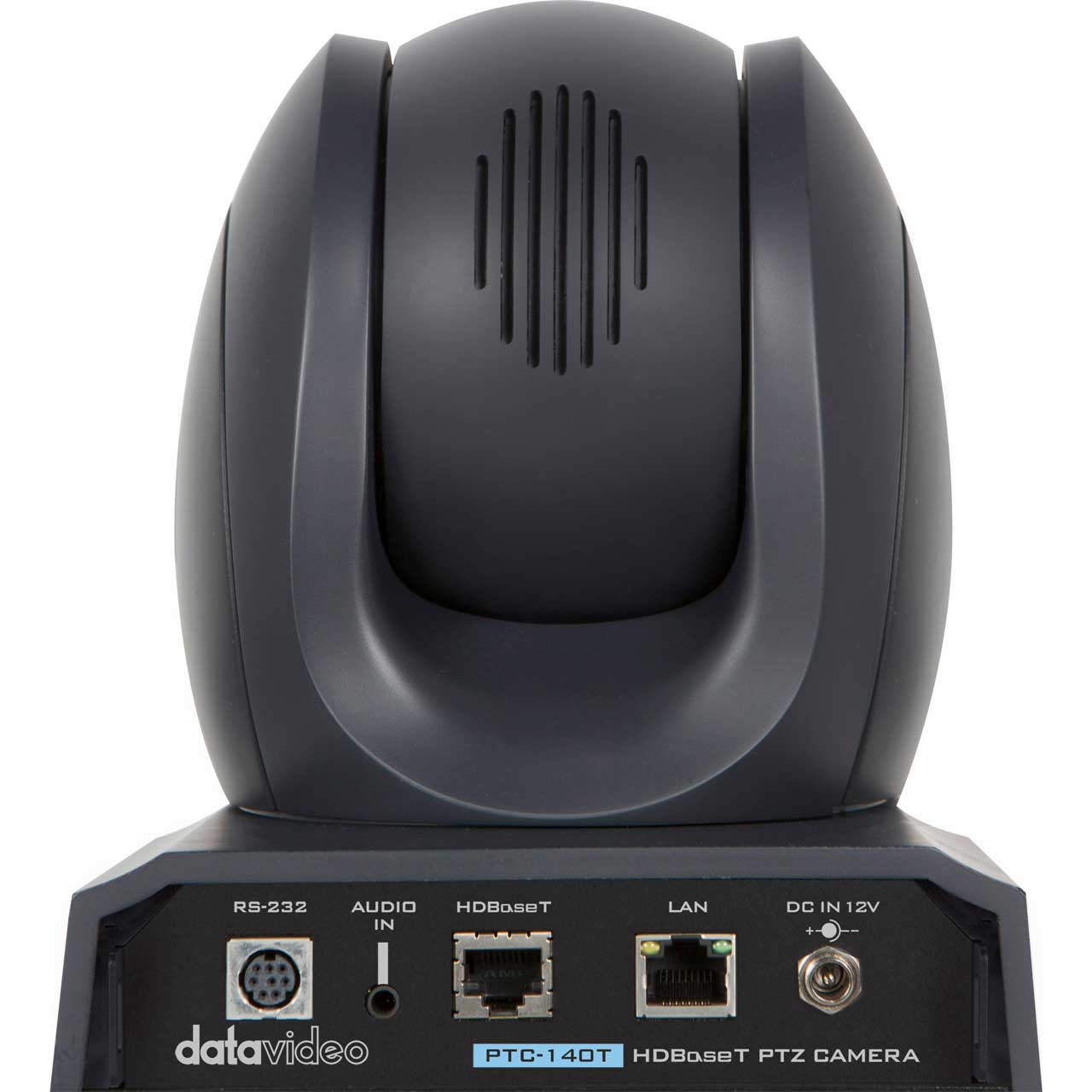

The PTC-140T is a cost-effective HDBaseT PTZ camera featuring PoE, a built-in streaming encoder, and 20x optical zoom. All signals, power, and control data travel through a single CAT6 ("network cable") and can reach a distance up to 100 meters away. The PTC-140T's on-board streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo's own DVS-200. The PTC-140T is compatible with HDBaseT portable studios such as the HS-1500T and HS-1600T, and controllers like the RMC-300 and RMC-180.

Please note! The camera advertised is compatible ONLY with the recievers built into the Datavideo HS-1500T or HS-1600T Portable Studios.

  • Features:

    • 1/2.8 inch CMOS sensor. Up to Full HD with 60fps.
    • 20x Optical Zoom, 10xDigital Zoom
    • Advanced noise reduction
    • Audio Input Interface
    • 264/H.265 video compression for streaming
    • Multiple Network Protocol: support RTSP, RTMP protocols and support, easy to link streaming media server
    • Compatible with HS-1500T and HS-1600T HDBaseT Portable Video Studios, and remote controllable by RMC-300 and RMC-180 PTZ Camera Controller

  • Specifications:

    • Color: Black
    • Image Sensor: 1/2.8 inch high quality HD CMOS sensor
    • Effective Pixels (approx.): 2.07 Mega pixels
    • S/N Ratio: >55dB
    • Min. Illumination: 0.5Lux (F1.8, AGC ON)
    • Electronic Shutter: Auto/ Manual
    • Zoom Ratio: 20x Optical Zoom, 10x Digital Zoom
    • Gamma Control: Off/ Normal
    • Iris Control: Auto/ Manual
    • Digital Noise Reductions: Yes
    • On-Screen Display (OSD): English, Simplified Chinese
    • White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
    • AGC / Gain Control: Auto/ Manual
    • Mirror / Flip Image: Yes
    • Focus Mode: Auto / Manual
    • Panning/Tilting Range: Pan: 340° , Tilt: +90° to -30°
    • Panning/Tilting Speed Pan: 0.1~60°/sec
    • Tilt: 0.1~30°/sec
    • Preset: 255 Position

  • Item Includes:

    • 1x PTC-140T (black)
    • 1x IR Remote Controller
    • 1x Ceiling Mount Bracket-A
    • 1x Ceiling Mount Bracket-B
    • 6x Ceiling Mount Bracket Screw M3*4mm
    • 1x Power Cord
    • 1x DC 12V Power Adapter
    • 1x Tightrope
    • 1x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
    • 1x Thank You Card

  • GTIN:

    0672255008232
