The ES-201 with rackmount option P provides a loop-thru input and four isolated outputs, all accessible via BNC connectors. An independent screwdriver-adjustable Gain and Equalization control for each output are provided on the front of the case. Up to 1000 feet of cable may be compensated by adjusting the EQ trimmer. The Gain control provides an overall signal level adjustment of - 2 to +3 db. When the input is not looped thru to other equipment, a 75 ohm terminator should be used on the free input connector. Unused outputs need not be terminated.
ESE's introduction of the ES-201 presents the first affordable high performance Video DA with "separate" Gain and Equalization controls. Each of the four video outputs are independently adjustable via separate (recessed) front panel mounted controls. A video loop-thru input and four isolated outputs are accessible via rear panel mounted BNC connectors.

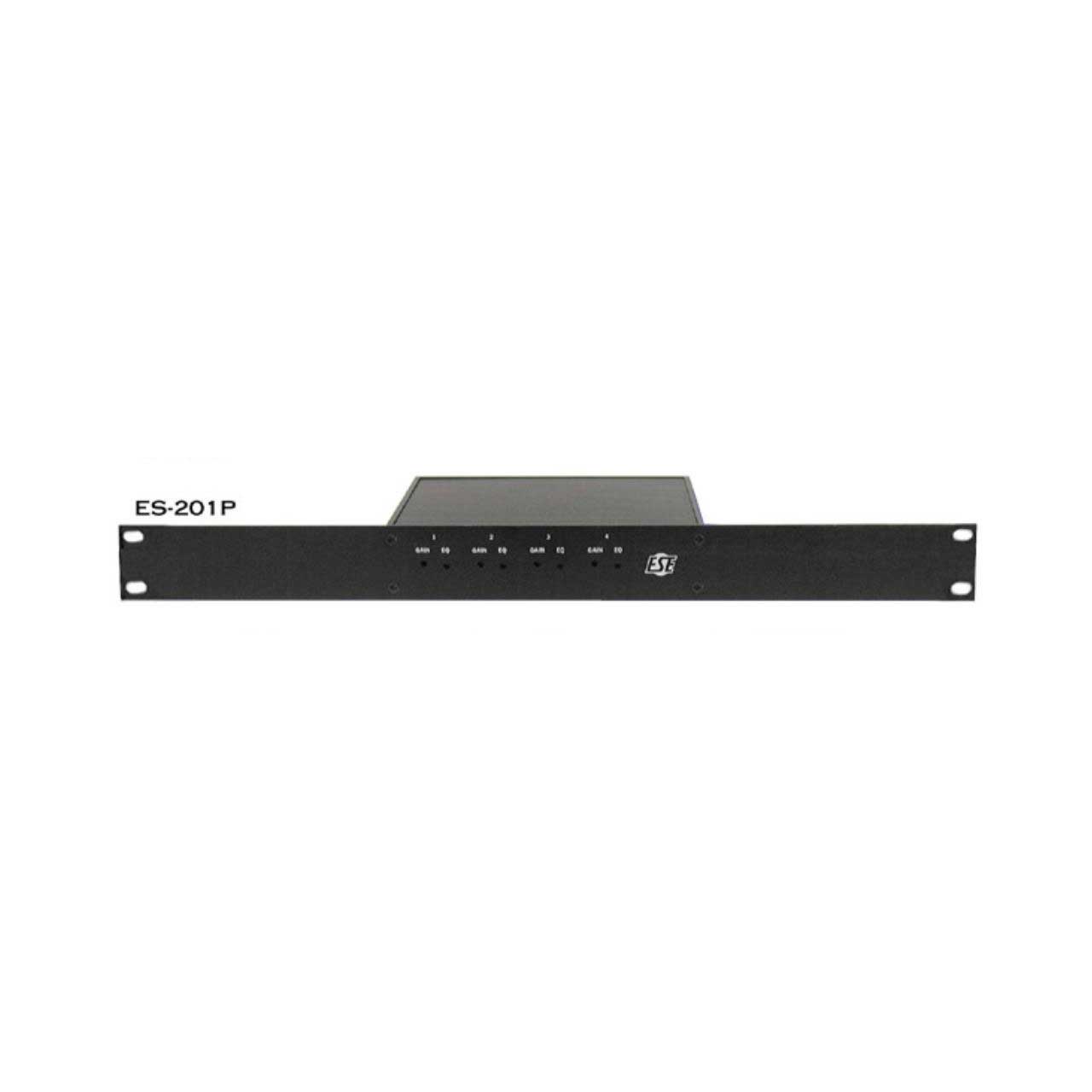

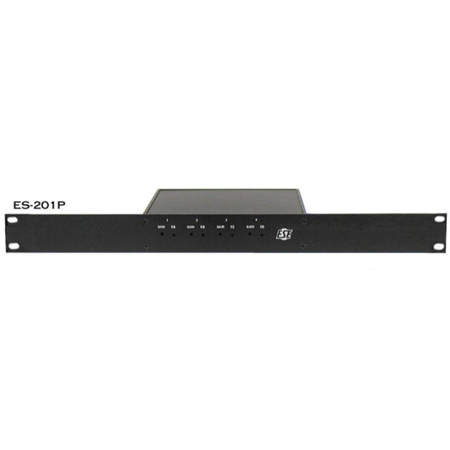

Please Note! Option "P" indicates a 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep
