Magewell 64030 Pro Convert SDI 4K Plus - Converts 1-Channel of 6G-SDI Input Signal into Full NDI with Loop-Through

ITEM #: MGW-64030 MFG #: 64030

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Magewell
Free Shipping with $49 Minimum Order

Our Price:

$960.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

64030 - Overview

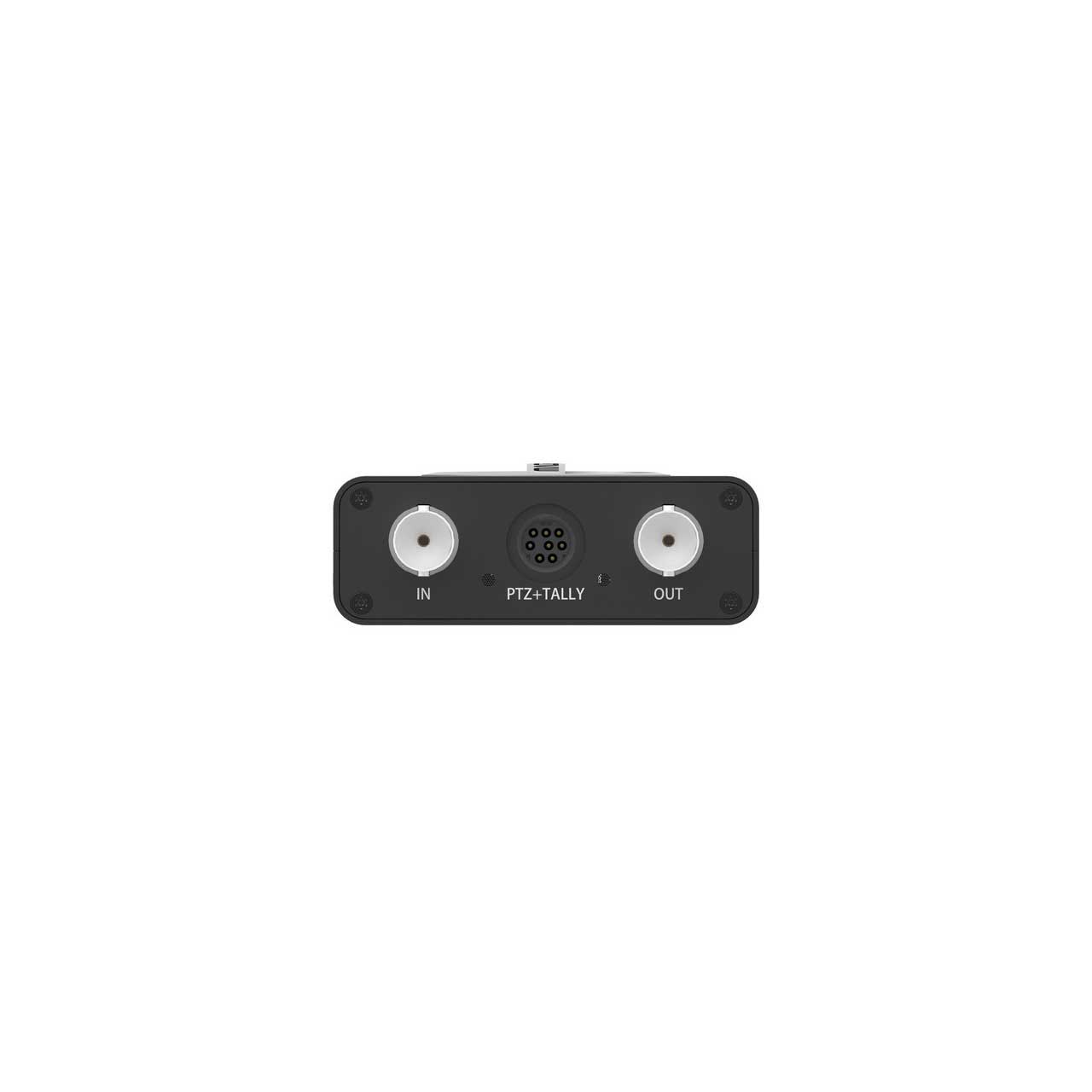

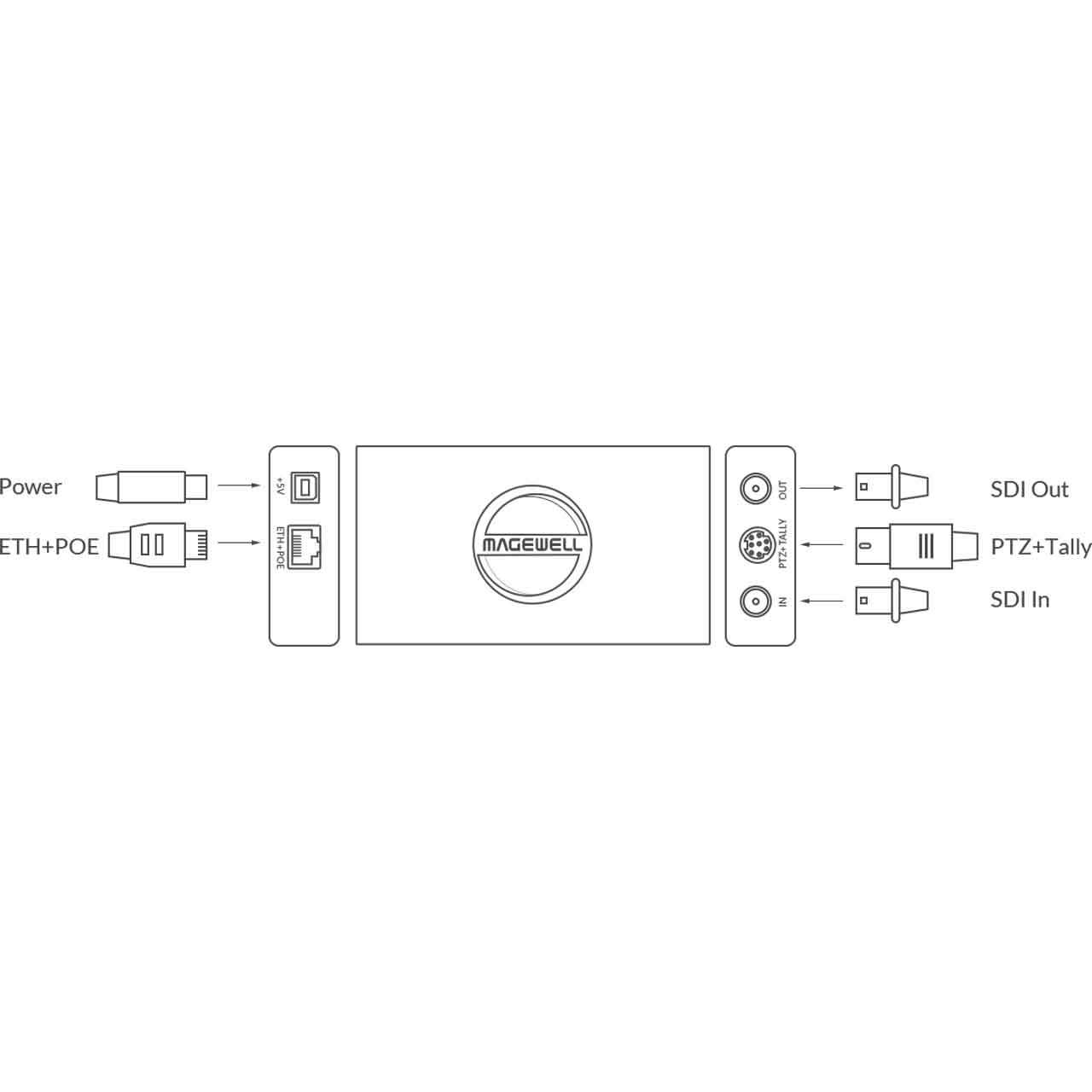

The SDI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs. The LEDs also indicate power, output, and input signal status.

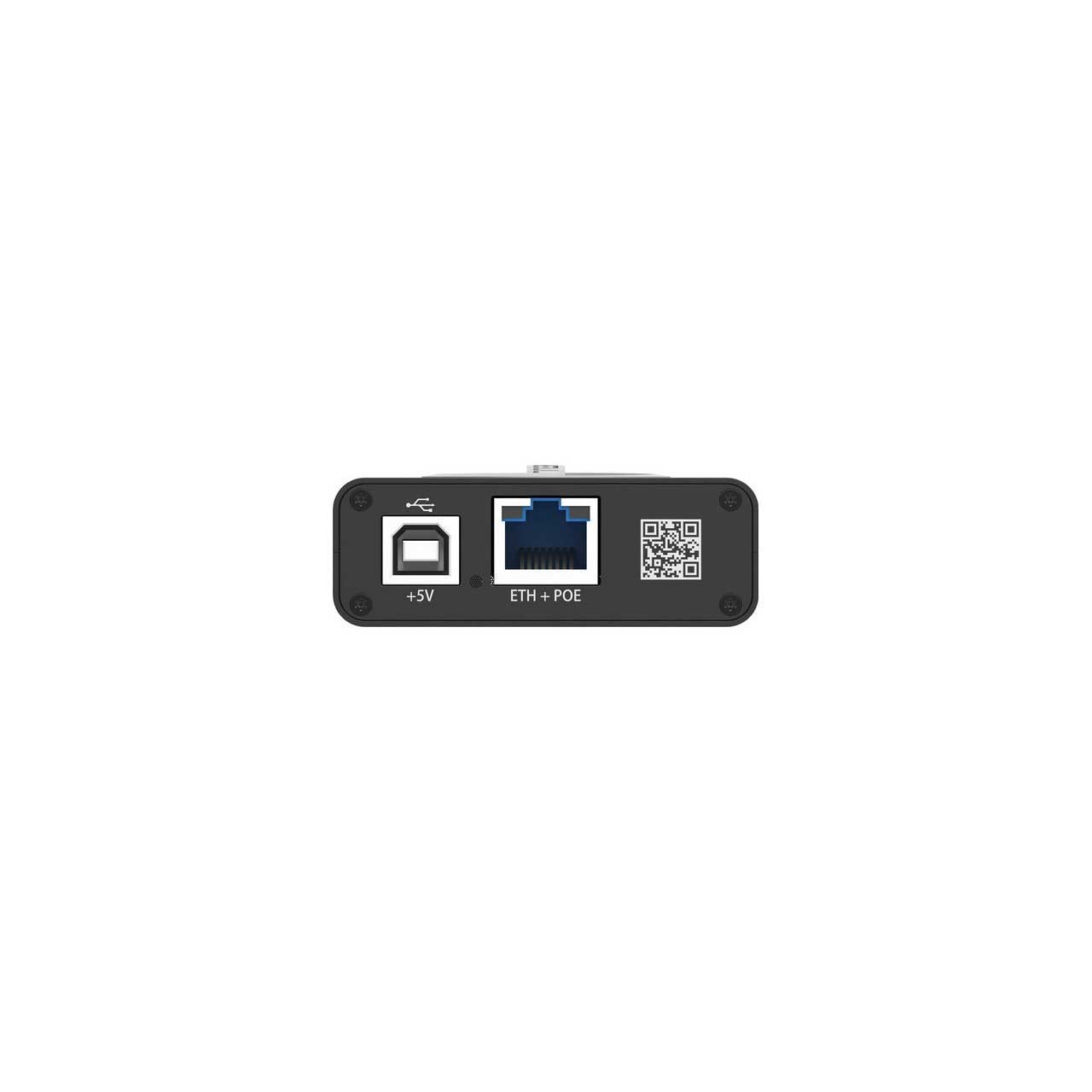

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, with a bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.

  • Features:

    • Very low latency
    • Advanced configuration and device status through intuitive Web GUI
    • Tally lights and camera mounting for live production applications
    • HTTP-based APIs for custom integration
    • Single-link 6G-SDI input and loop-through
    • Support for up to 4096x2160 30fps input
    • Support for up to 16 (mono) audio channels
    • Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
    • Send NDI streams across network segments
    • Remotely control PTZ cameras via NDI
    • Support for NDI 5.x


  • Specifications:

    • Input & Loop through Features:
    • Max video input & loop through: 4096x2160 30fps. Supported inputs include: 4096x2160p/3840x2160p 23.98/24/25/29.97/30, 2048x1080p/1920x1080p, 23.98/24/25/29.97/30/47.95/48/50/59.94/60, 2048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60, 1280x720p 50/59.94/60, 720x576 25p/50i (PAL SD), 720x480 29.97p/59.94i (NTSC SD)
    • Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
    • Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    • Support RGB, YUV BT.601/709/2020 video input
    • 16-channel SDI embedded audio inputs
    • SD/HD/3G/6G-SDI BNC input & loop through
    • Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081) SDI standards
    • Receive 6G-SDI transmitted up to 100m (328ft)

      NDI® Encoding Features:
    • Encoding Full NDI real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
    • Output the same resolution as input or any custom resolution. Typical outputs include: 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60, 2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60, 1280x720p 50/59.94/60
    • Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
    • Encoding 16-channel NDI-embedded audio
    • Support NDI 5.x

      Configuration Management:
    • Register with Magewell Cloud
    • Remote control via WebUI and Magewell Cloud
    • Provide comprehensive information regarding the device and signals in real-time
    • Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
    • Update firmware
    • Support USB RNDIS/ECM
    • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
    • Provide HTTP APIs

      Working Environment:
    • Operating temperature: 0 to 45 deg C
    • Storage temperature: -20 to 70 deg C
    • Relative humidity: 5% to 90% non-condensing


  • Item Includes:

    • 1x Magewell 64030
    • 1x Power Adapter - US
    • 1x USB Type A to Type B Cable
    • 1x Mini DIN8 to DIN8+DB9 Cable
    • 1x Tally Light
    • 1x L Bracket
