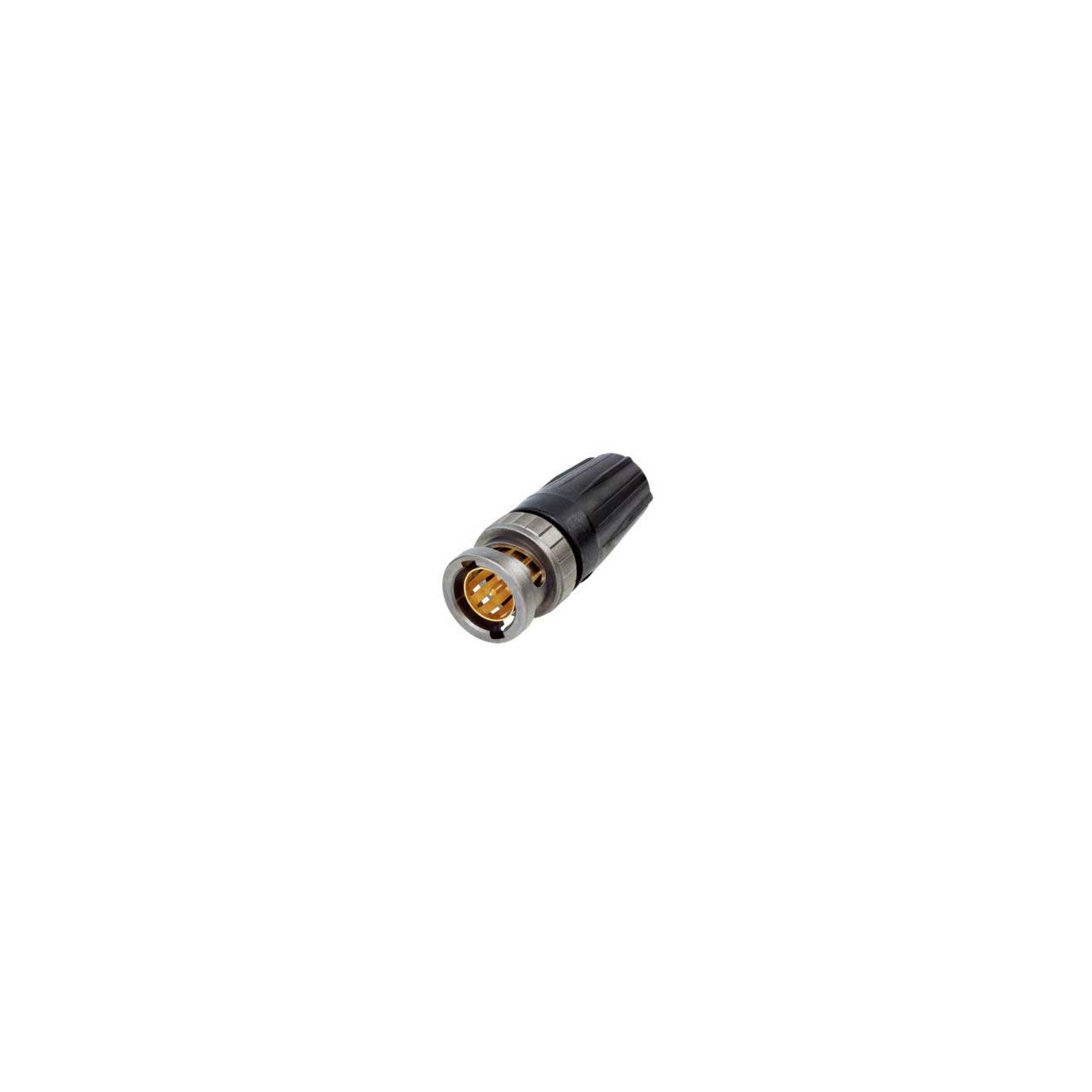

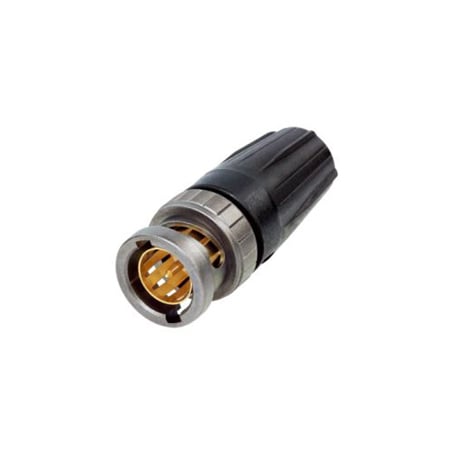

Neutrik NBNC75BZV14X rearTWIST UHD Male BNC Connector for Belden 4794R Cable

NBNC75BZV14X - Overview

• Features:

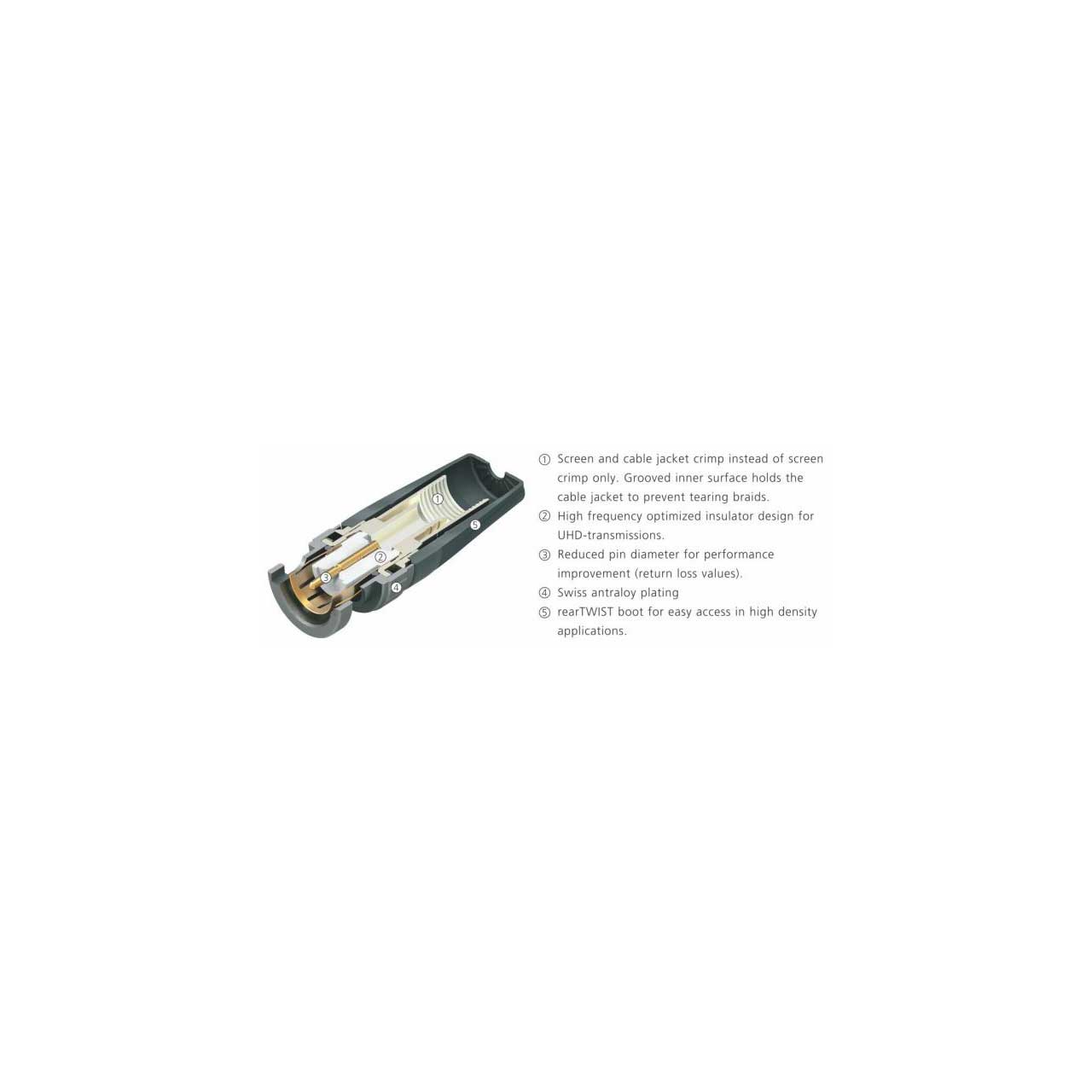

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies


• Specifications:

  • Connector:
  • Name: NBNC75BZV14X
  • Connection Type: BNC 75Ω
  • Gender: male


  • Electrical
  • Contact resistance: = 3 mΩ (inner)
  • Contact resistance: = 2 mΩ (outer)
  • Dielectric strength: 1.5 kVdc
  • Impedance: 75Ω
  • Insulation resistance: > 5 GΩ
  • Rated voltage: < 50 V
  • VSWR: = 1.6 / > 23 dB up to 6 GHz/= 2.3 / >15 dB up to 12 GHz/= 3.9 / >12 dB up to 18 GHz


  • Mechanical
  • Cable :O.D. 8.1mm
  • Cable retention: > 30 N (center)
  • Crimp size: 8.23 Hex crimp (shield)
  • Crimp size: (pin) 1.6 crimp
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
  • Cable anchoring: Jacket crimping

    Material
  • Contacts Brass: (CuZn35Pb2), 0.2 æm AuCo (center contact)
  • Shell Brass: (CuZn39Pb3)
  • Shell plating: Antraloy
  • Insert: PP


  • Environmental
  • Temperature range: - 30 °C to +85 °C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2

    Crimp Dimensions
  • Pin: 1.6 mm
  • Shield: 8.23 mm
  • Crimp die: DIE-R-BNC-PY


• Item Includes:

  • NBNC75BZV14X rearTWIST UHD Male BNC Connector
