The Cobalt RM20-9922-FS-K-HDBNC is just one of the many rear modules that are available for the openGear 9922-FS 3G/HD/SD-SDI Frame Sync card with Audio/Video Processing, AES/Analog Audio Embedding/De-Embedding, and CVBS I/O offers frame sync, and advanced audio and ancillary data support, plus many other powerful features. Frame sync can select from multiple reference inputs, with failover to alternate selected sources. Full audio support includes per-channel audio delay. Option +2FS adds a second independent processing path, offering two signal paths on a single openGearr card, with both paths providing independent frame sync and audio embedding /de-embedding.
Advanced frame sync features include per-channel audio delay, audio/video offset, and output rate conversion to and from 23.98/29.97/29.94 to 24/30/60 frame rates. Frame sync can select from multiple reference inputs, with failover to alternate selected sources.

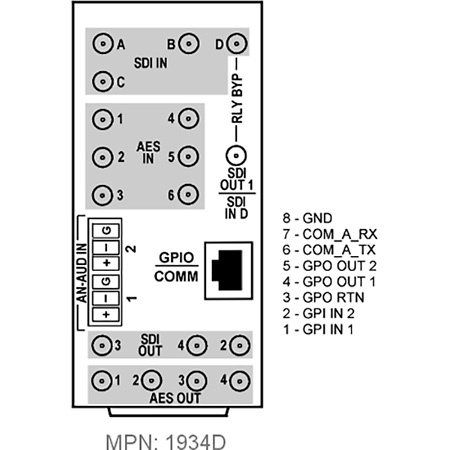

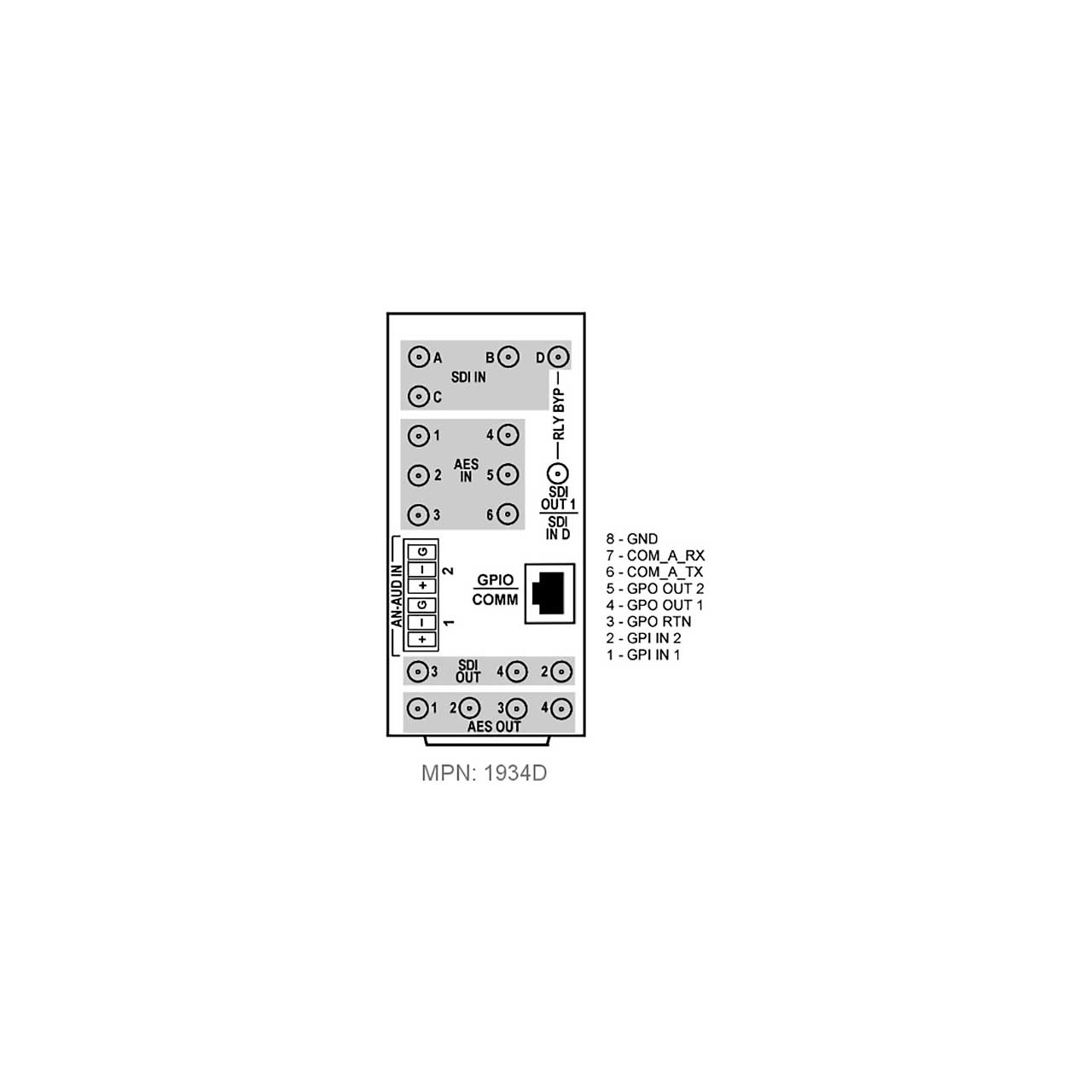

The RM20-9922-FS-K-HDBNC feature s the following I/O's:
(4) SDI In (selectable manually or as failover; )
(1) Relay protected SDI Out (proc or SDI IN D on loss of power)
(6) AES In
(2) Balanced Analog Audio In
(4) SDI Out (each selectable as processed out or input RCK)
(4) AES Out
GPIO/COMM port (RJ-45)
Please Note! All coaxial connectors are DIN1.0/2.3 or HD-BNC style.
