Ross openGear R2C-8644 4-Slot Rear Module for AAP-8644

ITEM #: ROSS-R2C-8644 MFG #: R2C-8644

Primary Image
Ross Video
Free Shipping with $49 Minimum Order

Our Price:

$460.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

R2C-8644 - Overview

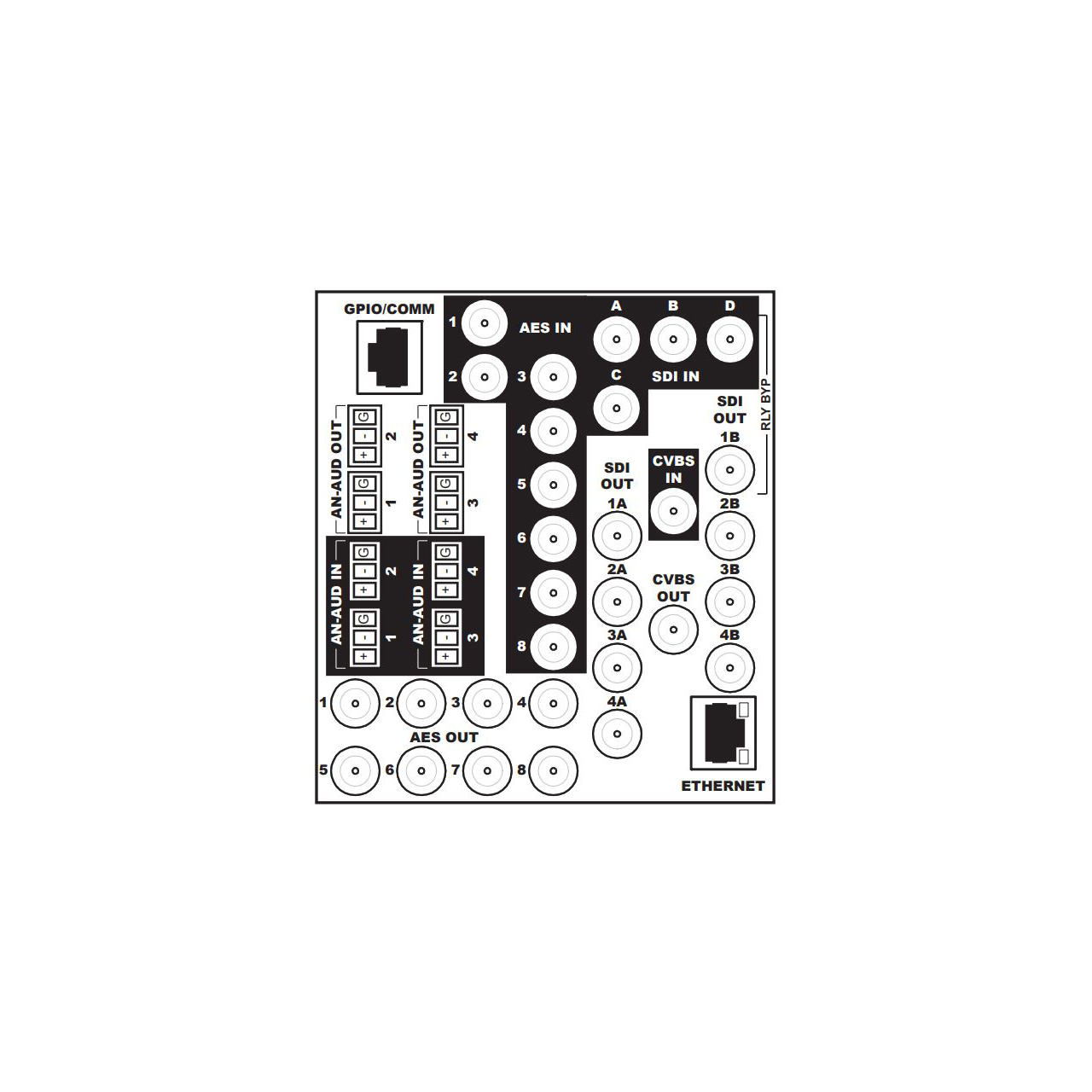

The Ross R2C-8644 is a 4-Slot Frame Rear I/O Module (Double Width), with analog audio and SDI relay bypass designed for use with AAP-8644.

  • Specifications:

    • I/O
    • 4x 3G/HD/SD-SDI Inputs
    • 8x 3G/HD/SD-SDI Outputs
    • 1x CVBS Analog Video In
    • 1x CVBS Analog Video Out
    • 8x AES Inputs
    • 8x AES Outputs
    • 4x Balanced Analog Audio Inputs
    • 4x Balanced Analog Audio Outputs
    • Relay Bypass on 1 SDI Input to Output
    • 1x GPIO RJ-45 connector
    • 1x 100/1000 BaseT Ethernet Port
    • All coaxial connectors HD-BNC
    • Occupies 4 slots in an openGear OGX Frame


  • Item Includes:

    • 1x Ross R2C-8644 4-Slot Rear Module for AAP-8644


  • Warranty:

    • 5 years
