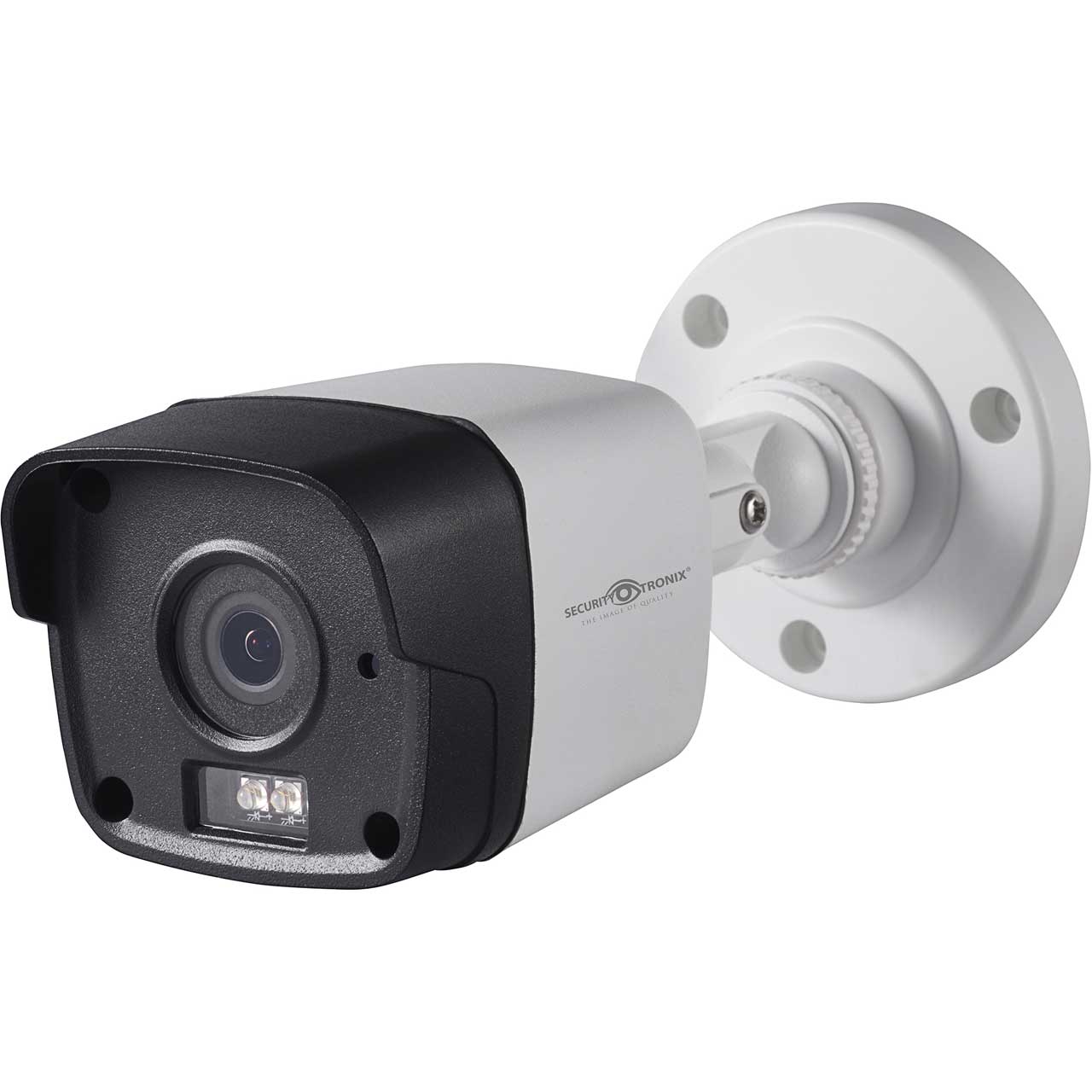

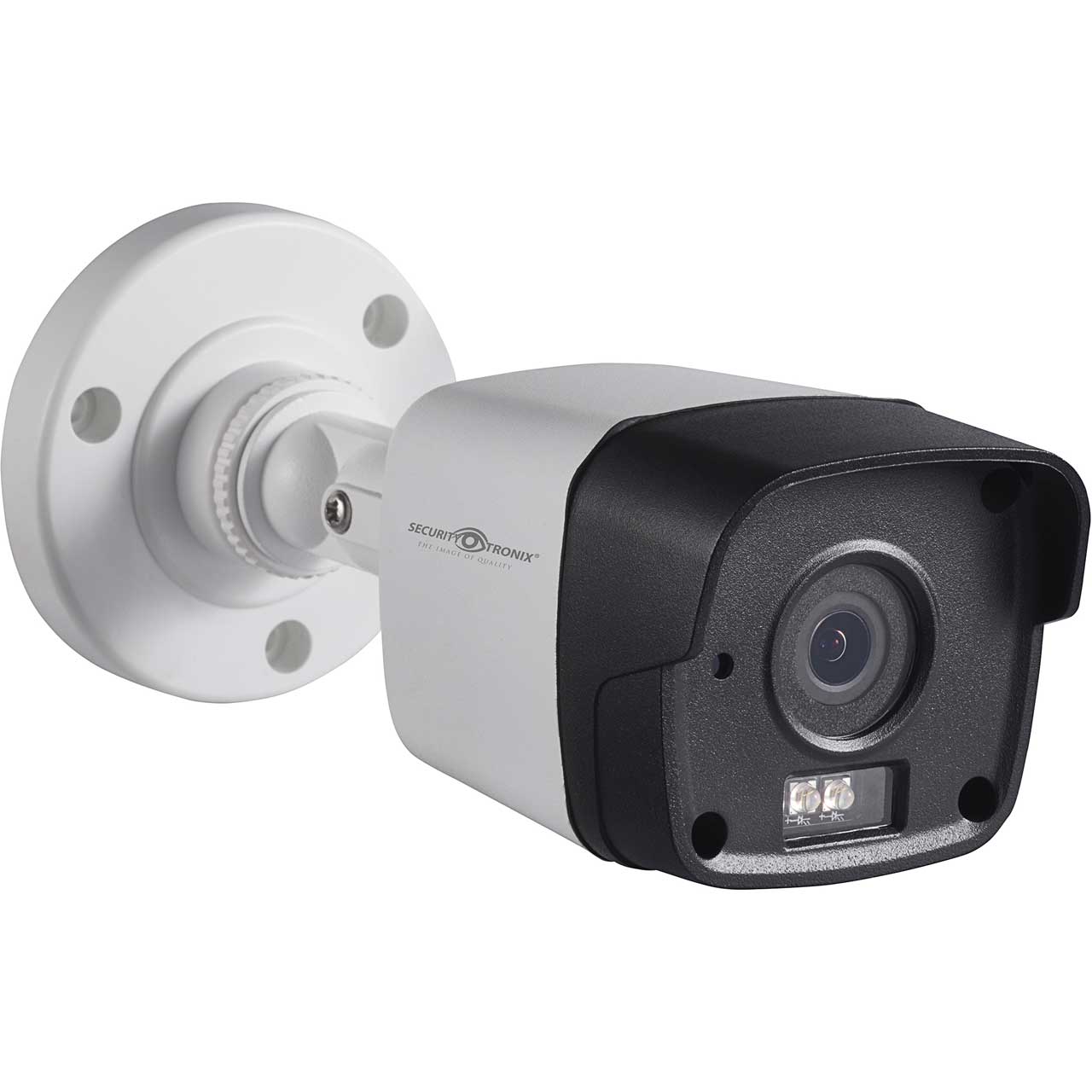

SecurityTronix ST-HDC2FB-2.8 2MP HD-TVI Fixed Lens IR Bullet Camera

ITEM #: SCT-ST-HDC2FB-28 MFG #: ST-HDC2FB-2.8

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SCT-ST-HDC2FB-28

ST-HDC2FB-2.8 - Overview

The SecurityTronix ST-HDC2FB-2.8 is a 2MP HD-TVI 2.8mm wide angle Fxed lens Mini Bullet Camera. It provides a 1080p video over coaxial cable (HDoC). Features include Wide Dynamic Range (WDR) which allows the camera to balance lighting for a clear picture and Digital Noise Reduction (DNR) to reduce noise from the picture. The IR LEDs have a distance of up to 65 feet. The camera has an On Screen Display menu (OSD) and is IP67 weather rated.

  • Features:

    • 2MP High Resolution
    • HD-TVI provides 1080p video over coaxial cable
    • Fixed 2.8mm or 3.6mm lens
    • True Day/Night
    • Smart IR
    • Wide Dynamic Range
    • Digital Noise Reduction
    • EXIR 2.0, IR Distance up to 65 Feet
    • On Screen Display menu
    • IP67 Weather rating


  • Specifications:

    • Camera
    • Image Sensor: 2MP CMOS Image Sensor
    • Effective Pixels: 1920(H) x 1080(V)
    • Min. Illumination: 0.005 Lux @ (F2.0,AGC ON),0 Lux with IR on
    • Shutter Time: 1/25s to 1/50,000s
    • Lens: 2.8 or 3.6mm Fixed
    • Lens Mount: M12
    • Angle Adjustment: Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0-360°
    • Day & Night: ICR
    • Synchronization: Internal synchronization
    • WDR: 120dB
    • Video Frame Rate: 1080p@25fps/1080p@30fps
    • HD Video Output: 1 HD output
    • S/N Ratio: More than 62dB

      Menu
    • AGC: Supported
    • D/N Mode: Smart IR/Color/BW
    • White Balance: Auto/Manual
    • Privacy Mask: On / Off, 4 Programmable privacy masks
    • Motion Detection: 4 Programmable motion areas
    • Backlight Compensation: WDR / BLC / HLC / Off
    • Language: English
    • Functions: Brightness, Sharpness, Mirror, SmartIR
    • Video Output: 1 HD analog output

      General
    • Operating Temperature: -40° to 140°F (-40° to 60°C)
    • Operating Humidity: 90% or less (non-condensing)
    • Power Supply: 12 VDC (not included)
    • Power Consumption: Max. 4W
    • Weather Proof Ratings: IP67
    • IR Range: Up to 65 Feet
    • Communication: Up the coax, (TVI output)
    • Dimensions: 2.28 x 2.40 x 6.42" (58 x 61 x 163mm)
    • Weight (Approx.): 0.77Lbs (350g)
