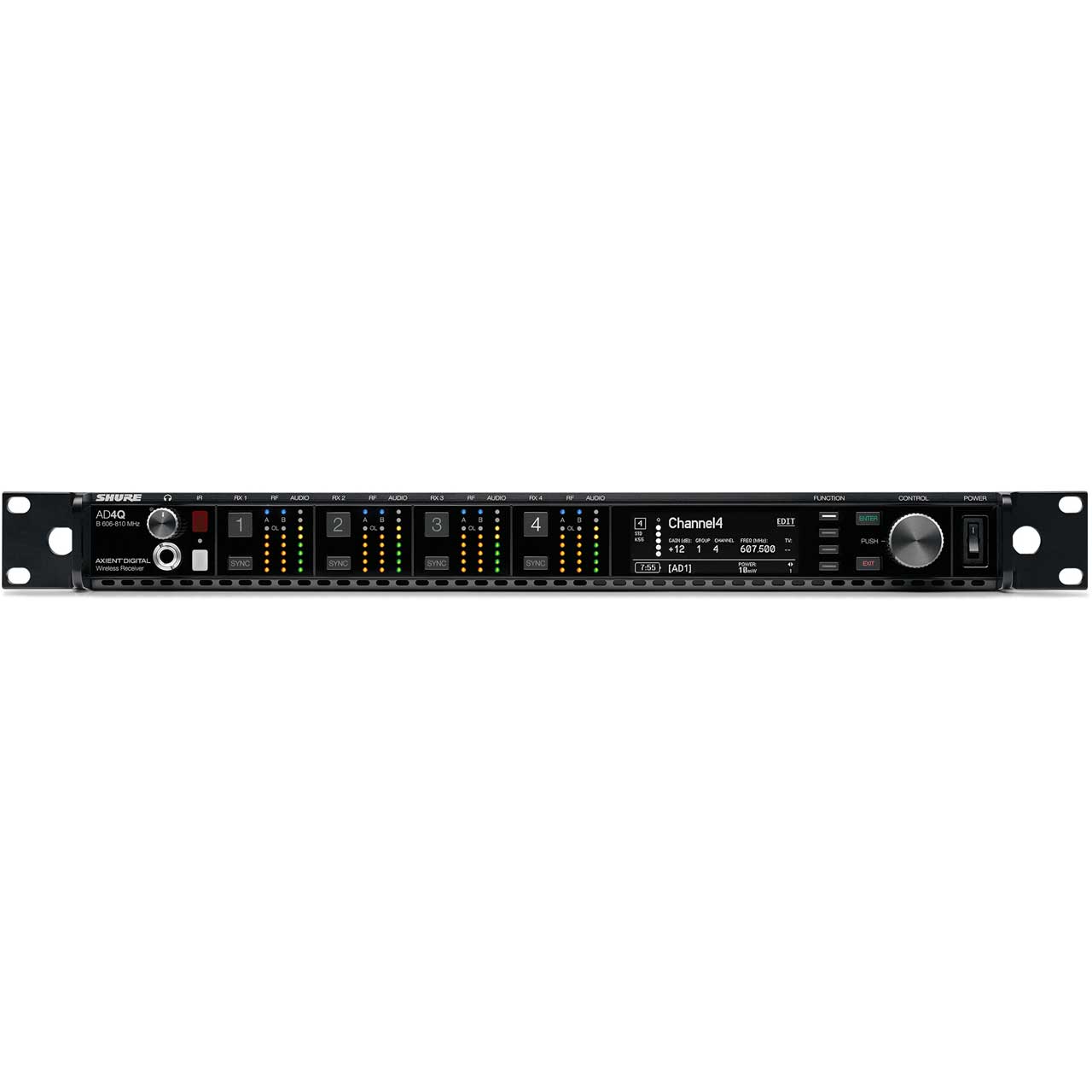

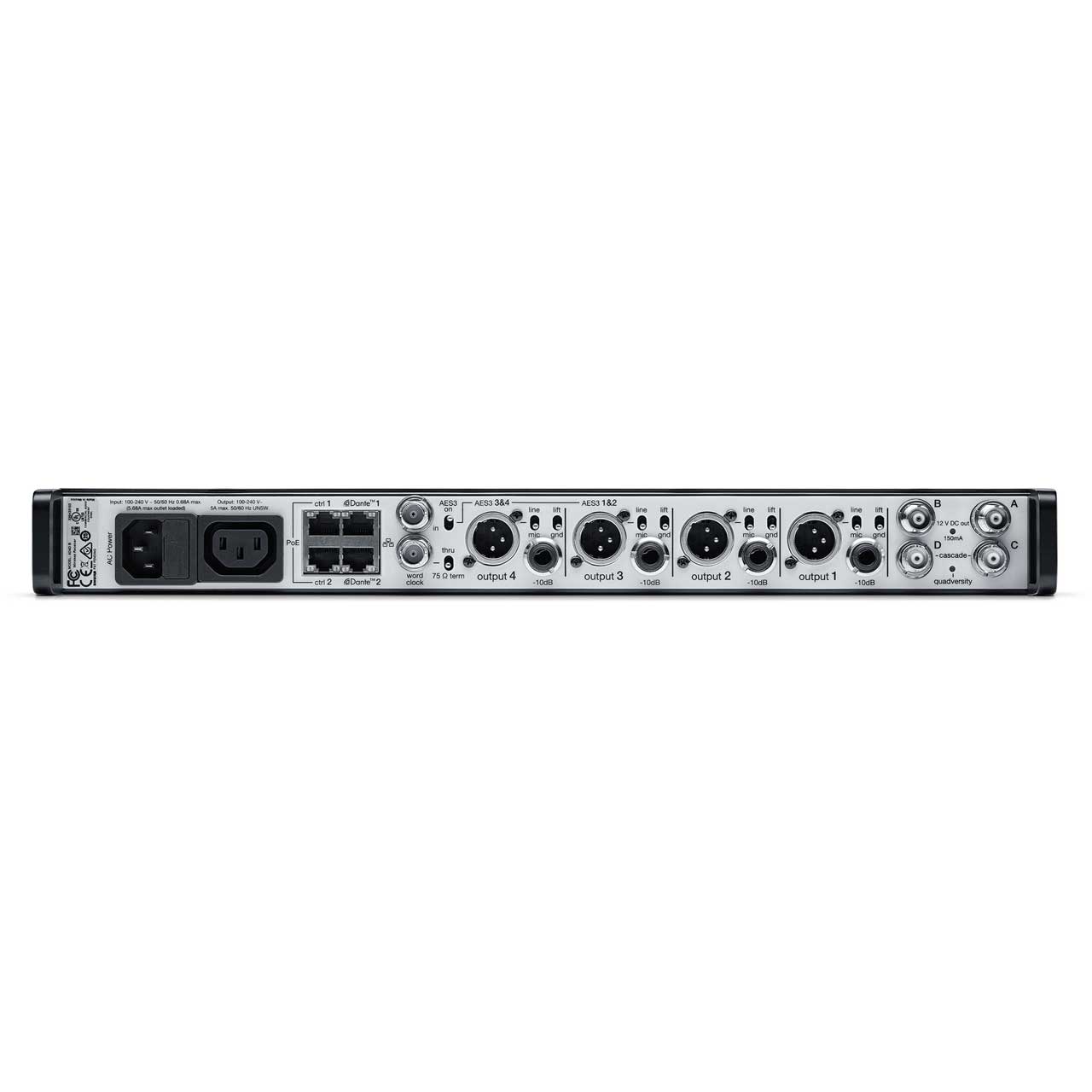

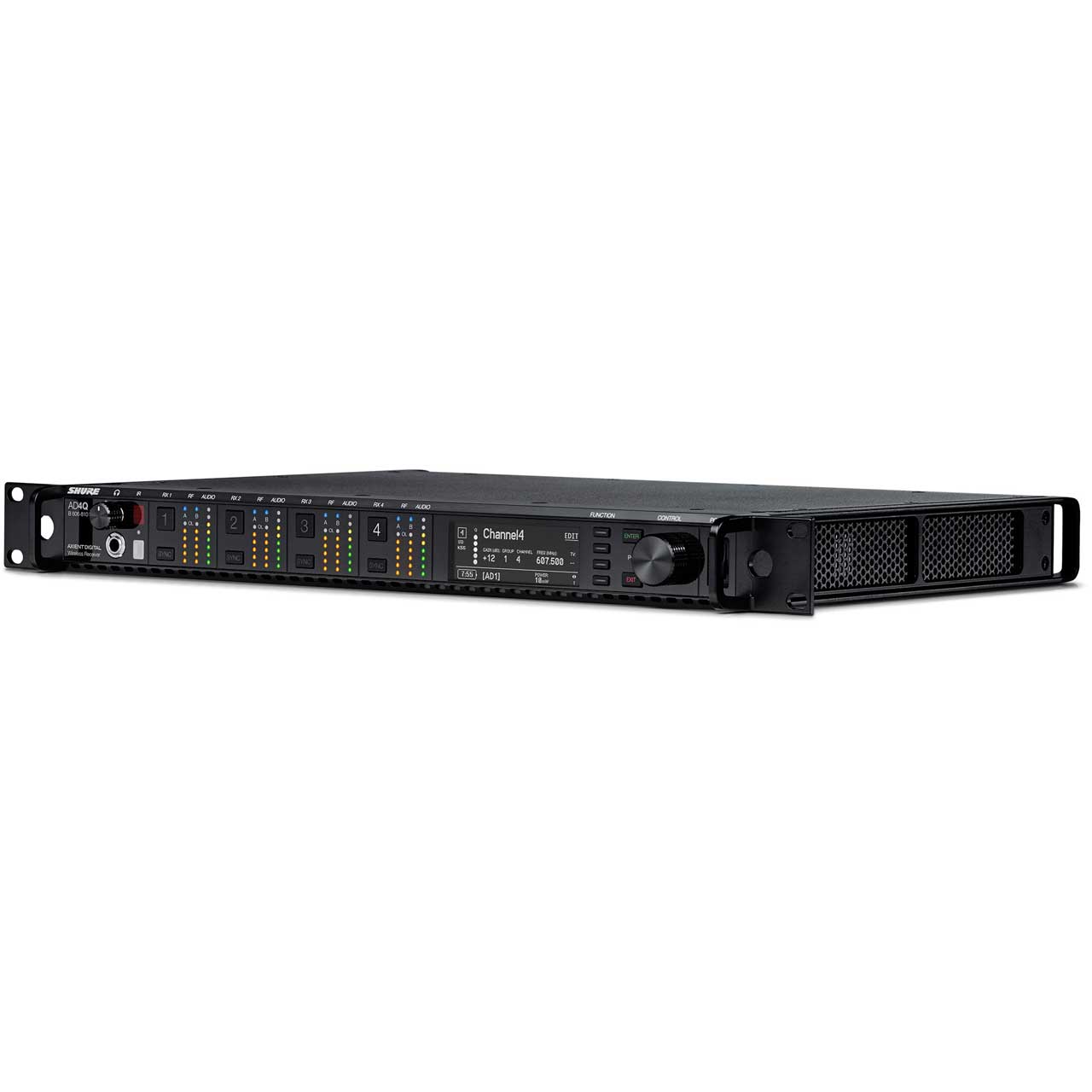

Shure AD4Q-DC-A Quad Channel Receiver with Redundant DC Power-Input Modification 470-636 MHz

AD4Q-DC=-A - Overview

• Features:

  • Wide tuning range up to 184 MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
  • Configurable Ethernet switch for redundant Dante or AES67 digital output
  • Switchable XLR and AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors
  • DC module version available to support redundant power


• Specifications:

  • Dimensions (H × W × D): 1.7" × 19.0" × 13.1" (44 × 483 × 333 mm)
  • Weight: 10.6 lbs (4.8 kg), without antennas
  • Housing: Steel; Extruded aluminum
  • Power Requirements: 100 to 240 V AC, 50-60 Hz; 0.68 A max.
  • Thermal Dissipation: Maximum: 31 W (106 BTU/hr)
  • Idle: 21 W (72 BTU/hr)
  • DC Input Voltage Range: 10.9-14.8 V DC
  • Maxiumum DC Input Current: AD4Q: A
  • Protection Modes: Overvoltage, Undervoltage, Reverse Polarity
  • 4-Pin XLR: Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive
  • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
  • Configuration: 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
  • XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)
  • Impedance: 100Ω
  • Full Scale Output: 1/4" (6.35 mm): +8 dBV
  • XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
  • Mic/Line Switch: 30 dB pad
  • Phantom Power Protection: Yes


• GTIN:

  0042406529693
