Shure MXWANI4 4 Channel Microflex Wireless Audio Network Interface

ITEM #: SH-MXWANI4 MFG #: MXWANI4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SH-MXWANI4

MXWANI4 - Overview

The MXW Audio Network Interface is a part of the Microflex WirelessSeries (MXW) by Shure. MXW provides a complete microphone solution for flexible meeting rooms and boardrooms

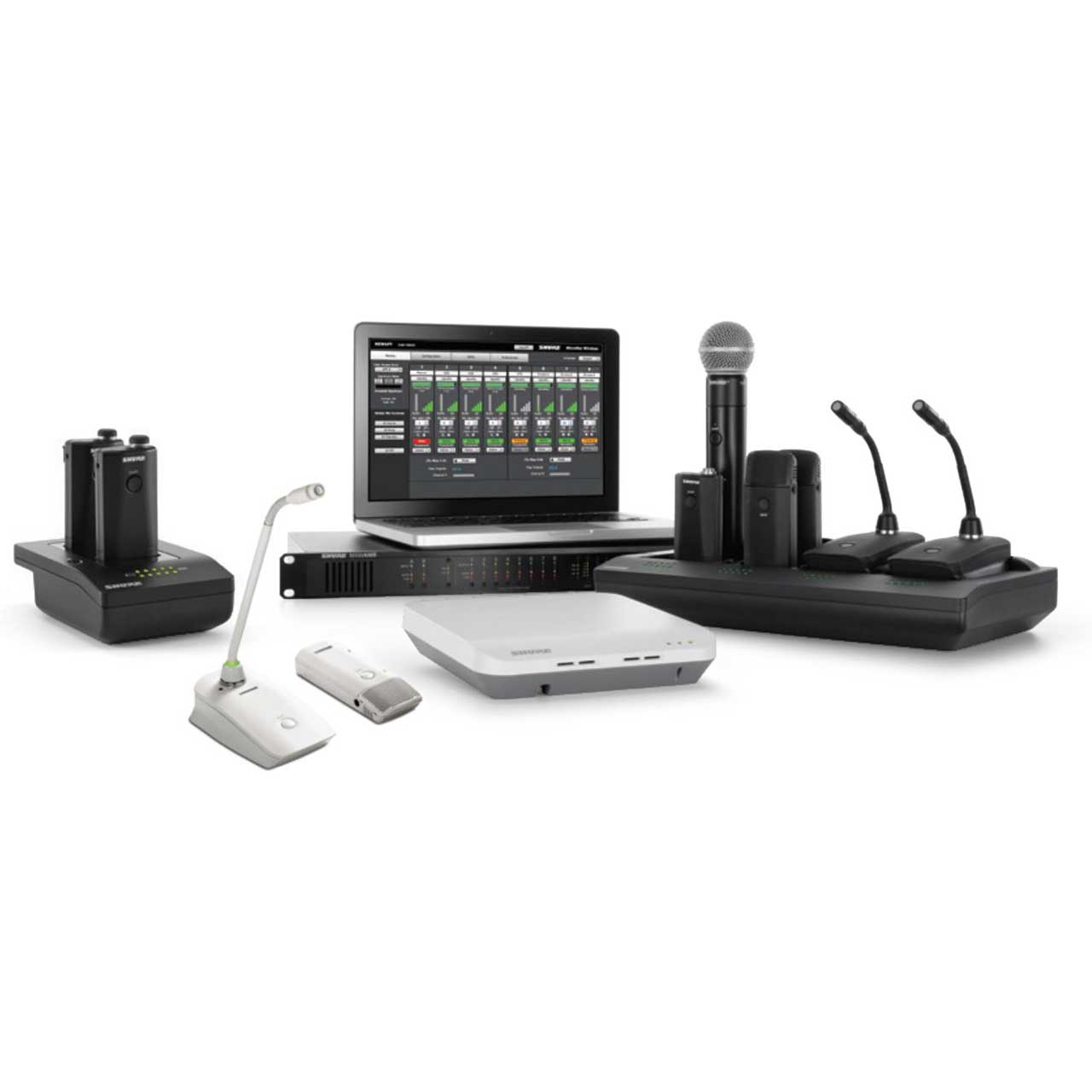

MXWANI4 enables easy out-of-the-box system setup with no additional networking hardware required. With per-channel analog outputs, it is the central point for connecting and distributing Microflex Wireless systems to conference room AV networks.MicroflexWireless microphone systems bring modern design and vivid, lifelike sound to signature boardrooms and AV conferencing environments. This enterprise-scale platform encompasses a system of advanced conferencing products that includes intelligent rechargeable microphone transmitters and charging stations, discreet wireless access point transceivers, flexible audio network interfaces, and
comprehensive software tools for remote adjustment and monitoring of system settings.

PREMIUM CONFERENCING AUDIO FOR ELITE BOARDROOMS.
Vivid Lifelike Sound, Versatile Microphone Selection, Discreet Designs, Scalable Solutions.

NETWORKED DIGITAL WIRELESS FOR ENTERPRISE-SCALE ENVIRONMENTS.
Dante Digital Audio Networking, Ethernet Connectivity, Control System Compatible, Microflex Wireless Control Software.

INTELLIGENT PERFORMANCE, SIMPLIFIED SETUP & OPERATION.
Advanced Rechargeable Power Management, Automated Frequency Coordination, Encrypted Wireless, Assignable RF output power.

  • Features:

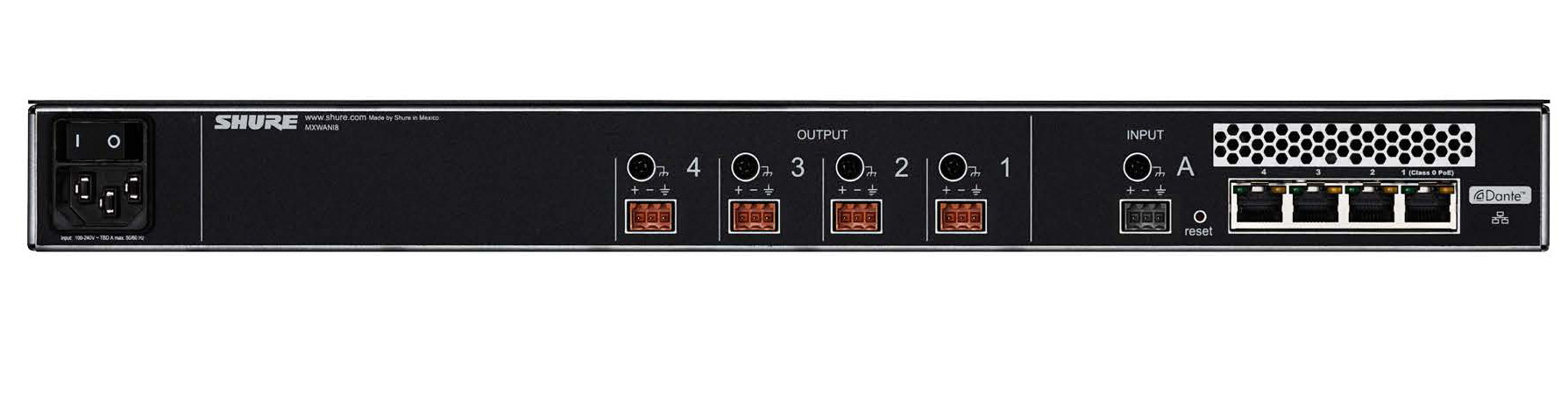

    • Four-port gigabit switch: Optimized port configurations for connection to the access point transceiver and networked charging stations, third-party control systems, and corporate networks
    • Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
    • Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the access point transceiver for simplified installation
    • Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth

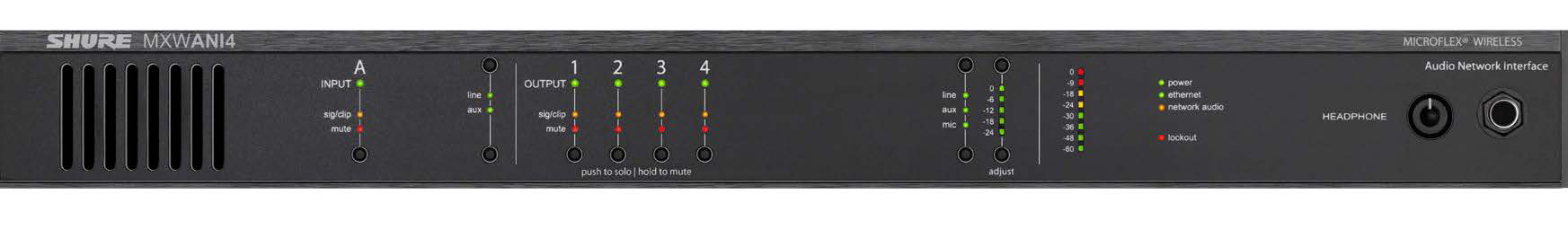

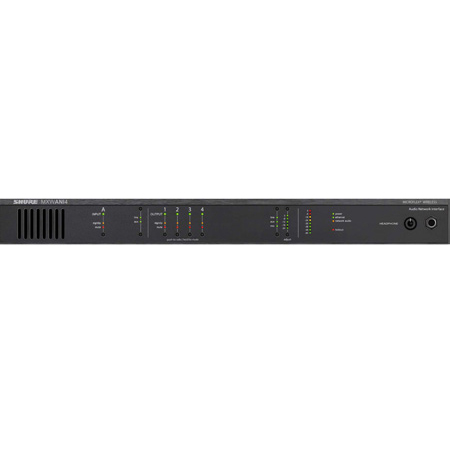

    • Front panel controls: Mute or solo channels and set input / output levels easily from the front panel
    • PC / Mac software control: Access the Microflex Wireless Control Software from a networked computer for input / output levels and port configuration
    • Dante networking: Transports low-latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
    • Headphone output: Solo audio signal on any channel

  • Specifications:

    • RF Carrier Frequency Range
    • USA, Canada, Mexico: 1920-1930 MHz
    • Europe, Asia, Middle East: 1880-1900 MHz
    • Working Range
    • 50 m (160 ft)
    • Note: Actual range depends on RF power setting and signal absorption, reflection and interference.
    • Audio Frequency Response
    • 50 Hz- 20 kHz (+1, -3 dB)
    • Note: Dependent on microphone type
    • Dynamic Range
    • >99 dB, A-weighted
    • System Gain (Mic gain @ 0dB to line level output on MXWANI through Dante)
    • +50 dB
    • Latency
    • 18 ms, nominal
    • System Audio Polarity
    • Positive pressure on microphone diaphragm (or positive voltage on pin 3 of TA4M connector) produces a positive voltage on pin 2 of the ANI (with respect to pin 3 of the low-impedance output).
    • Radio Transmission
    • Time Division Multiple Access (TDMA), Gaussian Frequency Shift Keying (GFSK), 365 kHz max. deviation
    • RF Sensitivity
    • -87 dBm, minimum
    • Power
    • 19 dBm (80 mW) maximum, See Frequency Range and Output Power table
    • Cable Requirements
    • Cat 5e or higher, shielded, 100 m maximum between network devices
    • Network Addressing Capability
    • DHCP, link-local, static
    • Operating Temperature Range
    • 0°C (32°F) to 49°C (120°F)
    • Storage Temperature Range
    • -29°C (-20°F) to 74°C (165°F)

  • GTIN:

    0042406250061
