AVN-DIO07 - Overview

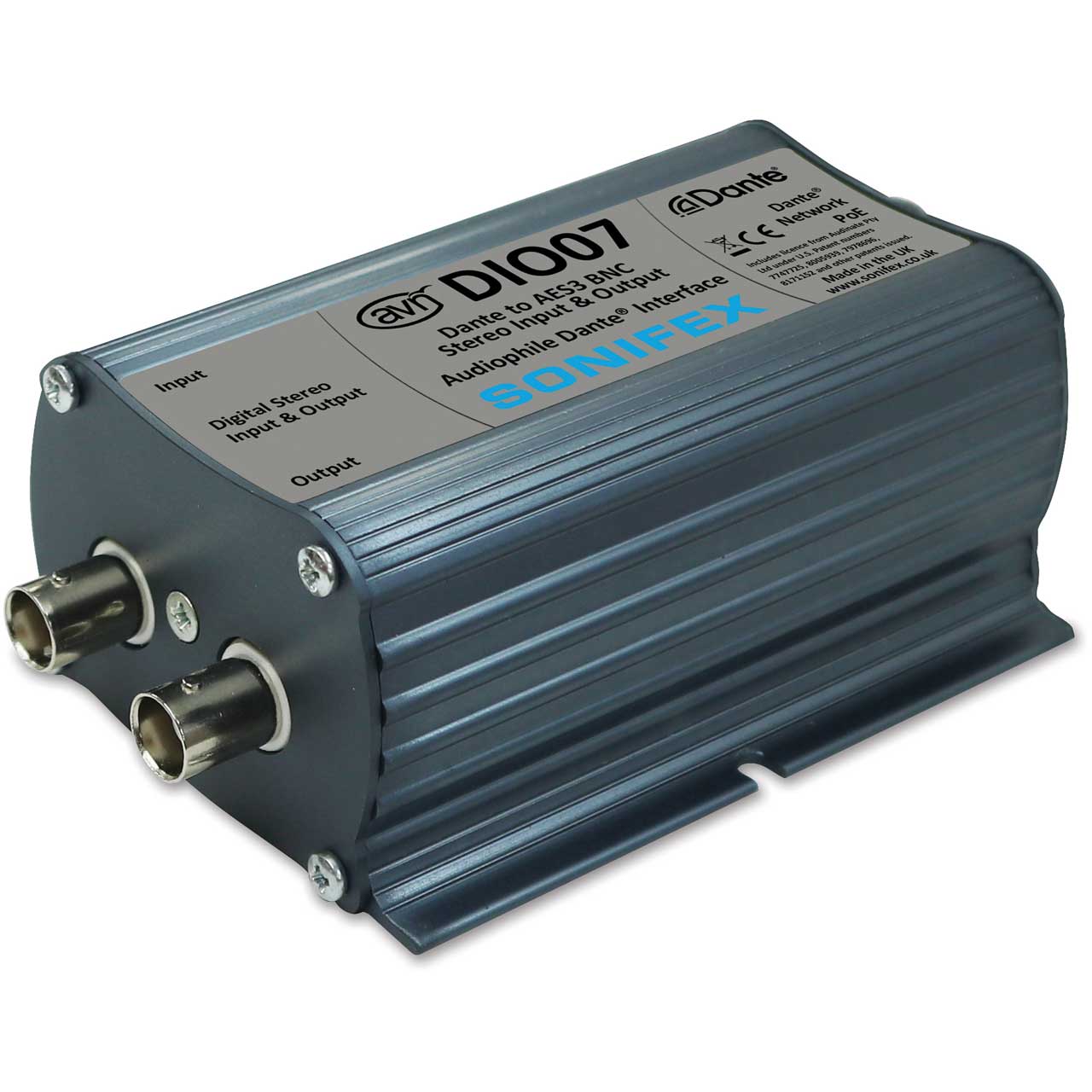

The AVN-DIO07 is a Dante to AES-3id digital input and output audio converter in the Sonifex DIO range of Dante input/output devices. It features stereo AES-3id digital audio inputs and outputs on BNC connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy ANALOG and digital audio equipment to the Dante AoIP audio network.

All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminum boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.

  • Features:

    • 1 x stereo AES-3id BNC input.
    • 1 x stereo AES-3id BNC output.

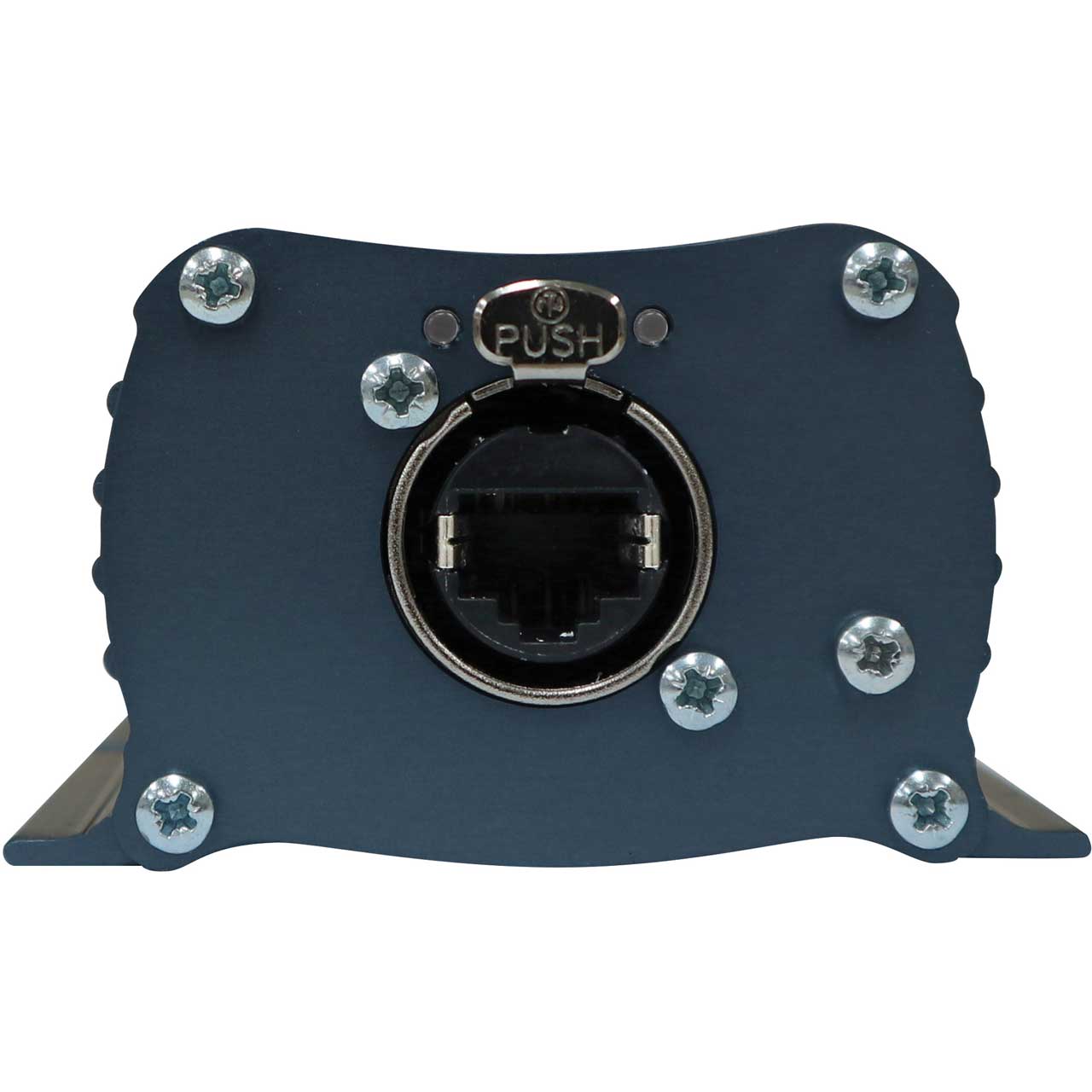

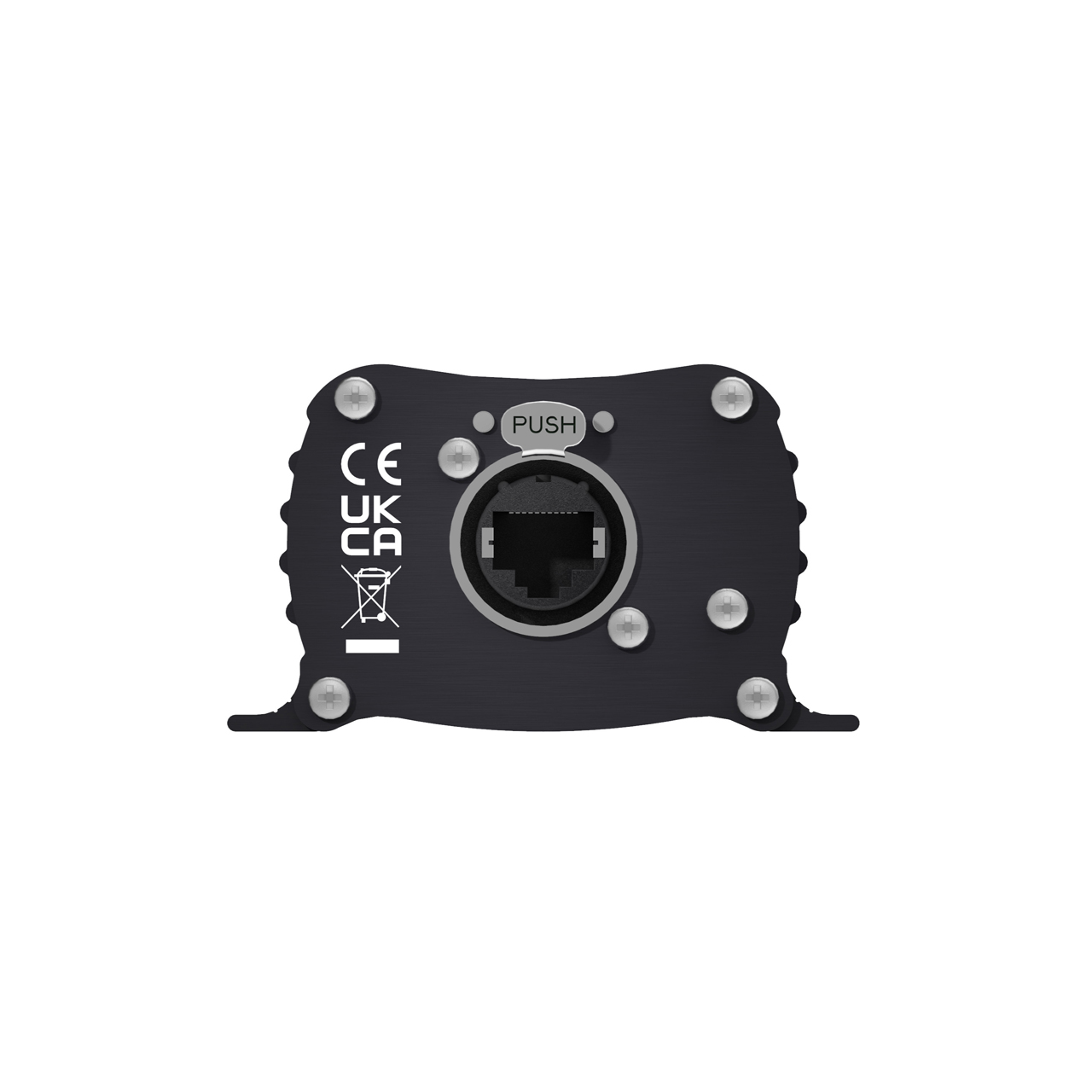

    • Neutrik EtherCon® Ethernet connection.
    • Fully Dante compliant device.
    • AES67 compatible.
    • Dante Domain Manager compliant.
    • Ultra-high quality, wide dynamic range conversion.
    • Powered via PoE (Power over Ethernet)


  • Specifications:

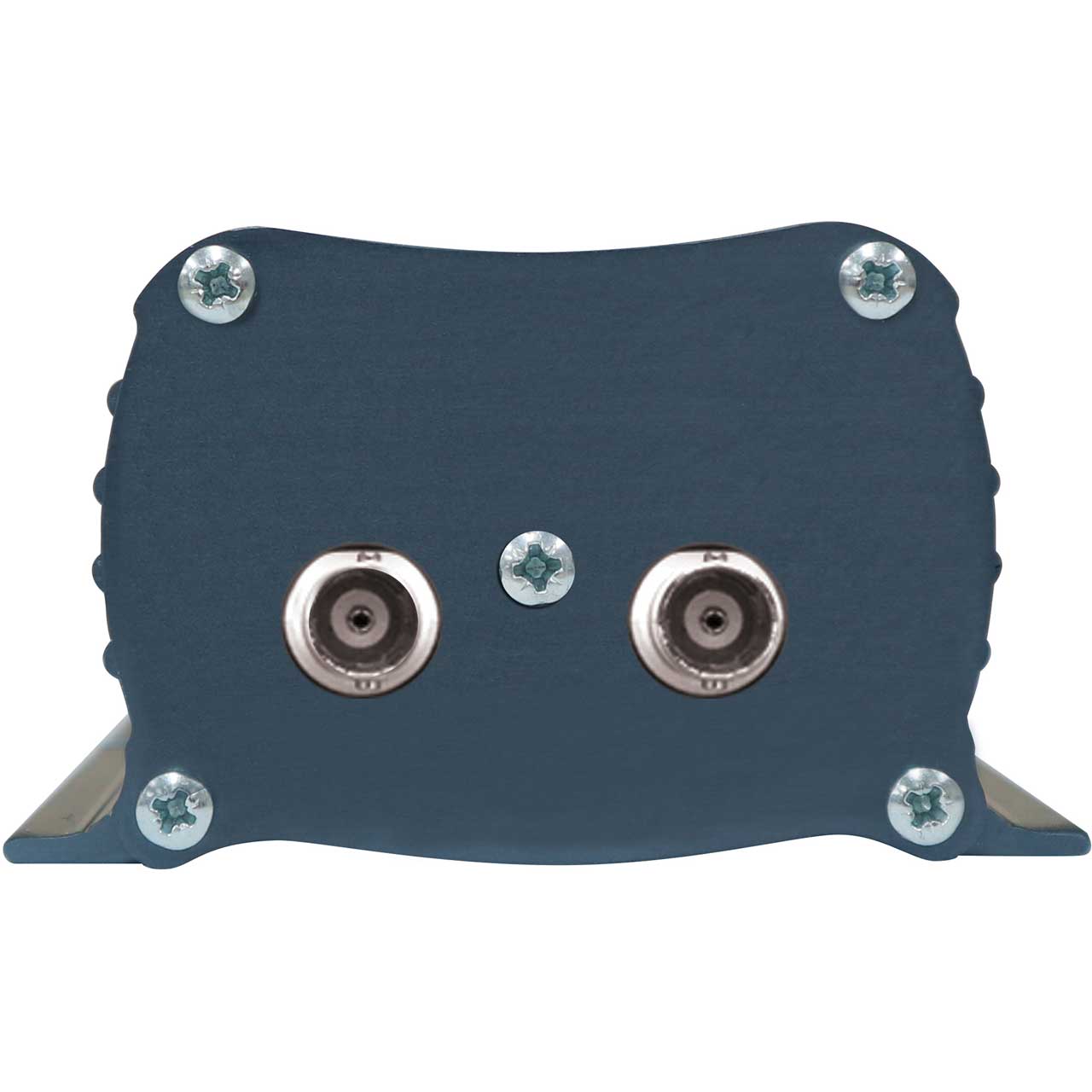

    • AES-3id BNC Input & Output Pin-out
      Pin Function
    • Inner: Signal
    • Outer: Chassis Ground

      AES-3id Input - BNC
    • Input Impedance: 75Ω unbalanced
    • Input Format: AES-3id
    • Supported Sample Rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

      AES-3id Output - BNC
    • Output Impedance: 75Ω unbalanced
    • Output Format: AES-3id
    • Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz

    • Dante
    • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
    • Encoding: PCM 16, PCM 24, PCM 32

      PoE Power
    • Standard: 802.3at Type 1
    • Class: 0
    • PD Power Range: 0.44 W to 12.94 W
    • Typical PSE Power Usage: 2 W
    • Max PSE Power Usage: 15.4 W

      Equipment Type
    • AVN-DIO07: Dante® to AES-3id BNC Stereo Input & Output

      Physical Specification
    • Dimensions (Raw): 11.6cm (W) x 7.3cm (D) x 4.3cm (H) / 4.6" (W) x 2.9" (D) x 1.7" (H)
    • Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H) / 6.9" (W) x 3.7" (D) x 2.2" (H)
    • Weight: Nett: 0.2kg Gross: 0.3kg / Nett: 0.44lbs Gross: 0.66lbs
