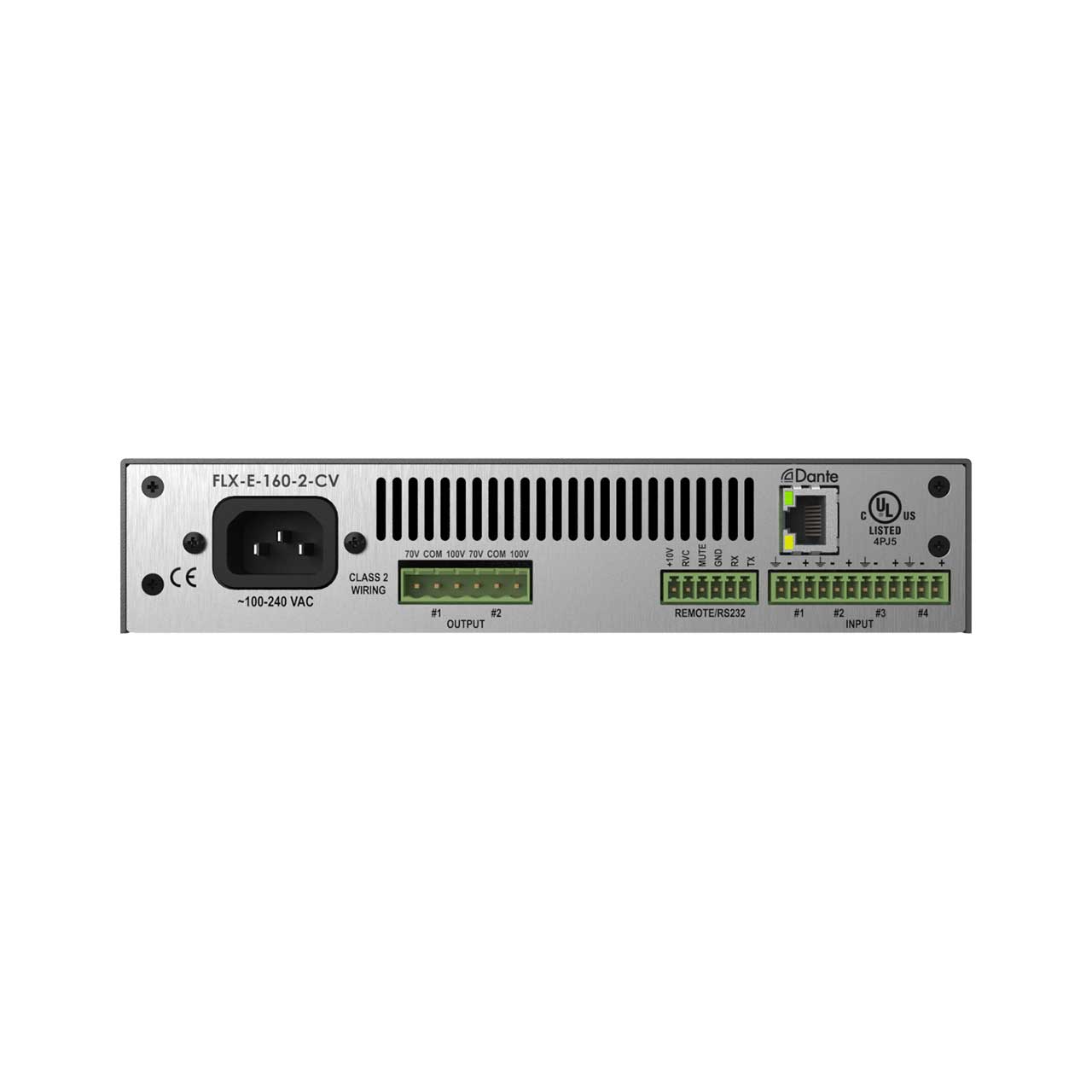

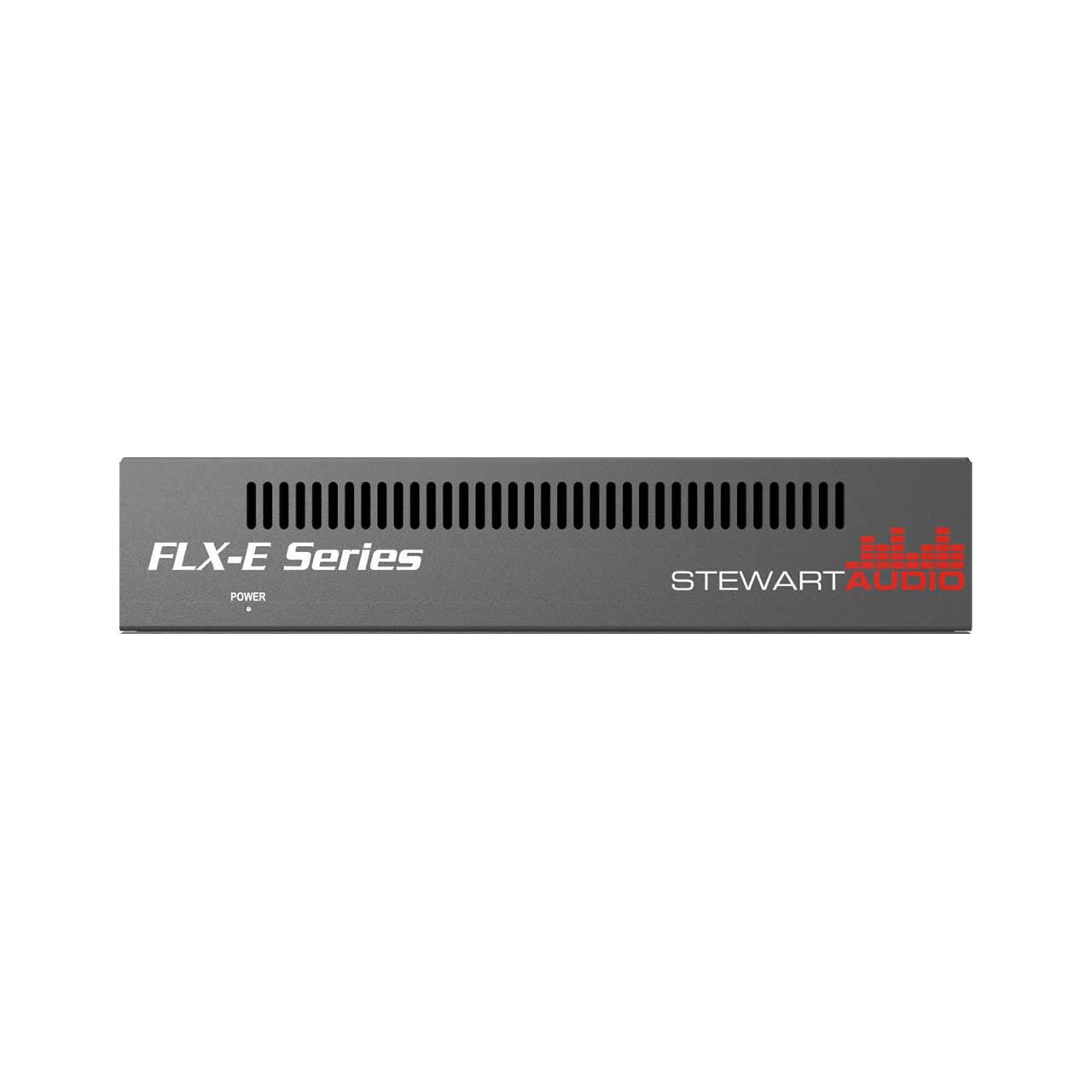

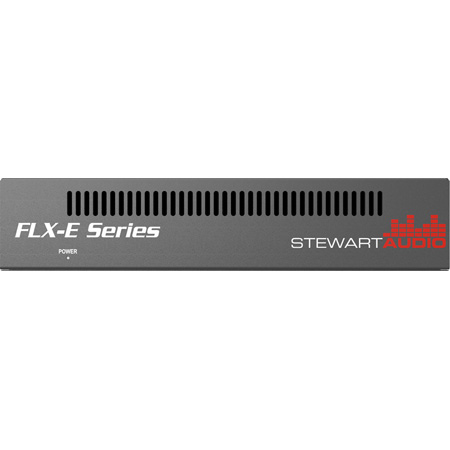

Stewart Audio FLX-E-160-2-CV-D Digital Matrix Processor with Ethernet Control and Dante I/O - 160W x 2 @ 70V/100V

ITEM #: STW-FLX-E1602CVD MFG #: FLX-E-160-2-CV-D

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,791.00

Our Price:

$1,522.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FLX-E-160-2-CV-D - Overview

The Stewart Audio FLX-E-160-2-CV-D is a 2 channel, 70V/100V, 1/2 rack amplifier delivering 160W per channel with built in DSP, ethernet control & reporting, secondary RS-232 control and remote volume control. The FLX-E-160-2-CV-D amplifier supports Dante™ audio.

The FLX-E series of amplifiers is the most versatile 1/2 rack amplifier Stewart has ever produced. The FLX-E-160-2-CV-D provides 160 watts from each of the two 70/100V output channels. At the heart of the amplifier is a robust, internal, full-function DSP designed to solve a multitude of your audio problems in just one enclosure. The DSP includes a full cross-point mixer, EQ, filters, limiters and much more. An Ethernet port makes programming simple, fast and repeatable for large installations. The Ethernet, RVC and RS-232 allow volume control from a wide range of devices. In addition, the Dante™ network capability provides four network input audio channels and four network output audio channels. You won't find a more flexible combination of power output and processing in a comparable package on the market today.

Applications:
Dante™/AES67 Network Audio
Hospitality Installations
Education
Conference Rooms
Houses of Worship
Room combining

  • Features:

    • Onboard DSP for signal routing, filtering, ducking, compressor, limiter, etc.
    • Ethernet configuration, control & reporting
    • 1/2 Rack package
    • 4 Analog inputs (4 line/mic; 2 w/ phantom power)
    • 4x4 Break in/Break out Dante™ channels

  • Specifications:

    • Output Power: 160W x 2 @ 70.7V/100V
    • Frequency Response (+0, -3dB): 100Hz - 20kHz (70.7V/100V)
    • THD+N: <0.05% @ 6dB below clipping
    • Signal-To-Noise Ratio: >95dB
    • Input Sensitivity: 1V (0 dBV)
    • Input Impedance (Balanced/Unbalanced/Phantom): 7.2k Ohms/3.6k Ohms/2.4k Ohms
    • Power Consumption - Idle, 1/8 Power: 12W, 60W
    • Amplifier Class: D
    • Channel To Channel Isolation: >85dB FLX-E-160-2 CV/LZ
    • Dante Audio Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192ksps
    • Remote Volume: 0 - 10V
    • Input Connectors: 3.5mm Euroblock; 24V Phantom Power on 2 channels
    • Dante/AES67 Network Audio (optional) and Control Port: RJ-45
    • Output Connectors: 5mm Euroblock
    • LED Indicators: Power
    • Controls: Ethernet, RS-232 & RVC
    • Power Supply Input: 100 - 240 VAC 50/60Hz (PFC Universal Input)
    • Construction: Aluminum Chassis
    • Mounting: Rack-mountable, single & dual
    • Cooling: Convection-Cooling (No Fans)
    • Dimensions (HxWxD): 1.7" x 8.3" x 10.7" (44mm x 213mm x 272mm)
    • Weight: 5.3lbs (2.4kg)
    • Certifications: UL 60065/CE

  • Warranty:

    • 3 year
