SWIT S-4610 Mini 3GSDI Audio Embedder

ITEM #: SWIT-S-4610 MFG #: S-4610

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
SWIT Electronics
Free Shipping with $49 Minimum Order

List Price:

$399.00

Our Price:

$389.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

S-4610 - Overview

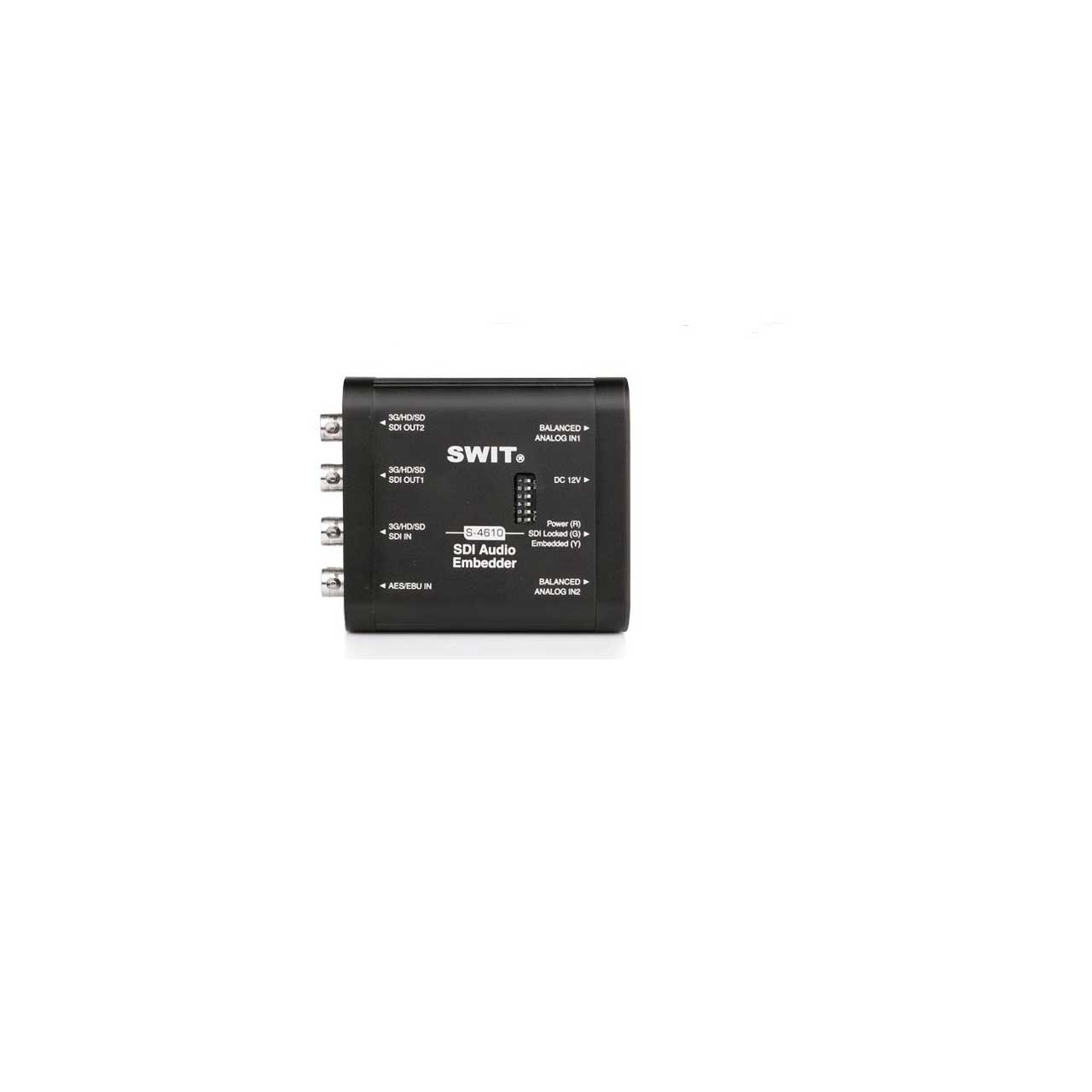

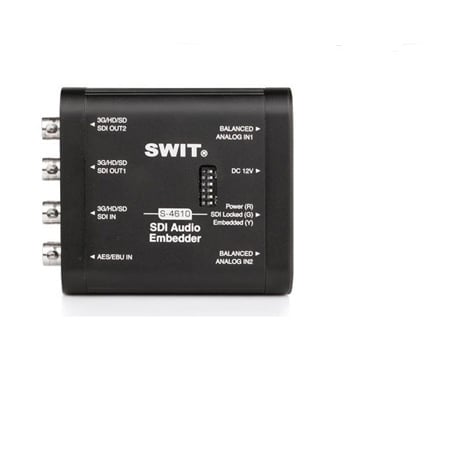

The Swit S-4610 is a mini SDI audio Embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field production and professional audio/video conversion and transmission. S-4610 can embeded 2-ch AES /EBU or anolog audios to any 2 audio channels of SDI signal. User can select the channel number to be embedded by the 6 switchers on the front panel of the product. S-4610 also has two SDI with embedded audio outputs.

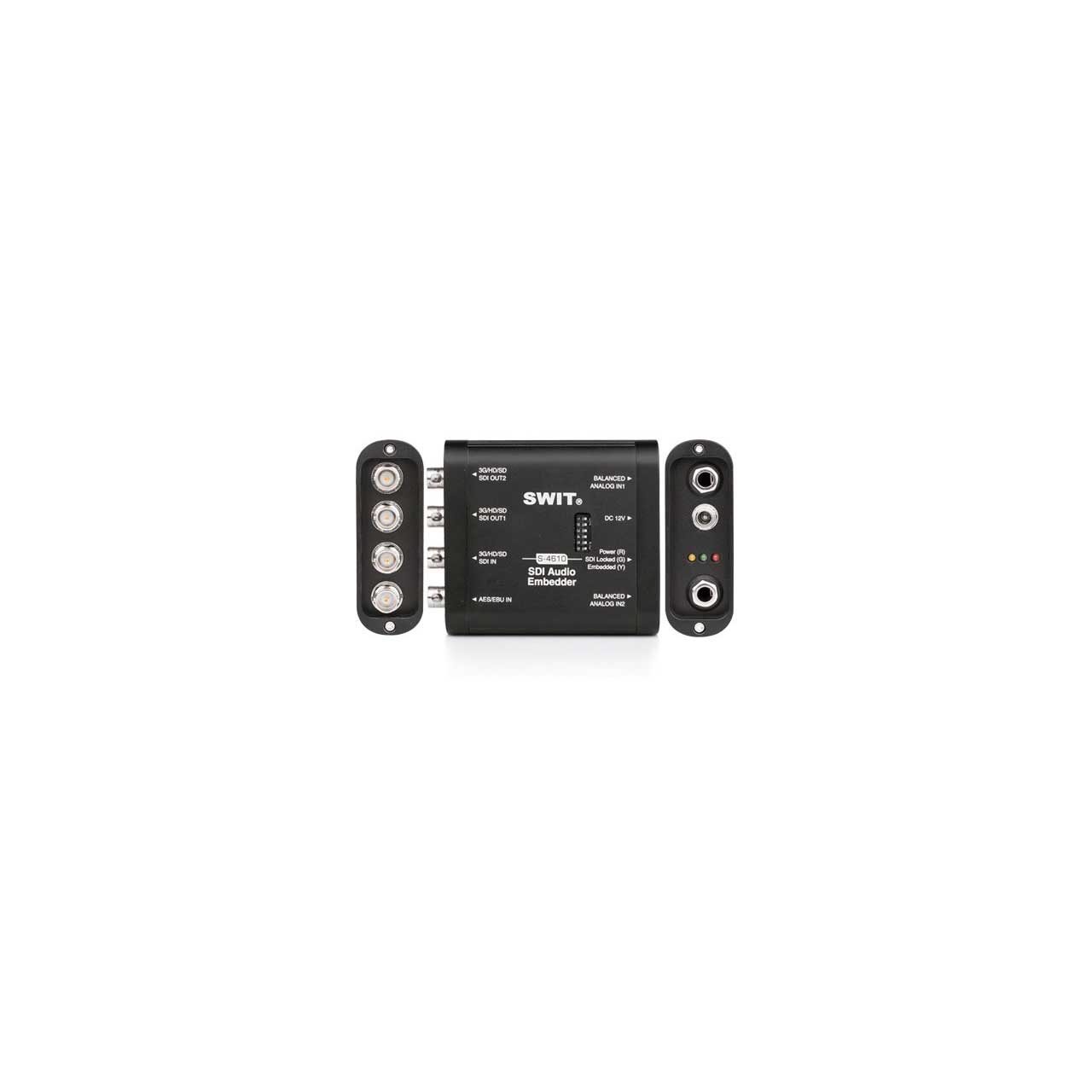

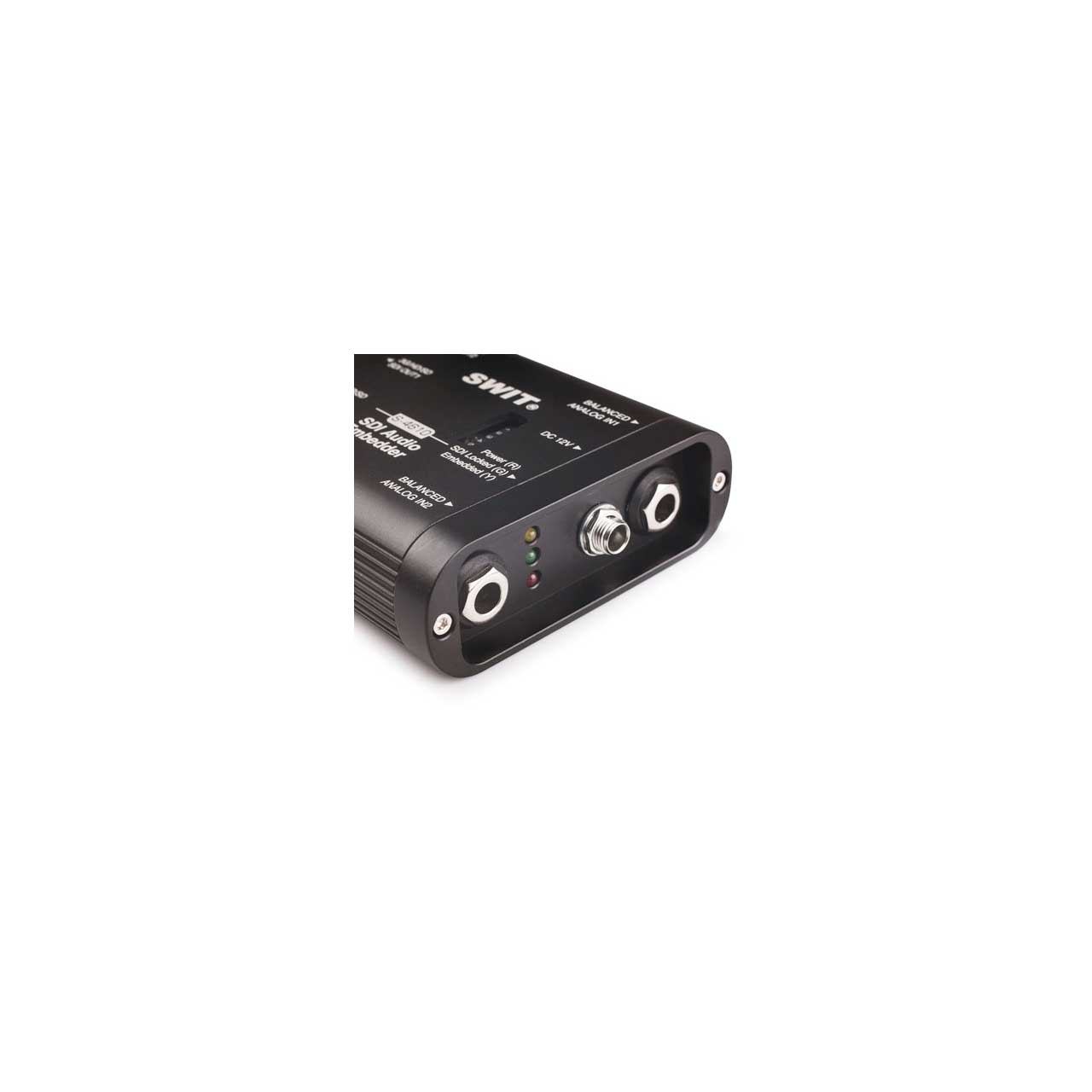

S-4610 built with 3 LED indictors which is convenience for user checking the status of power connections, SDI input recognization and output status of the new embedded SDI signal delivery.

S-4610 offers:
1x 3G/HD/SD-SDI input
1x AES/EBU digital audio input (2-ch)
2x 6.35mm 1/4" analog audio input (balanced)
2x New Embedded 3G/HD/SD-SDI outputs
(If both AES/EBU audio and analog audio is connected, only AES/EBU audio embeded)

  • Features:

    • Mini 3G-SDI Audio Eembedder
    • Embed audio to any 2 channels of the first 8-channels of SDI signal
    • 1x AES/EBU audio input
    • 2x 6.35mm balanced audio inputs
    • Provided 2x 3GSDI with embedded audio outputs
    • Power/input/output status indicators
    • Pole-tap 6-18V DC power input
    • Heavy duty aluminium housing

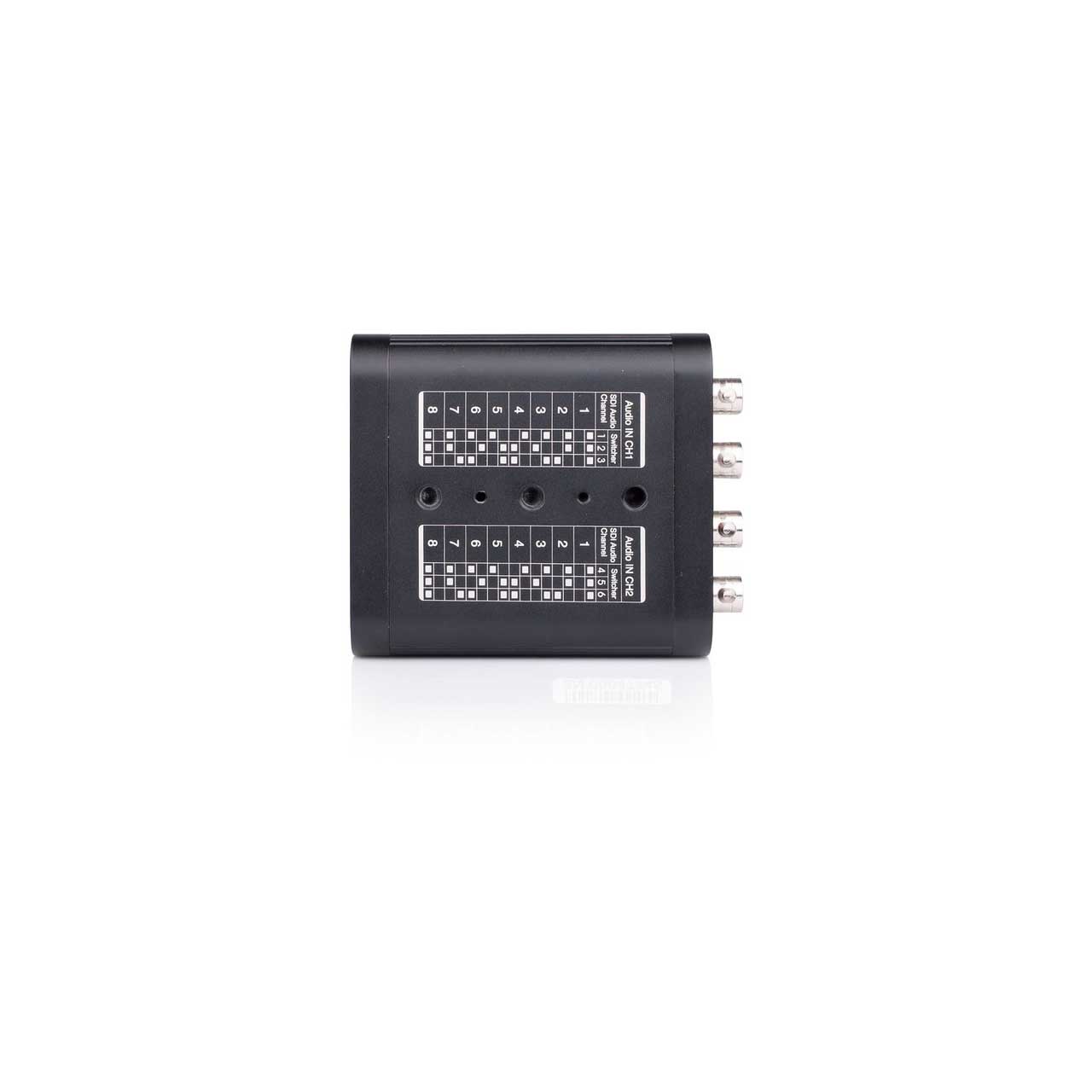

    • Bottom screw threads for installing


  • Specifications:

    • Power consumption: ≤3W
    • Working voltage: DC 6.5 - 17V
    • Working environment: Temperature: 0°C-+70°C, Humidity:10%-90%
    • Dimension: 3.9 x 3.3x 1.1 inch / 98 x 84 x 29mm
    • Net weight: 0.46 lb/209g

      Video Format/3G-SDI input:

    • SMPTE-425M 1080p (60 / 59.94 / 50)
    • SMPTE-274M 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    • SMPTE-296M 720p (60 / 59.94 / 50)
    • SMPTE-125M 480i (59.94)
    • ITU-R BT.656 576i (50)

      Audio Format/Digital Audio:

    • Type: AES/EBU
    • Output level: 5Vp-p
    • Sample frequency: 48KHz

      Analog audio:

    • Max output level: +24dbu
    • Bandwidth: 20Hz-20KHz

      Signal Input/Output:

    • Input:1* 3G/HD/SD-SDI, 1* AES/EBU digital audio (2-ch) input, 2* Analog audio (6.35mm balanced) 1/4" input
    • Output:2x New embedded 3G/HD/SD-SDI output


  • Item Includes:

    • 1xS-4610
    • 1x A-IP00 (installing plate)

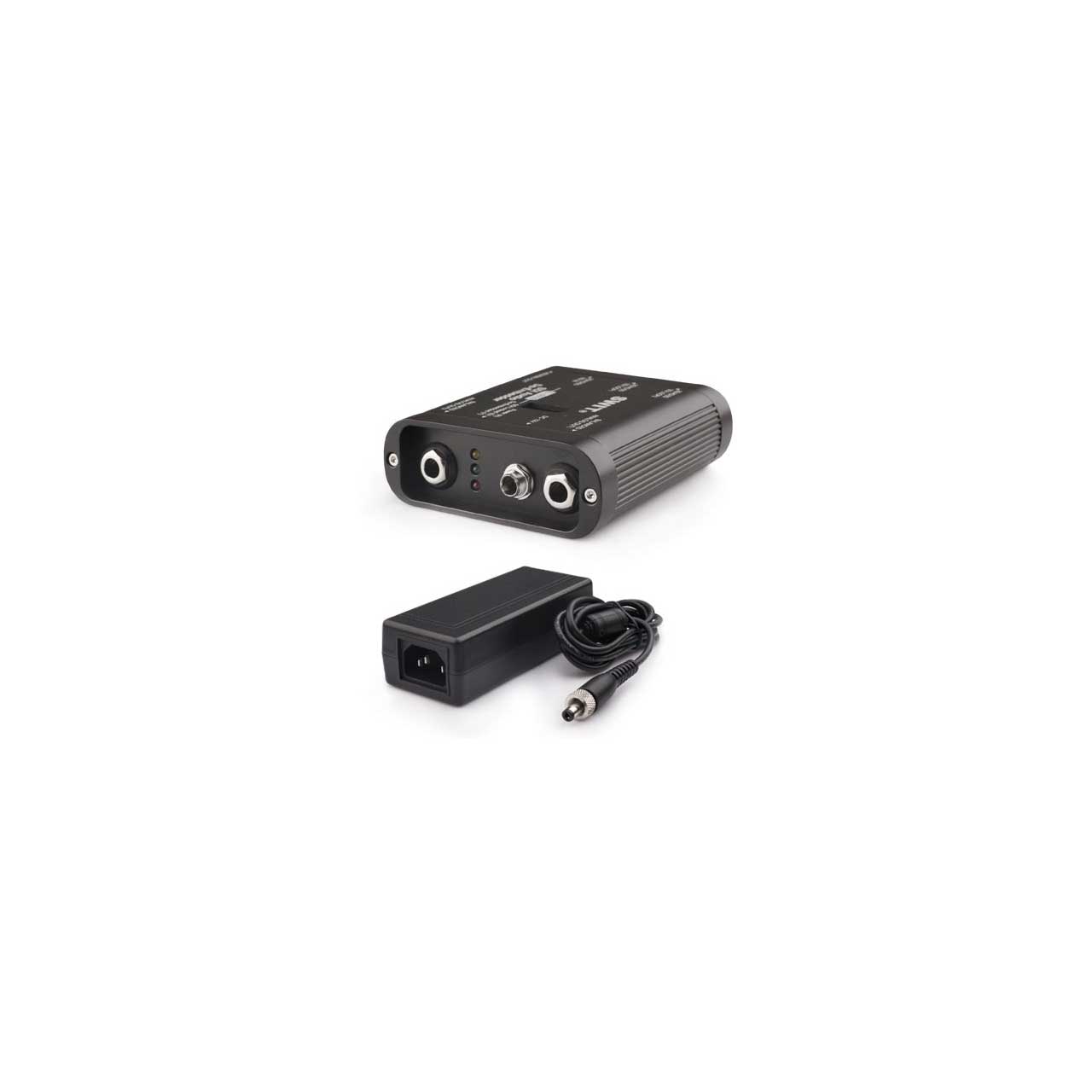

    • 1x AC-DC power adaptor


  • GTIN:

    6948193501895
