Vaddio EasyIP 20 Base Kit - Pro IP PTZ Camera System - 20x Zoom - White

ITEM #: VAD-99930232000W MFG #: 999-30232-000W

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,138.00

Our Price:

$4,624.20

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


999-30232-000W - Overview

The Vaddio 999-30232-000W EasyIP 20 Base Kit is an AV-over-IP professional camera system in a box. It delivers professional image quality for UC soft clients and simplifies the BYOD conferencing experience by moving videoconferencing onto the network.

This networked video capturing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It's a simple AV-over-IP solution for extended and networked video capture and streaming in medium and large spaces.

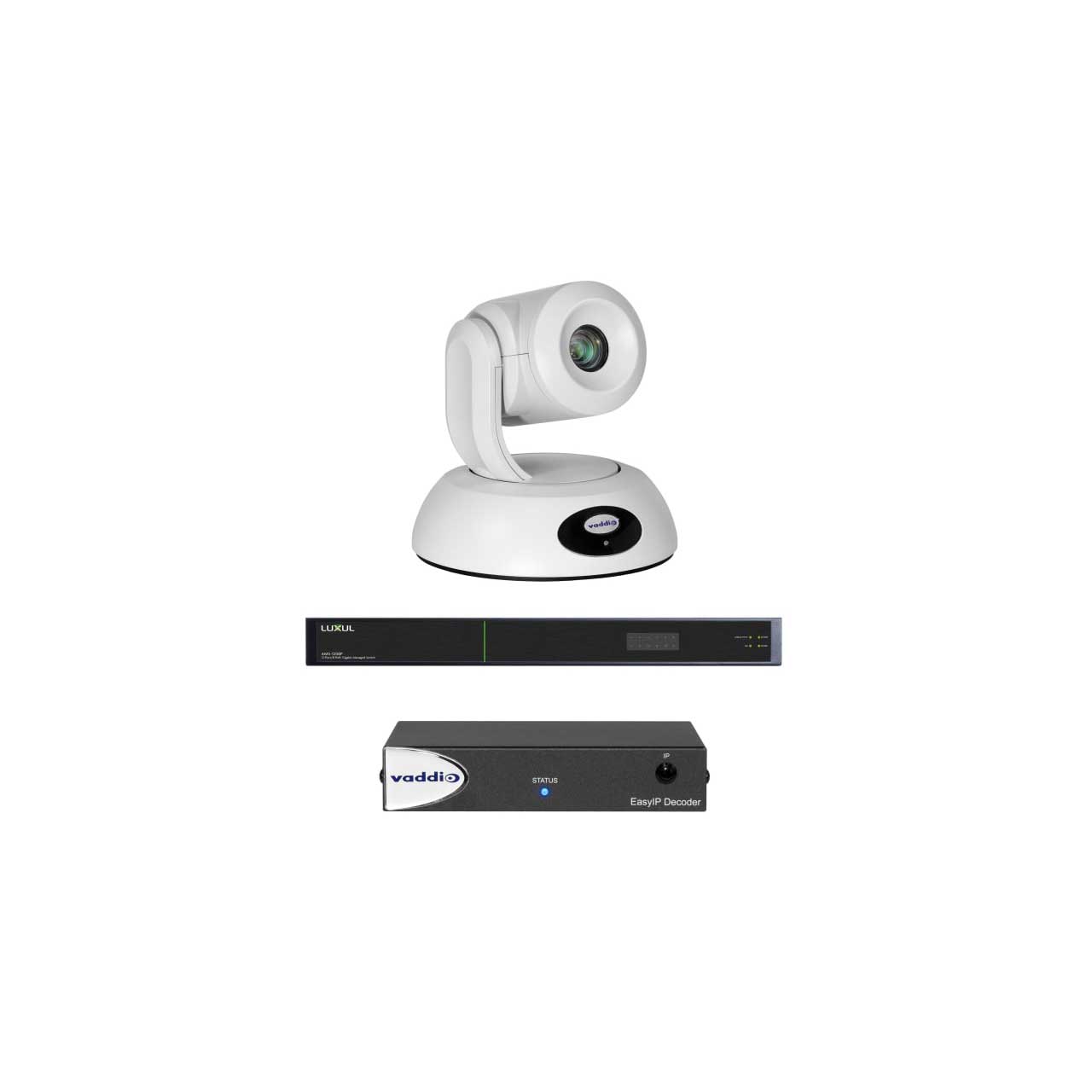

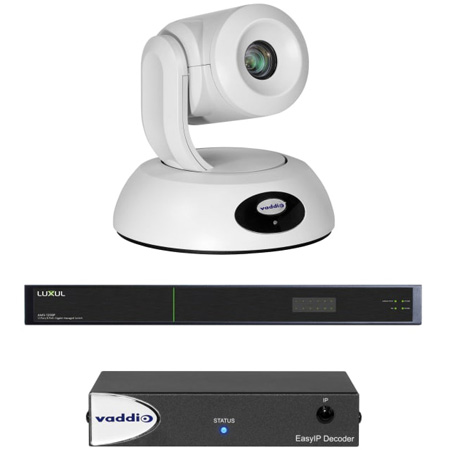

The EasyIP 20 Base Kit includes everything you need to get started with AV-over-IP video in one easy-to-order bundle including one EasyIP 20 Camera, one EasyIP Decoder and one Luxul AMS-1208p Switch.

Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voila! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

  • Features:

    • MADE IN THE USA!
    • Designed for flexible configuration in medium and large rooms
    • One EasyIP (Network PoE+) and one HDMI video output
    • Supports up to two EasyIP Mixers or Decoders simultaneously
    • Provides USB 3.0 connection to leading web services: Teams/Skype for Business, Zoom, WebEx, BlueJeans, Google Meet and others

  • Specifications:

    • Color: White
    • Certifications: CE Approved, FCC Approved
    • Signal Type: EasyIP, HDMI, RS-232
    • Power Type: PoE+
    • Output Ports: HDMI, Network POE+
    • Zoom: 10x
    • Max Resolution: 1080p/60
    • Field of View: 74° Wide End to 7.6° Tele End
    • Estimated Room Size: Large Conference Room, Large Venue
    • Minimum Illumination: 100+ Lux Recommended
    • Browser-based User Interface for Remote Control: Built-in
    • Control Method: Joystick, RS232, Web UI, Telnet, IR Remote
    • OneLINK Compatibility: No
    • PTZ Motors: Stepper Motors
    • Tri-Sync Motion: No
    • Pan and Tilt Range: Pan: ±165°, Tilt: +90° to -30°
    • Pan and Tilt Speed: 0.35°/sec to 90°/sec
    • Image Sensor Type: 1/2.8 Exmor CMOS
    • Pixels: 2.14 Megapixel (2.38 Total MP)
    • Top Resolution: 1080p/60
    • Invertible: Yes
    • Focus System: Auto, Manual
    • Gain: Auto, Manual
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Preset Positions: 16 + Custom Home Position
    • White Balance: Auto, Manual, One-Push
    • Warranty: 2 years
    • Power Supply: PoE+
    • Quick-Connect Compatibility: No

  • Item Includes:

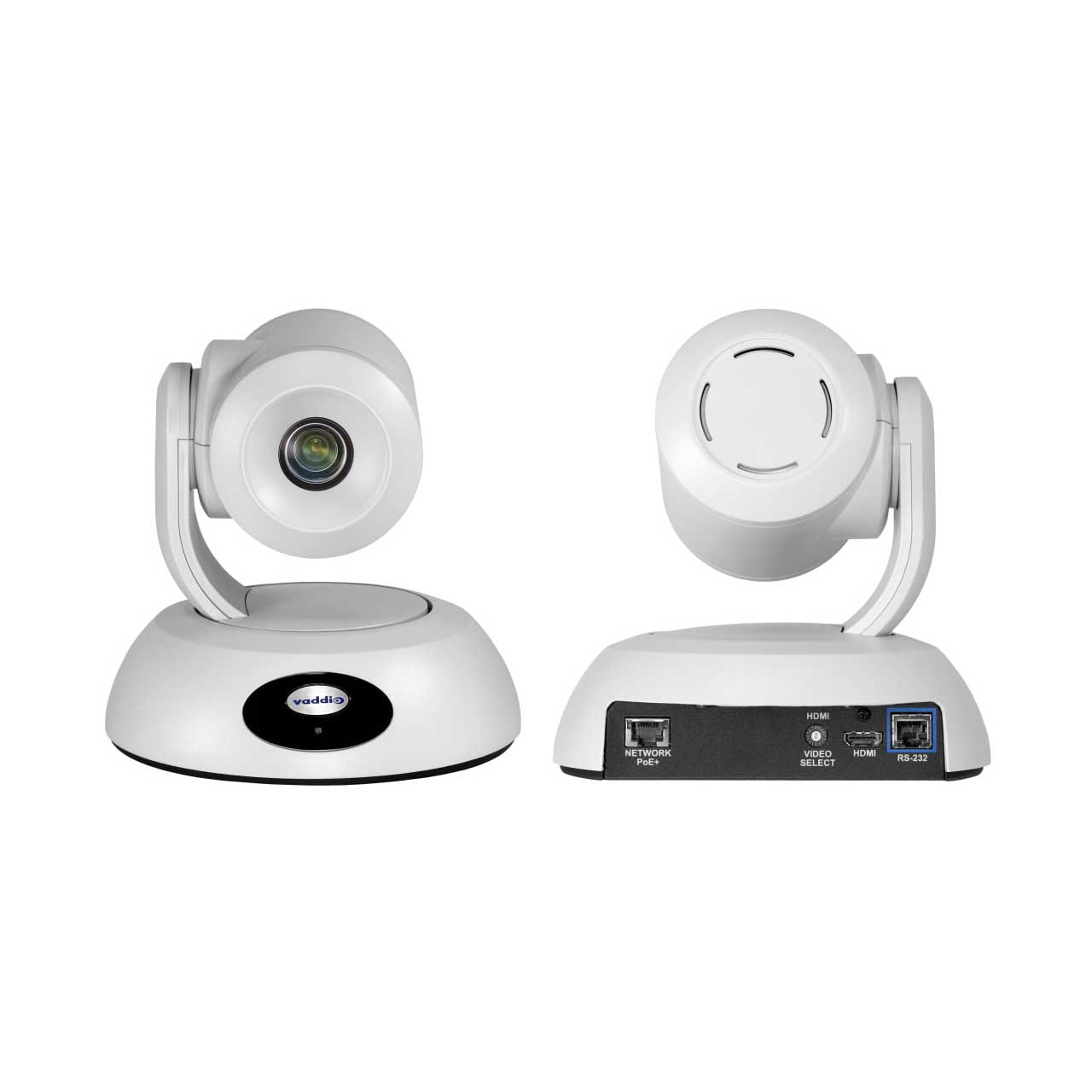

    • 1x EasyIP 20 Camera (black or white)
    • 1x Thin Profile Wall Mount with mounting hardware
    • 1x Vaddio IR Remote Commander

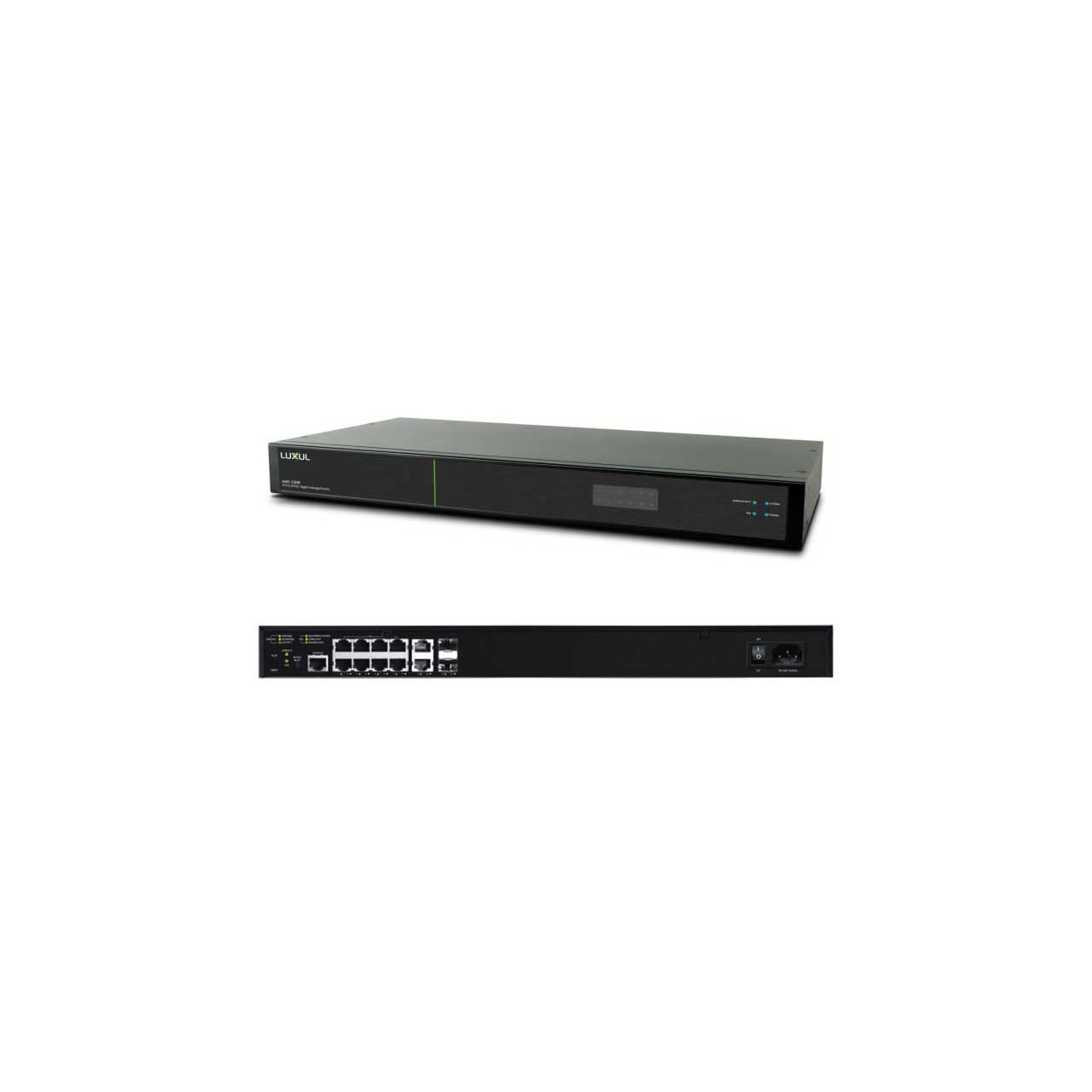

    • 1x EasyIP Switch (Luxul AMS-1208P)
    • 1x Rack mount kit (for mounting the EasyIP Switch)

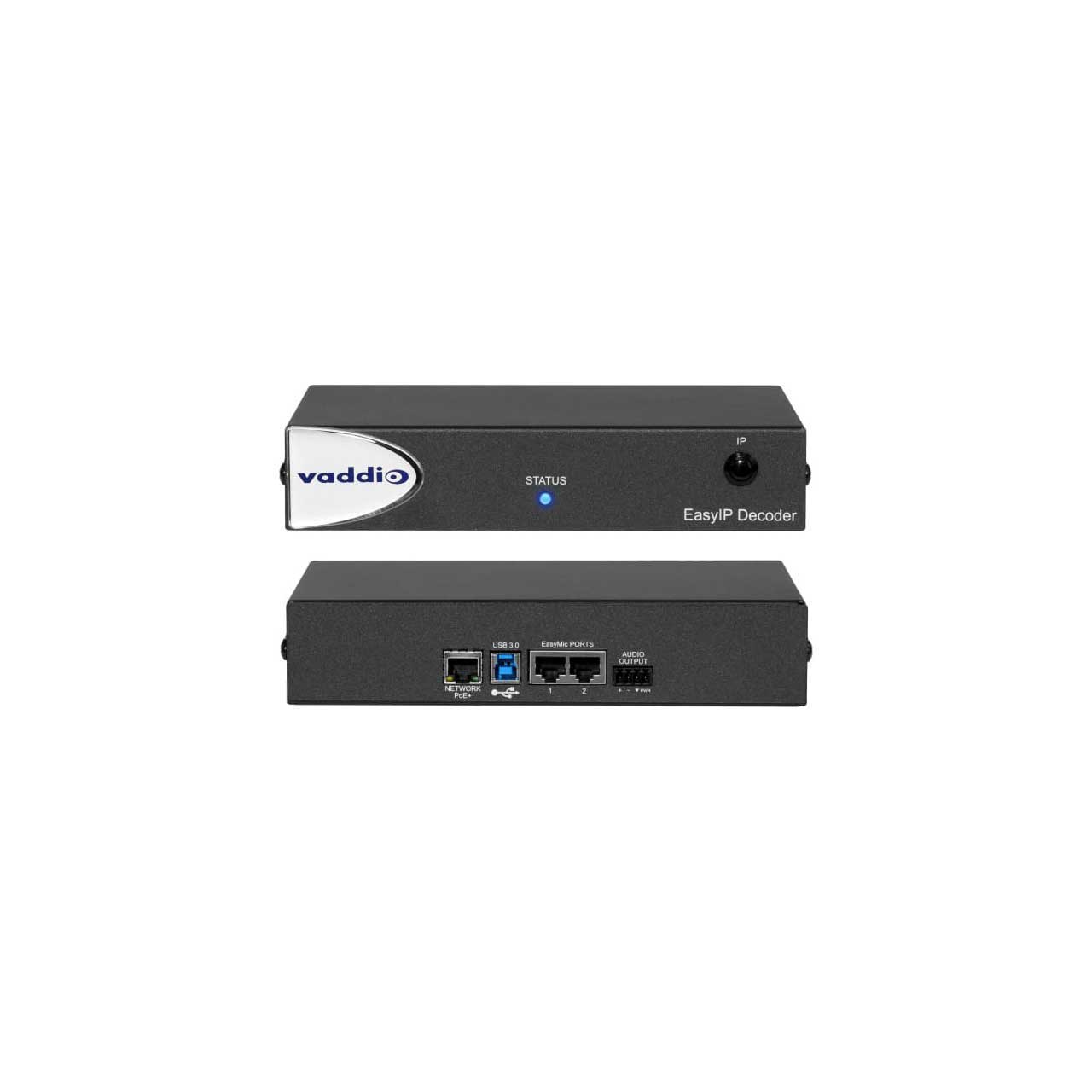

    • 1x EasyIP Decoder
    • 1x Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
    • 1x 10 ft (3.05m) cat-5e snagless Cable, black
    • 1x 3 ft (0.91 m) cat-5e cable
    • 1x 6 ft (1.8 m) USB 3.0 cable
    • 1x 4-position phoenix-style connector
    • 1x Power cord (for EasyIP Switch)
    • 1x Quick-Start Guides

  • GTIN:

    0840077506735
