IVAM1-SUM16-12G - Overview

IP-Ready Audio and Video Monitoring and Metering with Virtual Rotary Dials!

The Wohler iVAM-SUM16-12G is a full featured, easy to use, competitively priced, IP ready, 16 channel audio and video monitor. The unit has virtual rotary dials to show and adjust trim levels and can be configured to operate in either single channel or pair mode.

Flexible. Adaptable. Future Proof.
Standard features include 12G-SDI and a pair of analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase. Options for additional signals, include Dante™ or Ravenna™ (with hitless 2022-7 support), SMPTE-2110, SMPTE-2022-7, AES3, and MADI.

Network Capable with Remote access options:
The unit includes built-in support for remote monitoring provided by MAVRIC software applications suite. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

  • Features:

    • Fast selection and summing of up to 8 or 16 audio channels with video, allowing quick muting and hold-for-solo. Video display includes resolution indication and HDR detection.
    • Virtual rotary dials showing trim levels with master volume control and master mute/unmute
    • Channel names can be displayed for each input or pulled from a router

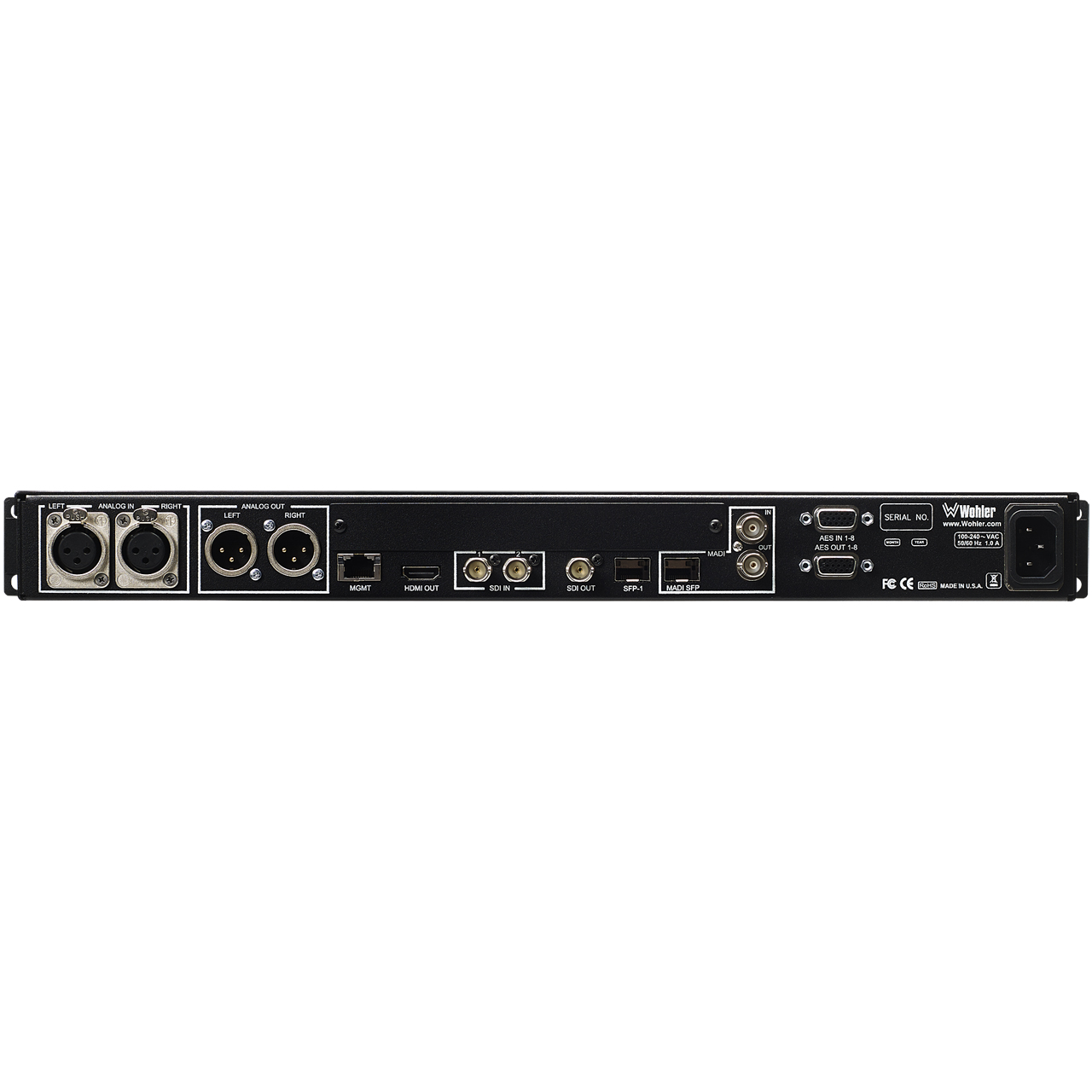

    • Standard I/O: 2x 12G-SDI Inputs on BNC; 1x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
    • HDMI output of the monitored video source included.
    • Optional I/O: for AES3 on HD-15, (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
    • Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, 2 additional SFP cages, or a 12G/MAVRIC option card.
    • Store and retrieve up to 64 presets
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
    • Built-in speakers, headphone jack, USB and Ethernet ports with API's for remote management.
    • API's for remote management and easy integration with 3rd party control systems.
    • Built-in Audio-only remote monitoring probe. Requires MAVRIC remote monitoring subscription.
    • Made in the USA


  • Specifications:

    • Power Consumption / Supply: 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    • Display Type / Resolution: 7" (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
    • Viewing Angle: 160° (H) x 160° (V)
    • Audio Channels: 8 or 16
    • Hum and Noise: Better than -68 dB below full output
    • Peak Acoustic Output: 90 dB SPL @ 2 feet
    • Speaker Power Output: 5W RMS per side, 12W Peak
    • Upgrades: Via USB or Web GUI
    • APIs: Provide easy integration with 3rd party control systems
    • Dimensions (W x H x D): 1RU in standard 19" rack: 19" x 1.75" x 5.5"
    • Shipping Dims: 23"x 6"x 12"
    • Shipping Weight / Net Weight: 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)


  • Item Includes:

    • 1x Wohler iVAM1-SUM16-12G 1RU 16-Channel 7-Inch Single Screen 12G-SDI & Analog Audio / Video Monitor and Mixer
