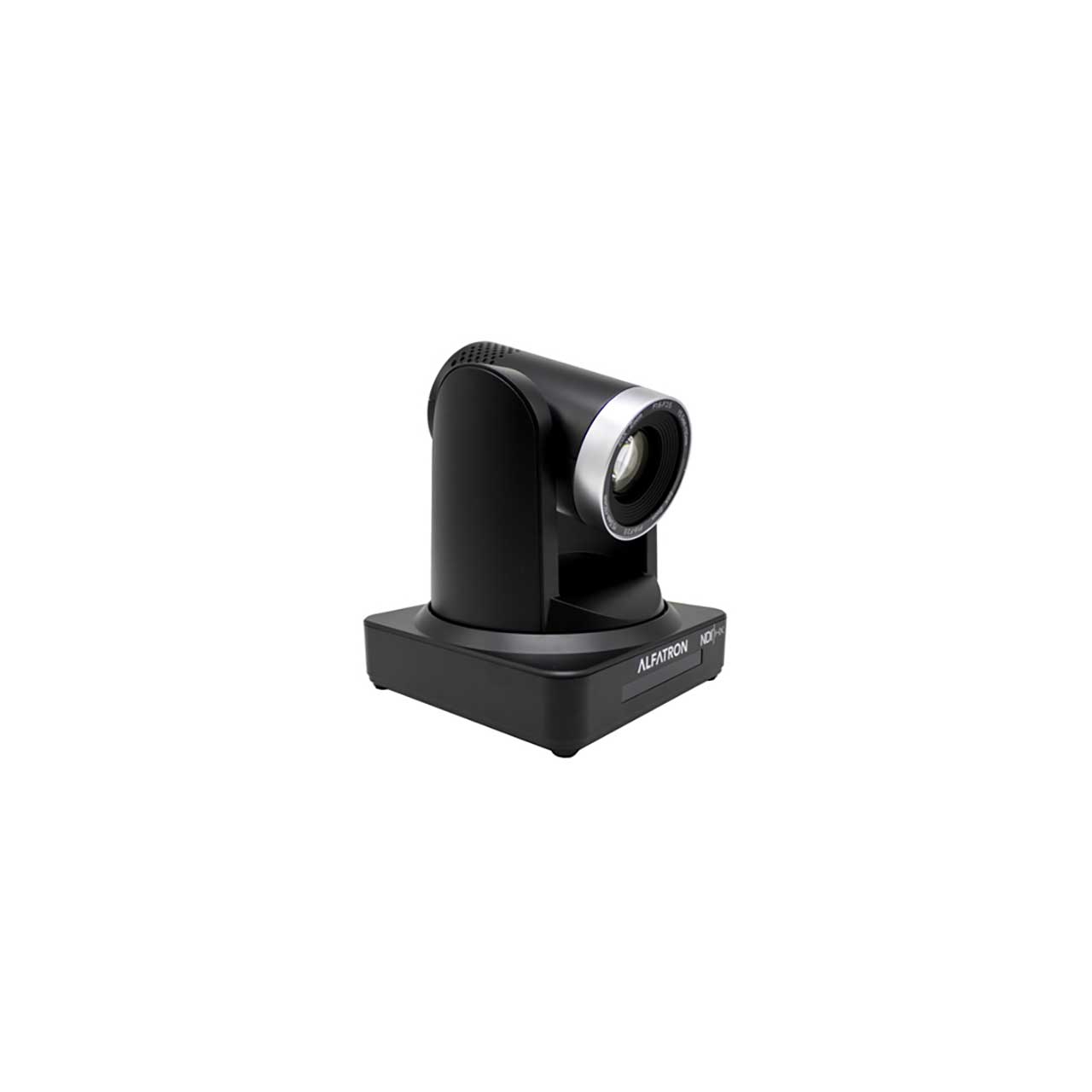

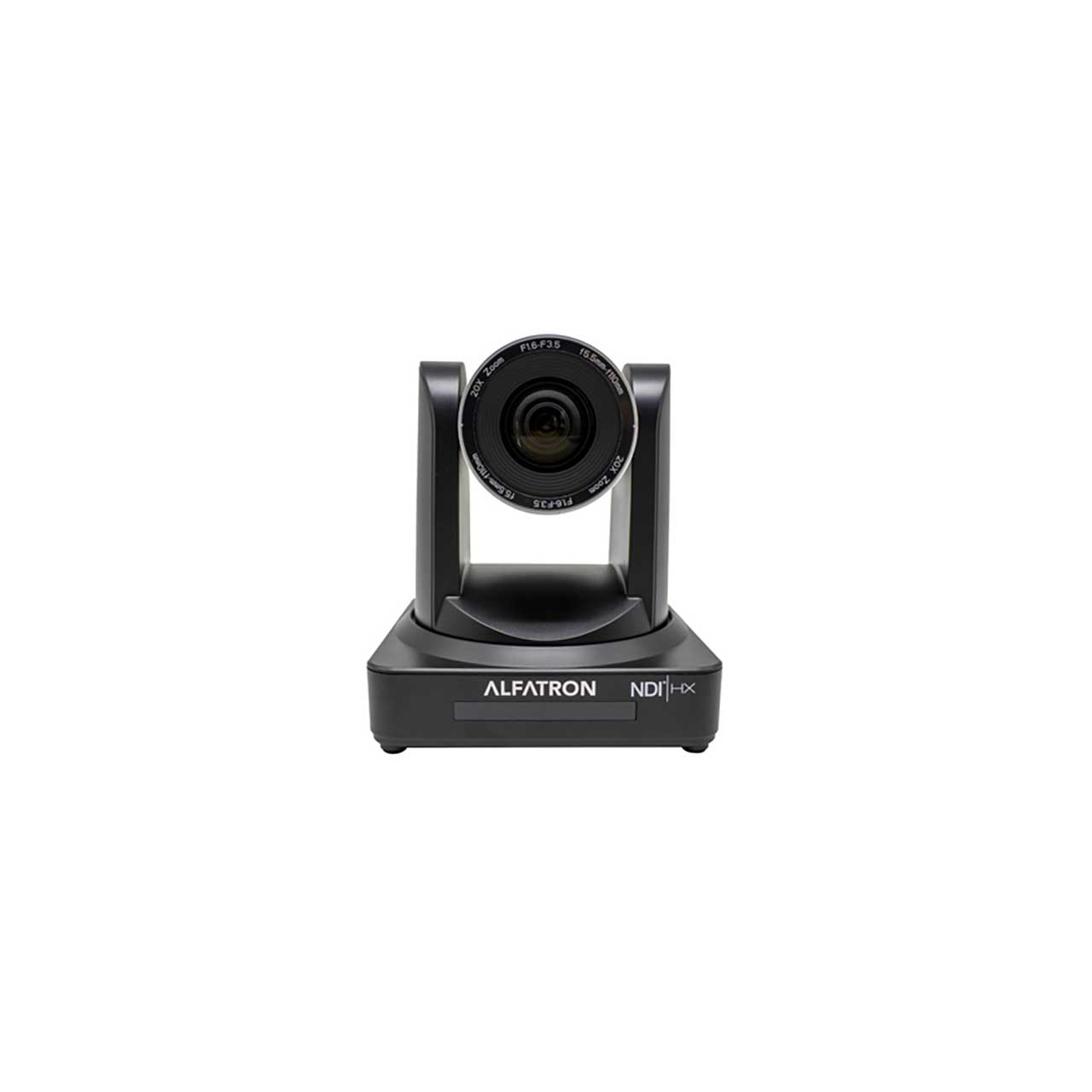

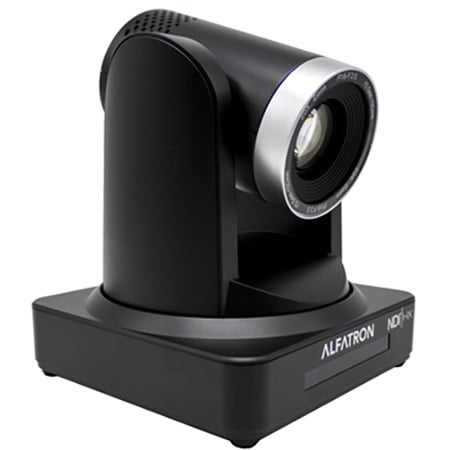

Alfatron ALF-20X-NDIC 1080P HD PTZ Camera with NDI and a 20x Zoom Lens

ALF-20X-NDIC - Overview

• Features:

  • 1080P HD PTZ Camera
  • 20X Optical Zoom
  • 2.07MP Sensor
  • Automatic focus, aperture, shutter, white balance
  • Video over NDI, SDI, POE Ethernet, HDMI, & USB
  • Remote control via RS232, RS485
  • IR remote control


• Specifications:

  • Optical Zoom: 20X, f5.5110mm
  • Sensor: 1/2.8-inch-high quality HD CMOS sensor
  • Effective Pixels: 16: 9,  2.07 megapixel
  • HDMI/SDI Video Format:
    1080P60/50/30/25/59.94/29.97
    1080I60/50/59.94
    720P60/50/30/25/59.94/29.97
  • CVBS output: 570i 480i
  • USB3.0 interface video format: 1920X1080@60fps Max
  • USB2.0 interface video format: 1080P@30fps Max
  • View Angle: 6.3°tele, 72.5°wide
  • AV: F1.6 – F3.5
  • Digital Zoom: 10X
  • Minimum Illumination: 0.1Lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White Balance: Auto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
  • Focus/Aperture/Electronic Shutter: Auto/Manual/One Push Focus
  • Iris: Auto/Manual
  • Shutter: Auto/Manual
  • BLC: ON/OFF
  • WDR: OFF/ Dynamic level adjustment
  • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB

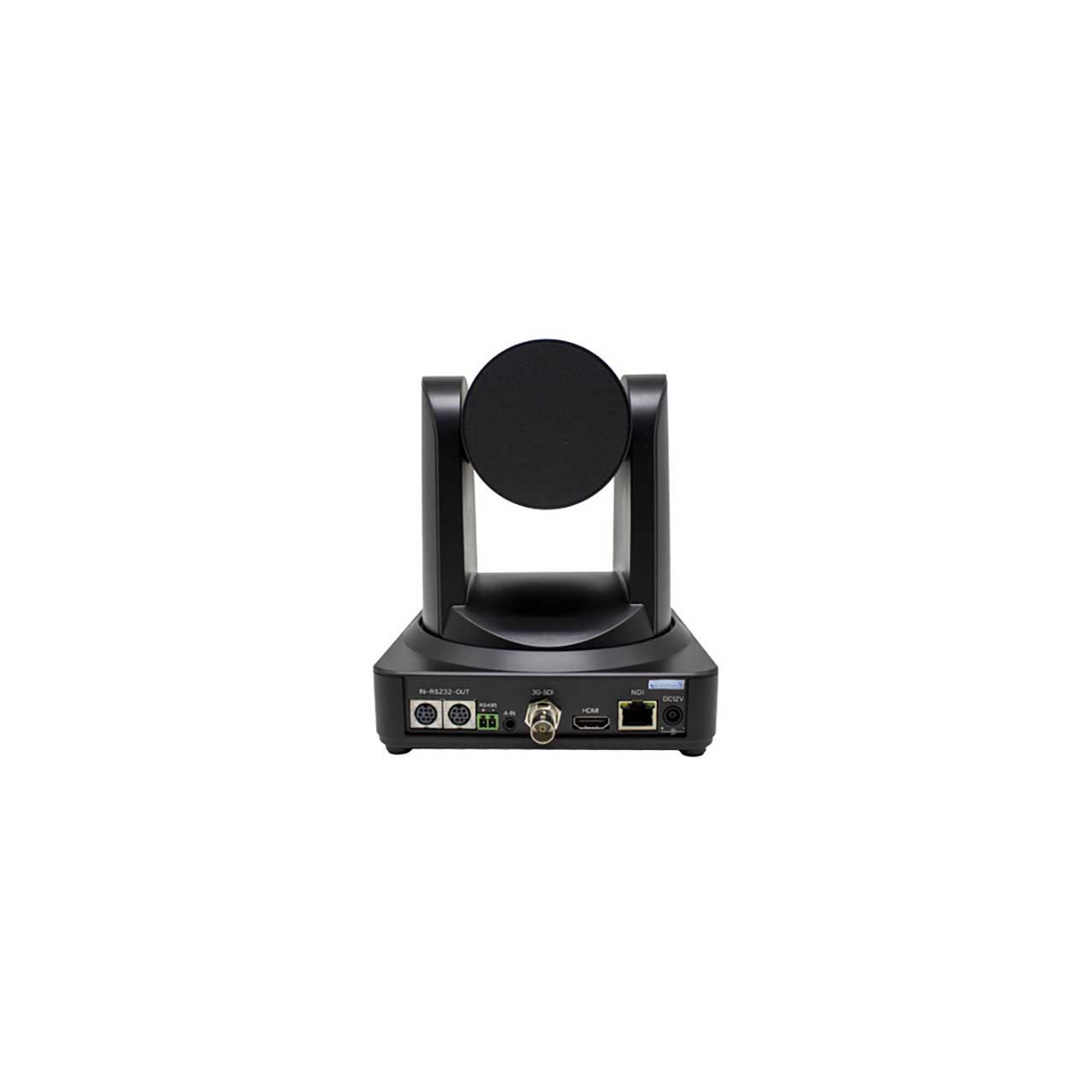

  • Video Output: HDMI, SDI, LAN, USB3.0, USB2.0
  • Video Stream: Dual stream output
  • Video Compression Format: LAN Interface: H.265, H.264, Dual stream output
  • USB2.0 Interface: H.265, H.264, MJPEG
  • USB3.0 Interface: YUV
  • Audio Input Interface: Double track 3.5mm linear input
  • Audio Output Interface: HDMI, SDI, LAN
  • Audio Compression Format: AAC/MP3/G.711A
  • Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, Support network VISCA control protocol, Support remote upgrade, remote restart
  • Control Interface: RS232, RS485
  • Control Protocol: VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps
  • Power Interface: HEC3800 outlet (DC12V)
  • Input Voltage: DC12V±10%
  • Input Electric Current: Maximum: 1A
  • Power Consumption: Maximum: 12W
  • Pan/Tilt Rotation: ±170°, -30°?+90°
  • Pan Control Speed: 0.1 -60°/sec
  • Tilt Control Speed: 0.1-30°/sec
  • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
  • Preset Number: 255 presets (10 presets by remote controller)
  • Stored Temperature: -10°C~+60°C
  • Storage Humidity: 20%~95%
  • Working Temperature: -10°C~+50°C
  • Working Humidity: 20%~80%
  • Dimensions: 178mm x 115.5mm x 150.9mm
  • Weight: 1.38KG


• Item Includes:

  • 1x 12V/1.5A power supply,
  • 1x RS232 cable
  • 1x Remote control
  • 1x Manual
  • 1x Warranty card
  • 1x Wall mount


• Warranty:

  • 7 years


• GTIN:

  0781159724862
