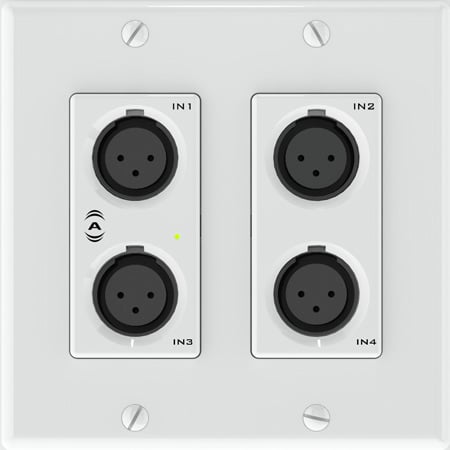

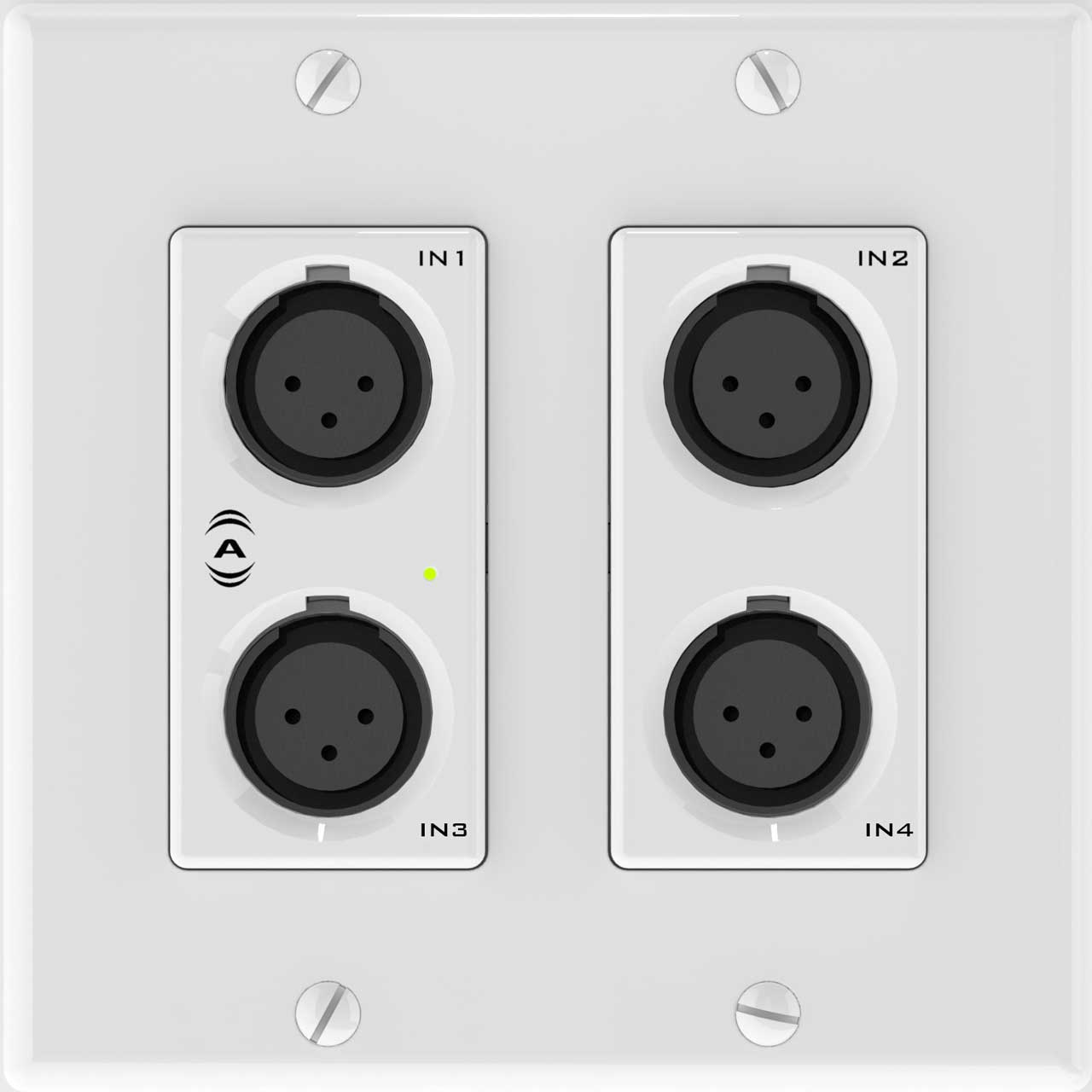

Attero Tech unDX4I 4x2 Channel Dual Gang Dante/AES67 US Wall Plate 4 Mic/Line In (XLR) Phoenix I/O PoE

UNDX4I - Overview

• Features:

  • 4 Mic/Line balanced analog inputs supporting 0dB, +25dB, and +40dB gain
  • 2 side mounted line level balanced analog outputs on depluggable connectors
  • Input gain and +48V phantom power controllable via software over the network
  • Powered by IEEE 802.3af PoE
  • Black and white inserts and Decora plates included


• Specifications:

  Audio Inputs
  • Input Type: Four Balanced and RF filtered inputs on XLR
  • Gain: -18dB, -3dB, +25dB and +40dB, software selectable
  • Input Impedance: >1.8K Ohms at any gain
  • Maximum Input Levels
  +20dBu @ -18dB gain,
  +6dBu @ - 3 dB gain,
  -23dBu @ +25dB gain
  -38dBu @ +40dB gain
  • Phantom Power: +48V, software selectable

    Audio Input Performance
  • EIN: -115dBu
  • THD+N: <0.02% @ 1kHz for all gain settings, input signal 3dB below maximum
  • Frequency Response
  20Hz - 20kHz, +/- 1dB (-18 and - 3 dB gain)
  50Hz - 20kHz +/- 1dB (+25dB and +40dB gain)

  Audio Outputs
  • Output Type: Two balanced line level with automatic muting on loss of Dante signal on 3-pin Depluggable Phoenix
  • Attenuation: Range Software controlled volume (0 to -60dB, 1dB increments)
  • Output Impedance: 200 Ohms balanced
  • Maximum Output Levels: +20dBu at 0dB attenuation

    Audio Output Performance
  • Dynamic Range: 100 dB
  • THD+N: <0.01% @ 1kHz, input signal 3dB below maximum
  • Frequency Response
  20Hz - 20kHz, +/- 1dB (-18dB and - 3dB gain)
  50Hz - 20kHz +/- 1dB (+25 and +40 dB gain)

  Dante Network
  • Physical Level: Standard Ethernet
  • Connector: Single RJ-45
  • Cable Quality: CAT-5e or better
  • Transmission Speed: 100 Mbps
  • Supported Sample Rates: 44.1kHz, 48kHz
  • Minimum Dante Network Latency: 1ms

    Power Requirements
  • PoE 802.3af PoE PD compliant
  • Power Consumption: 6.5W Max
  • Cable Quality: CAT-5e or better

    Physical Dimensions
  • Width: 3.54"
  • Height: 4.2"
  • Depth: 2"
  • Weight: 1.7lbs

    Product Compliance
  • FCC CFR 47 Parts 15B, ICES-003, CE (EN55022), RoHS, REACH


• Warranty:

  • 5 Year
