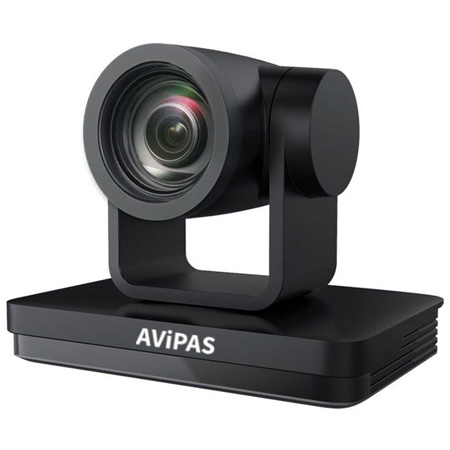

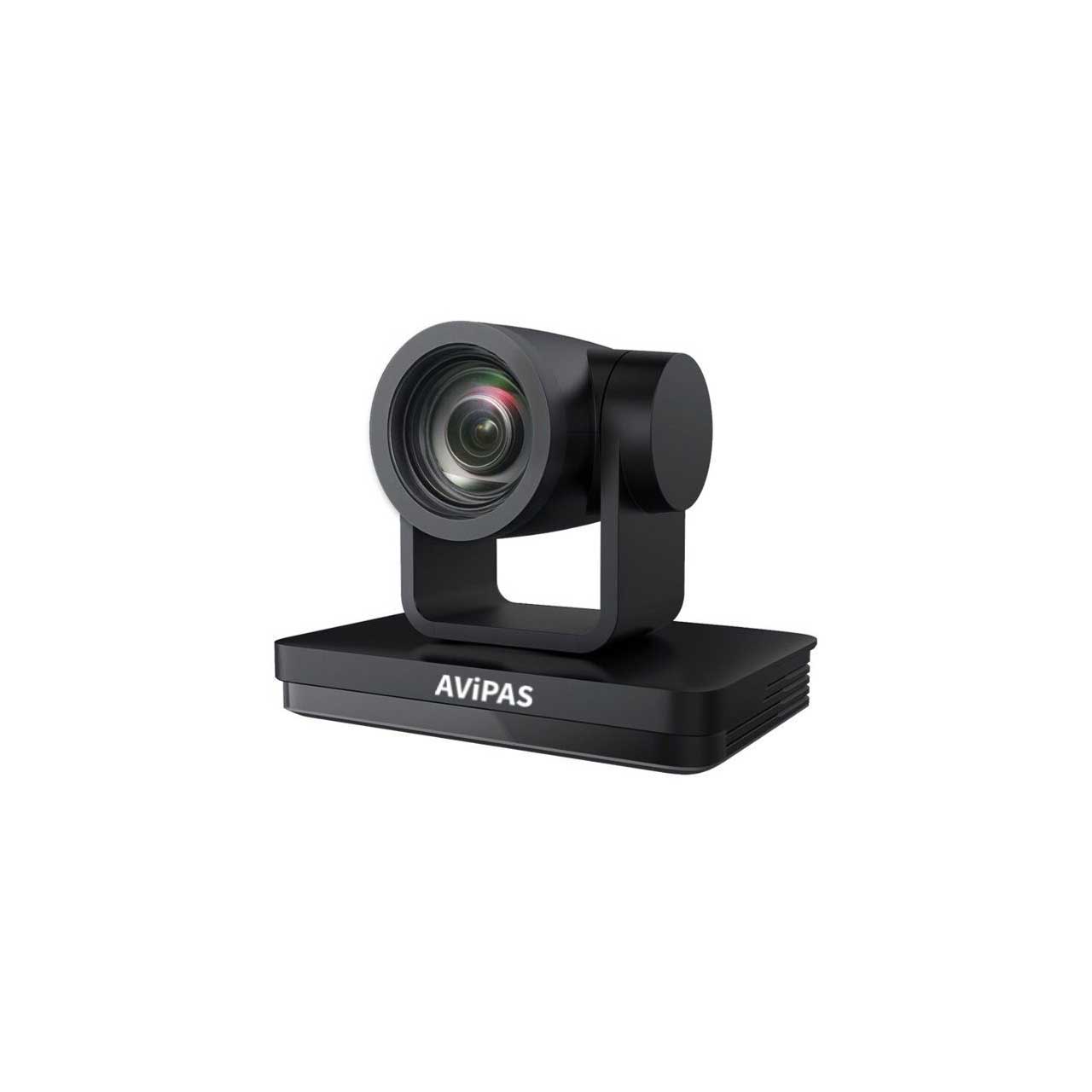

AViPAS AV-1562 20x Optical Zoom 3GSDI/HDMI/USB3.0 Full HD PTZ Camera with PoE Supported

AV-1562 - Overview

• Features:

  • 1/2.8" CMOS Sensor, effective pixel 2.07MP
  • Full HD 1920x1080p up to 60 fps
  • 20X optical, 10X digital zoom
  • Field of View: 56 degree
  • 2D&3D digital noise reduction
  • WDR(wide Dynamic range): suppoted
  • Horizontal /Vertical image flip
  • 3GSDI, HDMI, USB3.0 and LAN simultaneous outputs
  • H.264/H.265 Video streaming encoding
  • 3.5mm Audio Line-in: AAC, MP3 & G.711A audio encoding
  • Embedded audio for: IP streaming/3GSDI and HDMI
  • RTSP, RTMP, RTMPS, GB/T28181 streaming protocol
  • Preset: 255 via serial or IP; 10 via IR remote control
  • Control options: IR Remote Control, UVC1.1, and RS232/RS485/RS422 serial control
  • Control Protocol: VISCA/VISCA Over IP/Pelco-D/Pelco-P/OnviF
  • PoE (Power-Over Ethernet) supported: IEEE 802.3af Standard
  • Standard wall / ceiling mounting
  • Tripod mountable (1/4"-20 female on the bottom)


• Specifications:

  • Camera Specifications
  • Shutter Speed: 1/25s ~ 1/10000s
  • Minimum Illumination: 0.5Lux @ (F1.8, AGC on)
  • SNR: > 50dB
  • White Balance: Manual, Auto, ATW(auto tracking white balance), Indoor, Outdoor, One Push mode
  • Image Flip: Horizontal /Vertical image flip
  • Rotation angle: Pan: ±170°; Tilt Rotation: -30°~+90°
  • Rotation Speed: Pan: 0°~100°/s; Tilt: 0°~45°/s

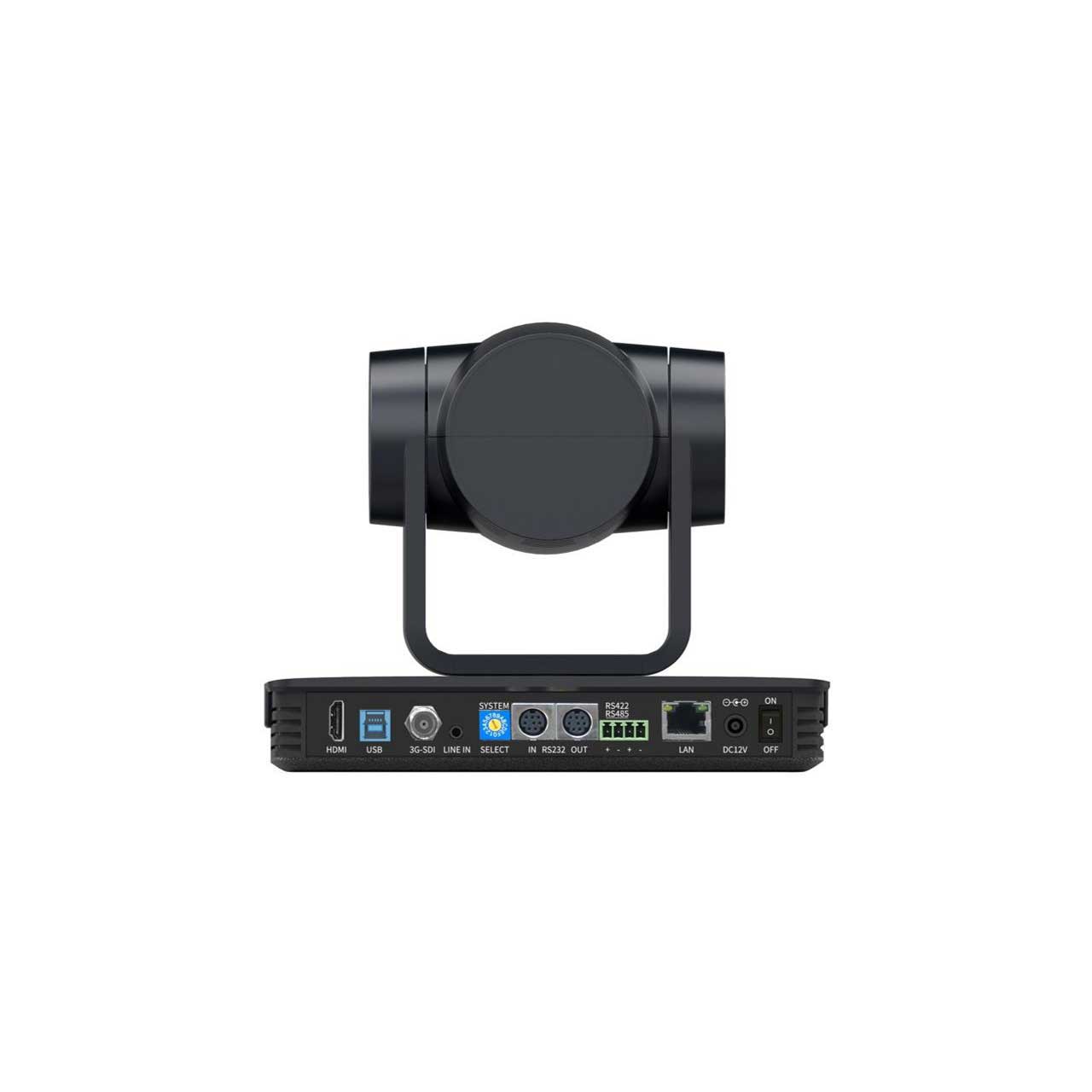

    Video Output
  • 1x 3G-SDI
  • 1x HDMI
  • 1x USB3.0(type B)
  • 1x LAN(RJ45)

    Audio Inout/Output
  • 1x 3.5mm Line-in
  • Embedded audio for: LAN(IP streaming), SDI & HDMI

    Control Interface
  • 1x RS232 input
  • 1x RS232 output
  • 1x RS485
  • 1x RS422
  • 1X RJ45
  • 1x USB3.0(type B)

    Video Format
  • SDI and HDMI: 1080p60/50/30/25/59.94/29.97, 1080i60/50/59.94, 1280x720P60/50/59.94/29.97
  • USB3.0 1920x1080p30
  • RJ45: Main Stream (YUY2/MJPEG/NV12/H.264/H.265): 1920x1080p30, 1280x720p30, 1024x576p30, 960x540p30, 800x448p30, 720x480p30, 640x360p30, 640x480p30, 320x176p30
  • Sub Stream (YUY2/NV12): 640x360p30, 640x480p30, 320x176p30; (MJPEG/H.264/H.265): 1920x1080p30, 1280x720p30, 1024x576p30, 960x540p30, 800x448p30, 720x480p30, 640x360p30, 640x480p30, 320x176p30

    Lens Specifications
  • Zoom: 20x (Optical), 10x (Digital)
  • Focal Length f5.2-98mm
  • Apeture: F1.5~ F3.0
  • Field of View: 56°
  • Focus: Auto /manual

    General Specifications
  • Power Requirements: DC 12V
  • PoE (IEEE 802.3af)
  • Power Consumption: 12W
  • Operating Temperature: 20°F~80°F(-10°C~50°C)
  • Dimensions: 7.1 x 4.5 x 5.9inch (181 x 115 x 149mm)
  • Net Weight: 2.5Lbs (1.15kg)


• Item Includes:

  • 1x Camera
  • 1x Power Adapter
  • 1x Power Cable
  • 1x RS232 Control Cable
  • 1x USB Cable
  • 1x Remote Controller
  • 1x User Manual


• Warranty:

  • 2 year conditional


• GTIN:

  0858738005602
