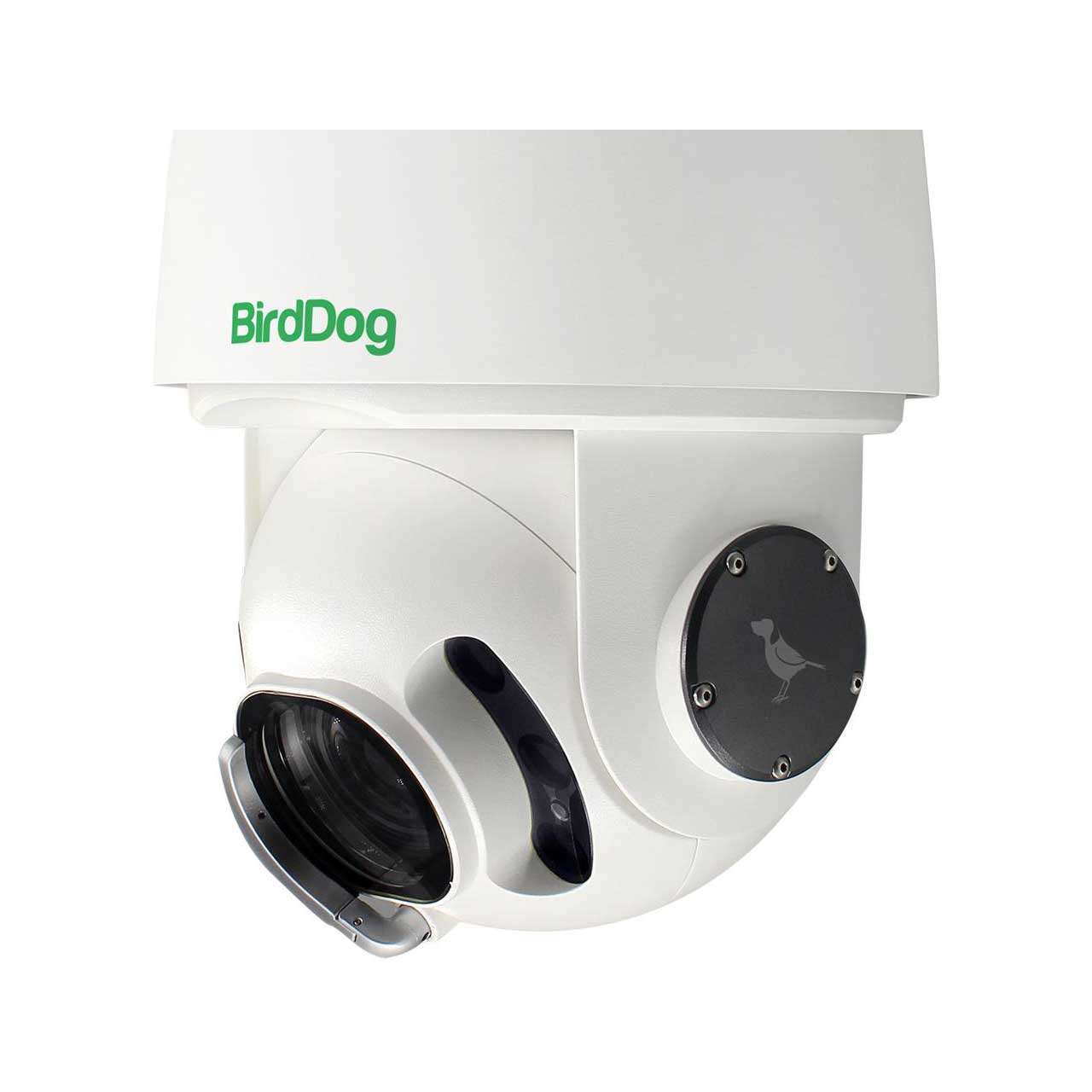

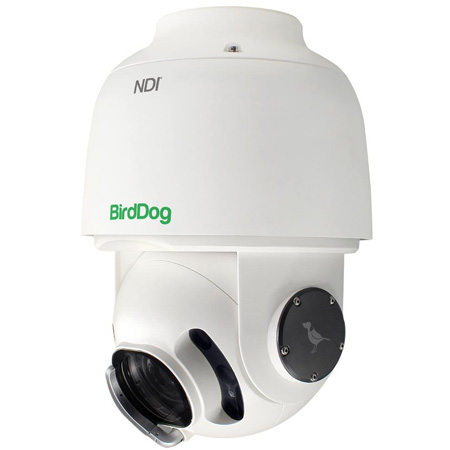

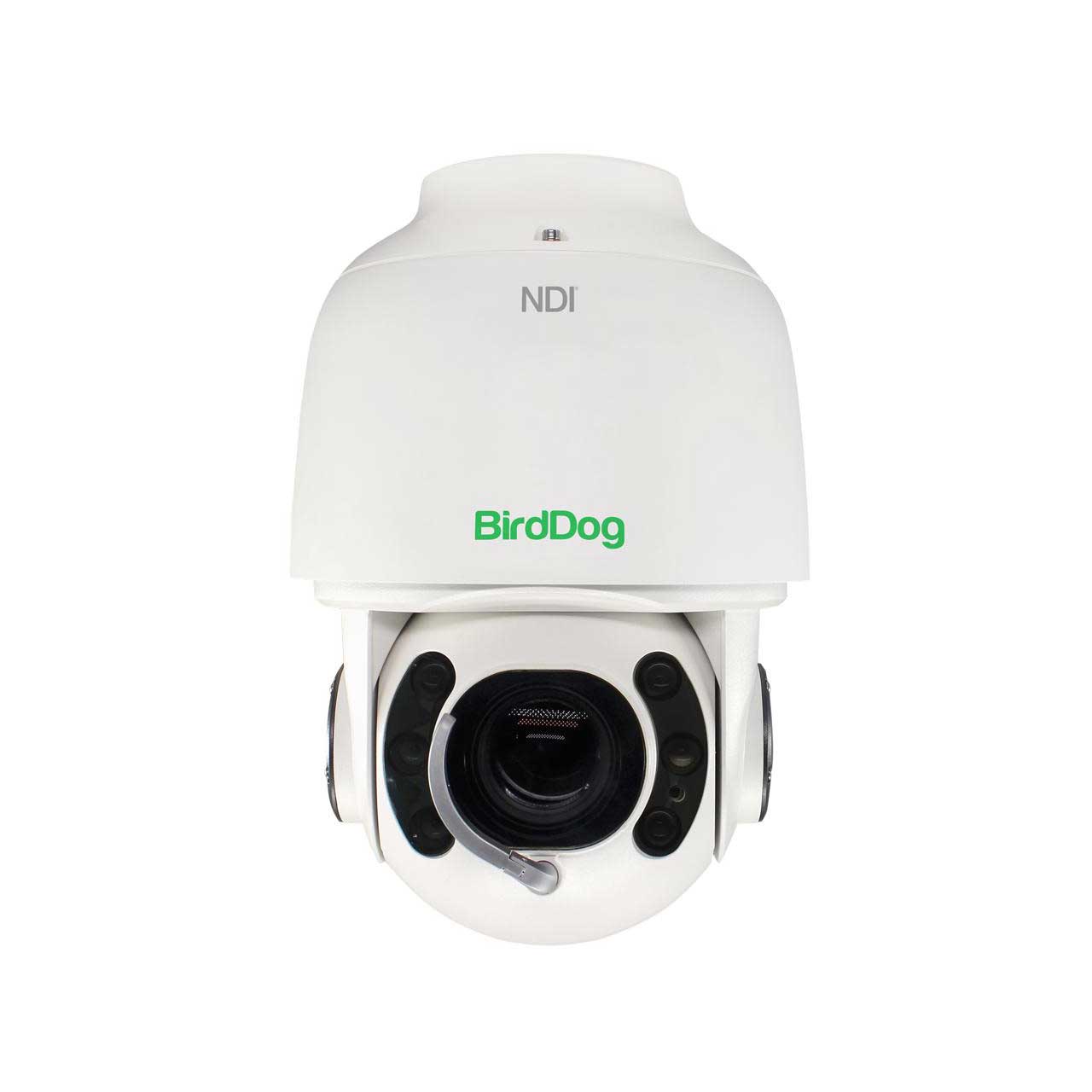

BirdDog Eyes BDA200GEN2 A200 IP67 Weatherproof 30x Full NDI PTZ Camera with Sony Sensor & SDI - White

ITEM #: BDS-BDA200GEN2 MFG #: BDA200GEN2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$5,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BDA200GEN2 - Overview

WEATHRPROOF FULL NDI® PTZ

The BirdDog Eyes BDA200 Weatherproof Full NDI® PTZ camera takes the lead by teaming up BirdDog's custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module. A200 has lightning auto focus, incredibly sharp images, and insanely fast zoom with frame rates up to 1080p60, 30x optical zoom, and it outputs SDI and Full NDI® simultaneously.

Designed for fixed outdoor installations such as sports, the IP67 rating means A200 can withstand pretty much any weather conditions. A200 is IP67 rated for outdoor and indoor use. It features a Corrosion Resistant treated housing for salt spray environment and a -40° to 140°F (-40° to +60°C) operating temperature range. It even has a rain wiper to keep water off the lens! 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world's first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.

Dialling in your camera just levelled up! A200 now has a full color matrix with individual saturation and hue control over Red, Green, Blue, Cyan, Yellow and Magenta, all with 64 levels of control.

A200 has been designed for the most demanding image quality. The superior optics make P200 perfect for Live Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. A200 is also compatible with BirdDog PTZ Keyboard for ultimate control.

Please note A200 does not come with a Power Supply. Please be sure to order either the BD-A-PP97, BirdDog 97W PoE Power Injector for A200 / A300 or the BD-A-P24-5, BirdDog Power adaptor 24VAC 5A for A200 / A300.

  • Features:

    • Full NDI®
    • All weather
    • Sony Sensor
    • Sony Image Module
    • NDI® & SDI
    • 30x Optical zoom

  • Specifications:

    • Camera
    • Video Output: NDI/SDI
    • Optical Zoom: 30x
    • Image Sensor: 1 / 2.8 inch CMOS 2.13MP
    • Lens: 4.3-129mm
    • Digital Zoom: 12x
    • Horizontal Angle of View: 63.7°(W) - 2.3°(T)
    • Aperture: F1.6(W) - F4.7 (T)
    • Min. Illumination: Color: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)
    • Shutter Speed: 1/1 - 1/10000s
    • Focus: Auto, Push, Manual
    • White Balance: Auto, Indoor, Outdoor, Manual, OPW ,ATW
    • Exposure: Auto, Manual, Shutter/Iris Priority
    • Backlight Compensation: YES

      Mechanical
    • Pan Movement: Horizontal:±360 degrees continuous pan (Zoom Adaptive Speed Range: 0.01§ to 150°/s)
    • Tilt Movement: Vertical:-90 degrees to +15 degrees (Zoom Adaptive Speed Range: 0.05°90°/S)
    • Preset Positions: 255 (Speed adjustable: Up to 150°/s)
    • Environmental: Outdoor/Indoor, IP67, corrosion resistant treated housing
    • Operating Temperature: -40 - +60 (°C)
    • Operating Humidity: ≥80%

      Video Interface
    • Video Formats: 1080p 60, 59.94, 50, 29.97, 25/1080i 60, 59.94, 50/720p 60, 59.94, 50
    • Audio I/O: 3.5mm Audio In (Stereo), 3.5mm Audio Out (Stereo)

      Control Interface
    • IP PTZ Control: NDI Control (auto configuring) VISCA IP
    • Serial PTZ Control: RS422/RS485 connector
    • Serial Control Protocol: VISCA / Pelco D

      Power & Dimensions
    • Operating Temperature: -40° to 140°F (-40° to +60°C)
    • Operating Humidity: =< 80%
    • Power Input: AC 24v, PoE 97W Ready (BirdDog PoE 90W Injector needed, optional)
    • Power Consumption: Min. 22W, Max. 51.84W (Fully loaded operation)
    • Dimensions: 8.26 x 8.26 x 13.11" (210 x 210 x 333mm)
    • Weight: 12.12Lbs (5.5kg)

      Network
    • Video Compression: Full NDI - i-frame high quality low latency NDI for production
    • Network Protocol: NDI - Discovery, configuration and control
    • Web Control interface: Full control via Web/Mobile UI including Scene presets

  • Item Includes:

    • 1x Eyes A200 IP67 Weatherproof Full NDI PTZ Camera with Sony Sensor & SDI (White)

  • Warranty:

    • BirdDog 1 Year Limited Warranty (Additional 2 Year on Registration)

  • GTIN:

    9354873000522
