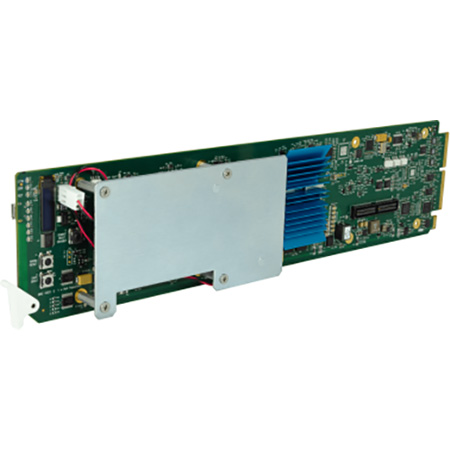

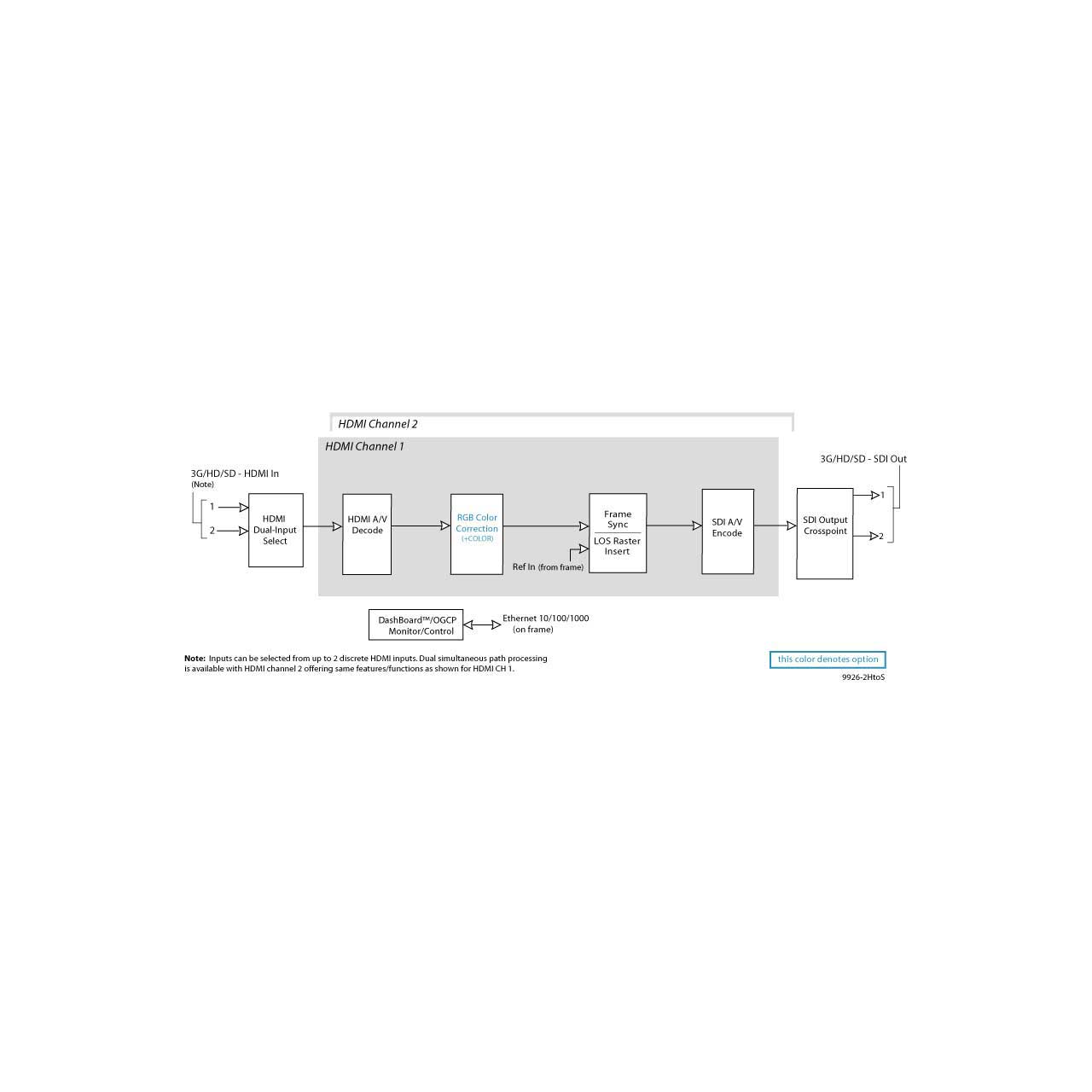

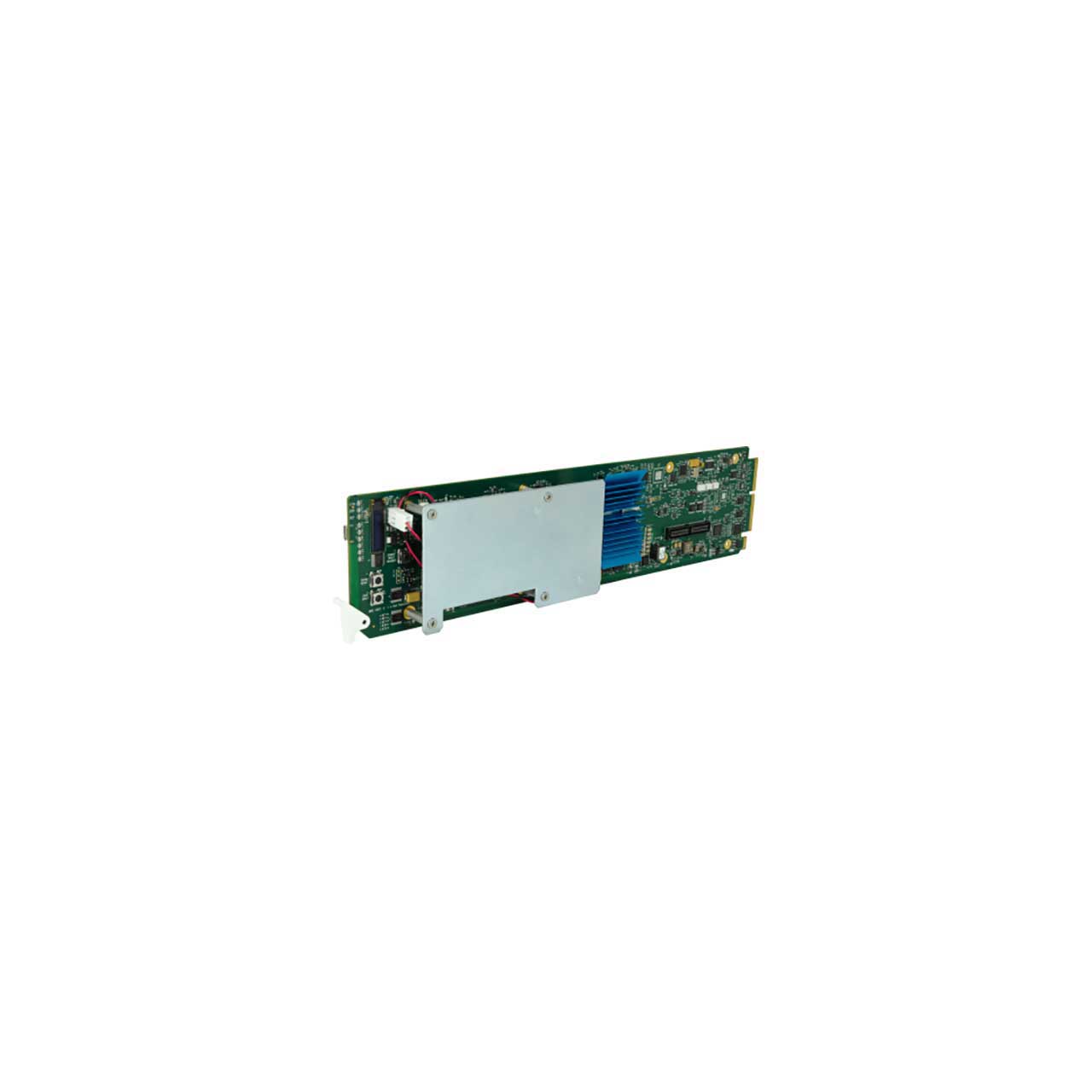

The 9926-2HtoS 3G/HD/SD Dual-Channel openGear® HDMI-To-SDI Converter with Per-Channel Frame Sync provides two independent paths of true 3G and HD conversions from HDMI to SMPTE 424M, 292M, or 259M. Each channel is equipped with full independent frame sync as well as full input and output audio crosspoints. Input and output HDMI and SDI crosspoints allow program sourcing and distribution across either of the two HDMI inputs and two SDI outputs.
In existing openGear® installations, the dual-channel capacity of 9926-2HtoS can save space and lend to installation integrity over using throwdown devices. Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoardT or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
