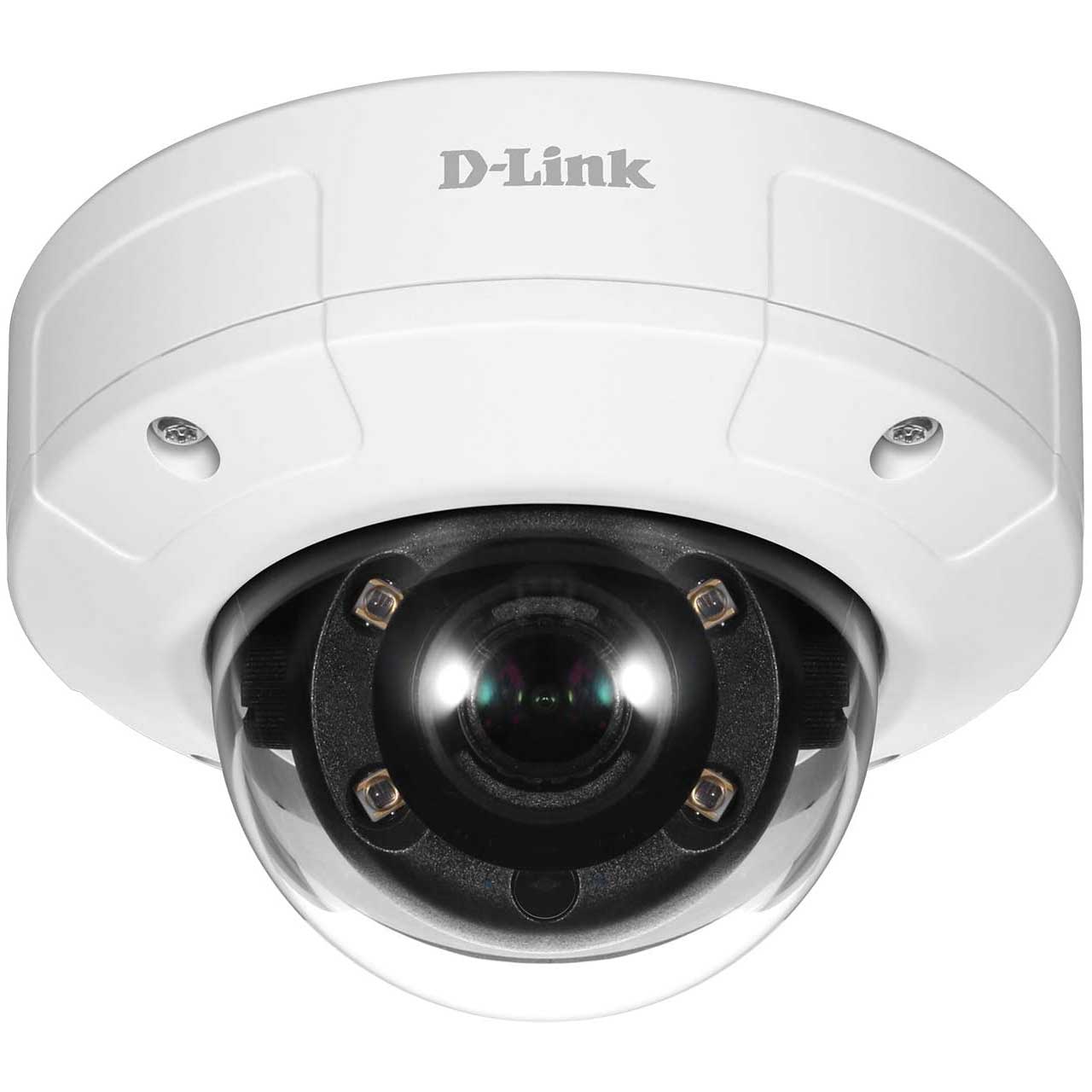

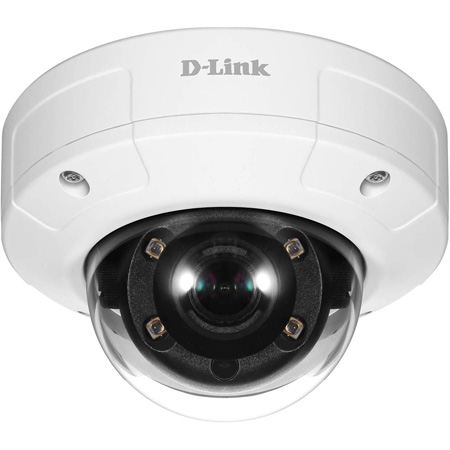

D-Link DCS-4602EV-VB1 Vigilance 2 Megapixel H.265 Outdoor Dome PTZ Camera with Full HD Resolution 1920x1080

ITEM #: DCS-4602EV-VB1 MFG #: DCS-4602EV-VB1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DCS-4602EV-VB1

DCS-4602EV-VB1 - Overview

The D-Link DCS-4602EV-VB1 Vigilance 2 Megapixel H.265 Outdoor Dome Camera is a highdefinition professional surveillance solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/2.7" megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

High-Quality Streaming & Recording
To maximize bandwidth efficiency and improve image quality, the DCS-4602EV-VB1 provides real-time video compression using the H.265, H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. Video resolutions of up to 1920 x 1080 provide clear details, and noise reduction and support for simultaneous video streams improves quality in case forensic work is required for evidence. Additional support for motion detection, event management features, and ePTZ allow for implementation in a wide variety of surveillance applications such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Versatile Monitoring in All Environments
The DCS-4602EV-VB1's features WDR image enhancement to deliver improved image quality in conditions with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly-lit areas. In low-light situations, the IR-cut filter automatically slides out of the way to use all available light. The DCS-4602EV-VB1 also has built-in IR LED illuminators with a 20-meter range, allowing the camera to keep watch even in complete darkness. IP66 certification ensures the camera is completely protected from dust and water in any environment and IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera. These features work together to give you a reliable surveillance camera capable of monitoring indoors or outdoors 24/7.

Robust Management Software
The DCS-4602EV-VB1 Vigilance 2 Megapixel H.265 Outdoor Dome Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered upon motion detection or by digital input devices. This feature automatically keeps a record of any unusual activity and notifies administrators when no one is around to monitor on-site.

  • Features:

    • 1/2.7" megapixel progressive CMOS sensor
    • Full HD resolution of 1920 x 1080
    • Wide Dynamic Range (WDR) image enhancement
    • H.265, H.264, MJPEG codec support for streaming and recording
    • Motion detection
    • Built-in IR LED illuminator with a 20-meter/65 ft range for use in dark areas
    • Rugged IP66 weatherproof housing
    • IK10 vandal-proof housing to protect unit when mounted outdoors
    • 10/100 Fast Ethernet port with PoE
    • Power over Ethernet (PoE) ensures easy and flexible integration into your network
    • microSD card slot for onboard storage

  • Specifications:

    • Network Protocols
    • IPv6, IPv4, ARP, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP/HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP/RTSP/RTCP, IP filtering, Multicast, CoS, QoS/DSCP, SNMP, ONVIF compliant

      Security
    • Administrator and user group protection, Password authentication, HTTP and RTSP authentication

      Event Management
    • Motion detection, Tamper detection, Event notification and uploading of snapshots/video clips via e-mail or FTP, Supports multiple SMTP and FTP servers, Multiple event notifications, Multiple recording methods for easy backup

      Remote Management
    • Take snapshots/video clips and save to local hard drive, Configuration interface accessible via web browser

      System Requirements for Web Interface
    • Operating System: Microsoft Windows 10 / 8 / 7, Browser: Internet Explorer, Firefox, Chrome

      D-ViewCam™ System Requirements
    • Operating System:, 32-bit: Windows 8 / 7 (SP1), 64-bit: Windows 10 / 8 / 7 (SP1) / Server 2012 / Server 2008 R2, Web Browser: Internet Explorer 7 or higher, Protocol: Standard TCP/IP

      D-ViewCam™ Software Functions
    • Remote management/control of up to 32 cameras, Supports all management functions provided in web interface, Viewing of up to 32 cameras on one screen, Scheduled motion triggered, or manual recording options

      Camera Hardware Profile
    • 1/2.7" 2 Megapixel progressive CMOS sensor, 20 meter IR illumination distance, Minimum illumination:, 0.1 lux / F2.0 (color), 0.05 lux /F2.0 (B/W), 0 lux / F2.0 (IR-LED on), Built-in Infrared-Cut Removable (ICR) Filter module, 10x digital zoom, Minimum object distance 0.2M Focal length: 2.8 mm, Aperture: F2.0, Angle of view:, (H) 120°, (V) 66°, (D) 140°, Adjustment angle (non-motorized):, Vertical: 30~90°, Horizontal: -120~120°

      Camera Housing
    • IP66-compliant weatherproof housing, IK10 vandal-proof housing

      Image Features
    • Configurable image size, quality, frame rate, and bit rate, Configurable motion detection windows, Configurable privacy mask zones, Configurable shutter speed, brightness, saturation, contrast, sharpness and 3D filter., Auto White Balance (AWB), Auto Gain Control (AGC), Wide Dynamic Range (WDR), Time stamp and text overlays

      Video Compression
    • Simultaneous H.265/H.264/MJPEG format compression, H.265/H.264/MJPEG multicast streaming, JPEG for still images

      Video Resolution
    • 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps
    • 4:3 - 1600 x 1200, 1440 x 1080, 1280 x 960, 900 x 720, 800 x 600, 640 x 480 up to 30 fps

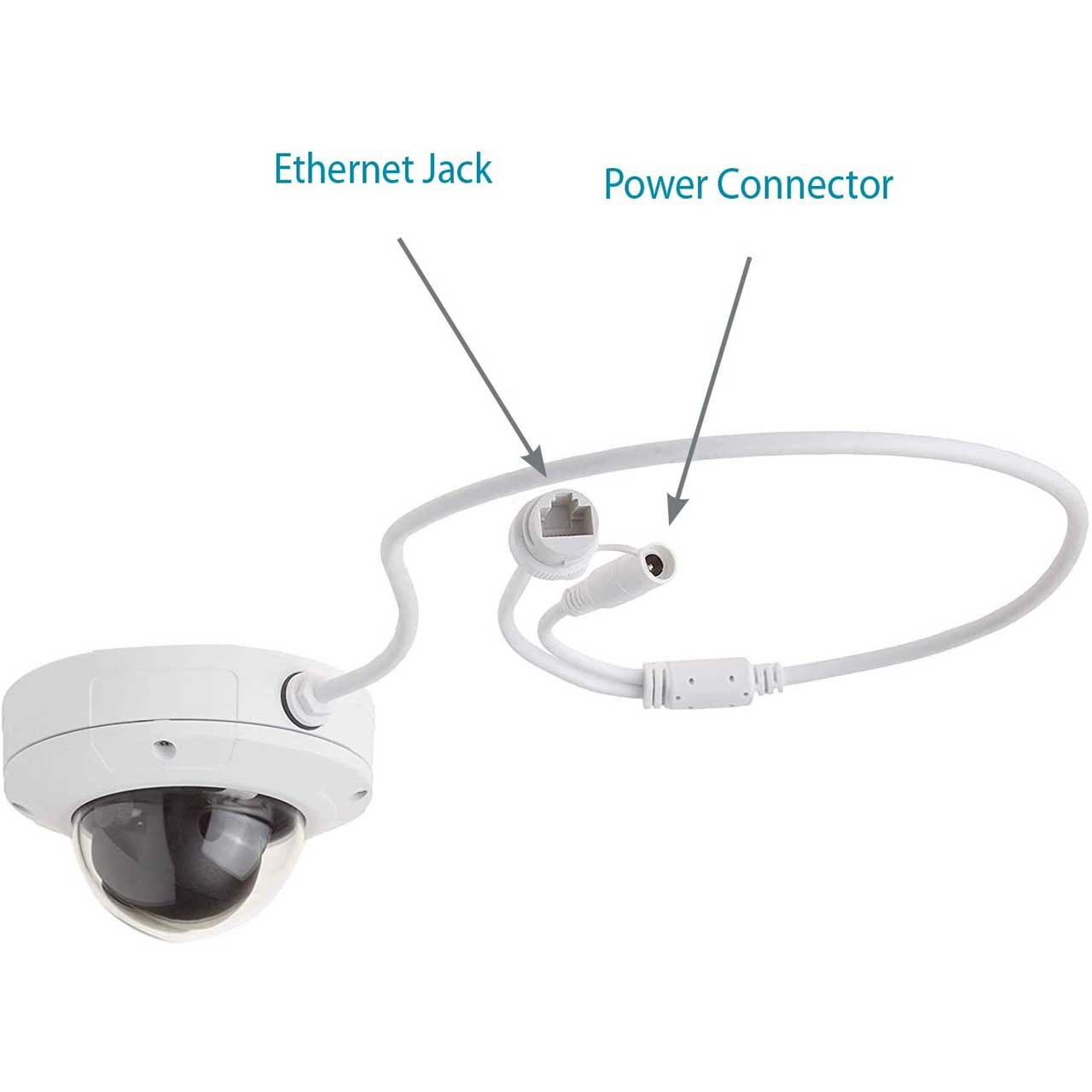

    • External Device Interfaces: 10/100 BASE-TX Fast Ethernet port, Supports 802.3af PoE Class 3
    • Weight: 365 g ± 5%
    • Power: Input: 100 to 240 V AC, 50/60 Hz, Output: 12 V DC 1.5 A
    • Power Consumption: 6.6 W ± 5% (PoE)
    • Temperature Operating: -30 to 50 °C (-22 to 124 °F), Storage: -20 to 70 °C (-4 to 158 °F)
    • Humidity Operating: 20% to 80% non-condensing, Storage: 5% to 95% non-condensing
    • Certifications: CE, CE LVD, FCC, RCM

  • Item Includes:

    • 1x D-Link DCS-4602EV-VB1 Vigilance 2 Megapixel H.265 Outdoor Dome Camera with Full HD Resolution 1920 x 1080

  • Warranty:

    • 5 Year Limited

  • GTIN:

    0790069441578
