MuxLab 500754 Video Wall HDMI over IP PoE Transmitter

ITEM #: MUX-500754-TX MFG #: 500754-TX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
MuxLab Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$561.00

Our Price:

$449.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

500754-TX - Overview

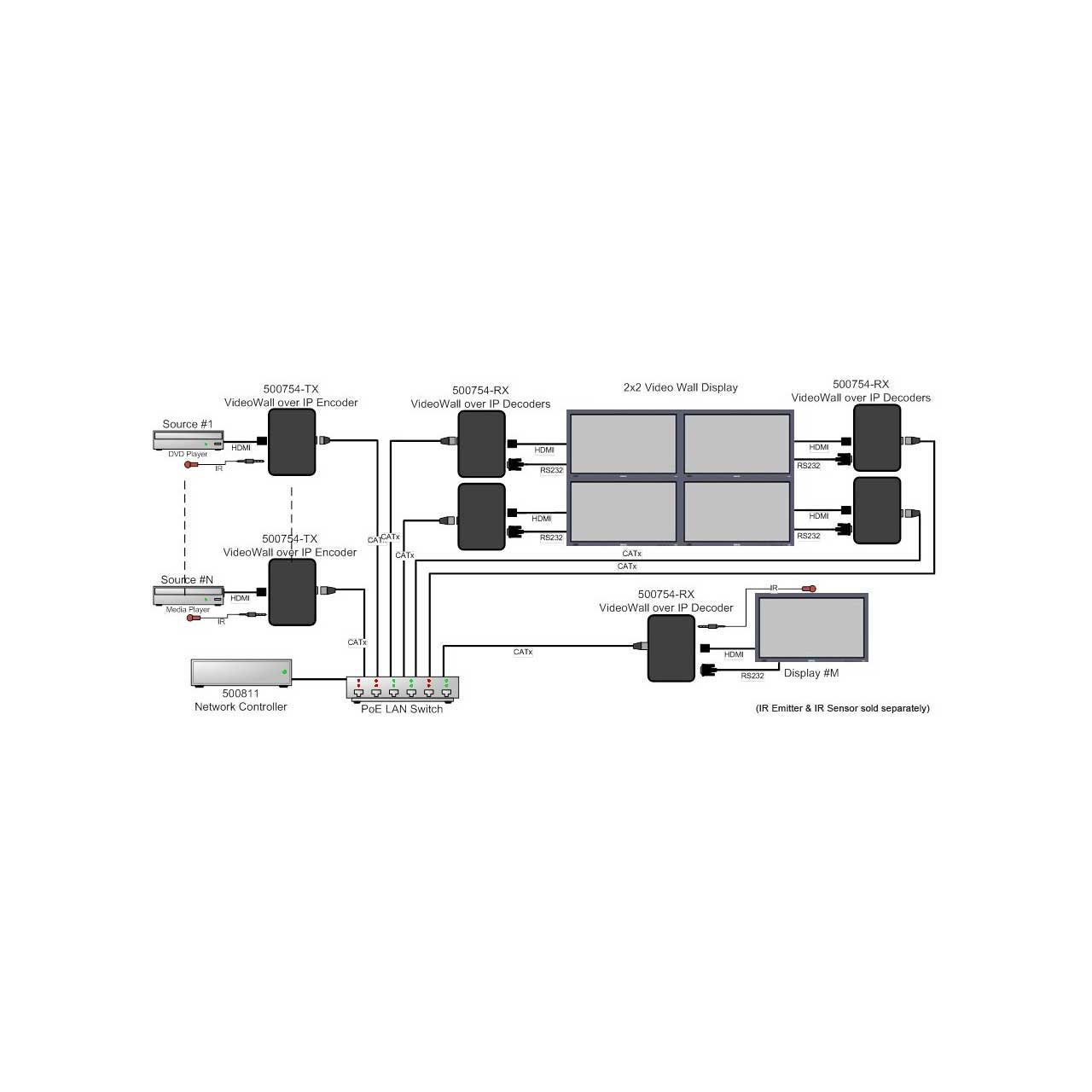

The HDMI over IP PoE Extender from MuxLab allows HDMI equipment to be connected to create a Video Wall of a user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one receiver for each display in the array.

The 500754-TX transmitter unit is connected using a LAN switch (PoE or non-PoE), with maximum distances of 330ft (100m) of Cat5e/6 cable between equipment.

Set-up and configuration of the video wall function is carried out using the MuxLab ProDigital Network Controller (500811) - sold separately.

Applications
Digital signage
Control room applications
Medical imagery
Retail
Hospitality / entertainment displays

  • Features:

    • Configure a Video Wall array with 100's of displays, depending on network bandwidth
    • HDMI 1.3
    • Supports up to 1080p resolutions
    • Visually lossless video (1 frame latency)
    • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
    • Transmission up to 330ft (100m) over Cat5e/6
    • Transmission up to 390ft (120m) between one (1) TX and one (1) RX when no LAN switch is used in a point-to-point scenario
    • Supports RS232 and IR transmission for remote control
    • PoE powered
    • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
    • Receivers also sold individually (500754-RX)


  • Specifications:

    • Environment: HDMI 1.3a
    • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
    • Video Wall: NxM video wall capabilities
    • Max. configuration: 100's of transmitters and receivers, depending on network bandwidth.
    • Transmission: Transparent to the user
    • Video Bandwidth: 225MHz
    • Signals: HDMI 1.3a protocol

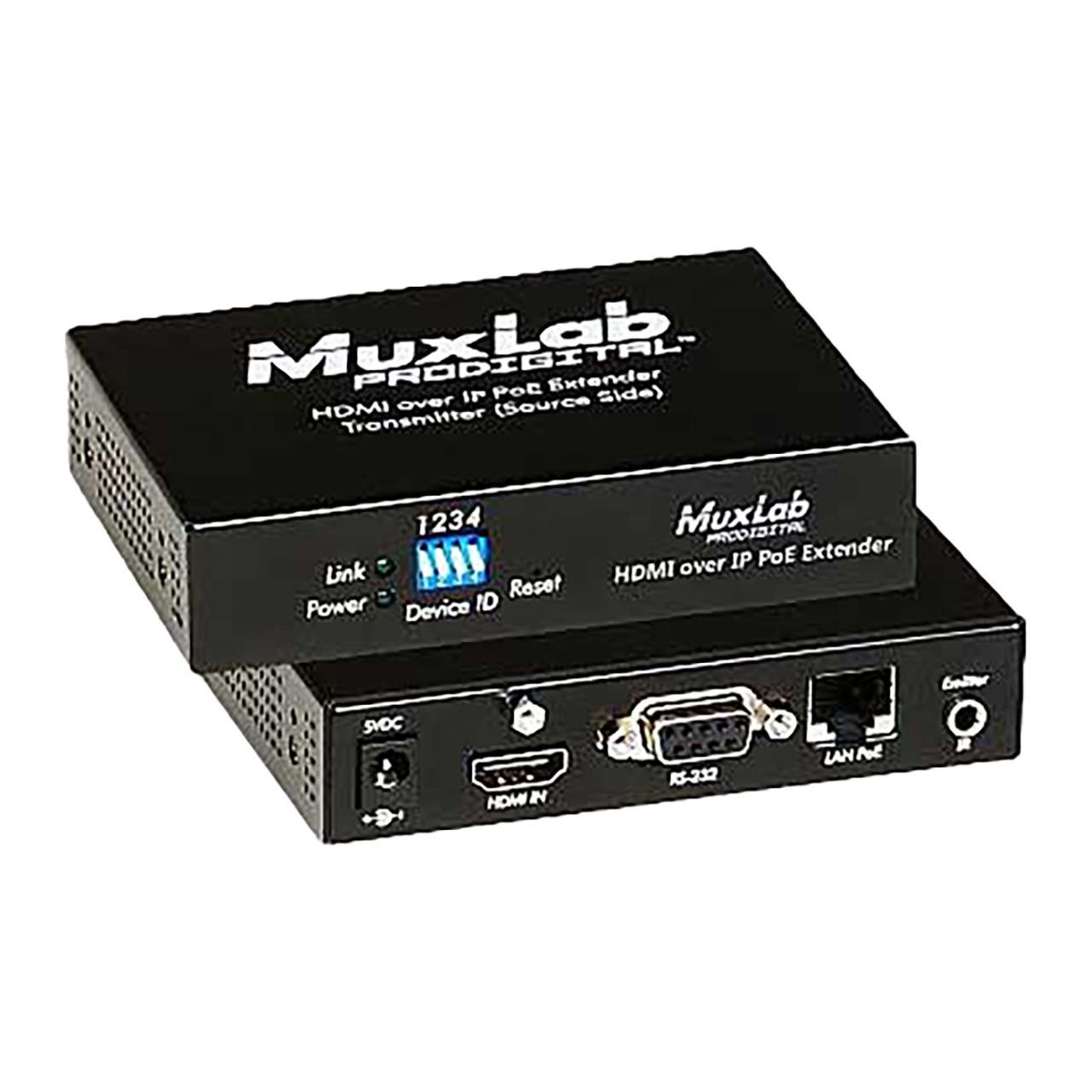

    • Connectors
      One (1) HDMI receptacle.
      One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      One (1) 3.5mm jacks for IR emitter/sensor.
      One (1) DB9 Serial Port Connector
      Four (4) DIP Switches for device ID addressing
      Note: HDMI cables not included
    • Maximum Distance: Cat5e/6: 330ft (100m) up to 1080p
    • Latency: One (1) Frame
    • Compression: Motion JPEG
    • Network Bandwidth: 60Mbps
    • Network Requirement: 100BaseT for Point to Point; 1000BaseT for other configuration
    • IR Frequency: 38 to 56KHz
    • Cable: One (1) Cat 5e/6 or better twisted pair cables required
    • PoE: IEEE 802.3af
    • Power Consumption: Transmitter: 2.9Watt Receiver: 1.8Watt
    • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
    • Humidity: Up to 95% non-condensing
    • Enclosure: Metal black
    • Dimensions: 4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5cm)
    • Weight: 1.1lbs (0.5kg)
    • Compliance Regulatory: FCC, CE, RoHS


  • Item Includes:

    • 1x MuxLab 500754-TX HDMI Over IP PoE Transmitter


  • Warranty:

    • 3 Years


  • GTIN:

    0627699907542
