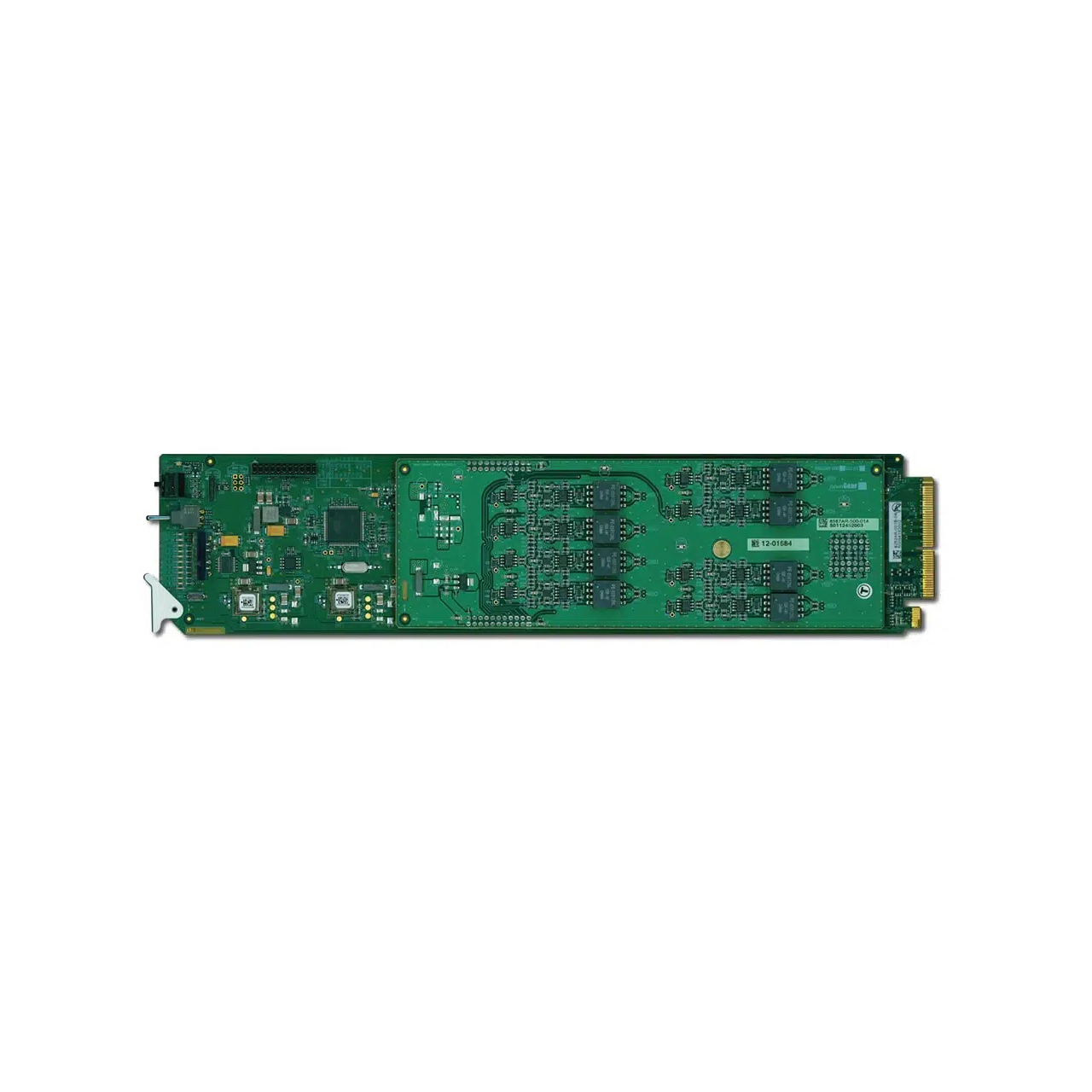

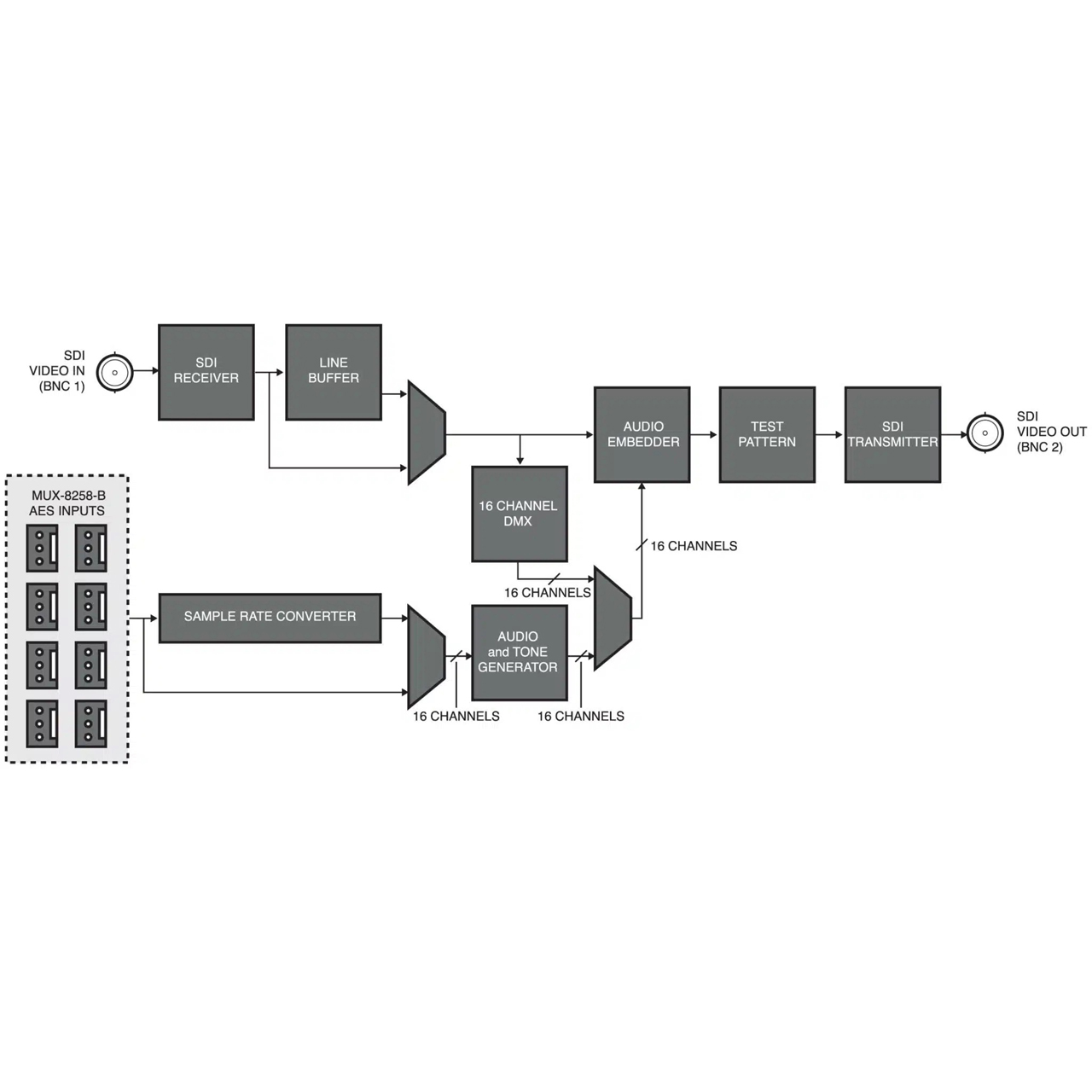

The Ross MUX-8258-B is a high quality program audio embedder capable of embedding up to 8 AES / EBU pairs (16 audio channels) into an 3G / HD / SD SDI signal. Audio proc amp control on each input allows for audio processing with independent channel sample rate conversions, gain of ±20dB, audio delay up to 1 second and channel phase invert and summing capability.
The MUX-8258-B is extremely flexible in handling channel assignments and channel re-mapping as well as fully configurable append and overwrite capability for existing channels. Various configuration options are available for backup scenarios should a loss of input occur.

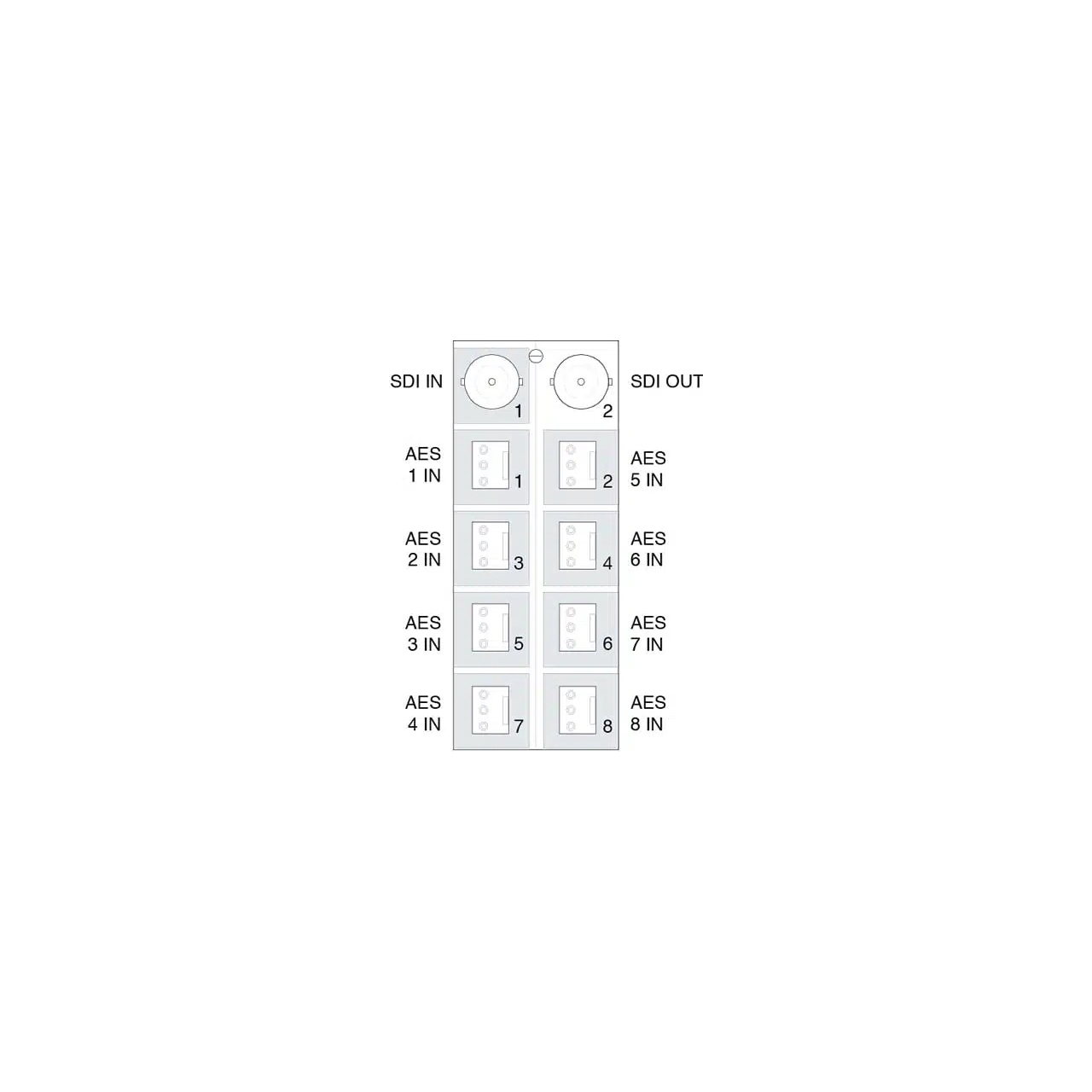

The MUX-8258-B features 8 AES 110Ω balanced inputs.
