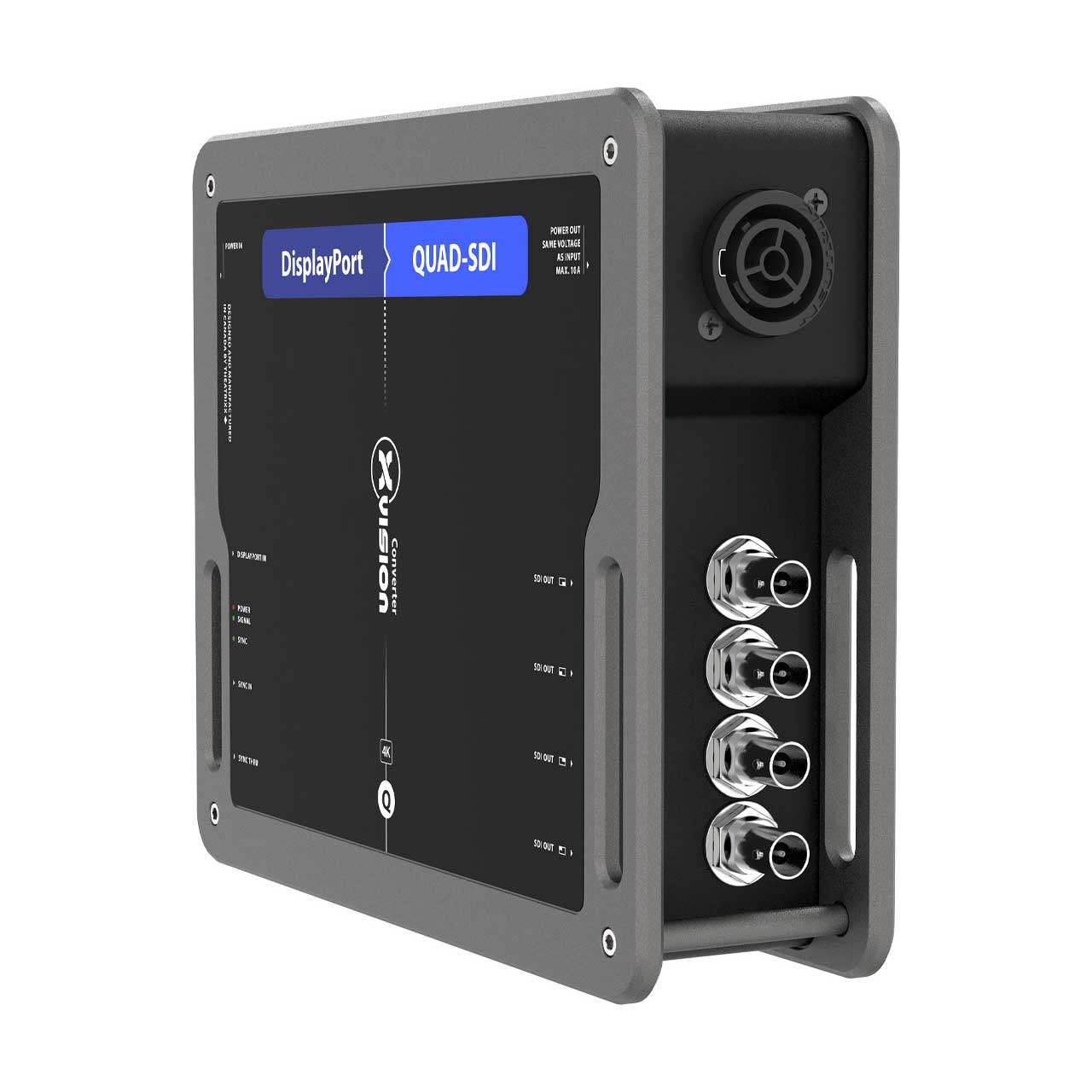

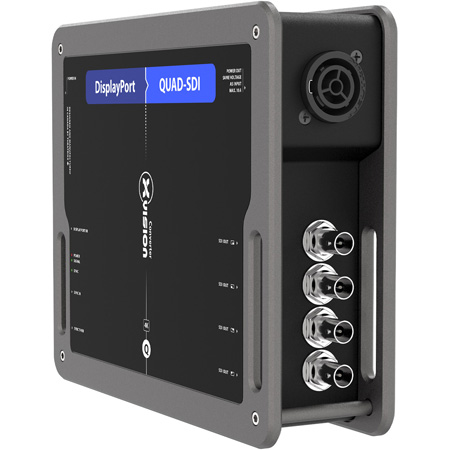

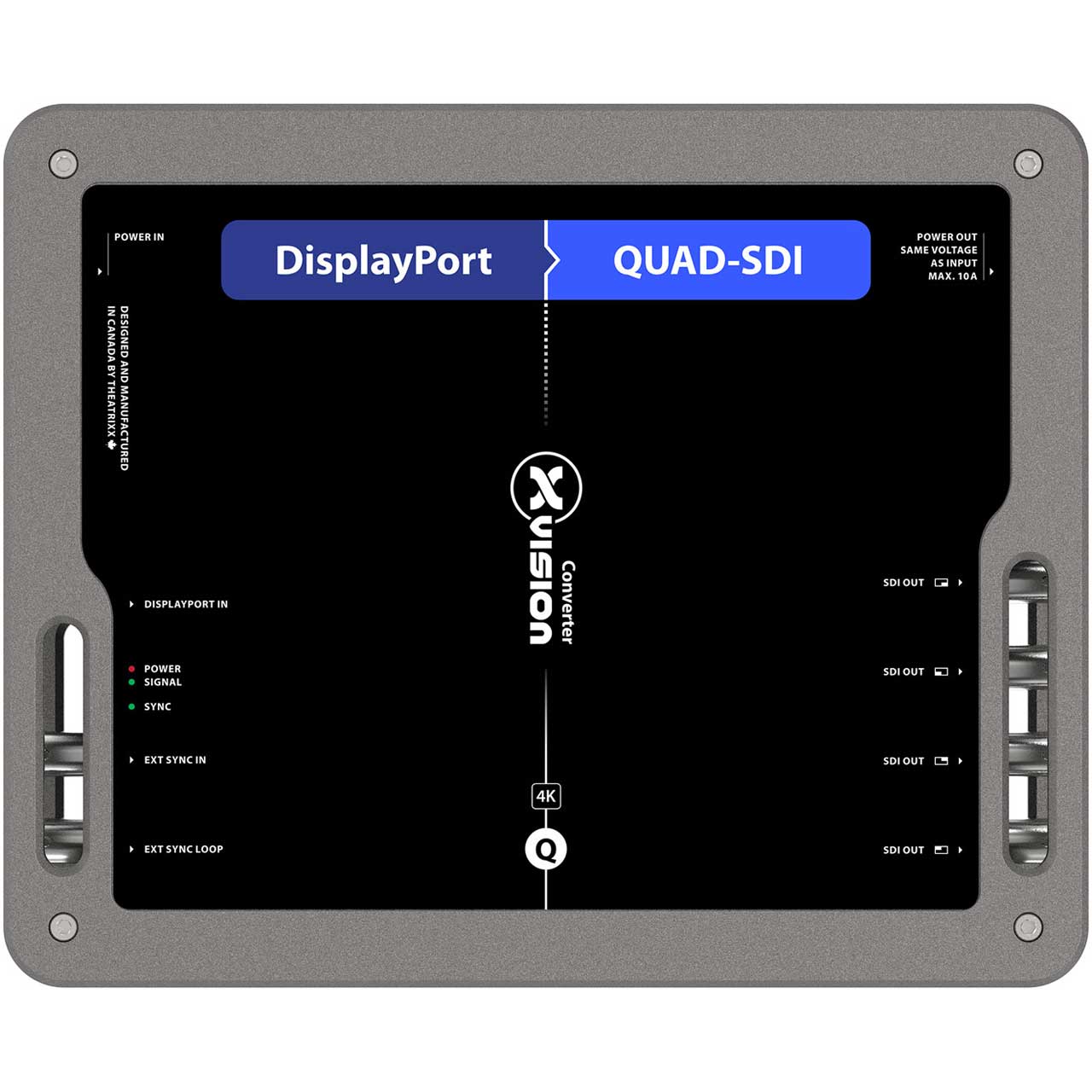

Theatrixx XVVDP2QSDI xVision Converter - DisplayPort to Quad 3G-SDI Converter - B-Sized

ITEM #: TTX-XVVDP2QSDI MFG #: XVVDP2QSDI

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,820.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XVVDP2QSDI - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world's first video converters truly designed for the road.

Video converters nowadays are used everywhere on profesional A/V events, presentations, live shows and tours and often have a critical role, yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVDP2QSDI xVision Video Converter.

  • Features:

    • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience 120 V outlet to power nearby projector, TV, laptop, small video projector. Power bar to power both the converter and device not required anymore.
    • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • Reclocked and amplified SDI loop thru
    • Proudly designed and assembled in Canada.

  • Specifications:

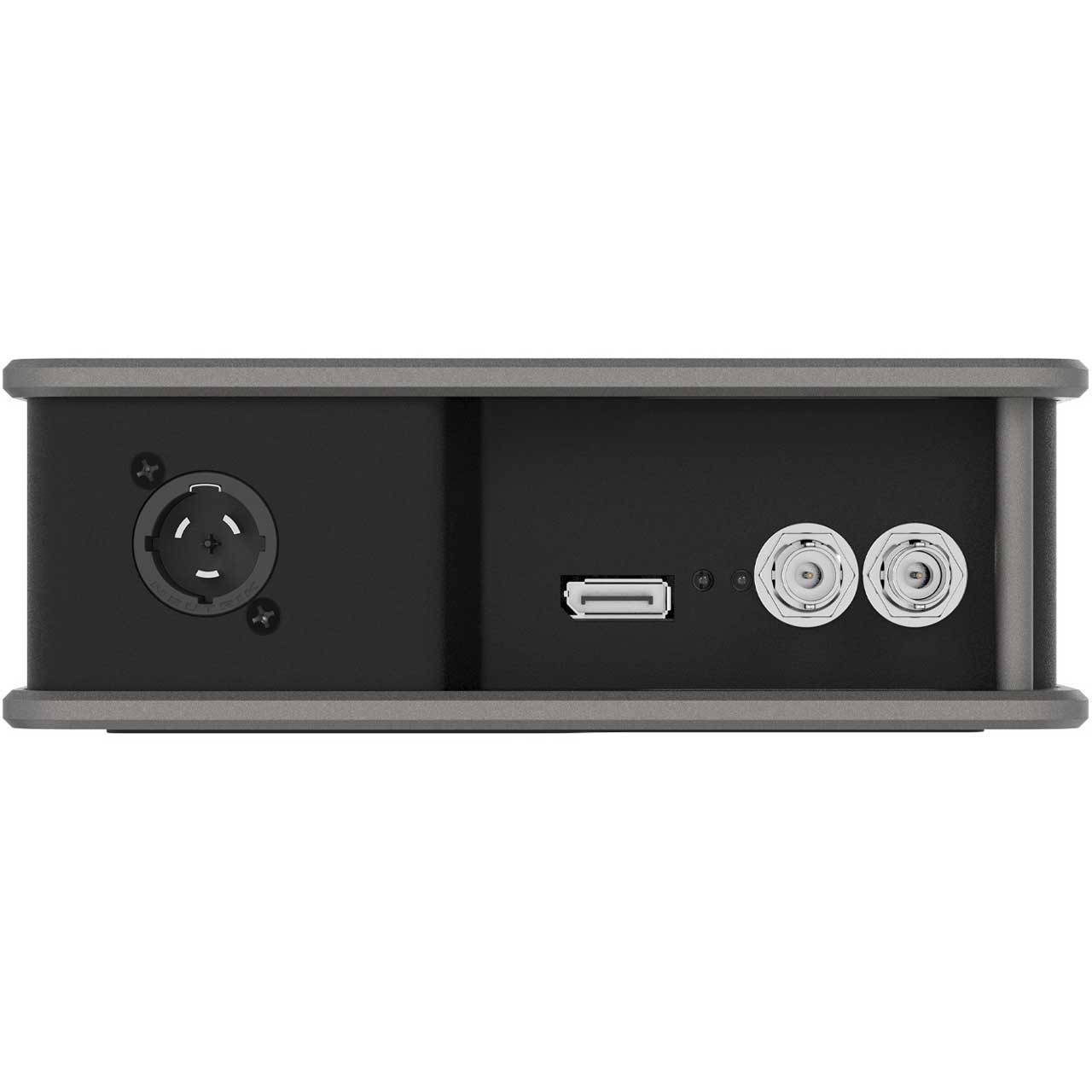

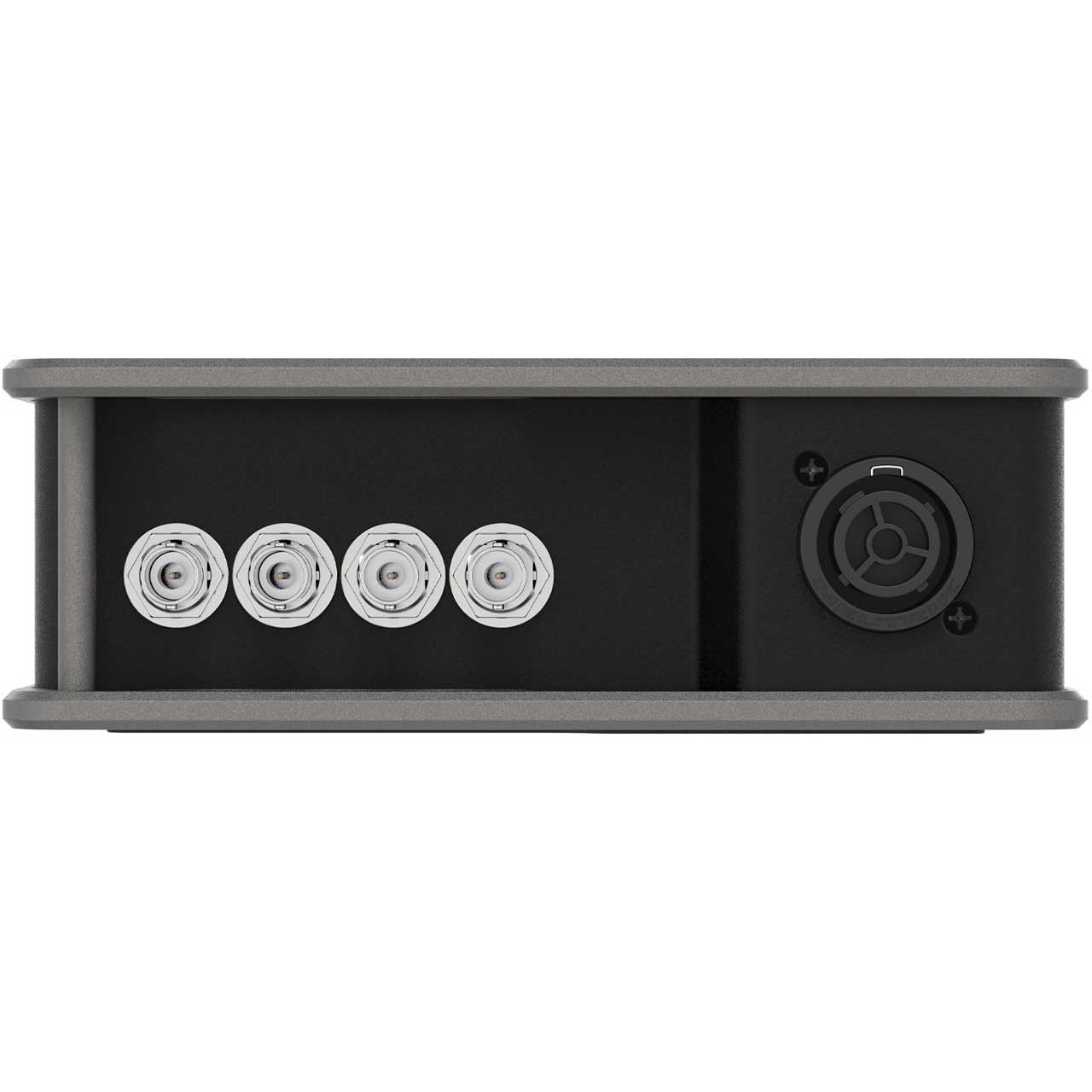

    • Connections
    • Video Input: 4 x DisplayPort 1.2
    • Video Loop-thru: 4 x Quad-link 3G-SDI BNC (16 BNC)
    • Video Output: Tri-level sync (BNC) with loop-thru

      Supported Signals
    • DisplayPort 1.2/HDMI 2.0 input: 4096x2160p @ 60/50 fps
    • 4K60P 4:4:4: 4096x2160p @ 30/25/24 fps, 3840x2160p @ 60/50 fps, 3840x2160p @ 30/25/24 fps, 1920x1080p @ 60/50 fps, 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps
    • Quad-Link 3G-SDI Out: 4096x2160p @ 60/50/30/25/24 fps
    • 4 x 1080P 4:2:2: 3840x2160p @ 60/50/30/25/24 fps
    • Embedded Audio: Up to 8 channels, 24 bit, 48 kHz
    • Default EDID: 3840x2160p @ 60 or 50 fps (selectable)
    • SMPTE Standards: ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M

      Physical
    • Height: 62 mm (2.44 in)
    • Depth: 180 mm (7.08 in)
    • Width: 221 mm (8.7 in)
    • Weight: 2 kg (4.4 lbs) Alt. form factor Also available in rackmount module (RM)

      Environmental
    • Operating temp.: 0-40° C
    • Relative Humidity: 0 % to 90 % RH non-condensing

      Power Requirements
    • Built-in power supply: PowerCON True1 in / loop thru
    • Power Consumption: 45 W max.
    • Operational Voltage Range: 100-240 V 50-60 Hz

  • Item Includes:

    • 1x xVision DisplayPort to Quad-SDI (True1)
    • 1x Power Cable
