Focusrite AMS-REDNET-HD32R 1RU 32x32 Pro Tools I/O Interface for Dante with Redundant Network & Power

REDNET-HD32R - Overview

• Features:

  • 32x32 Pro Tools | HD I/O for Dante audio-over-IP networks at up to 96kHz (16x16 at 192kHz)
  • Primary and Expansion DigiLink mini connections
  • Up to 24-bit, 192kHz sampling rates
  • AES67 compliant
  • Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
  • Word Clock and Loop Sync I/O for increased flexibility and integration with other Pro Tools HD hardware
  • Comprehensive remote control and remote signal metering through RedNet Control
  • Brainworx bx_console Focusrite - exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.


• Specifications:

  • Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
  • Clock Sources: Internal, Word Clock, Loop Sync (master or slave) or from Dante Network Master
  • External Word Clock Range: Nominal sample rate ±7.5
  • Channel Count: 32x32 at up to 96kHz sampling rate, 16x16 at 176.4 and 192kHz

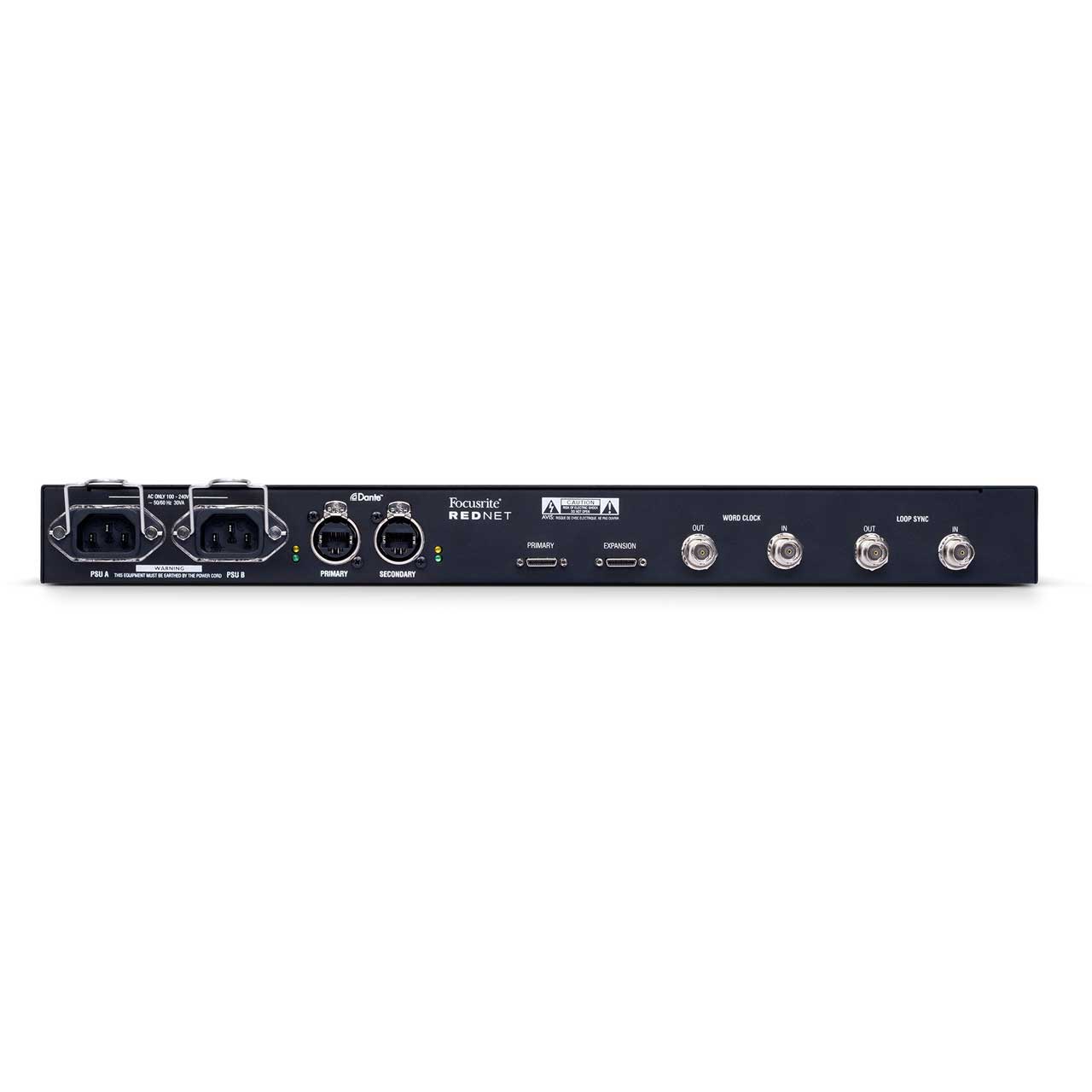

    Rear Panel Connectivity
  • Primary Port: 1x Mini DigiLink
  • Expansion Port: 1x Mini DigiLink
  • Word Clock Input: 1x BNC 75Ω port (switchable termination)
  • Word Clock Output: 1x BNC 75Ω port
  • PSU: 2x IEC Inputs with retaining clips
  • Network: 2x etherCON NE8FBH-S, also compatible with standard RJ45 connectors

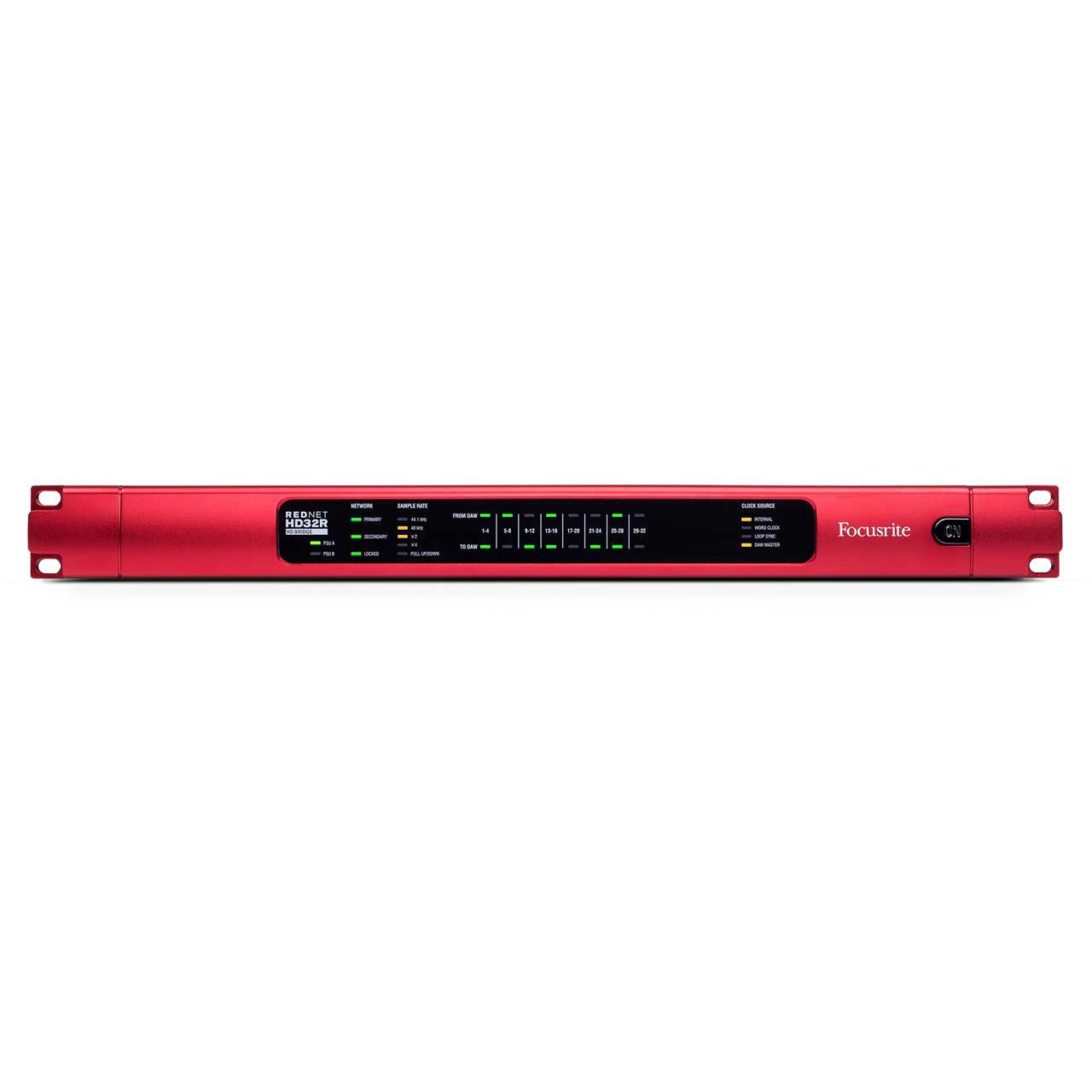

    Front Panel Indicators
  • Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present
  • Primary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
  • Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
  • Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
  • Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master
  • Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
  • Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
  • Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS
  • Clock Source: Orange LED for each: Internal, Word Clock, Loop Sync and DAW Master

    Network Modes
  • Redundant: Allows unit to connect two independent networks
  • Switched: Connects both ports to integrated network switch allowing daisy-chaining of device

    Dimensions
  • Height: 44.5mm/ 1.75"
  • Width: 482.6mm/ 19"
  • Depth: 263mm/ 10.35"

    Weight
  • Weight: 3.9kg / 9.72lbs

    Power
  • Power PSU
  • 2 x Internal, 100-240V, 50/60Hz, consumption 30VA

    Operating Temperature
  • Operates at up to an ambient temperature of 50 degrees Celcius


• Item Includes:

  • 1x RedNet HD32R
  • 2x IEC power cables
  • 2x IEC power cable retaining clips
  • 1x Getting Started Guide
  • 1x Safety Information Guide
  • 1x Registration card giving access to online resources
