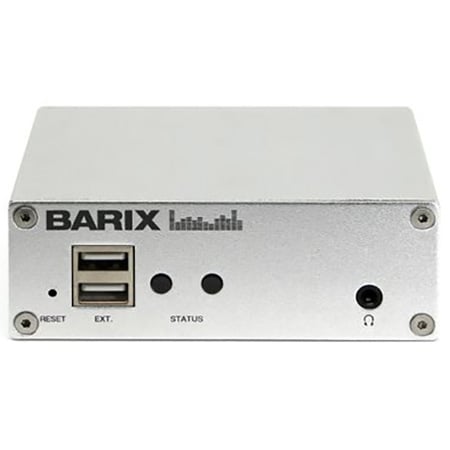

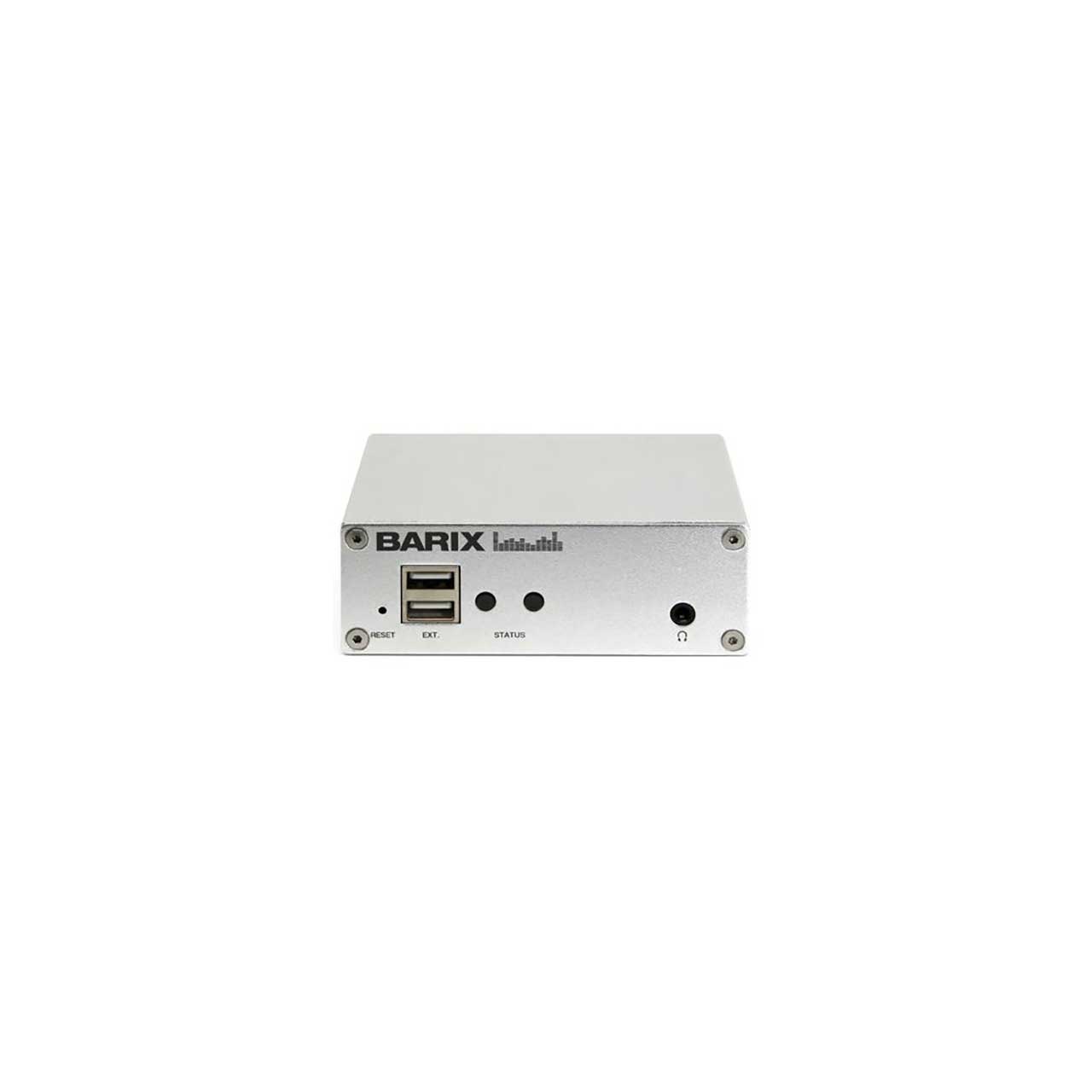

Barix M400 SIP OPUS Encoder / Decoder

ITEM #: BARIX-EXST-M400 MFG #: 2019.9264

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$360.00

Our Price:

$315.00

Availability: In Stock
iAvailability Description Popup


2019.9264 - Overview

M400 SIP Opus Enc/Dec
The Barix M400 allows to establish a link between devices using standard SIP protocol in peer-to-peer mode or through a SIP server. The unit provides an Opus encoded stereo link with line audio input or output. It also supports USB sound devices. Other common VoIP codecs including G.711 and G.722 are supported. This makes the BARIX M400 SIP Opus Encoder/Decoder the ideal product for high quality audio distribution or contribution in a SIP based environment.

Thanks to the priority handler, the M400 can be configured to switch between sources according to on of five priority settings and therefore eliminates the need for an audio matrix device. The M400 is a solid metal device, compact and easily installed. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.

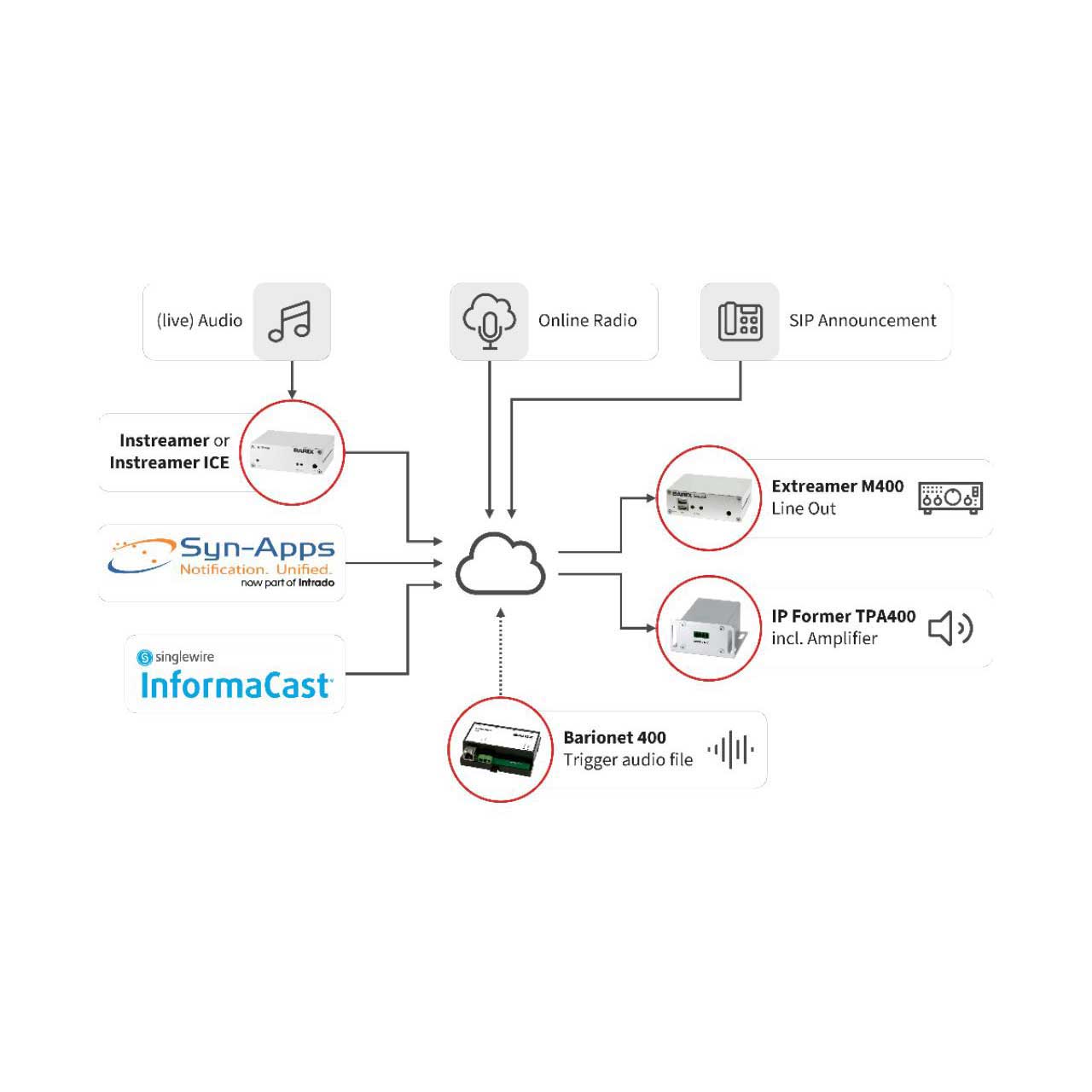

Applications
-SIP and IP Paging / Notification
-Background music
-Emergency triggered message playout
-Singlewire InformaCast integration
-Syn-Apps Revolution integration

  • Features:

    • Stereo Opus, G.711, G.722 encoding and decoding
    • Line level input/output
    • USB sound card support
    • SNMP support (v2)

  • Specifications:

    • Operation System
    • Embedded Linux based on Yocto

      Network Interfaces
    • 1 x Ethernet (RJ45) Interface
    • IPv4, IPv6 capable
    • 10/100 fdx/hdx, auto negotiation

    • Protocols
    • TCP/IP, UDP, RTP, SIP, CGI, HTTP, DHCP
    • Singlewire InformaCast compatibility
    • Syn-Apps Revolution compatibility

      Audio Interface

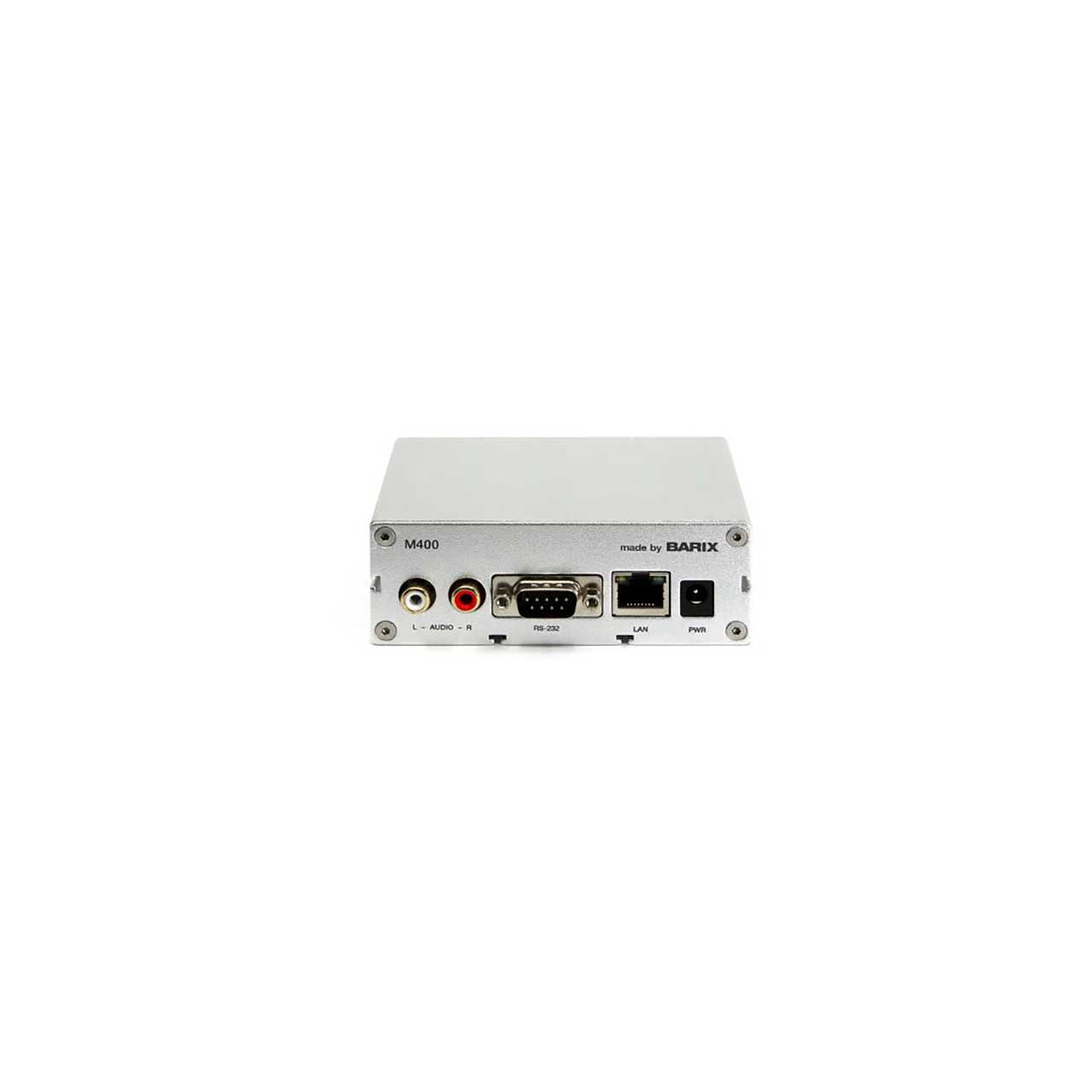

    • unbalanced L-R Line level output on RCA connectors
    • Headphone connector on the front panel

      Audio Formats
    • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
    • AAC-HE (AAC, AAC plus, AAC plus V2)
    • PCM linear 16bit @44.1 kHz
    • 711
    • Opus

    • RS-232 Interface: Serial Port

      CPU / Memory
    • Barix IPAM400 Processor Module
    • Quad-Core ARM CortexT -A7
    • 2GB DDR3 SDRAM
    • 16MB SPI Flash
    • 8GB SD-Card Flash

    • User Interface: Web interface for configuration, 2 x Multicolor LED Status indicators, Reset & Factory Defaults Button
    • Power Requirements: 5VDC, 10W maximum on 6.5x1.5mm barrel connector (positive polarity)
    • MTBF: > 200'000h
    • Measurement: 7mm (4.25x1.5x3.1 inch
    • Weight: 250g

  • Item Includes:

    • 1x Barix M400 SIP Opus Enc/Dec

  • Warranty:

    • Two years
