Belden 4694RMBUHD3 3-Piece 12 GHz RG-6 Micro BNC Crimp Connector - Each

ITEM #: BL-4694RMBUHD3 MFG #: 4694RMBUHD3

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$10.65

Our Price:

$9.93

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4694RMBUHD3 - Overview

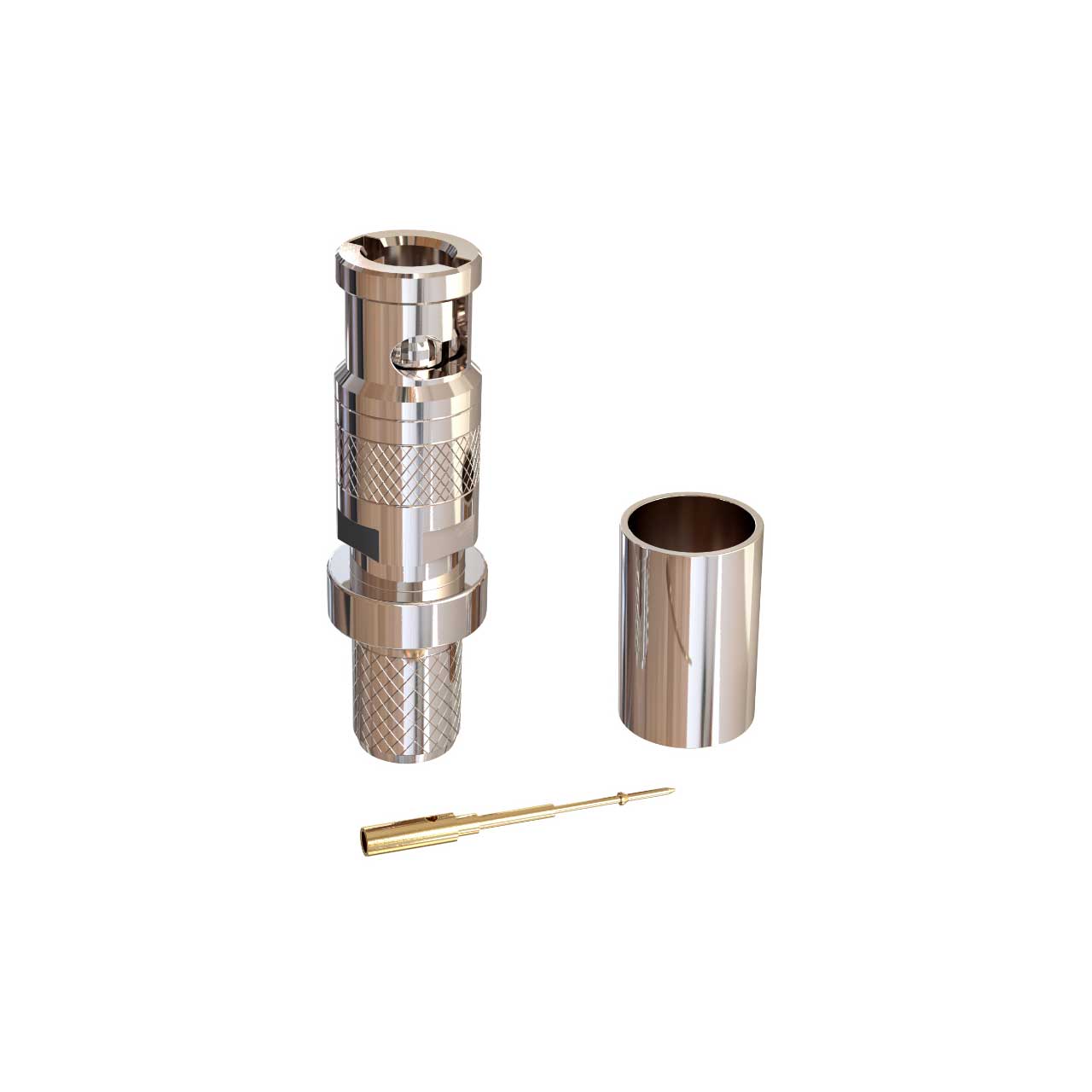

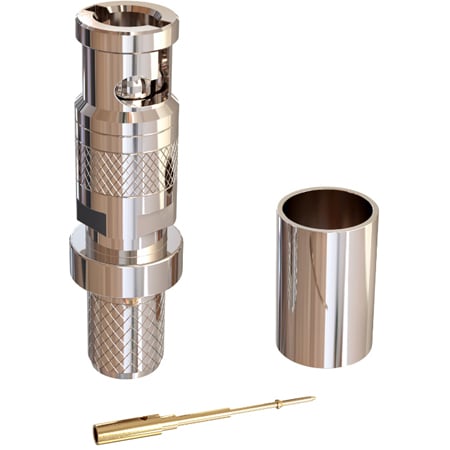

Belden 4694RMBUHD3 is a 3-Piece, 12 GHz, RG-6, Micro BNC Crimp Connector created for Belden 4694R cable.

Applications
HD-SDI
UHD-SDI
Video
Digital Video
SMPTE 2082-1 12 Gb/s UHDTV
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Specifications:

    • Number of Pieces: 3
    • Electrical Characteristics Notes: SMPTE 2082-1 Return Loss or better
    • Footprint/Type: Coax
    • Connector Interface Type: Micro BNC
    • Gender: Male - plug
    • Connector Series Name: UHD
    • Locking: No
    • Tool Compatibility: BB3PHCT (crimp) & BB3PHCTD6 (crimp)
    • Termination Type: Crimp
    • Cable Center Conductor Diameter Limits: 0.3740 - 0.0401 in
    • Cable Dielectric Diameter Limits: 0.1771 - 0.1870 in
    • Cable Outer Jacket Diameter Limits: 0.2657 - 0.2795 in
    • Environmental Space: Indoor


  • Item Includes:

    • 1x Belden 4694RMBUHD3 3-Piece 12 GHz RG-6 Micro BNC Crimp Connector - Each


  • GTIN:

    0612825489177
