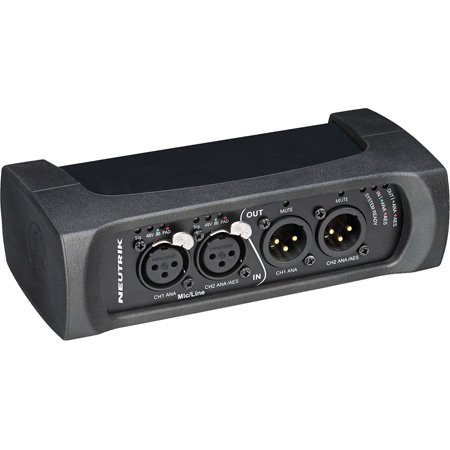

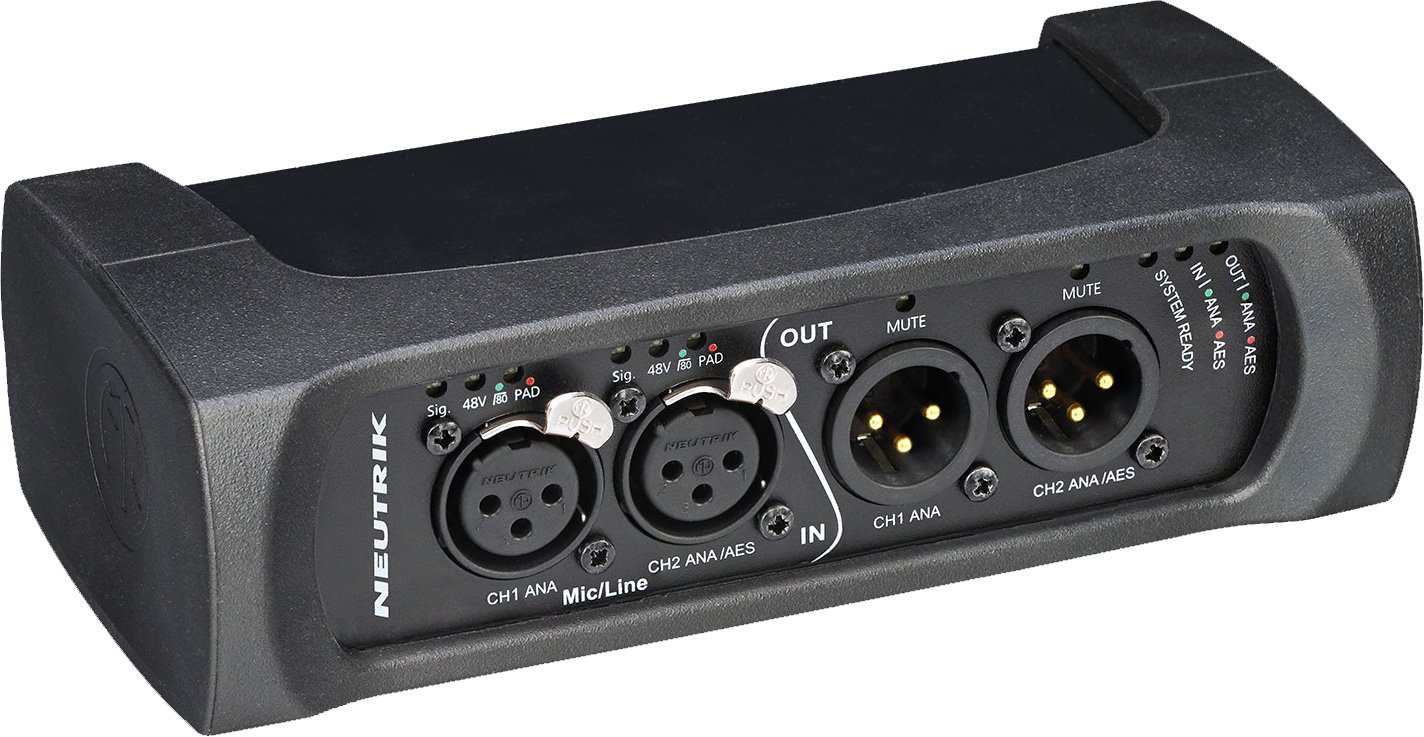

Neutrik NA2-IO-DPRO Bi-Directional Dante Audio Interface/Breakout Box 2-In 2-Out

NA2-IO-DPRO - Overview

• Features:

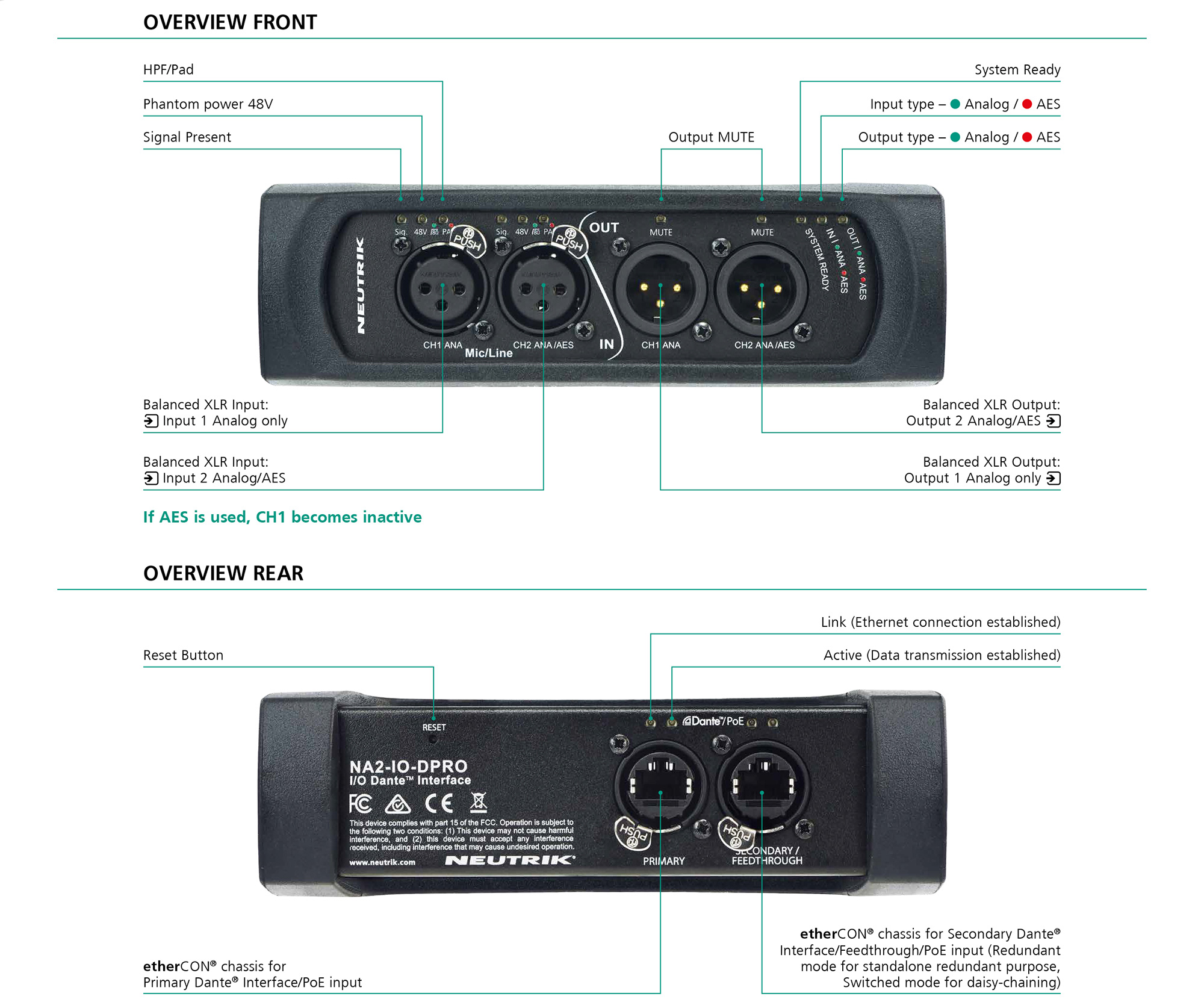

  • Lockable audio and network connections
  • Connect up to two analog line or mic signals to a Dante® network
  • Connect AES/EBU signals to a Dante® network and provide an AES/EBU signal from the Dante® network
  • Feed non Dante® ready amplifiers, speakers or mixing desks with signals from the Dante® network
  • Primary and Secondary Dante® ports
  • Audio parameter control via DPRO controller software
  • Different mounting options (rack, floorbox, table mounting)
  • PLEASE NOTE! Requires a Power over Ethernet switch or a PoE injector (802.3 af/at - class 2 or no classification at 6 W)


• Specifications:

  • General Specifications
  • Channel:
    2 Input (Line, Mic, AES/EBU)
    2 Output (Line Level, AES/EBU)
  • Supported Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz
  • Bit Depth: 16, 24 and 32 bit
  • Latency: based on user selection; min. 0,25 ms (Dante®)
  • Ethernet Connection: 1.000 BASE-T (supporting PoE)

    Electrical Data
  • Power Consumption: <6 Watt
  • Power Supply: PoE (Power over Ethernet) switch or PoE midspan power injector (according to IEEE 802.3af/at, class 2 or no classification at 6W)
  • Analog Input:
    Equivalent Input Noise: -128dBu (67dB Gain); A-Weighted
    Gain Hub (3dB Steps): 0 - 67dB
    Max. Input Level: +24dBu (PAD enabled) + 8dBu (PAD disabled)
    Input Impedance: >7.5kΩ balanced
    Frequency Response: 20 Hz to 20 kHz (± 0.5dB)
  • Analog Output:
    Max. Output Level: +24dBu
    Output Impedance: < 50Ω balanced
    Residual Output Noise: -88dBu, A-Weighted
    Frequency Response: 20Hz to 20kHz (±0.5dB)
  • THD+N: < 0.005% (20Hz to 20kHz, +4dBu)
  • Dynamic Range: >112dB, BW 22.4kHz, A-Weighted (Input Gain = min.)
  • SNR: > 112dB, BW 22.4kHz, A-Weighted
  • Crosstalk: - 100dB, adjacent Input / Output channels (Input Gain = min.)
  • THD+N: < 0.005% (20Hz to 20kHz, +4dBu)
  • Dynamic Range: > 112dB, BW 22.4kHz, A-Weighted
  • SNR: > 112dB, BW 22.4kHz, A-Weighted
  • Crosstalk: - 100dB, adjacent Input / Output channels, Input Gain = Min.

    Mechanical
  • Dimensions (LxWxH):
    With Rubber Protection: 6.4 x 3.2 x 2" (164 x 82 x 51mm)
    Without Rubber Protection: 5.9 x 2.6 x 1.6" (151 x 66 x 41mm)
  • Weight: 1.17Lbs (.53kg)


• GTIN:

  7613187012952
