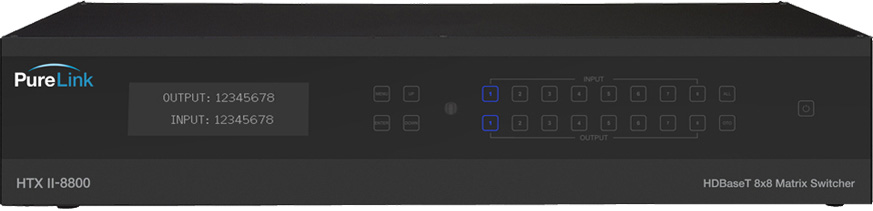

PureLink HTX II-8800 HDTools 8x8 4K/60 4:4:4 - HDMI 2.0b - HDCP 2.2 HDMI to HDBaseT Matrix Switcher with PoE

HTX II-8800 - Overview

• Features:

  • HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, and DVI compliant
  • (8) HDMI inputs, (6) HDBaseTTM outputs, and (2) independent HDMI outputs
  • Supports resolutions up to 4K@60HZ (4:4:4) on all HDMI ports
  • Supports automatic 4K@60Hz (4:4:4) to 4K@60Hz (4:2:0) conversion for all HDBaseT outputs
  • Supports distances up to 330 ft. (100 m) via CATx
  • Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and
  • DTS-HD Master Audio)
  • Built-in independent audio matrix with Volume, Mute, and Audio delay for lip-sync adjustment (LPCM only)
  • HDR, ARC, CEC and smart EDID management supported
  • 24V PoE on all HDBaseT ports
  • Control via on-panel Button, IR, RS-232, LAN and Web GUI
  • 2U rack-mounted design with aluminum front panel housing


• Specifications:

  • Hardware
  • Input Signal Type(s): HDMI
  • Output Signal Type(s): HDBaseT, HDMI

    Performance
  • Supported Resolutions: up to 4K@50/60Hz (4:4:4)
  • Data Transfer Rate: 18 Gbps
  • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 8-bit 10-bit 12-bit
  • Compliance: HDMI 2.0/1.4, HDCP 2.2
  • Supported HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Supported Audio Formats: PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit
  • RS-232: Yes
  • IR Extension: Yes
  • LAN: Yes
  • Control Options: Front panel; web UI
  • Power Consumption: 85 Watts (max)
  • Power Supply: 100-240VAC 50/60Hz
  • PoE (Power Over Ethernet): Enabled on all HDBaseT outputs
  • Operating Temperature: 32° ~ 104 F (0° to 40° C)
  • Storage Temperature: -4° ~ 140° F (-20° to 60° C)
  • Relative Humidity: 20 ~ 90% non-condensing
  • MTBF: 50,000 hours
  • Rack Mounting Option: Standard 19 inch rack-mountable design

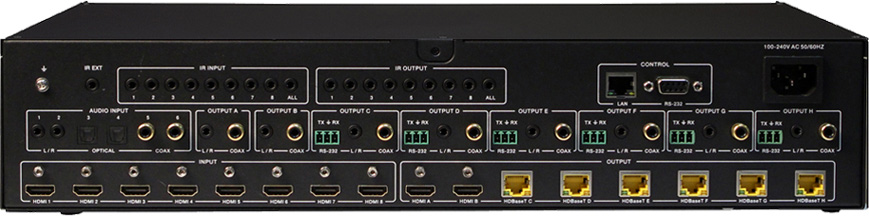

    Connections
  • Input Type(s): (8) HDMI Type A [19-pin female], (10) IR In [3.5mm Stereo mini-jack], (6) RS-232 [Phoenix jack], (1) Ethernet [RJ45], (1) RS-232 [DB9], (2) L/R Audio In [3.5mm Stereo mini-jack], (2) Optical Audio In [S/PDIF], (2) Coaxial Audio In [RCA]
  • Output Type(s): (2) HDMI Type A [19-pin female], (9) IR Out [3.5mm Stereo mini-jack], (8) L/R Audio Out [3.5mm Stereo mini-jack], (8) Coaxial Audio Out [RCA], (6) HDBaseT Out [RJ45]

    Enclosure
  • Enclosure Type: All metal, black powder coat finish
  • Rack Mounting Option: Standard 19 inch rack-mountable design
  • Product Dimensions: 19" x 14.7" x 3.49"
  • Product Weight: 14.77 lbs.

    Warranty
  • Warranty: Limited Warranty (3-Years)


• Warranty:

  • Limited Warranty (3-Years)
